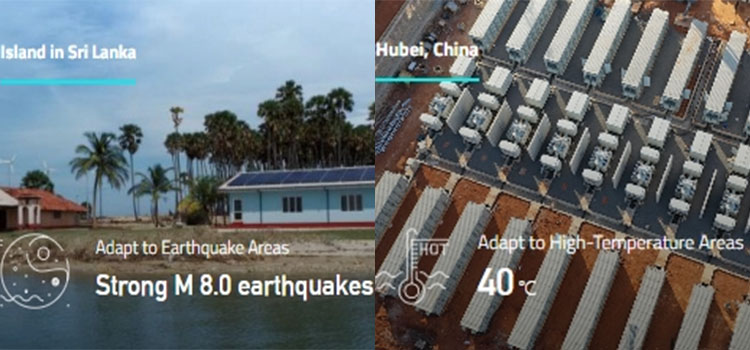

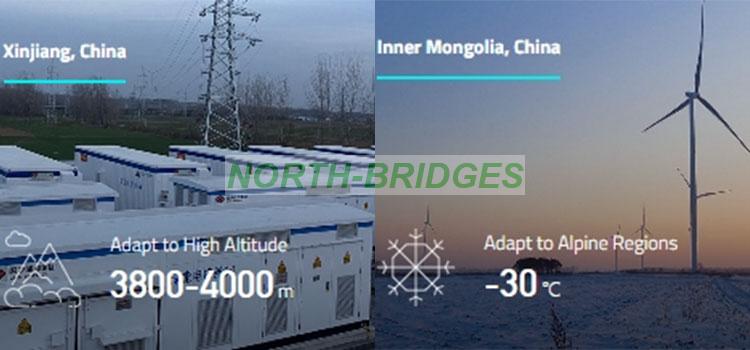

ENVIRONMENTAL ADAPTABILITY

UNDER FULL SCENARIO

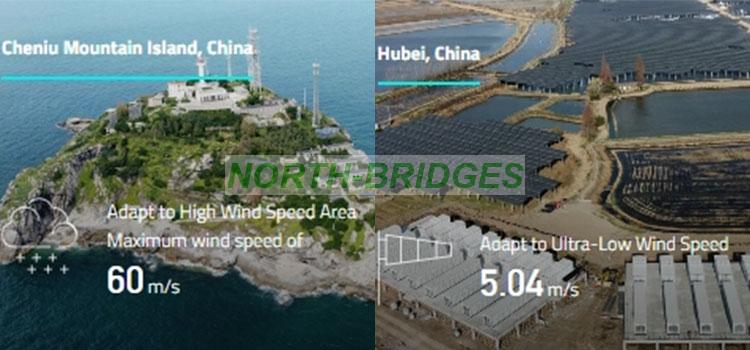

Based on the on-site environmental conditions and customized requirements of specific projects, energy storage system should fully consider the environmental characteristics of the project site (such as temperature, humidity, altitude) and demand characteristics. Through adjusting material differentiation and optional equipment, energy storage system should deeply match the environmental characteristics and maximize the potential, so as to maximize customer benefits.

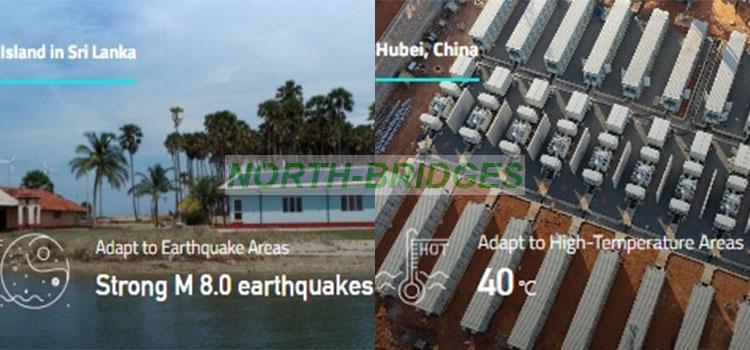

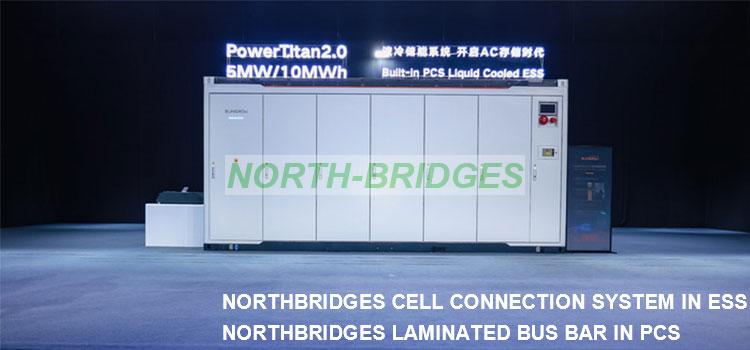

Hereafter are pictures of ESS mass production projects for your reference.

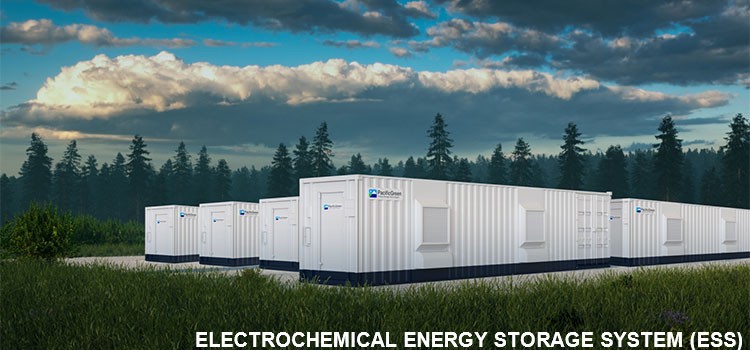

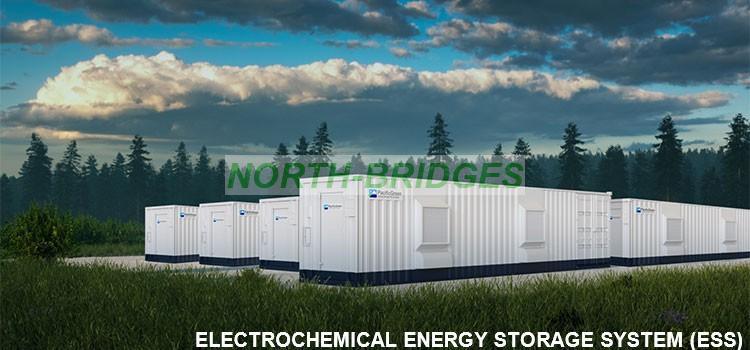

NORTHBRIDGES bus bar and CCS in

electrochemical Energy Storage System

NORTHBRIDGES pioneered introducing Solar power, Wind power and Energy Storage industries. Both our laminated bus bar and cell connection system have been successfully used on many key projects in series production.

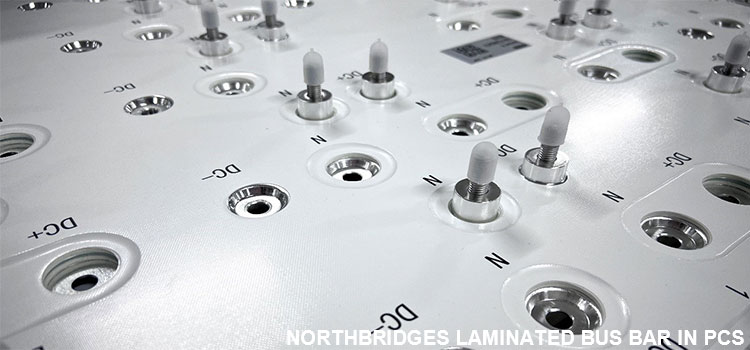

LBB for wind converter, wind motor driver, PV inverter and PCS (abbreviation of Power Conversion System) solution

- Compact, easy installation

- Low inductance, superior performance

- Higher current carrying capacity

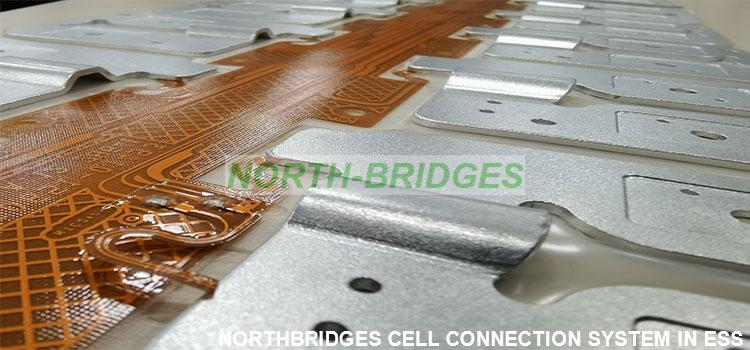

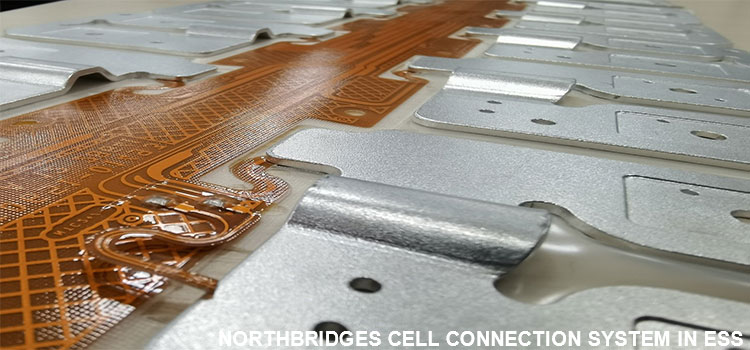

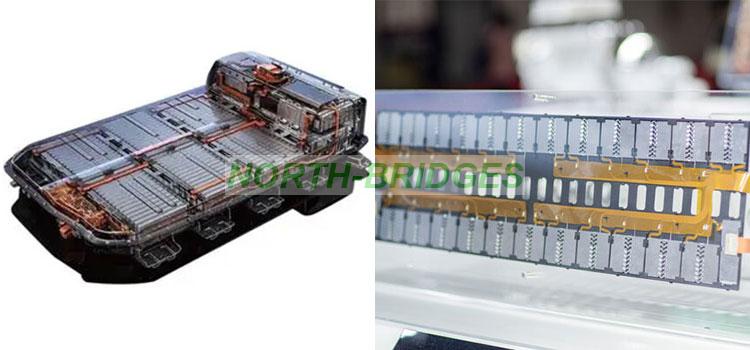

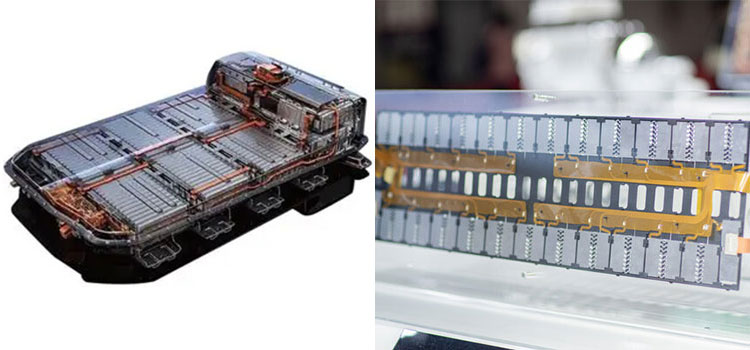

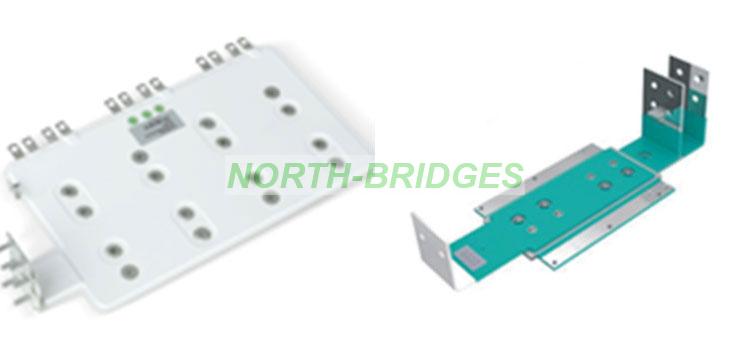

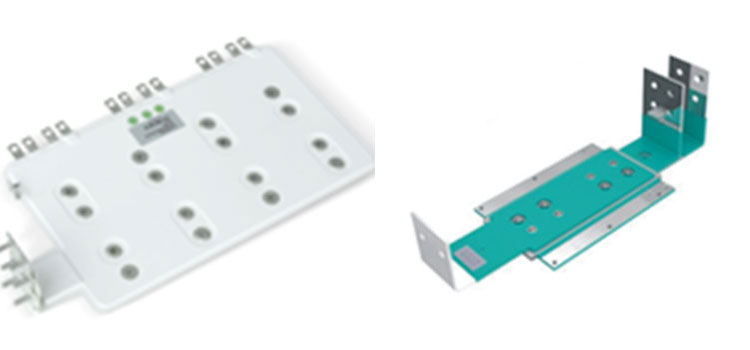

CCS (abbreviation of Cell Connection System) for ESS

- Strong anti-aging capabilities, longer product life

- FCC solution has good signal acquisition as an alternative of FPC.

- Higher current carrying capacity

- Max size CCS: 2000 mm x 500 mm

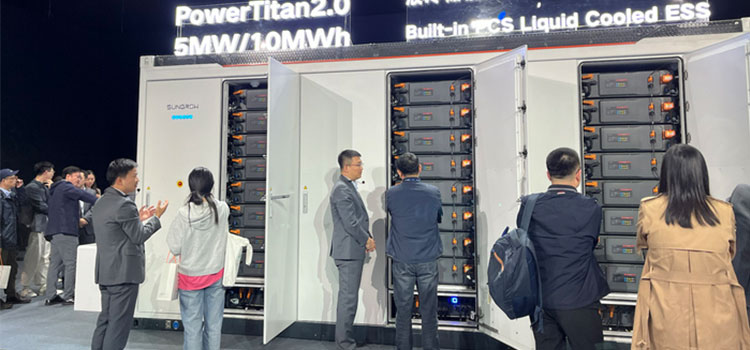

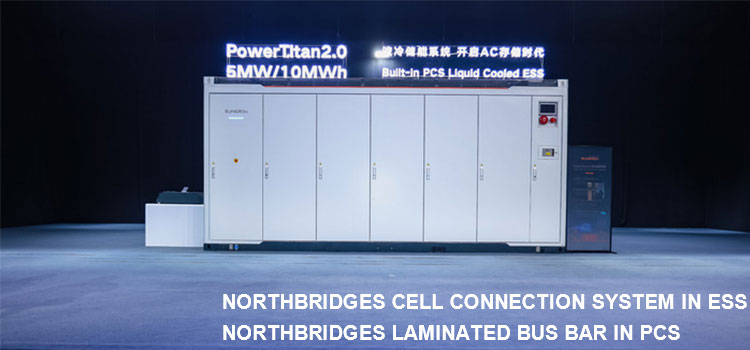

Bus Bar and CCS in PV ESS

PV ESS is abbreviation of Photovoltaic Energy Storage System.

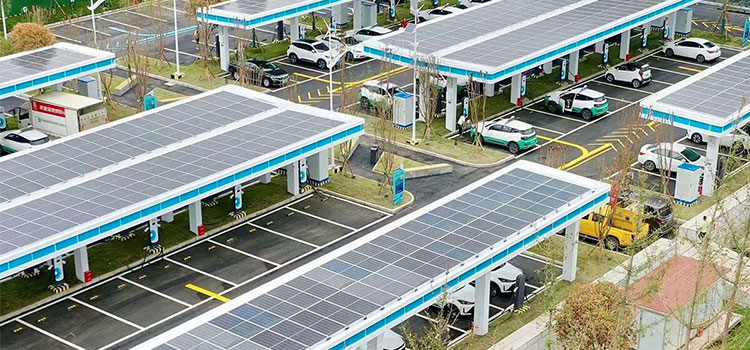

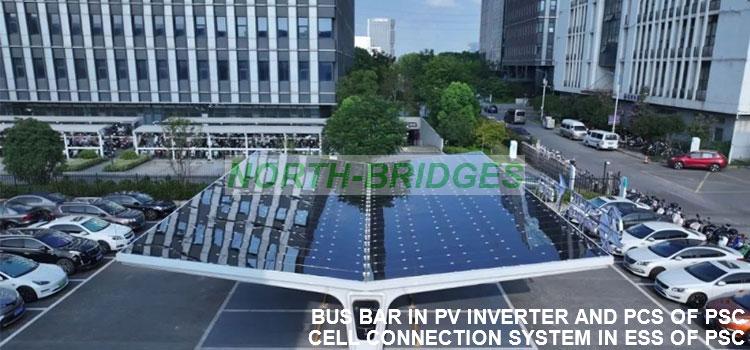

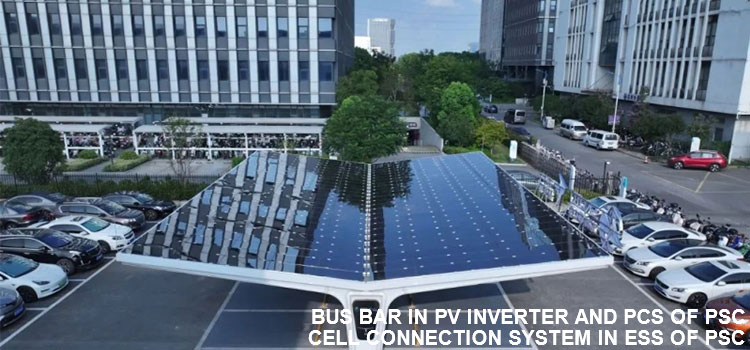

Bus Bar and CCS in PSC system

PSC System is abbreviation of Photovoltaic Storage Charge System.

As the core basis of renewable energy solutions, a new system which integrate photovoltaic power generation, photovoltaic energy storage and EV charging system is reshaping the global energy utilization pattern with revolutionary integrated design. The system seamlessly integrates the three functional modules of photovoltaic power generation, efficient energy storage and intelligent charging to build a clean energy ecosystem integrating 'generation, storage, and use'.

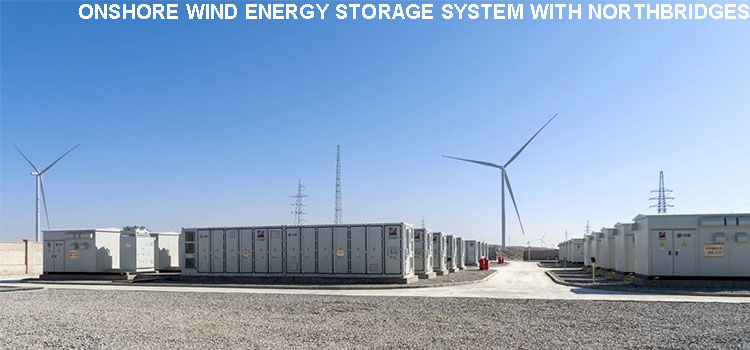

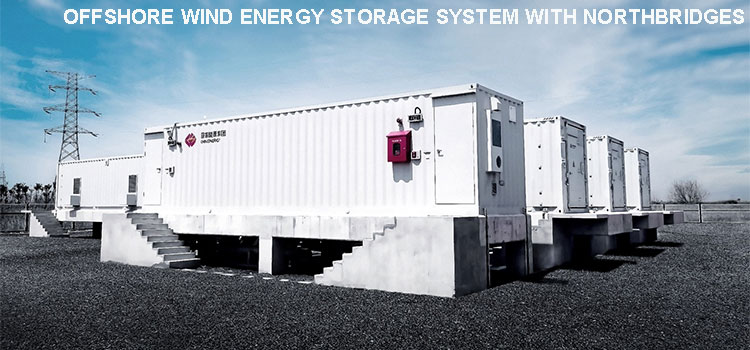

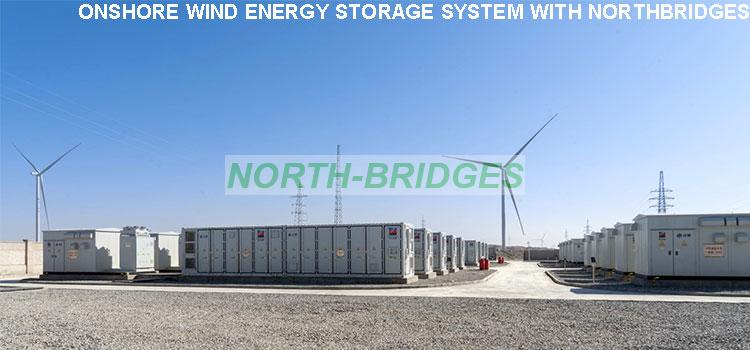

Bus Bar and CCS in Wind ESS

ESS is abbreviation of Energy Storage System.

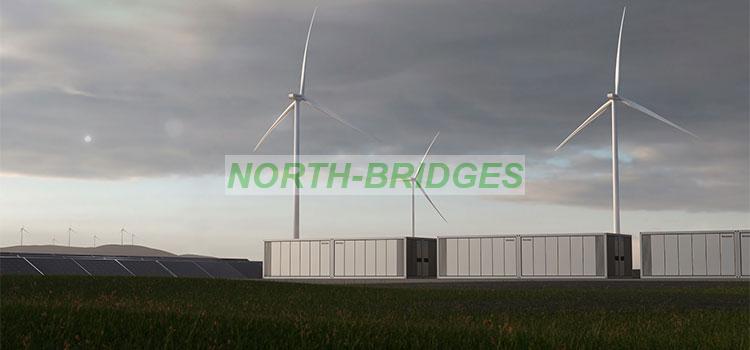

Bus Bar and CCS in WPS Integration

WPS is abbreviation of Wind, Photovoltaic and Storage.

In WPS (wind, photovoltaic and storage) integration systems, both wind power generation and photovoltaic generation are highly volatile power resource, and their power generation is subjected to weather conditions significantly. An electrochemical energy energy storage systems is important particularly in this case.

Energy storage system will absorb excess electricity when renewable power generation was over grid demand. In case renewable power generation is insufficient to meet grid demand, energy storage system will output electricity back to grid to ensure stability of grid power supplying.

Therefore, energy storage systems improve the grid's acceptance of renewable energy and solve the disadvantages of renewable energy generation such as high volatility and large-scale grid connection difficulties.
