PN: AU20DTC00A003

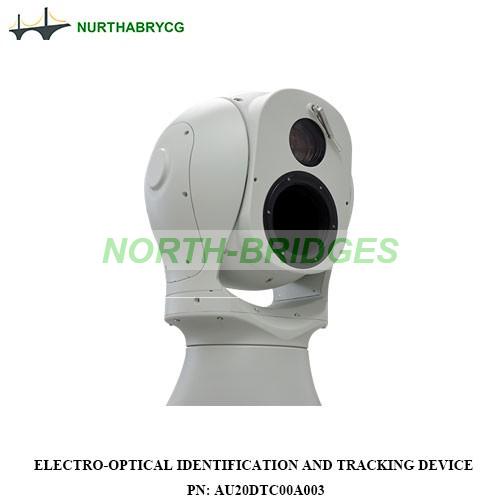

Electro-Optical
Identification and Tracking Device
Overview
The device integrates multi-spectral detection modules such as HD visible-light camera, cooled/uncooled thermal imager and laser illuminator, automatic tracking, intelligent analysis and precision electronic control.
Adopting a compact and concealed structural design, it is applied to the detection, localization, tracking and identification of small UAV targets.
Features
- High Payload Capacity
It can carry long-focal-length visible cameras, large-aperture thermal imagers, follow-up laser illuminators, and optional sensing modules such as laser rangefinder, positioning and navigation system, digital compass, enabling ultra-long-range target observation.
- Excellent Tracking Performance
The automatic tracking module is designed with multiple advanced target acquisition and tracking algorithms, supported by high-precision servo control, ensuring stable tracking of targets during high-speed flight and maneuvering direction changes.
- High Control Precision
Equipped with precision angle encoders and a high-precision closed-loop servo control system, it delivers positioning accuracy up to 0.02°. A high-performance image processing unit integrated with a high-precision focus control mechanism achieves accurate autofocus.
- Excellent Environmental Adaptability
Constructed with high-strength aluminum alloy and adopts dual-layer three-proof (moisture-proof, dust-proof, anti-corrosion) technology, with Ingress Protection Rating IP67.
Specifications
Effective Operation Range: (Target: 0.3m × 0.3m) | Visible Light: Tracking range ≥ 4000 m, Recognition range ≥ 3000 m | ||||||||
| Thermal Imager: Tracking range ≥ 2000 m, Recognition range ≥ 800 m | |||||||||
| Pixels: | 2 MP high-definition core, | ||||||||
| 12.5–775 mm HD motorized zoom lens | |||||||||
| Heavy-Duty Gimbal: | Positioning Accuracy: 0.01° | ||||||||
| Azimuth Range: 0°–360° continuous rotation | |||||||||
| Elevation Range: ±90° | |||||||||
| Rotation Speed: 80°/s | |||||||||
| Minimum Speed: 0.01°/s | |||||||||
| Dimensions: | Φ565 mm × H880 mm | ||||||||
| Ingress Protection Rating: | IP 67 | ||||||||
| Operating temperature: | -45℃~ +60℃ | ||||||||
| Weight: | ≤105kg | ||||||||
Special Statement
1. Due to the transition period between product updates and online presentation, the pictures, text and parameters on the page may differ from the actual product. Such content shall not be deemed as the basis for product delivery. The specific product and technical parameters shall be subject to the confirmed actual product configuration.
2. Prospective purchasers are requested to contact the sales representatives of NORTHBRIDGE for confirmation in a timely manner. NORTHBRIDGE reserves the right to adjust pictures and parameters, as well as the right of final interpretation.
