Processing FMC cards integrate onboard DSP, FPGA or AI accelerators for real-time signal processing and workload offloading.
These high-performance modules require enhanced power delivery and dedicated thermal solutions, supported by carrier board auxiliary power and optimized cooling designs.
FMC Processing & Accelerator Cards
Compliant with FMC VITA 57.1 specification, our Processing & Accelerator Cards provide powerful real-time computing and data preprocessing performance. Tailored for signal operation and data offloading, fully compatible with standard FMC carriers for industrial and defense embedded applications.
Custom acceleration solution is available, welcome for inquiry.
Product Selection Table
Part Number | FMC Standard | Form Factor (Width) | DSP Chip | DSP Core Frequency | Onboard Memory | Acceleration Engine | Compatible Carriers | FMC Connector | Temp. Range |
| EL11FMC06A001 | FMC1.0 (VITA 57.1) | Single Width | TMS320C6455 | 1 GHz | DDR2-500 (256 MB) | General DSP Processing | Xilinx Spartan-6 SP605, Kintex-7 FPGA KC705, Virtex-7 FPGA VC707, Zynq-7000 EPP ZC702 | LPC | -20°~ ﹢55°C |
| EL11FMC06A002 | FMC1.0 (VITA 57.1) | Single Width | TMS320C6748 | 375/456 MHz (C674x fixed/floating-point) | DDR2-500 (64 MB×16-bit) | General DSP Processing | Xilinx Spartan-6 SP605, Virtex-6 ML605, Kintex-7 KC705, Virtex-7 VC707 | LPC | -40°~ ﹢85°C |
| EL11FMC06A003 | FMC1.0 (VITA 57.1) | Single Width | TMS320C6657 | 850 MHz (max 1.25 GHz) | DDR3-1333 (8GB) | General DSP Processing | Compatible with Xilinx same mainstream FMC carriers | HPC | -55°~ ﹢100°C |
Product No.: EL11FMC06A001

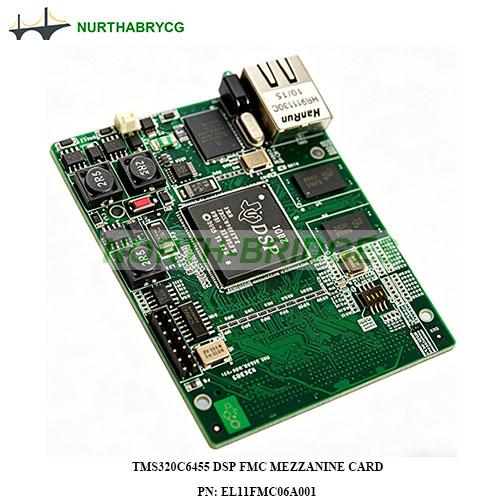

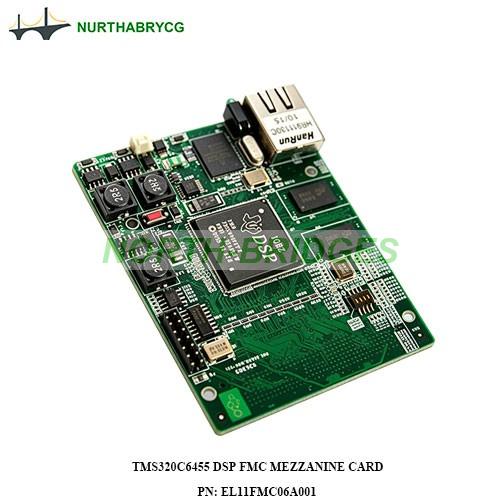

TMS320C6455 DSP FMC Mezzanine Card
Key Features
Equipped with TI TMS320C6455 high-performance DSP chip, this standard FMC mezzanine card is fully compatible with Xilinx development platforms, serving for high-speed data processing and video signal analysis missions.
Specifications
| DSP Chip | |||||||||
| Chip: | TMS320C6455 | ||||||||
| Core Frequency: | 1 GHz | ||||||||
| On-board memory: | Independent memory bus, 256 MB DDR2-500 | ||||||||
| 4 MB NOR Flash supported | |||||||||
| Integrated Gigabit Ethernet | |||||||||
| Embedded I2C EEPROM | |||||||||
| Interface | |||||||||
| FPGA: | VITA 57.1, LPC | ||||||||
| Input: | +12 V, +3.3 V | ||||||||
| Supports 32-bit EMIF (100 MHz sync), McBSP1, RapidIO x1; Flash limited to 4 MB | |||||||||
| Power supply | |||||||||
| Independent power: | +5 V~+12 V | ||||||||
| Power: | ≤8 W | ||||||||
| Environment | |||||||||
| Dimensions: | 90×69 mm | ||||||||
| Mounting hole diameter: | 2.7 mm | ||||||||
| Operating Temp: | Commercial (0 ℃~+55 ℃), Industrial (-20 ℃~+55 ℃) | ||||||||
| Storage Temp: | -20 ℃~+70 ℃ | ||||||||
| Operating Humidity: | 10%~80% (non-condensing) | ||||||||
| Software Support | |||||||||
| Gigabit Ethernet transmission with LWIP stack (supports Ping, TCP, UDP, IP) | |||||||||
| DDR2 self-test firmware | |||||||||
| RapidIO X1/X4, EDMA, interrupt driver/firmware | |||||||||
| DSP-FPGA EMIF high-speed transmission (EDMA, sync interrupt, ≥200 MB/s) | |||||||||
| 1 KB boot loader, Flash programming/test firmware | |||||||||
| Compatibility with Xilinx Development / Evaluation Boards | |||||||||
| Xilinx Spartan-6 SP605 | |||||||||
| Kintex-7 FPGA KC705 | |||||||||
| Virtex-7 FPGA VC707 | |||||||||
| Zynq-7000 EPP ZC702 | |||||||||

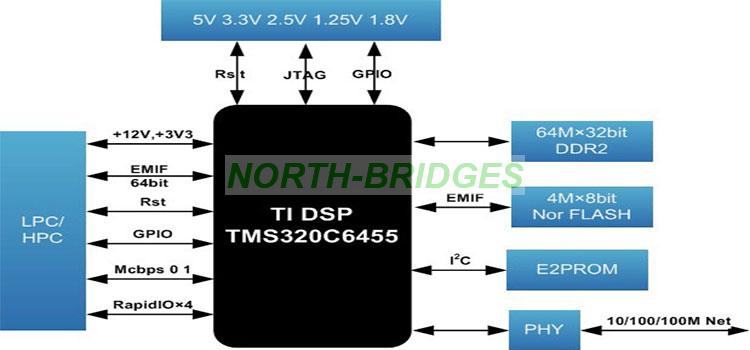

Block Diagram
Applications
Digital imaging, Image analysis and functional testing
Ordering
| PN: | EL11FMC06A001 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
Product No.: EL11FMC06A002

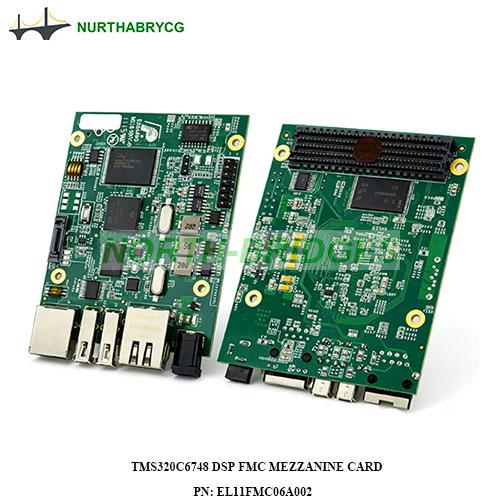

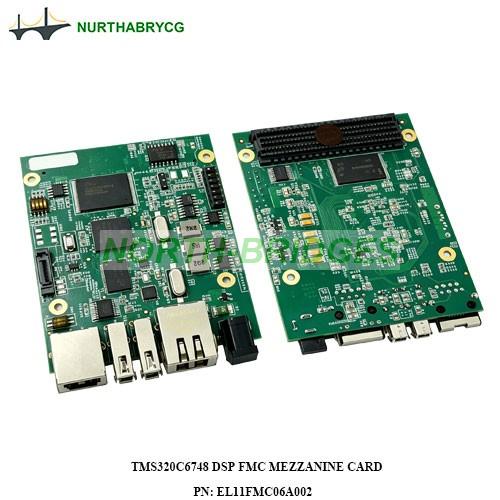

TMS320C6748 DSP FMC Mezzanine Card
Key Features
Equipped with TI TMS320C6748 high-performance DSP core, this standard FMC mezzanine card is customized for Xilinx FPGA boards, and applicable to high-speed data signal detection and analysis.
Specifications
| DSP Chip | |||||||||
| Chip: | TMS320C6748 | ||||||||
| Core Frequency: | 375/456 MHz (C674x fixed/floating-point) | ||||||||
| On-board memory: | Independent memory bus, DDR2-500 (64 MB×16-bit) | ||||||||
| 32~128 MB NOR Flash compatible | |||||||||
| Integrated 100 Mbps Ethernet | |||||||||
| Embedded I2C EEPROM | |||||||||
| Fully compatible with OMAP-L138 | |||||||||
| Interface | |||||||||
| FPGA: | VITA 57.1, LPC | ||||||||
| Input: | +12 V, +3.3 V | ||||||||
| Supports 12-bit EMIF (100 MHz sync), McBSP1, SPI; Flash limited to 4 MB | |||||||||
| Dual USB | |||||||||
| 1 dedicated SATA storage interface | |||||||||
| Power supply | |||||||||
| Independent power: | +5 V~+12 V | ||||||||
| Power: | ≤1 W | ||||||||
| Environment | |||||||||
| Dimensions: | 90×69 mm | ||||||||
| Mounting hole diameter: | 2.7 mm | ||||||||
| Operating Temp: | Commercial (0℃~+55℃), Industrial (-40℃~+85℃) | ||||||||
| Operating Humidity: | 10%~80% (non-condensing) | ||||||||
| Software Support | |||||||||
| 100 Mbps Ethernet (supports Ping, TCP, UDP, IP) | |||||||||
| DDR2 self-test/diagnostic firmware | |||||||||
| RS232/USB high-speed transmission | |||||||||
| SATA storage driver | |||||||||
| DSP-FPGA EMIF (EDMA, async interrupt, ≥40 MB/s) | |||||||||
| 1 KB bootloader, Flash programming/test firmware | |||||||||
| Compatibility with Xilinx Development / Evaluation Boards | |||||||||
| Xilinx Spartan-6 SP605 | |||||||||
| Virtex-6 ML605 | |||||||||
| Kintex-7 KC705 | |||||||||
| Virtex-7 VC707 | |||||||||

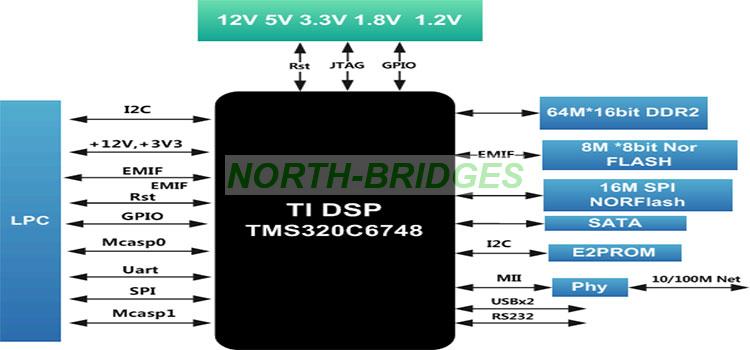

Block Diagram
Applications
Floating-point data computation, Data analysis and functional testing
Ordering
| PN: | EL11FMC06A002 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
Product No.: EL11FMC06A003

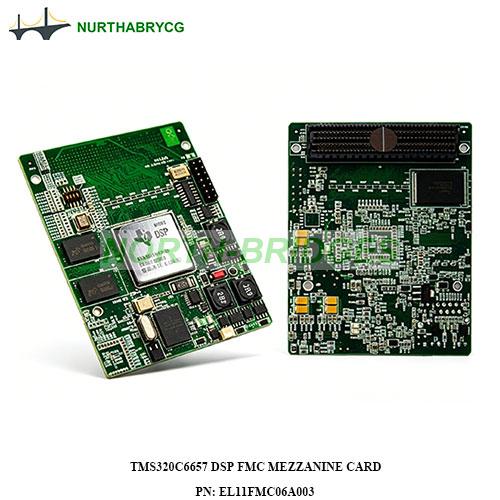

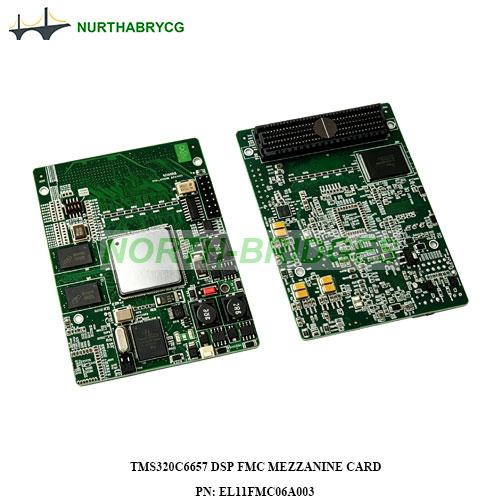

TMS320C6657 DSP FMC Mezzanine Card
Key Features
This DSP FMC mezzanine card uses TI TMS320C6657 as core processor, a standard FMC module for Xilinx development boards, applied in mission-critical operations, medical imaging, testing, industrial automation and other high-performance applications.
Specification
| DSP Chip | |||||||||
| Chip: | TMS320C6657 | ||||||||
| Core Frequency: | 850 MHz (max 1.25 GHz) | ||||||||
| Peak Processing Capability: | 2.5 GHz, low power consumption | ||||||||
| Backward compatible with all C6000 series fixed/floating-point DSPs | |||||||||
| Embedded rich on-chip memory, independent memory bus | |||||||||
| Onboard DDR3-1333, 8 GB addressable space | |||||||||
| Native Gigabit Ethernet support | |||||||||
| Interface | |||||||||
| FPGA: | VITA 57.1, HPC | ||||||||
| Compliant with RapidIO Gen2, PCI Express Gen2 | |||||||||
| Peripherals: | I2C, UART, McBSP, general-purpose parallel port | ||||||||
| 16-bit asynchronous EMIF, general-purpose CMOS I/O | |||||||||
| 40 Gbaud full-duplex HyperLink (high-throughput, low-latency for device/FPGA interconnection) | |||||||||
| Chip Development Tools | |||||||||
| Complete toolchain: enhanced C compiler, assembly optimizer, Windows-based graphical debugging interface for source code tracking | |||||||||
| Environment | |||||||||
| Dimensions: | 110×69 mm | ||||||||
| Mounting hole: | Comply with FMC standard | ||||||||
| Operating Temp: | Commercial (0℃ ~ +85℃) | ||||||||
| Extended Industrial (-40℃ ~ 100℃) | |||||||||
| Ultra-Low (-55℃ ~ 100℃) | |||||||||
| Software Support | |||||||||
| Gigabit Ethernet with LwIP stack; supports Ping, TCP, UDP, IP | |||||||||
| DDR3 self-test & diagnostic firmware | |||||||||
| Compliant with RapidIO Gen2 | |||||||||
| Compatibility with Xilinx Development / Evaluation Boards | |||||||||
| Compatible with mainstream Xilinx FMC development and evaluation boards | |||||||||

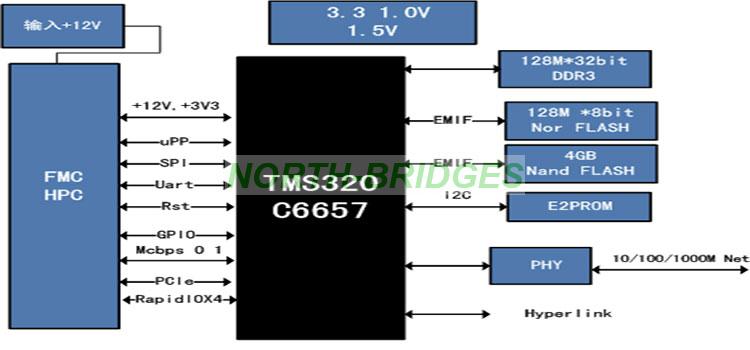

Block Diagram
Applications
Applicable to mission-critical tasks, medical imaging, measurement & industrial automation, and other high-performance processing applications
Ordering
| PN: | EL11FMC06A003 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
