PN: AU21CMT00A008

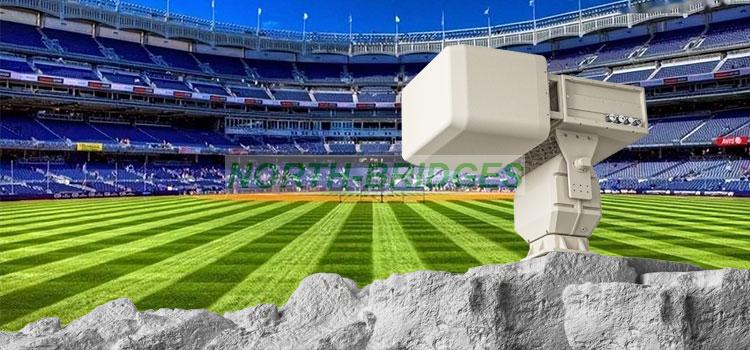

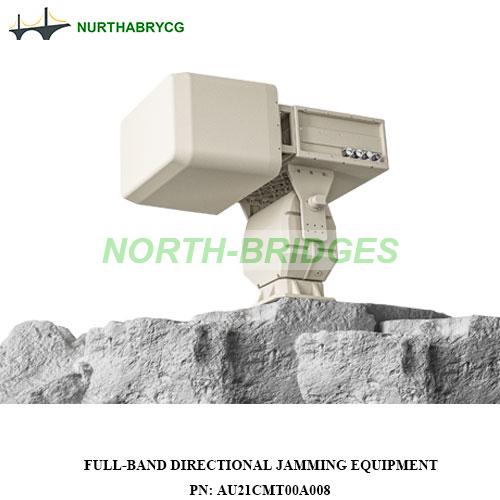

Full-band Directional Jamming Equipment
Overview
Full-band directional jamming equipment is a highly efficient security device professionally used for jamming and control of low-altitude targets.
It features a dual-case integrated design with a compact and concise appearance.
Equipped with 360° Omni-directional tracking capability, it can simultaneously suppress multiple targets and conduct full-domain navigation signal countermeasures, providing all-weather protection for low-altitude security.
Core Product Advantages
The core advantages of the equipment are reflected in its full-domain coverage and precise control capabilities.
Employing full-band jamming technology, the equipment effectively addresses complex requirements across diverse signal frequency bands.
The high-performance hardware design delivers an extended jamming range while ensuring stable operation under extreme environmental conditions.
The equipment can operate continuously within a temperature range of -20 °C to 70 °C and supports 72 hours of uninterrupted operation.
The intelligent control mode greatly simplifies operational procedures. Integrated with multi-target simultaneous jamming capability, the system can engage up to four targets concurrently in a single mission, significantly enhancing response efficiency to emergent scenarios.
Built-in high-precision turntable system integrated with directional jamming technology enables both large-scale regional coverage and precise engagement against high-value targets.
Specifications
| Operating Frequency Band: | 300MHz～6GHz (Dynamically tunable operating band) | ||||||||
| Jamming beam angle: | ≥12° | ||||||||
| Deception Mode: | Directional Expulsion, | ||||||||
| Fixed-Point Forced Landing, | |||||||||
| Area No-Fly | |||||||||
| Navigation Spoofing capability: | Standard configuration supports | ||||||||
| GPS L1 | |||||||||
| GLONASS L1 | |||||||||
| BDS B1 | |||||||||
| GALILEO E1 | |||||||||
| Directional jamming/deception range: | ≤3 km (omnidirectional deception optional) | ||||||||
| Power Supply: | External 220V AC, supports 7×24h continuous operation | ||||||||
| Power Consumption: | ≤1500 W (at full power output) | ||||||||
| Product Dimensions (L×W×H): | 730 mm × 470 mm × 640 mm (±5 mm) | ||||||||
| (excluding adapter and antennas) | |||||||||
Special Statement
1. Due to the transition period between product updates and online presentation, the pictures, text and parameters on the page may differ from the actual product. Such content shall not be deemed as the basis for product delivery. The specific product and technical parameters shall be subject to the confirmed actual product configuration.
2. Prospective purchasers are requested to contact the sales representatives of NORTHBRIDGE for confirmation in a timely manner. NORTHBRIDGE reserves the right to adjust pictures and parameters, as well as the right of final interpretation.
