PN: AU22NTG01A007

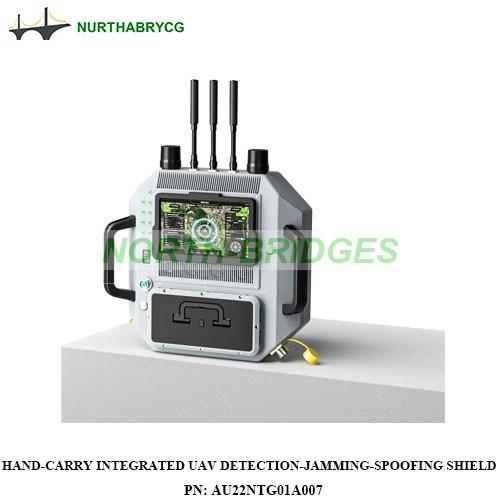

Hand‑carry Integrated
UAV Detection‑Jamming‑Spoofing Shield
Overview
The Hand‑carry Integrated UAV Detection‑Jamming‑Spoofing Shield is a professional management and control device dedicated to low-altitude UAV monitoring and countermeasures.
Adopting a compact and integrated design with multi-band antennas and an intelligent display screen, it enables full-process tracking, rapid positioning and precise countermeasures against unauthorized UAVs.

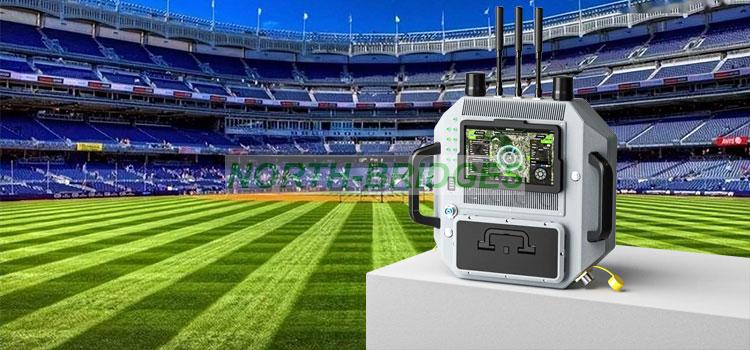

It effectively addresses UAV intrusion risks in scenarios including airports and large-scale event venues, establishing an intelligent protection barrier for regional security.
Core Product Advantages
Equipped with an ultra-broadband suppression module, the product realizes full-band signal coverage through multiple detection technologies.
It can sensitively monitor common frequency bands such as 1.5 GHz, 2.4 GHz, 5.2 GHz and 5.8 GHz, and adaptively identify new UAV communication protocols.
Its proprietary integrated detection-jamming-spoofing system accomplishes signal identification, dynamic jamming and UAV tracing synchronously.
Cooperated with high-precision directional antennas, it forms a three-dimensional protection network within an extended operating radius.
The device integrates an intelligent temperature control module and a moisture-proof structure, supported by a replaceable lithium battery pack, ensuring up to 5 hours of continuous operation even in harsh environments.
With a high-brightness touchscreen and status indicators, the equipment operation data and the surrounding electromagnetic environment situation are visualized in real time, which greatly simplifies the operation
Specifications
| Detection Modes: | Message Parsing | ||||||||
| Digital Video Telemetry Detection | |||||||||
| Analog Video Telemetry Detection | |||||||||
| Navigation Spoofing Frequency Bands: | GPS L1 | ||||||||
| GLONASS L1 | |||||||||
| BDS B1 | |||||||||
| GALILEO E1 | |||||||||
| (Customizable) | |||||||||
| Operating Range: | Detection: ≥ 3 km, | ||||||||
| Jamming: ≥ 2 km, | |||||||||
| Spoofing: ≥ 800 m | |||||||||
| (Customizable) | |||||||||
| Power Supply: | Lithium battery powered, supports rapid battery replacement. | ||||||||
| Battery Endurance: | ≥ 5 h (at 25 °C ambient temperature, in detection mode) | ||||||||
| Screen Specification: | 8-inch IPS touch screen | ||||||||
| Product Weight: | ≤ 9 kg | ||||||||
| Product Dimensions (L×W×H): | 360 mm × 404 mm × 217 mm (±5 mm) | ||||||||
Special Statement
1. Due to the transition period between product updates and online presentation, the pictures, text and parameters on the page may differ from the actual product. Such content shall not be deemed as the basis for product delivery. The specific product and technical parameters shall be subject to the confirmed actual product configuration.
2. Prospective purchasers are requested to contact the sales representatives of NORTHBRIDGE for confirmation in a timely manner. NORTHBRIDGE reserves the right to adjust pictures and parameters, as well as the right of final interpretation.
