PN: AU20DTC01A005

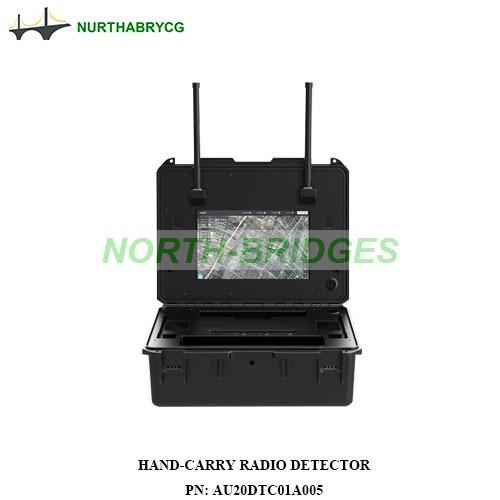

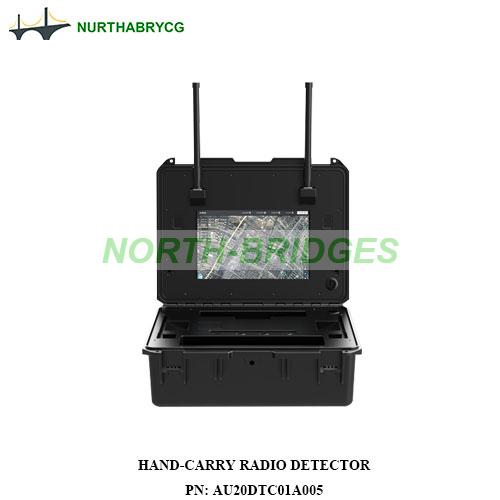

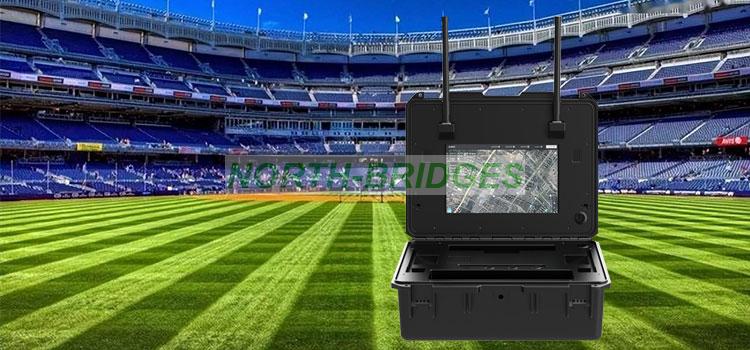

Hand-carry Radio Detector


Overview
The equipment features full-band detection capability from 300 MHz to 6000 MHz, enabling the detection, identification, localization, tracking, and audible-visual alarm of UAVs within the coverage area.
Adopting a case-type design with a built-in touchscreen display, the device automatically enters the operating mode upon startup.
Features
- Blacklist and Whitelist Management
Supports one‑click marking for blacklists and whitelists. Whitelisted drones will not trigger alarms.
- Trajectory Tracking
The system features multi-target trajectory tracking capability. When multiple UAVs are detected simultaneously, their respective flight trajectories are displayed in distinct colors.
- Multi-Mode Identification
Supports spectrum identification and telemetry packet parsing & identification.
Specifications
| Operating Frequency Band: | 300MHz ~ 6000MHz | ||||||||
| Detection Response Time: | ≤ 2 s | ||||||||
| Detection Coverage Angle: | 360° omnidirectional in azimuth | ||||||||
| Detection Radius: | 1–5 km, subject to variation based on RF environment and target UAV model | ||||||||
| Ingress Protection Rating: | IP66 | ||||||||
| Screen Size: | 13.3-inch FHD+ (1080 × 1920) | ||||||||
| Battery Endurance: | 4 hours | ||||||||
Special Statement
1. Due to the transition period between product updates and online presentation, the pictures, text and parameters on the page may differ from the actual product. Such content shall not be deemed as the basis for product delivery. The specific product and technical parameters shall be subject to the confirmed actual product configuration.
2. Prospective purchasers are requested to contact the sales representatives of NORTHBRIDGE for confirmation in a timely manner. NORTHBRIDGE reserves the right to adjust pictures and parameters, as well as the right of final interpretation.
