PN: AU21CMT00A011

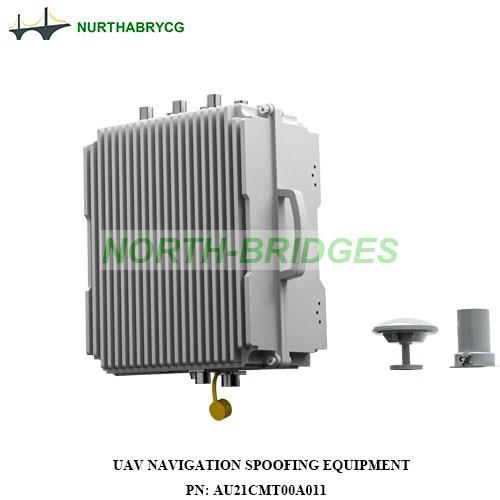

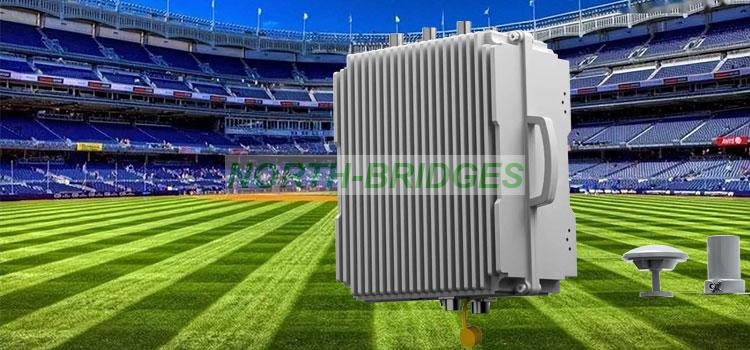

UAV Navigation Spoofing Equipment
Overview
The UAV Navigation Spoofing Equipment is a dedicated counter-UAV solution designed for low-altitude airspace security.
By disrupting and spoofing the navigation signals of unmanned aerial vehicles, the system effectively thwarts unauthorized drone intrusions and safeguards critical airspace.
This product features multi-band jamming and spoofing capabilities, supports all major global and domestic satellite navigation systems, and allows customization of dedicated frequency bands to flexibly counter diverse threats.
Equipped with a dual-mode spoofing strategy, the system supports the selection of either defense or expulsion modes based on operational requirements.
Its effective operational range extends from 500 m to 1000 m, and can be further extended on demand to meet the protection requirements of multiple application scenarios.
Core Product Advantages
The equipment maintains stable performance even under complex environments.
It can operate continuously in harsh temperature conditions, adapt to severe weather such as strong wind and rain, and features 24/7 unattended autonomous operation, making it highly capable of fulfilling high-intensity security missions.
It is extremely easy to operate, compatible with conventional operating systems, and requires no complicated installation.
The system can be rapidly configured via network, which significantly reduces the operational complexity and user threshold.
The equipment features a lightweight and compact design with a weight of less than 12 kg.
It supports multiple mounting methods and enables flexible and convenient deployment, allowing for rapid response to various temporary or fixed security deployment requirements.
Specifications
| Navigation Spoofing capability: | Standard configuration supports GPS L1. | ||||||||
| Standard configuration supports GLONASS L1. | |||||||||
| BDS B1/B2 support is available as a customizable option. | |||||||||
| GALILEO E1/E5 support is available as a customizable option. | |||||||||
| GPS L2/L5 support is available as a customizable option. | |||||||||
| Transmit Power: | ≤10dBm(mW) | ||||||||
| Effective Operation Range: | 500–1000 m, available upon customization | ||||||||
| Supported Operational Strategies: | Defense Mode | ||||||||
| Expulsion Mode | |||||||||
| Equipment Mounting Methods: | Wall Fixing | ||||||||
| Pole Fixing | |||||||||
| Ingress Protection Rating: | IP65 | ||||||||
| Weight: | ≤12kg | ||||||||
| Product Dimensions (L×W×H): | 385 mm × 310 mm × 204 mm | ||||||||
| (excluding antenna, equipped with RF connector) | |||||||||
Special Statement
1. Due to the transition period between product updates and online presentation, the pictures, text and parameters on the page may differ from the actual product. Such content shall not be deemed as the basis for product delivery. The specific product and technical parameters shall be subject to the confirmed actual product configuration.
2. Prospective purchasers are requested to contact the sales representatives of NORTHBRIDGE for confirmation in a timely manner. NORTHBRIDGE reserves the right to adjust pictures and parameters, as well as the right of final interpretation.
