FMC ADC/DAC Cards
Integrated full-duplex FMC transceiver cards combining high-speed ADC and DAC in a rugged compact form factor. Built for defense, aerospace and real-time SIGINT/SDR systems operating in extreme conditions.
All FMC mezzanine cards comply with standard FMC interfaces and are compatible with upcoming carrier boards and development platforms.
Below is a summary of key specifications to help you select the right model quickly.
Product Selection Table
Part Number | Function Type | FMC Standard | Form Factor | Channel Count | Resolution | Sampling Rate | Port | FMC Connector | Temp. Range |
| EL11FMC02A005 | ADC+DAC | FMC1.0 (VITA 57.1) | Single Width | 2 ADC, 2 DAC | 14-bit ADC, 16-bit DAC | 1 GSPS ADC, 2.25GSPS DAC | SSMA*6 | HPC | -40℃～ +85℃ |
| EL11FMC02A006 | ADC+DAC | FMC1.0 (VITA 57.1) | Single Width | 2 ADC, 2 DAC | 16-bit ADC, 16-bit DAC | 1 GSPS ADC, 1.25GSPS DAC | SSMA*6 | HPC | -40℃～ +85℃ |
| EL11FMC02A008 | ADC+DAC | FMC1.0 (VITA 57.1) | Single Width | 4 ADC, 4 DAC | 16-bit ADC, 16-bit DAC | 1 GSPS ADC, 1.25GSPS DAC | SSMA*10 | HPC | -40℃～ +85℃ |
| EL11FMC02A009 | ADC+DAC | FMC1.0 (VITA 57.1) | Single Width | 2 ADC, 2 DAC | 14-bit ADC, 16-bit DAC | 3 GSPS ADC, 12.8 GSPS DAC | SSMA*6 | HPC | -40℃～ +85℃ |
| EL11FMC02A012 | ADC+DAC | FMC1.0 (VITA 57.1) | Dual Width | 8 ADC, 8 DAC | 14-bit ADC, 16-bit DAC | 1.3 GSPS ADC, 2.8 GSPS DAC | SSMC*19 | HPC+ HPC | -40℃～+85℃ |
| EL11FMC02A013 | ADC+DAC | FMC1.0 (VITA 57.1) | Single Width | 2 ADC, 2 DAC | 14-bit ADC, 16-bit DAC | 3 GSPS ADC, 12.6 GSPS DAC | SSMA*6 | HPC | -40℃～+85℃ |

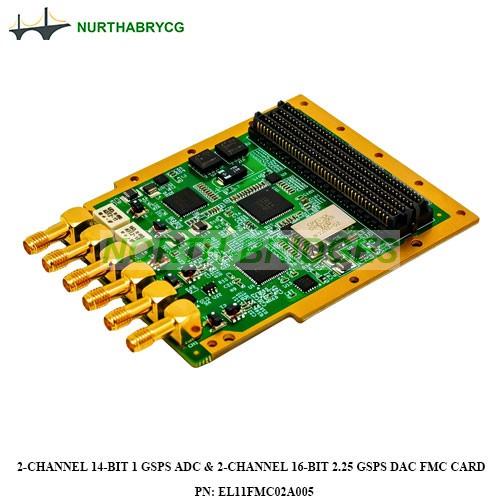

Product No.: EL11FMC02A005

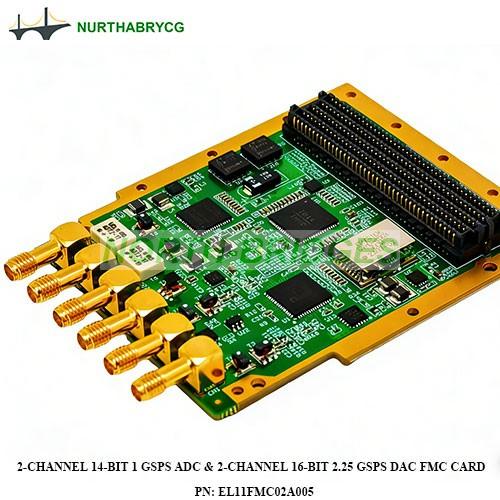

2-Channel 14-Bit 1 GSPS ADC & 2-Channel 16-Bit 2.25 GSPS DAC FMC Mezzanine Card
Key Features
EL11FMC02A005 FMC mezzanine card integrates AD9680 ADC (2 channels, 14-bit, 1 GSPS sampling rate), delivering 80 dBc SFDR, 61.4 dBFS SNR, 1.65 W/ch max power consumption. Equipped with AD9152 DAC (2 channels, 16-bit, up to 2.25 GSPS update rate). Powered by HMC7044 clock IC, featuring ultra-low jitter and multi-output clock distribution.
Specifications
| ADC Specifications | |||||||||
| Model: | AD9680 | ||||||||
| Channels/Resolution: | 2 ch, 14-bit | ||||||||
| Max Sampling Rate: | 1.25 GSPS | ||||||||
| Analog Input Bandwidth: | 2 GHz full-power | ||||||||
| Input Range: | 1.7 Vpp | ||||||||
| SFDR: | 85 dBFS @ 340 MHz, 80 dBFS @ 1 GHz | ||||||||
| SNR: | 63 dBFS @ 340 MHz, 61.4 dBFS @ 1 GHz | ||||||||
| ENOB: | 10.8 bits @ 10 MHz | ||||||||
| DAC Specifications | |||||||||
| Model: | AD9152 | ||||||||
| Channels/Resolution: | 2 ch, 16-bit | ||||||||
| Max Update Rate: | 2.25 GSPS | ||||||||
| Integrated digital inverse sinc & programmable FIR filter | |||||||||
| SFDR: | 72 dBc @ 150 MHz IF, –6 dBFS | ||||||||
| Optional interpolation ratios: | 1×, 2×, 4×, 8× | ||||||||
| Clock Specifications | |||||||||
| Clock Management IC: | HMC7044 | ||||||||
| General Specifications | |||||||||
| Form Factor: | Standard FMC, fully compliant with VITA 57.1 | ||||||||
| Board Dimensions: | 84.1 × 69 mm | ||||||||
| Temp: | –40 °C to +85 °C | ||||||||

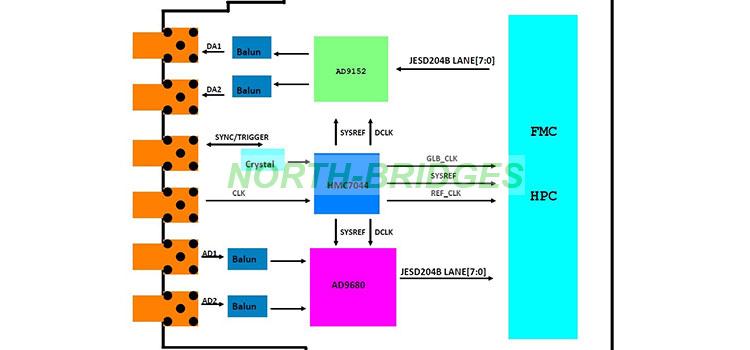

Block Diagram
Applications
Software Defined Radio (SDR), Radar Systems, Communications Equipment, Test & Measurement Instruments
Ordering
| PN: | EL11FMC02A005 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

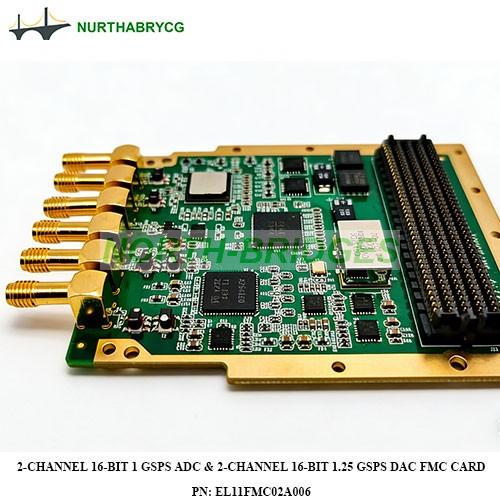

Product No.: EL11FMC02A006

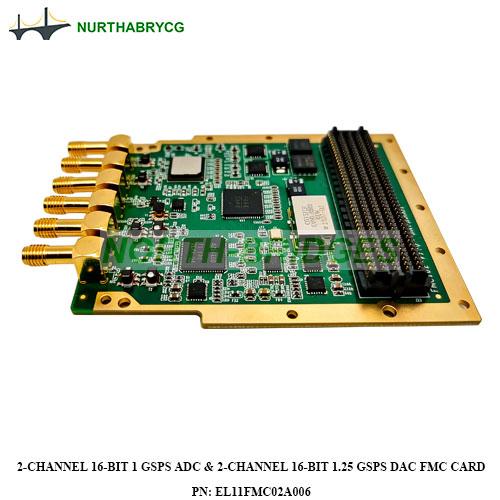

2-Channel 16-Bit 1 GSPS ADC & 2-Channel 16-Bit 1.25 GSPS DAC FMC Mezzanine Card
Key Features
This is a high-performance FMC mezzanine card integrating 2-channel 16-bit 1 GSPS ADC and 2-channel 16-bit 1.25 GSPS DAC. Onboard HMC7044 clock IC generates all clocks for JESD204B operation. Supports synchronization and trigger functions with SSMC RF connectors for analog I/O. Designed for multicarrier communications, radar, smart antennas, test & measurement and SDR.
Specifications
| ADC Specifications | |||||||||
| Model: | ADS54J60 (compatible with ADS54J69) | ||||||||
| Channels/Resolution: | 2 channels, 16-bit | ||||||||
| Max Sampling Rate: | 1 GSPS | ||||||||
| Noise Floor: | –159 dBFS/Hz | ||||||||
| 3dB input bandwidth: | 1.2 GHz | ||||||||
| Channel isolation: | 100 dBc @ 170 MHz | ||||||||
| 8-lane JESD204B | |||||||||
| DAC Specifications | |||||||||
| Model: | DAC38J82 | ||||||||
| Resolution: | 16-bit | ||||||||
| Maximum Sampling Rate: | 2.5 GSPS | ||||||||
| Analog bandwidth: | 4.5 MHz–2 GHz | ||||||||
| AC-coupled | |||||||||
| 8-lane JESD204B | |||||||||
| Max input data rate: | 1.23 GSPS | ||||||||
| Clock Specifications | |||||||||
| Management IC: | HMC7044 | ||||||||
| Onboard/external clock reference, software-selectable | |||||||||
| General Specifications | |||||||||
| Analog I/O: | SSMC connectors | ||||||||
| Form Factor: | FMC VITA 57.1 compliant | ||||||||
| Internal/external trigger | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Temp: | –40 °C to +85 °C | ||||||||

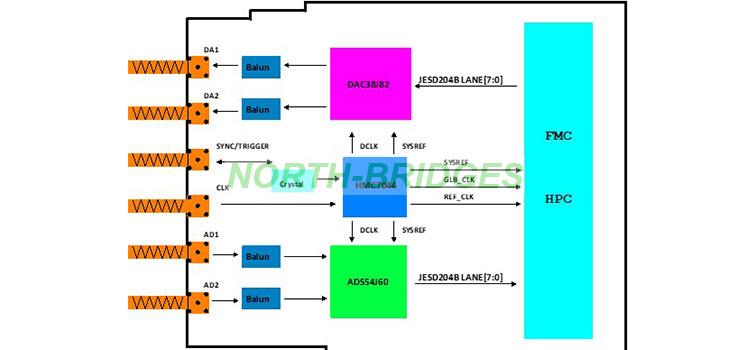

Block Diagram
Applications
Multicarrier Communications, Radar & Smart Antenna Systems, Test & Measurement, Software-Defined Radio (SDR)
Ordering
| PN: | EL11FMC02A006 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

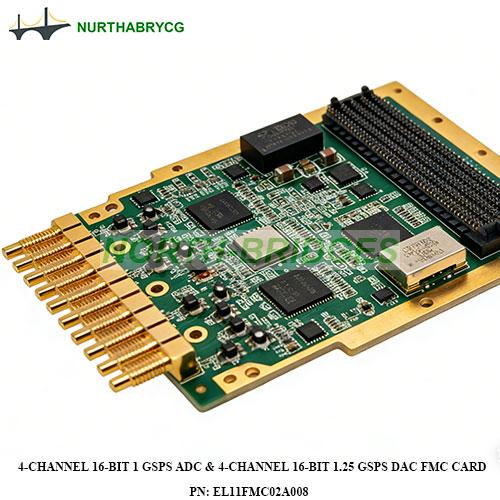

Product No.: EL11FMC02A008

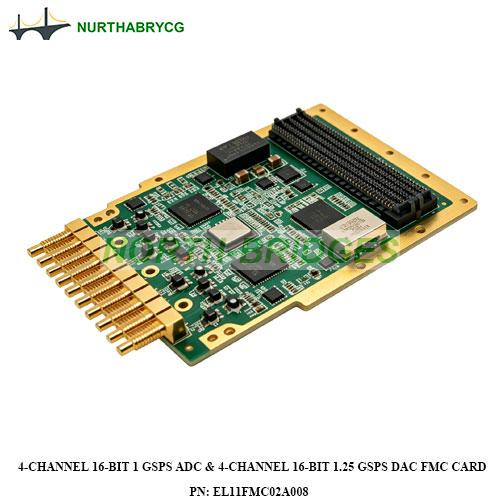

4-Channel 16-Bit 1 GSPS ADC & 4-Channel 16-Bit 1.25 GSPS DAC FMC Mezzanine Card
Key Features
This is a high-performance FMC mezzanine card integrating 4-channel 16-bit 1 GSPS ADC and 4-channel 16-bit 1.25 GSPS DAC. Onboard HMC7044 clock IC generates all required clocks for JESD204B operation. Supports synchronization and trigger functions with SSMC RF connectors for analog I/O.
Specifications
| ADC Specifications | |||||||||
| Model: | ADS54J60 | ||||||||
| 4 channels, 16-bit, 1 GSPS | |||||||||
| Noise Floor: | –159 dBFS/Hz | ||||||||
| 3dB input bandwidth: | 1.2 GHz | ||||||||
| Channel isolation: | 100 dBc @ 170 MHz | ||||||||
| 8-lane JESD204B high-speed serial interface | |||||||||
| DAC Specifications | |||||||||
| Model: | DAC39J84 | ||||||||
| 16-bit, 4 channels, max 2.8 GSPS | |||||||||
| AC-coupled | |||||||||
| 8-lane JESD204B high-speed serial interface | |||||||||
| Max input data rate: | 1.25 GSPS | ||||||||
| Clock Specifications | |||||||||
| Clock IC: | HMC7044 | ||||||||
| Onboard/external clock reference, software-selectable | |||||||||
| General Specifications | |||||||||
| Analog I/O: | 10× SSMC | ||||||||
| Form Factor: | FMC VITA 57.1 compliant | ||||||||
| Internal/external trigger supported | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Temp: | –40 °C to +85 °C | ||||||||

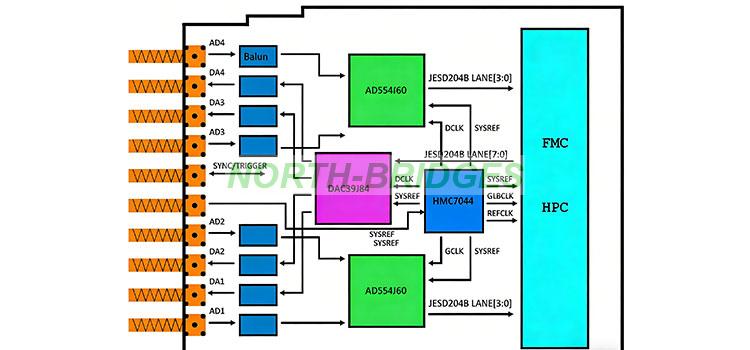

Block Diagram
Applications
Multicarrier Communications, Radar & Smart Antenna Systems, Test & Measurement Instrumentation, Software-Defined Radio (SDR)
Ordering
| PN: | EL11FMC02A008 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

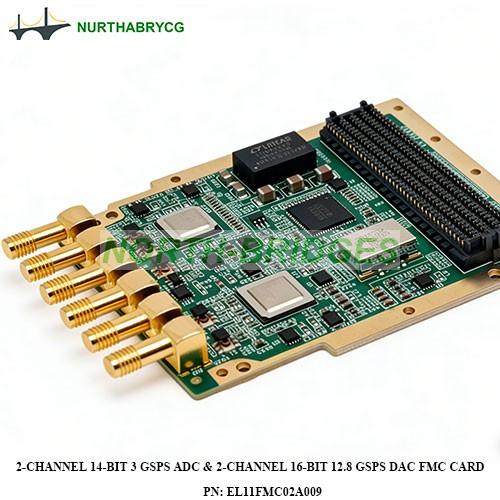

Product No.: EL11FMC02A009

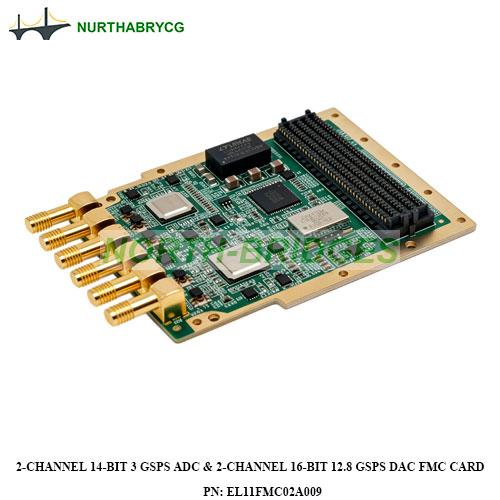

2-Channel 14-Bit 3 GSPS ADC & 2-Channel 16-Bit 12.8 GSPS DAC FMC Mezzanine Card
Key Features
This is a high-performance FMC mezzanine card integrating 2-channel 14-bit 3 GSPS ADC and 2-channel 16-bit 12.8 GSPS DAC. Onboard HMC7044 clock IC generates all clocks for JESD204B high-speed interface. Supports synchronization/trigger; analog I/O via SSMC RF connectors.
Specifications
| ADC Performance | |||||||||
| Model: | ADS9208 (pin-to-pin compatible with AD9689) | ||||||||
| 2 Channels, 14-bit, 3 GSPS | |||||||||
| Full-power analog bandwidth: | 9 GHz | ||||||||
| Channel isolation: | 100 dBc @ 170 MHz | ||||||||
| 8-lane JESD204B | |||||||||
| DAC Performance | |||||||||
| Model: | AD9172 (compatible with AD9173) | ||||||||
| 2 Channels, 16-bit, max 12.8 GSPS | |||||||||
| Each RF DAC integrates 3 bypassable multiplexed data input channels | |||||||||
| 8-lane JESD204B | |||||||||
| Max SERDES line rate: | 15.4 Gbps | ||||||||
| Clock Performance | |||||||||
| Model: | HMC7044 | ||||||||
| Onboard/external clock reference, software-selectable | |||||||||
| General Specifications | |||||||||
| Analog I/O: | 6× SSMC | ||||||||
| Form Factor: | FMC VITA 57.1 compliant | ||||||||
| Internal/external trigger supported | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Temp: | -40 °C to +85 °C | ||||||||

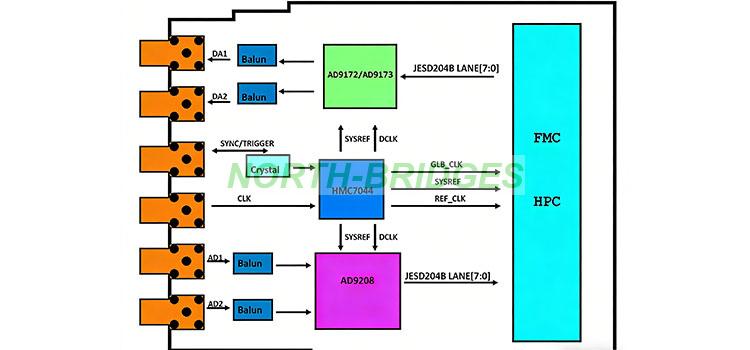

Block Diagram
Applications
Wireless Communications Infrastructure, Multiband Base Station Radios, Instrumentation, Automatic Test Equipment (ATE), Radar and Jamming Systems
Ordering
| PN: | EL11FMC02A009 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

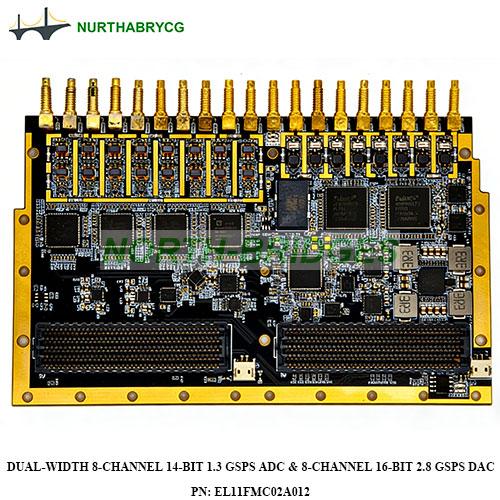

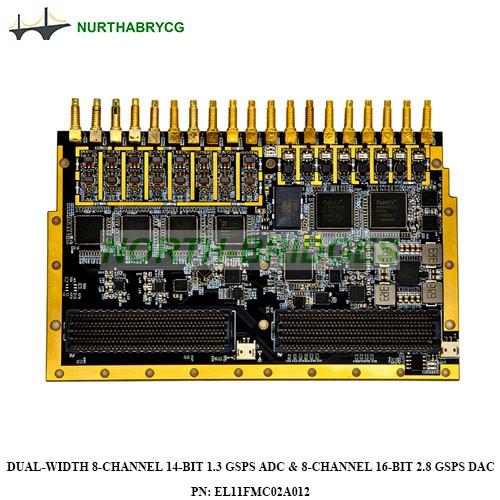

Product No.: EL11FMC02A012
Dual-Width 8-Channel 14-Bit 1.3 GSPS ADC & 8-Channel 16-Bit 2.8 GSPS DAC FMC Mezzanine Card
Key Features
4 dual-channel 14-bit 1.3 GSPS JESD204B ADCs (AD9695) + 2 quad-channel 16-bit 2.8 GSPS JESD204B DACs (AD9144). Dual-wide FMC HPC, ANSI/VITA 57.1 compliant, ENIG PCB finish. Onboard OCXO & JESD204B PLL clock sync/distribution. SSMC connectors for analog I/O; supports external clock and trigger I/O.
Specifications
| ADC Performance | |||||||||
| 4 dual-channel (AD9695BCPZ-1300), 1.3 GSPS, 14-bit | |||||||||
| Input 500 kHz–500 MHz (AC-coupled RF transformers) | |||||||||
| Max input 2 Vpp (50 Ω) | |||||||||
| JESD204B, 4 lanes/device, up to 16 Gbps lane rate | |||||||||
| DAC Performance | |||||||||
| 2 Quad-channel (AD9144BCPZ), 2.8 GSPS, 16-bit | |||||||||
| Output 5 MHz–1200 MHz (AC-coupled RF transformers) | |||||||||
| Nominal output -6 dBm (50 MHz CW, 50 Ω) | |||||||||
| JESD204B, 8 lanes/device, up to 15 Gbps lane rate | |||||||||
| Clock Performance | |||||||||
| Onboard 25 MHz low-phase-noise OCXO (0.1 ppm temp stability) | |||||||||
| External reference supported; LMK04828 JESD204B clock device | |||||||||
| General Specifications | |||||||||
| Channel isolation ≥80 dB (transmit/receive groups) | |||||||||
| Amplitude matching ≤0.4 dB, phase matching ≤2° (50 MHz CW) | |||||||||
| Dual-wide FMC HPC, supports channel-split with single-wide FMC HPC carrier | |||||||||
| Active heatsink/fan, segmented shielding | |||||||||
Block Diagram
Applications
SDR, EW, spectrum monitoring, signal intelligence, DBF/phased array radar, wideband radar acquisition/waveform generation, 5G/6G prototyping, massive MIMO test, high-speed data record/playback, RF test & measurement, satellite communication, industrial inspection.
Ordering
| PN: | EL11FMC02A012 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

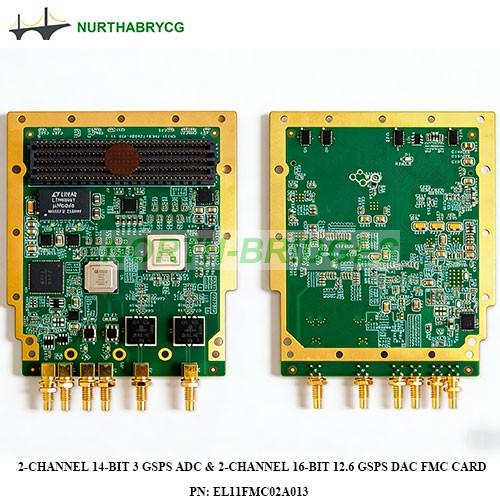

Product No.: EL11FMC02A013

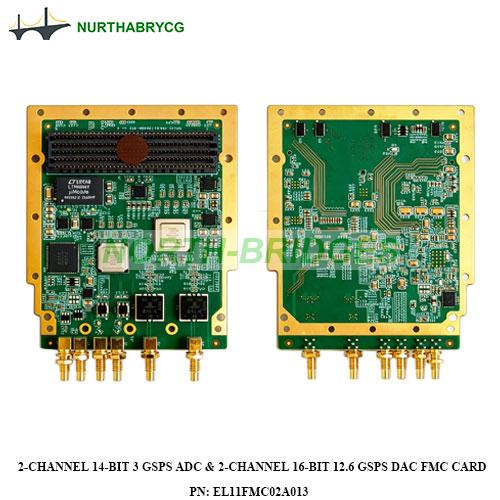

2-Channel 14-Bit 3 GSPS ADC & 2-Channel 16-Bit 12.6 GSPS DAC FMC Mezzanine Card
Key Features
2-Channel 14-bit A/D (3.0/2.6/2.0 GSPS, configurable); 2-Channel 16-bit D/A (12.6 GSPS); Full-power analog input bandwidth (-3 dB) up to 9 GHz. Trigger I/O, 3 clock modes (internal/external reference, external clock). Clock via SPI; multi-board sync via common reference. ANSI/VITA 57.1 compliant. FPGA interface: single HPC connector. Front-panel: 6 SSMC. Air/conduction-cooled; compatible with standard carriers for high-performance/real-time signal processing.
Specifications
| Connectors: | 6 SSMC (2 AD0/AD1, 2 DA0/DA1, 1 CLK, 1 TRG) | ||||||||
| 2-ch 16-bit 12.6 GSPS DAC | |||||||||
| 2-ch 14-bit 2.6 GSPS ADC | |||||||||
| Digital Interface: | JESD204B (ADC/DAC) | ||||||||
| Compliance: | ANSI/VITA 57.1 | ||||||||
| Thermal: | Air/conduction-cooled | ||||||||
| Analog I/O: | AC coupling | ||||||||
| Clock: | Internal/external (carrier-configurable) | ||||||||
| Interface: | HPC | ||||||||
| Dimensions | 69×85 mm | ||||||||
| Weight: | 37g (bare); 83g (assembled) | ||||||||
| Temp: | Commercial (0~70°C); Industrial (-40~85°C) | ||||||||

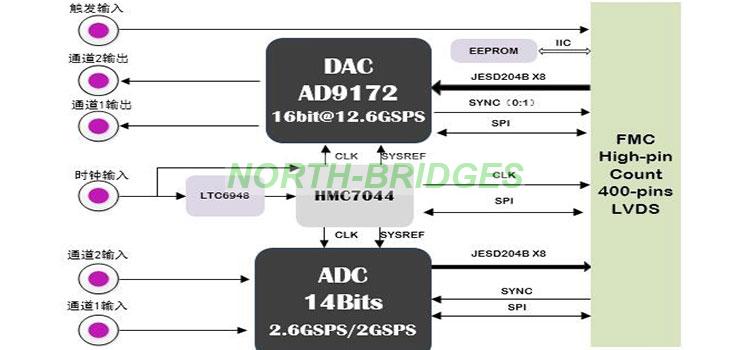

Block Diagram
Applications
SDR, Wideband MIMO, DBF, EW (Radar/Sonar), Physics Experimentation, SIGINT, Aerospace Systems, Test & Measurement Instruments
Ordering
| PN: | EL11FMC02A013 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
