Integrated FMC RF transceiver modules for software-defined radio, wireless communications and spectrum monitoring.
FMC RF Transceiver Mezzanine Card
Rugged, compact FMC RF transceivers with high-performance signal conversion, engineered for defense, aerospace and real-time signal processing in harsh environments.
All FMC mezzanine cards comply with standard FMC interfaces and are compatible with upcoming carrier boards and development platforms.

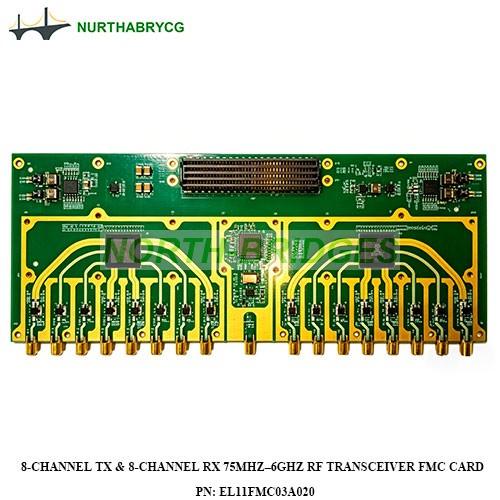

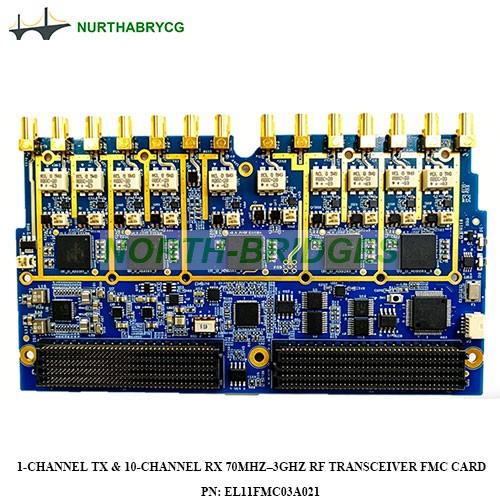

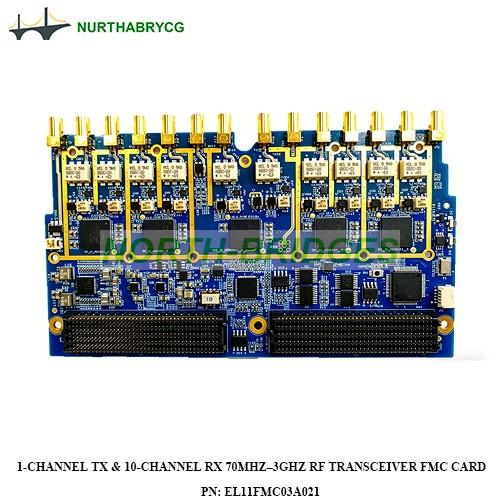

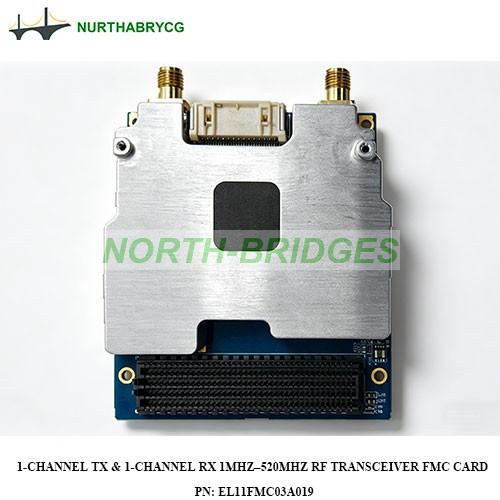

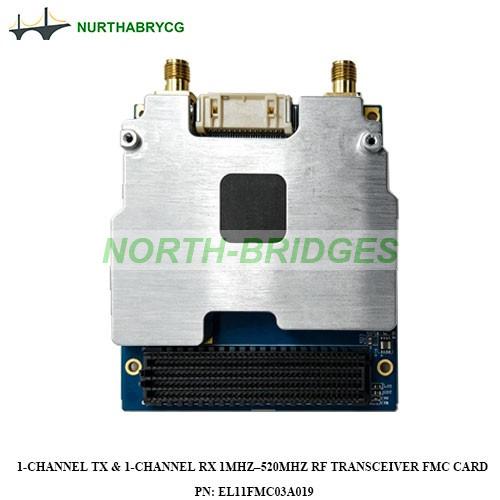

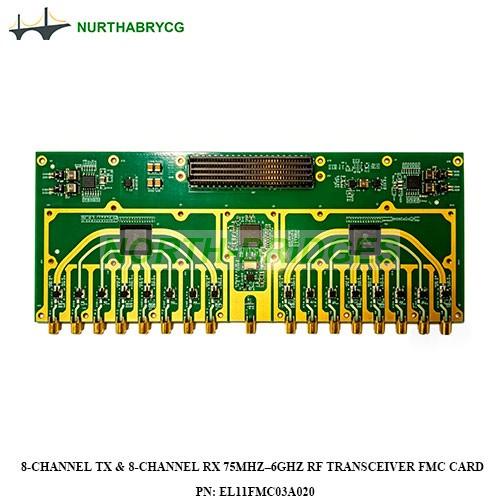

Below is a summary of key specifications to help you select the right model quickly. (Custom RF FMC cards available: 1T10R (70M–3G), 8T8R (75M–6G), 1T1R (1–520M). Inquiries welcome.)
Product Selection Table
| Part Number | Function Type | FMC Standard | RF Frequency Range | TX / RX | Instantaneous Bandwidth | ADC Sampling Rate | DAC Sampling Rate | TX Output Power | Temp. Range |
| EL11FMC03A022 | RF Transceiver | FMC1.0 (VITA57.1) | DC ~7.5GHz | 4T4R | 500 MHz (Rx) | 1 GSPS (1-Channel) | 1 GSPS (1-Channel) | Max. + 5 dBm | -20℃~+70℃ |
| EL11FMC03A023 | RF Transceiver | FMC1.0 (VATA57.1) | 75MHz ~6GHz | 2T2R | 450MHz (Tx), 200MHz (Rx), tunable | 122.88 MSPS (1-Channel) | 122.88 MSPS (1-Channel) | Max. + 5 dBm | -20℃~+70℃ |
| EL11FMC03A024 | RF Transceiver | FMC1.0 (VITA57.1) | 75MHz ~6GHz | 4T4R | 450MHz (Tx), 200MHz (Rx), tunable | 122.88 MSPS (1-Channel) | 122.88 MSPS (1-Channel) | Max. + 5 dBm | -40°~﹢85°C |
| EL11FMC03A025 | RF Transceiver | FMC1.0 (VITA57.1) | 50MHz ~6GHz | 2T2R | 450MHz (Tx), 200MHz (Rx), tunable | 122.88 MSPS (1-Channel) | 122.88 MSPS (1-Channel) | Max. + 5 dBm | -40°~﹢85°C |
| EL11FMC03A026 | RF Transceiver | FMC+ (VITA57.4) | 75MHz ~6GHz | 4T4R | 450MHz (Tx), 200MHz (Rx), tunable | 122.88 MSPS (1-Channel) | 122.88 MSPS (1-Channel) | Max. + 5 dBm | -40°~﹢85°C |
| EL11FMC03A027 | RF Transceiver | FMC1.0 (VITA57.1) | 75MHz ~6GHz | 2T2R | 450MHz (Tx), 200MHz (Rx), tunable | 122.88 MSPS (1-Channel) | 122.88 MSPS (1-Channel) | Max. + 5 dBm | -40°~﹢85°C |

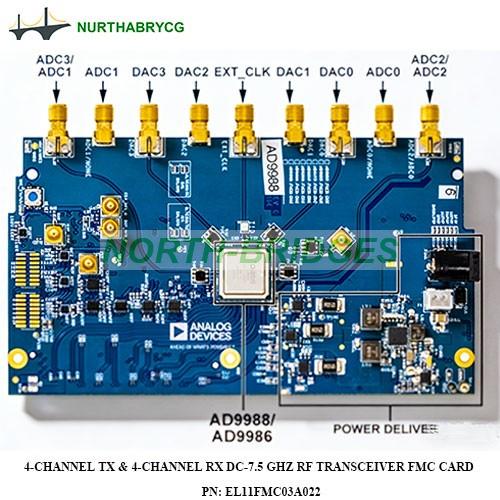

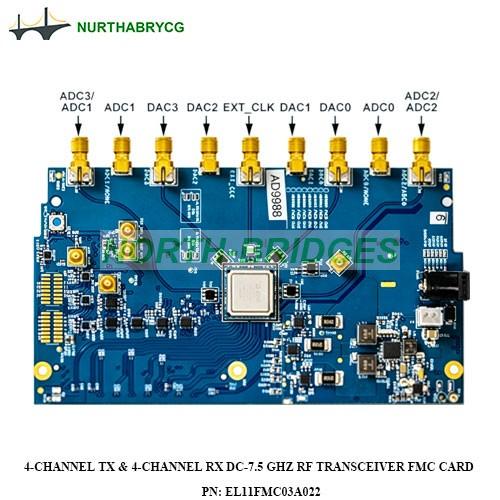

Product No.: EL11FMC03A022
4-Channel TX & 4-Channel RX DC–7.5 GHz RF Transceiver FMC Mezzanine Card
Key Features
Discrete ADC/DAC architecture integrates independent high-speed ADCs/DACs, external mixers, LO sources, amplifiers, filters and clock devices to build complete TX/RX signal chains. All modules use discrete components; dedicated external RF circuits support multi-channel operation. The FMC card performs direct wideband RF sampling (≥1 GSPS), achieving large instantaneous bandwidth without heavy analog up/down conversion. It offers high-speed sampling performance, with trade-offs of high power consumption and complex PCB design. Advantages: high single-channel sampling rate, large native analog bandwidth, flexible customized wideband acquisition.
Specifications
| ADC: | 4 × 12‑bit, 4 GSPS | ||||||||
| DAC: | 4 × 16‑bit, 4 GSPS | ||||||||
| RF Frequency Range: | DC to 7.5 GHz (direct RF sampling) | ||||||||
| Max Instantaneous Bandwidth: | 1.2 GHz (4T4R) | ||||||||
| Digital Interface: | JESD204B / JESD204C | ||||||||
| Internal PLL, external 10 MHz reference, external RF clock | |||||||||
| Multi‑chip phase coherence support | |||||||||
| Power: | 12 V, DC | ||||||||
| Temp: | -40°C to +85°C | ||||||||
| VITA 57.1 HPC | |||||||||
| Dimensions: | 76.5 × 69 mm | ||||||||
Block Diagram
Applications
SDR, EW, SIGINT, Phased‑Array Radar, 5G/6G Base Stations & MIMO, Test & Measurement, Aerospace
Ordering
| PN: | EL11FMC03A022 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

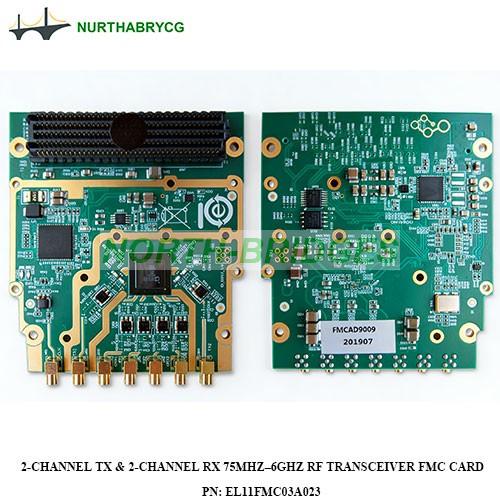

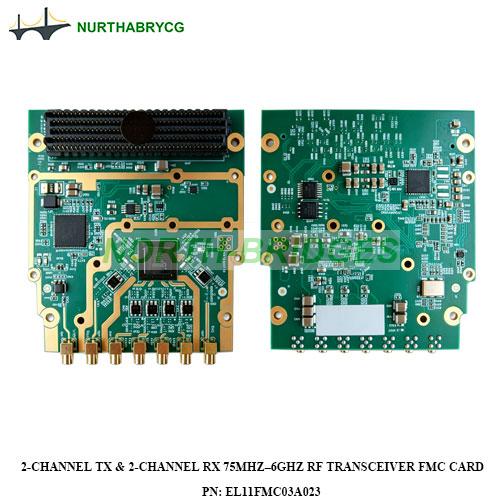

Product No.: EL11FMC03A023
2-Channel TX & 2-Channel RX 75MHz–6GHz RF Transceiver FMC Mezzanine Card
Key Features
It adopts a highly integrated single-chip multi-channel MxFE SoC, integrating 2T2R direct-conversion transceiver, ADCs, DACs, fractional-N frequency synthesizers, clock management, DSP, gain control, correction circuits (quadrature imbalance, DC offset) and observation receiver channels, substantially eliminating most discrete RF front-end devices.
With direct-conversion (zero-IF) architecture, it down-converts RF signals to baseband before digitalization. At 122.88 MSPS moderate sampling rate, it achieves wide instantaneous bandwidth (max 200 MHz Rx, 450 MHz Tx), enhancing spectral efficiency via analog frequency shifting without ultra-high sampling rates.
It features superior linearity, noise performance, dynamic range, exceptional multi-channel phase synchronization, integrated DPD, low power consumption, compact form factor and high reliability.
Specifications
| 2T2R, Dual-input shared observation receiver | |||||||||
| Max bandwidth: | 200 MHz (Rx), 450 MHz (Tx), 450 MHz (observe) | ||||||||
| Fully integrated fractional N RF & clock synthesizers | |||||||||
| Multi chip phase sync for RF LO and baseband clocks | |||||||||
| JESD204B | |||||||||
| Frequency range: | 75~6000 MHz | ||||||||
Block Diagram
Applications
3G/4G/5G base stations, massive MIMO systems, phased-array radar, mission-critical communication systems
Ordering
| PN: | EL11FMC03A023 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

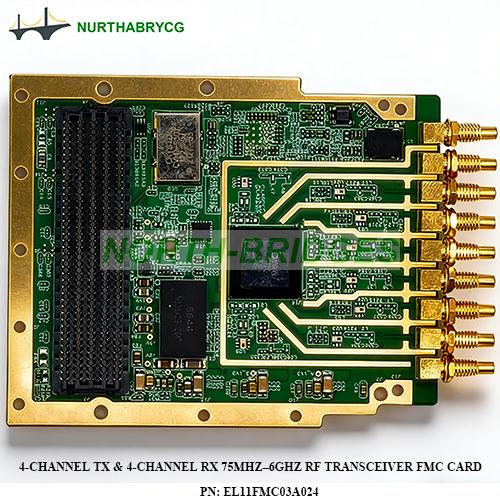

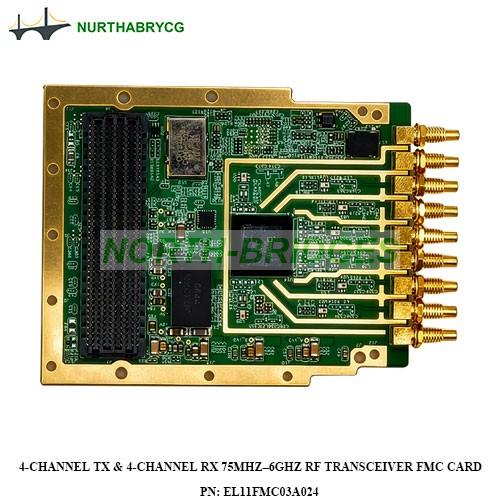

Product No.: EL11FMC03A024
4-Channel TX & 4-Channel RX 75MHz–6GHz RF Transceiver FMC Mezzanine Card
Key Features
It adopts MxFE SoC ADRV9026, integrating 4T4R direct-conversion transceiver, ADCs, DACs, fractional-N frequency synthesizers, clock management, DSP, gain control, correction circuits (quadrature imbalance, DC offset) and observation receiver channels, substantially eliminating most discrete RF front-end devices.
It features superior linearity, noise performance, dynamic range, exceptional multi-channel phase synchronization, integrated DPD, low power consumption, compact form factor and high reliability.
Specifications
| IC Model: | ADRV9026 | ||||||||
| 4T4R channels | |||||||||
| Tunable: | 75 ~6000MHz | ||||||||
| Max bandwidth: | 200 MHz (Rx), 450 MHz (Tx) | ||||||||
| Max Tx Power: | 0dBm | ||||||||
| JESD204C | |||||||||
| Integrated Tx PA protection | |||||||||
| SSMC | |||||||||
| VITA 57.1, HPC | |||||||||
| Clock: | 1 JESD204B clock IC | ||||||||
| Ext ref: | -2~10dBm@50Ω | ||||||||
| Local ref/LO supported | |||||||||
| Features: | Ext/int trigger (3.3V, reserved), Ext LO (reserved) | ||||||||
| Dimensions: | 84.1×69mm | ||||||||
| Power: | 6W | ||||||||
| Cooling: | natural/conductive | ||||||||
| Temp: | -40~+85°C | ||||||||
| Humidity: | 5%~95% (non-condensing) | ||||||||

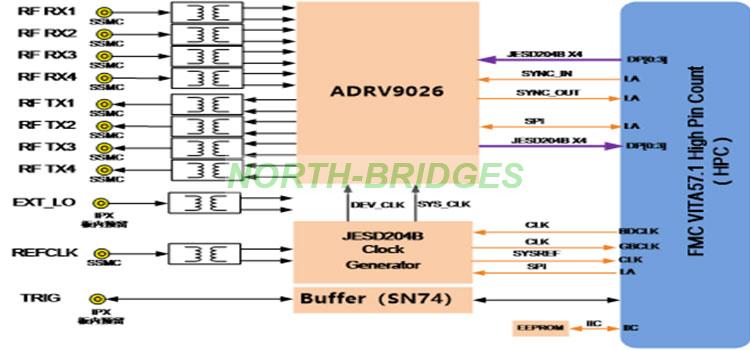

Block Diagram
Applications
3G/4G/5G TDD base stations, TDD active antenna, Phased-array radar, EW, MIMO, Portable test equipment
Ordering
| PN: | EL11FMC03A024 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

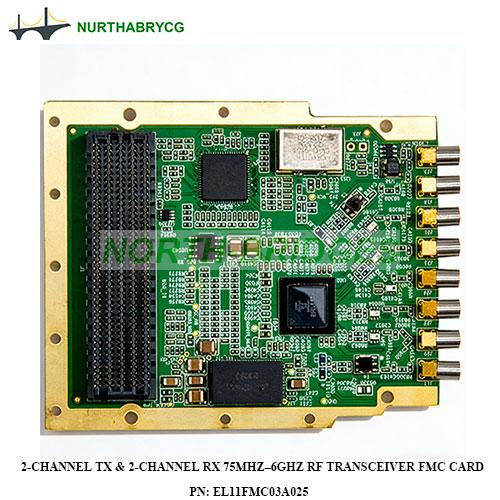

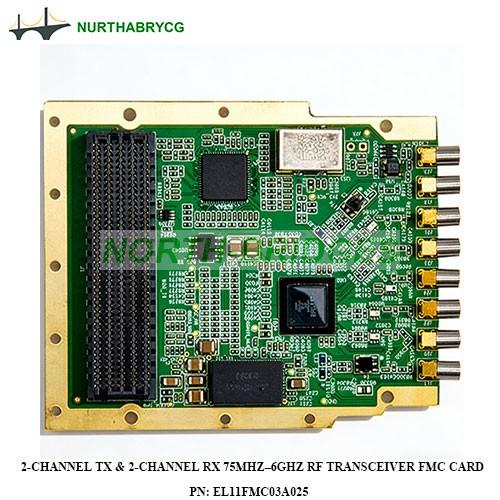

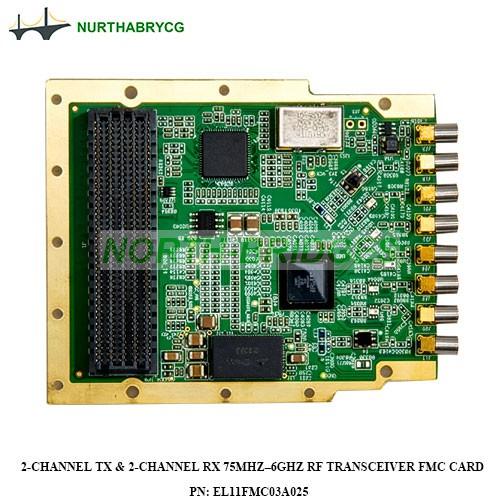

Product No.: EL11FMC03A025
2-Channel TX & 2-Channel RX 75MHz–6GHz RF Transceiver FMC Mezzanine Card
Key Features
It adopts MxFE SoC ADRV9009, integrating 2T2R direct-conversion transceiver, ADCs, DACs, fractional-N frequency synthesizers, clock management, DSP, gain control, correction circuits (quadrature imbalance, DC offset) and observation receiver channels, substantially eliminating most discrete RF front-end devices.
It features superior linearity, noise performance, dynamic range, exceptional multi-channel phase synchronization, integrated DPD, low power consumption, compact form factor and high reliability.
Specifications
| IC Model: | ADRV9009 | ||||||||
| 2T2R | |||||||||
| Tunable: | 50 ~6000MHz | ||||||||
| Max bandwidth: | 200 MHz (Rx), 450 MHz (Tx) | ||||||||
| Integrated Rx AGC algorithm | |||||||||
| Integrated Tx PA protection algorithm | |||||||||
| JESD204B | |||||||||
| SMP | |||||||||
| VITA 57.1, HPC | |||||||||
| Power Supply: | +12V | ||||||||
| Supports I²C Interface | |||||||||
| Clock modes: | External, External Reference-Internal, Internal Reference-Internal | ||||||||
| Onboard ultra-low noise TCXO | |||||||||
| Dimensions: | 84.1×69mm | ||||||||
| Power: | 1A max @ +3.3V (±5%) | ||||||||
| Cooling: | Natural | ||||||||
| Operating Temp: | -40°C~+85°C | ||||||||
| Operating Humidity: | 5%~95% (Non-Condensing) | ||||||||

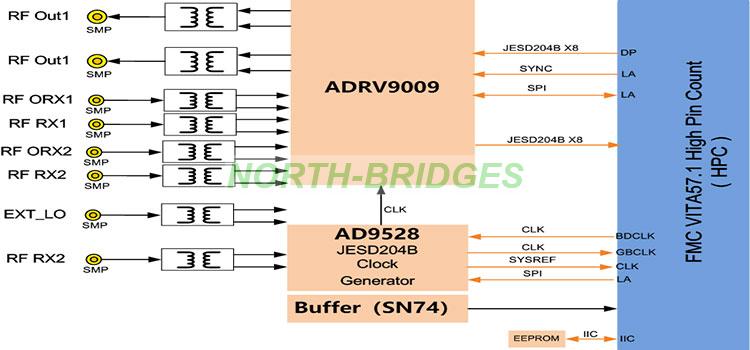

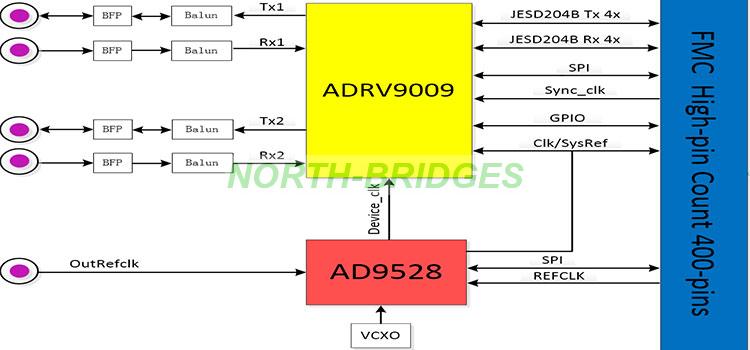

Block Diagram
Applications
Radar & smart antennas, Test & measurement, SDR
Ordering
| PN: | EL11FMC03A025 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

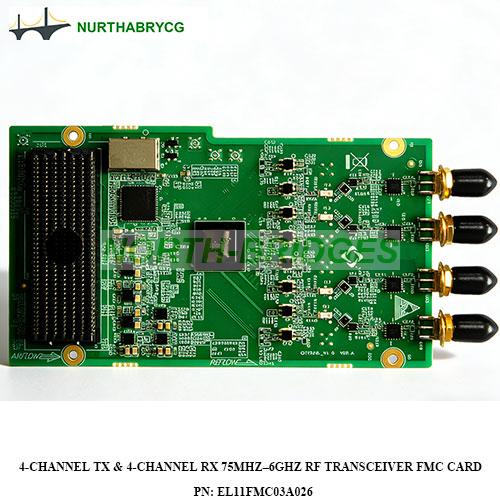

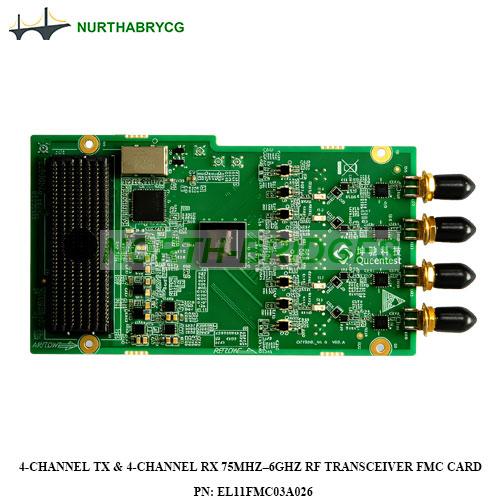

Product No.: EL11FMC03A026
4-Channel TX & 4-Channel RX 75MHz–6GHz RF Transceiver FMC Mezzanine Card
Key Features
It adopts MxFE SoC ADRV9026, integrating 4T4R direct-conversion transceiver, ADCs, DACs, fractional-N frequency synthesizers, clock management, DSP, gain control, correction circuits (quadrature imbalance, DC offset) and observation receiver channels, substantially eliminating most discrete RF front-end devices.
It features superior linearity, noise performance, dynamic range, exceptional multi-channel phase synchronization, integrated DPD, low power consumption, compact form factor and high reliability.
Specifications
| 12 RF coaxial connectors: | 4 SMA (Rx) | ||||||||
| 4 XSMP (Tx) | |||||||||
| 1 MMCX (ext trigger) | |||||||||
| 1 MMCX (ref clock) | |||||||||
| 2 MMCX (ext observation Rx) | |||||||||
| 4T4R | |||||||||
| Dual-input shared observation receiver | |||||||||
| Max bandwidth: | 200 MHz (Rx), 450 MHz (Tx), 450 MHz (observe) | ||||||||
| Fully integrated Fractional-N RF & clock synthesizers | |||||||||
| Multi-chip phase sync for RF LO & baseband clocks | |||||||||
| JESD204B/C | |||||||||
| Frequency range: | 75 - 6000 MHz | ||||||||
| VITA 57.4, Single HSPC | |||||||||
| Cooling: | Natural | ||||||||
| Temp: | Commercial 0℃~+55℃; Industrial -20℃~+65℃ | ||||||||
Block Diagram
Applications
SDR, Wideband MIMO, TDD Macro-Cell Base Stations, EW including Radar & Sonar, SIGINT, Test & Measurement
Ordering
| PN: | EL11FMC03A026 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

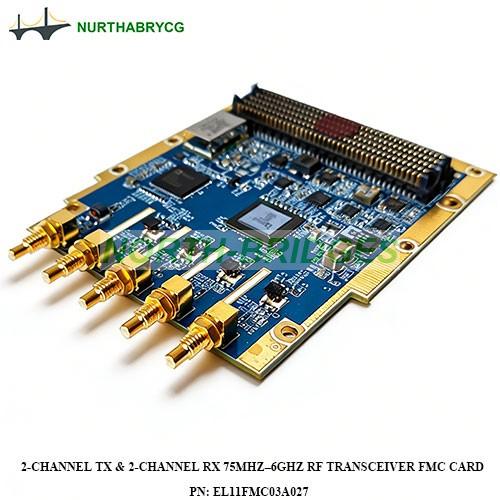

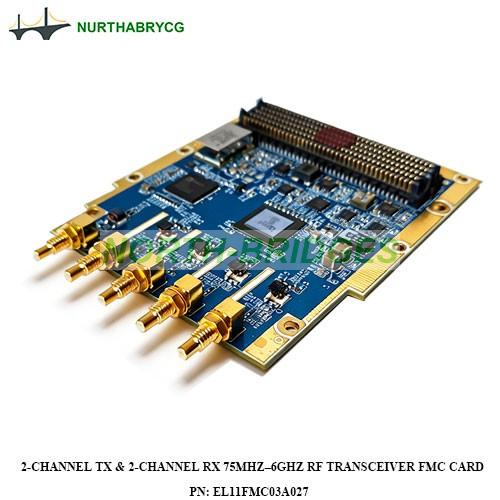

Product No.: EL11FMC03A027
2-Channel TX & 2-Channel RX 75MHz–6GHz RF Transceiver FMC Mezzanine Card
Key Features
It adopts MxFE SoC ADRV9009, integrating 2T2R direct-conversion transceiver, ADCs, DACs, fractional-N frequency synthesizers, clock management, DSP, gain control, correction circuits (quadrature imbalance, DC offset) and observation receiver channels, substantially eliminating most discrete RF front-end devices.
It features superior linearity, noise performance, dynamic range, exceptional multi-channel phase synchronization, integrated DPD, low power consumption, compact form factor and high reliability.
Specifications
| 5 SSMC connectors: | 2 RX inputs | ||||||||
| 2 TX outputs | |||||||||
| 1 external reference clock (CLK) | |||||||||
| 2T2R | |||||||||
| Dual-input shared observation receiver | |||||||||
| Max bandwidth: | 200 MHz (Rx), 450 MHz (Tx), 450 MHz (observe) | ||||||||
| Fully integrated Fractional-N RF & clock synthesizers | |||||||||
| Multi-chip phase sync for RF LO & baseband clocks | |||||||||
| JESD204B | |||||||||
| Frequency range: | 75 - 6000 MHz | ||||||||
| VITA 57.1, HPC | |||||||||
| Cooling: | Natural | ||||||||
| Temp: | Commercial 0℃~+70℃, Industrial -40℃~+85℃ | ||||||||

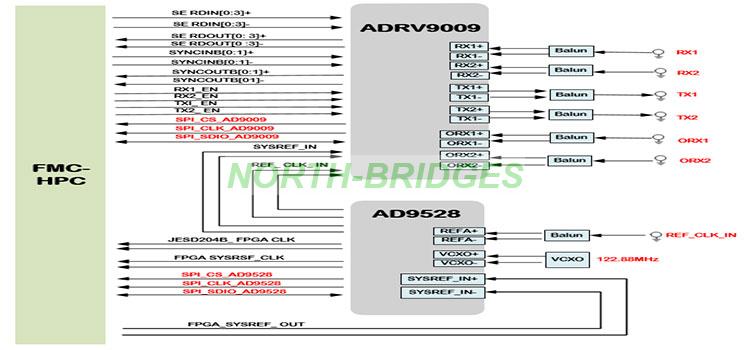

Block Diagram
Applications
SDR, Wideband MIMO, TDD Macro-Cell Base Stations, EW including Radar & Sonar, SIGINT, Test & Measurement
Ordering
| PN: | EL11FMC03A027 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
