FMC CameraLink Cards
Dual-port CameraLink interface FMC modules supporting Base / Medium / Full / 80Bit modes. Includes receiver, transmitter and bidirectional transceiver variants for high-speed image acquisition, video output and real-time closed-loop machine vision systems.
All FMC mezzanine cards comply with standard FMC interfaces and are compatible with upcoming carrier boards and development platforms.
Below is a summary of key specifications to help you select the right model quickly.
Product Selection Table
Part Number | Function Type | FMC Standard | CameraLink Modes | I/O Direction | PoCL Support | Features | Port | FMC Connector | Temp. Range |
| EL11FMC04A001 | CameraLink Transmitter | FMC1.0 (VITA 57.1) | Dual Base / Up to 80Bit | Dual Output | No (Default) | SDR26*2 | HPC | - 40℃～ +85℃ | |
| EL11FMC04A002 | CameraLink Receiver | FMC1.0 (VITA 57.1) | Dual Base / Up to 80Bit | Dual Input | No (Default) | SDR26*2 | HPC | - 40℃～ +85℃ | |
| EL11FMC04A003 | CameraLink Receiver | FMC1.0 (VITA 57.1) | Dual Base / Up to 80Bit | Dual Input | No (Default) | Embedded DVI output | SDR26*2 | HPC | - 40℃～ +85℃ |
| EL11FMC04A004 | CameraLink Receiver | FMC1.0 (VITA 57.1) | Dual Base / Up to 80Bit | Dual Input | No (Default) | Custom 96-bit Mode | SDR26*2 | HPC | - 20℃～ +55℃ |
| EL11FMC04A005 | CameraLink Receiver | FMC1.0 (VITA 57.1) | Dual Base / Up to Full | Dual Input | No (Default) | Embedded DVI output | SDR26*2 | HPC | - 20℃～ +70℃ |
| EL11FMC04A006 | CameraLink Transmitter | FMC1.0 (VITA 57.1) | Dual Base / Up to Full | Dual Output | No (Default) | SDR26*2 | HPC | - 20℃～ +70℃ | |
| EL11FMC04A007 | CameraLink Transceiver | FMC1.0 (VITA 57.1) | Dual Base | 1-In 1-Out | No (Default) | SDR26*2 | LPC | - 20℃～ +55℃ | |

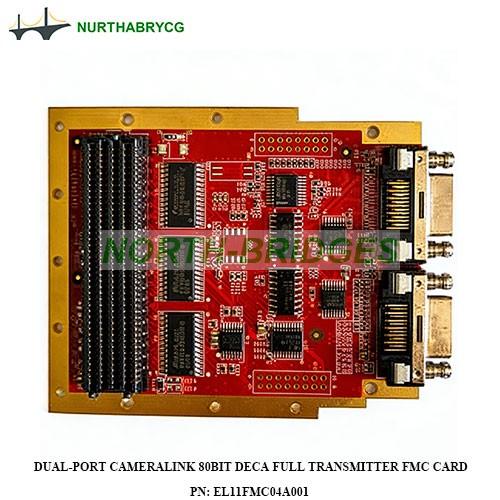

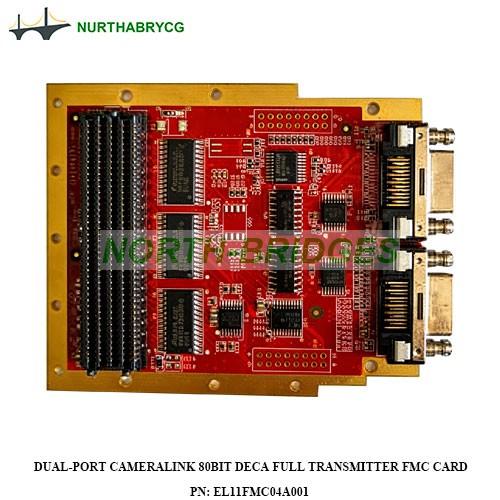

Product No.: EL11FMC04A001
Dual-Port CameraLink 80Bit Deca-Full Transmitter FMC Mezzanine Card
Key Features
This is a CameraLink Transmitter FMC Mezzanine Card, which supports image signal output in Dual Base-mode or Single Full-mode or Single 80-bit Deca-Full-mode. The board is equipped with 2 SDR26 ports and can serve as the output interface for emulated camera signals.
Specifications
| CameraLink | |||||||||
| IC: | DS90CR287 | ||||||||
| Max Clock: | 85 MHz | ||||||||
| Dual Base-mode | |||||||||
| Single Full-mode | |||||||||
| Single 80-bit Deca-Full-mode | |||||||||
| Max bandwidth: | 850 MB/s | ||||||||
| 2× SDR26 | |||||||||
| FMC Interface | |||||||||
| Power input: | +3.3 V | ||||||||
| VITA 57.1, HPC | |||||||||
| 3 signal groups (X/Y/Z) with matched trace lengths | |||||||||
| I²C supported | |||||||||
| General | |||||||||
| 1× RS422 | |||||||||
| 8× GPIO | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Power: | max 0.5 A @ +3.3 V (±5%) | ||||||||
| Cooling: | natural | ||||||||
| Operating temp: | -40 °C ~ +85 °C | ||||||||
| Operating humidity: | 5% ~ 95% (non-condensing) | ||||||||
| Software Support | |||||||||
| Optional BSP: | low-level & interconnection drivers | ||||||||
| Custom algorithm development & system integration on request | |||||||||

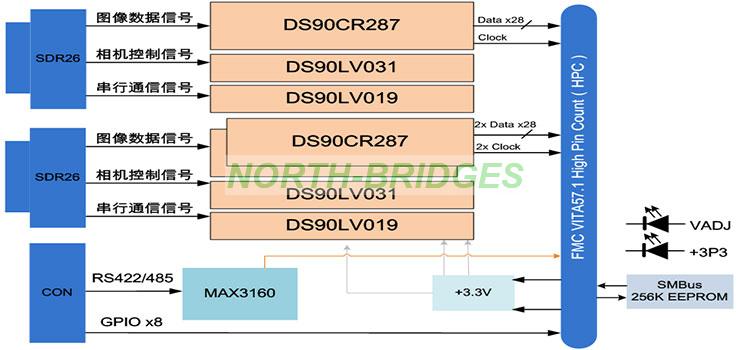

Block Diagram
Applications
CameraLink vision analysis, HD video transmission & real-time processing, Medical image analysis & processing
Ordering
| PN: | EL11FMC04A001 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

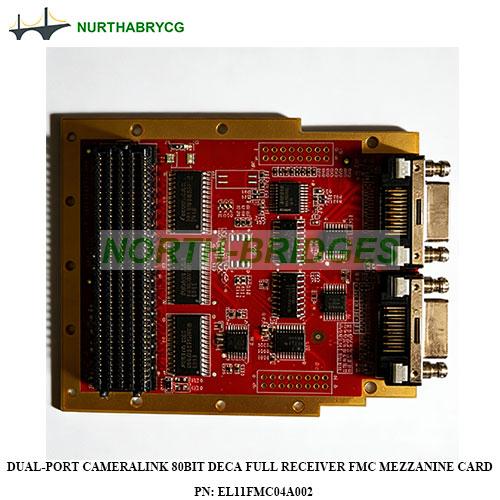

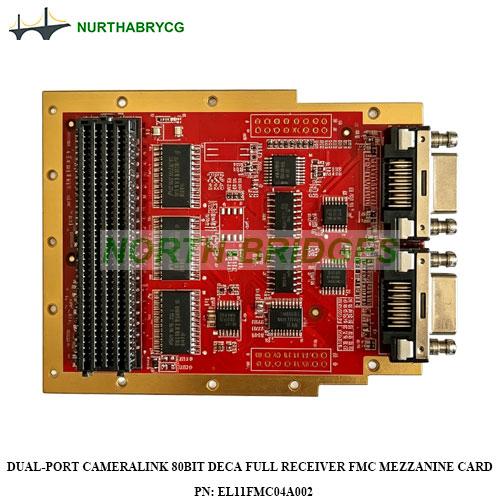

Product No.: EL11FMC04A002
Dual-Port CameraLink 80Bit Deca-Full Receiver FMC Mezzanine Card
Key Features
This CameraLink Receiver FMC Mezzanine Card is for high-performance image capture. It supports Dual Base-mode or Single Full-mode or Single 80-bit Deca-Full-mode, with 2 SDR26 ports, compliant with industry standards as a high-speed image acquisition card.
Specifications
| CameraLink | |||||||||
| IC: | DS90CR288A | ||||||||
| Max Clock: | 85 MHz | ||||||||
| Dual Base-mode | |||||||||
| Single Full-mode | |||||||||
| Single 80-bit Deca-Full-mode | |||||||||
| Max bandwidth: | 850 MB/s | ||||||||
| 2× SDR26 | |||||||||
| FMC Interface | |||||||||
| Power input: | +3.3 V | ||||||||
| VITA 57.1, HPC | |||||||||
| 3 signal groups (X/Y/Z) with matched trace lengths | |||||||||
| I²C supported | |||||||||
| General | |||||||||
| 1× RS422 | |||||||||
| 8× GPIO | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Power: | Max 0.5 A @ +3.3 V (±5%) | ||||||||
| Cooling: | Natural | ||||||||
| Operating temp: | -40 °C ~ +85 °C | ||||||||
| Operating humidity: | 5% ~ 95% (non-condensing) | ||||||||
| Software Support | |||||||||
| Optional BSP: | low-level & interconnection drivers | ||||||||
| Custom algorithm development & system integration on request | |||||||||

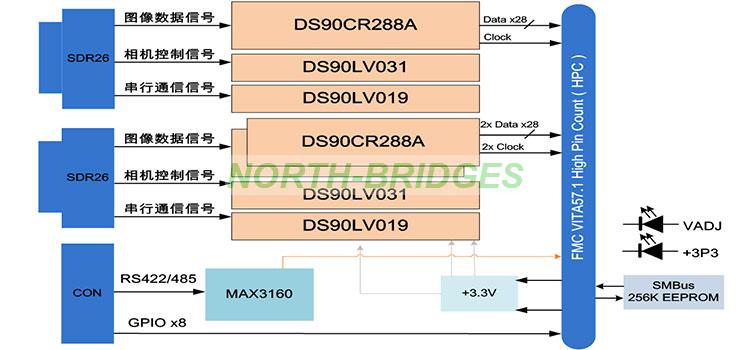

Block Diagram
Applications
CameraLink vision analysis, HD video transmission & real-time processing, Medical image analysis & processing
Ordering
| PN: | EL11FMC04A002 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

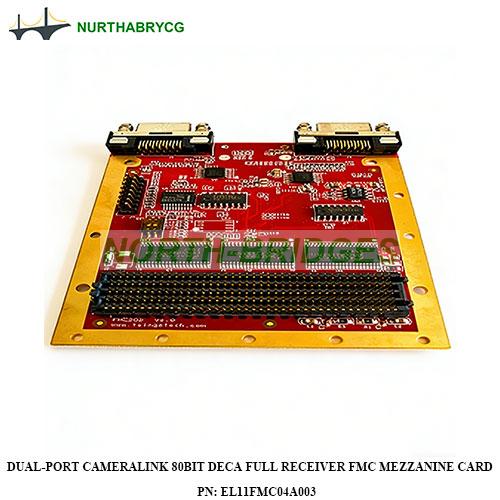

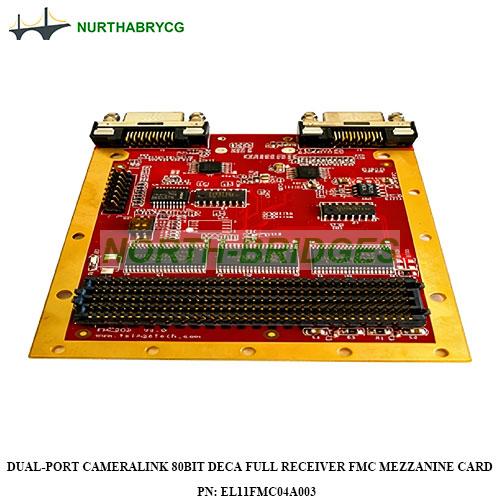

Product No.: EL11FMC04A003
Dual-Port CameraLink 80Bit Deca-Full Receiver FMC Mezzanine Card
Key Features
This CameraLink Receiver FMC Mezzanine Card is for high-performance image capture. It supports Dual Base-mode or Single Full-mode or Single 80-bit Deca-Full-mode, with 2 SDR26 CameraLink ports. It also supports 1 DVI output via HDMI connector.
Specifications
| CameraLink | |||||||||
| IC: | DS90CR288A | ||||||||
| Max Clock: | 85 MHz | ||||||||
| Dual Base-mode | |||||||||
| Single Full-mode | |||||||||
| Single 80-bit Deca-Full-mode | |||||||||
| Max bandwidth: | 850 MB/s | ||||||||
| 2× SDR26 | |||||||||
| 1-Channel DVI output (IC: TFP410) | |||||||||
| FMC Interface | |||||||||
| Power input: | +3.3 V | ||||||||
| VITA 57.1, HPC | |||||||||
| 3 signal groups (X/Y/Z) with matched trace lengths | |||||||||
| I²C supported | |||||||||
| General | |||||||||
| 1× RS422 | |||||||||
| 8× GPIO | |||||||||
| Dimensions: | 84.1 × 69 mm | ||||||||
| Power: | Max 0.5 A @ +3.3 V (±5%) | ||||||||
| Cooling: | Natural | ||||||||
| Operating temp: | -40 °C ~ +85 °C | ||||||||
| Operating humidity: | 5% ~ 95% (non-condensing) | ||||||||
| Software Support | |||||||||
| Optional BSP: | low-level & interconnection drivers | ||||||||
| Custom algorithm development & system integration on request | |||||||||

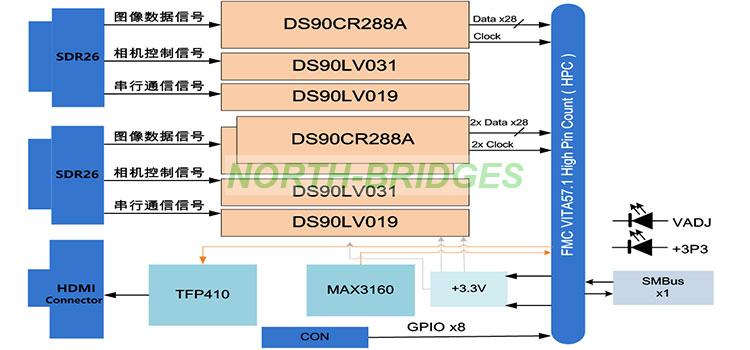

Block Diagram
Applications
CameraLink vision analysis, HD video transmission & real-time processing, Medical image analysis & processing
Ordering
| PN: | EL11FMC04A003 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

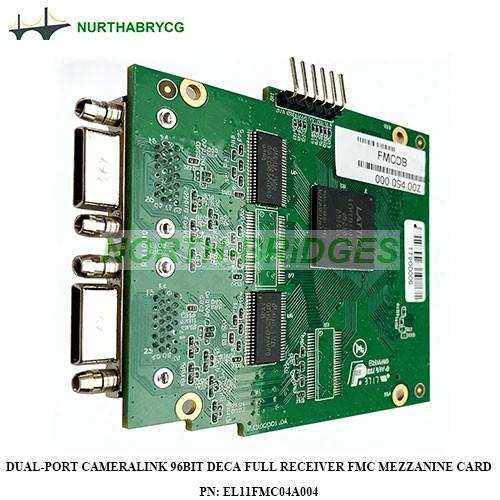

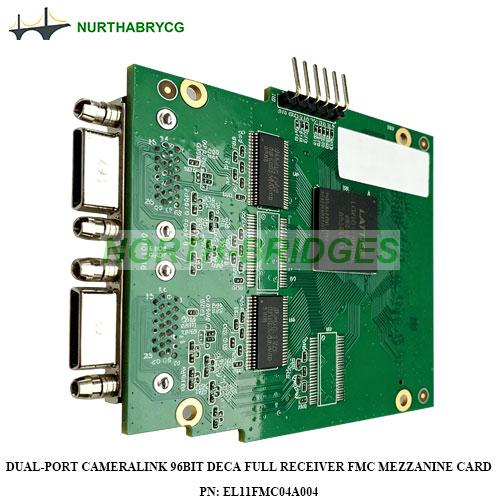

Product No.: EL11FMC04A004
Dual-Port CameraLink 96Bit Deca-Full Receiver FMC Mezzanine Card
Key Features
FMC-compliant mezzanine card with 2-ch CameraLink Base acquisition. PCB compatible design; CameraLink Medium/Full/80-bit/custom 96-bit modes via component replacement. VITA 57.1-compliant, single-width; compatible with almost all Xilinx dev boards and standard FMC FPGA carrier cards, meeting standard operating requirements.
Specifications
| IC: | DS90CR286A/288A | ||||||||
| Dual Base-mode | |||||||||
| Single Full-mode | |||||||||
| Single 80-bit Deca-Full-mode | |||||||||
| Single 96-bit Deca-Full-mode (Custom) | |||||||||
| Cooling: | Nature | ||||||||
| Fully compliant with VITA 57.1, HPC | |||||||||
| Storage temp: | -20 °C to +70 °C | ||||||||
| Operating temp: | Commercial: 0 °C to +55 °C, Industrial: -20 °C to +55 °C | ||||||||
| Operating humidity: | 10% to 80% (non-condensing) | ||||||||
| JTAG configuration port | |||||||||
| Software Support | |||||||||
| CPLD source code (FMC mezzanine card) | |||||||||
| FPGA test app (standard dev platforms) | |||||||||
| FPGA dev demo (standard dev platforms) | |||||||||

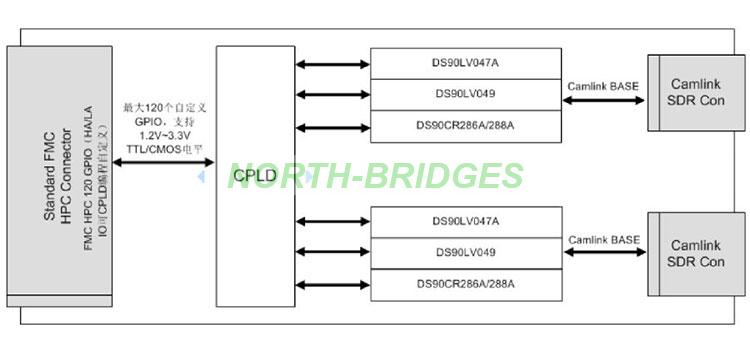

Block Diagram
Applications
Digital Imaging, Image Analysis & Testing, Video Capture (CameraLink)
Ordering
| PN: | EL11FMC04A004 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

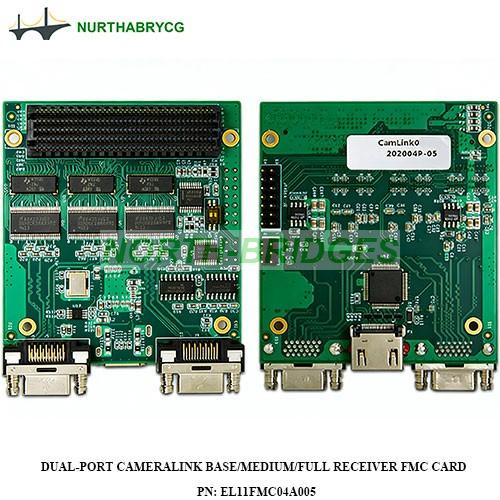

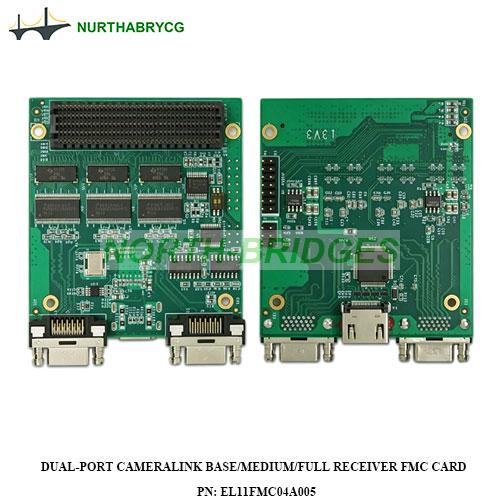

Product No.: EL11FMC04A005
Dual-Port CameraLink Base/Medium/Full Receiver FMC Mezzanine Card
Key Features
1.8V I/O for seamless compatibility with Virtex 7, Kintex UltraScale, Virtex UltraScale+ FPGAs. Customizable hardware config for legacy 3.3V I/O. Concurrent supports 1-ch Full-mode CameraLink input & 1-ch HDMI output.
Specifications
| CameraLink | |||||||||
| IC: | DS90CR288A | ||||||||
| Max Clock: | 85 MHz | ||||||||
| Dual Base-mode | |||||||||
| Single Medium-mode | |||||||||
| Single Full-mode | |||||||||
| 1-ch UART, 4-ch CC | |||||||||
| 2× SDR26 | |||||||||
| 1-ch DVI output (IC: ADV7511WBSWZ) | |||||||||
| FMC Interface | |||||||||
| I/O Standard: | LVTTL | ||||||||
| I/O Voltage Levels: | 1.8 V, 2.5 V, 3.3 V | ||||||||
| VITA 57.1, HPC | |||||||||
| General | |||||||||
| 1× RS232 | |||||||||
| Dimensions: | 76.5 × 69mm | ||||||||
| Mounting Hole Diameter: | 2.7 mm | ||||||||
| Supply Voltage: | +3.3 V @ 0.5 A | ||||||||
| Power: | 2 W | ||||||||
| Temp: | -20 °C to +70 °C | ||||||||
| Supported Carrier Boards | |||||||||
| Xilinx: | V6, V7, KU, VU, Zynq, ZU | ||||||||
| Orihard: | 136, 270, 367, 288, 330, 274, 3, 9 | ||||||||
| Software Support | |||||||||
| FPGA reference designs for CameraLink, UART, CC signal processing modules. | |||||||||

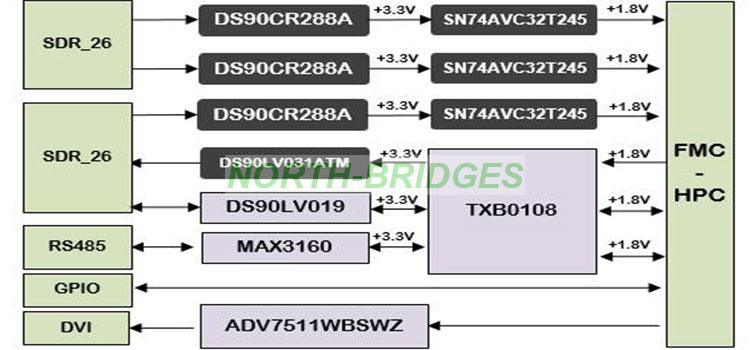

Block Diagram
Applications
Interfaced with FPGA carrier boards for industrial image signal processing
Ordering
| PN: | EL11FMC04A005 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

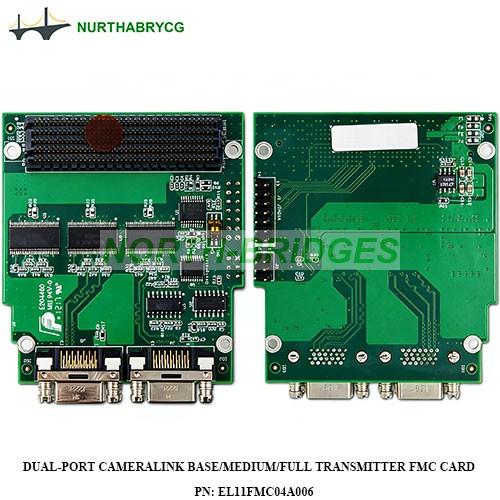

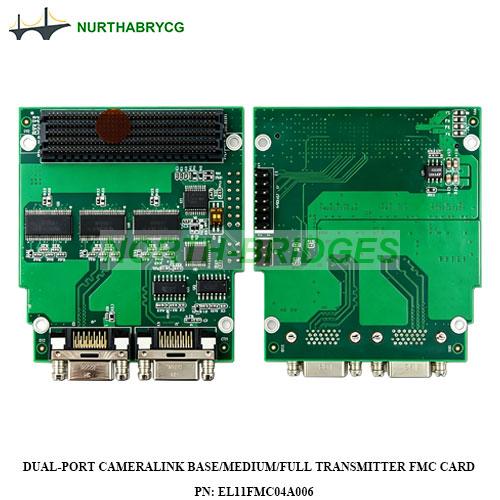

Product No.: EL11FMC04A006
Dual-Port CameraLink Base/Medium/Full Transmitter FMC Mezzanine Card
Key Features
This FMC CameraLink output mezzanine card supports Base/Medium/Full modes, 1.8V/2.5V/3.3V FPGA I/O voltages, and is compatible with Xilinx development boards and in-house FMC carriers.
Specifications
| CameraLink | |||||||||
| IC: | SN65LVDS93A | ||||||||
| Max Clock: | 85 MHz | ||||||||
| Dual Base-mode | |||||||||
| Single Medium-mode | |||||||||
| Single Full-mode | |||||||||
| UART 1-ch, CC 4-ch | |||||||||
| 2× SDR26 | |||||||||
| FMC Interface | |||||||||
| I/O Standard: | LVTTL | ||||||||
| I/O Voltage Levels: | 1.8 V, 2.5 V, 3.3 V | ||||||||
| VITA 57.1, HPC | |||||||||
| General | |||||||||
| 1×RS485/RS232 | |||||||||
| 8×GPIO | |||||||||
| Dimensions: | 76.5 × 69 mm | ||||||||
| Mounting Hole Diameter: | 2.7 mm | ||||||||
| Supply Voltage: | +3.3 V @ 0.5 A | ||||||||
| Power: | 2 W | ||||||||
| Temp: | -20 °C to +70 °C | ||||||||
| Supported Carrier Boards | |||||||||
| Xilinx: | V6, V7, KU, VU, Zynq, ZU | ||||||||
| Orihard: | 136, 270, 367, 288, 330, 274, 3, 9 | ||||||||
| Software Support | |||||||||
| FPGA reference for CameraLink, UART, CC | |||||||||
| Test logic for GPIO and RS232 | |||||||||

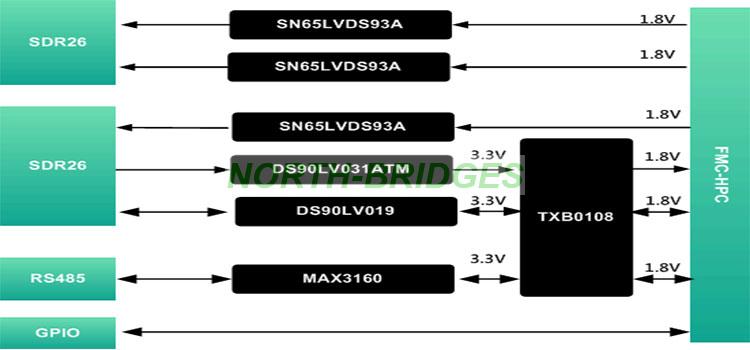

Block Diagram
Applications:
Industrial image output & programmable image simulation
Ordering
| PN: | EL11FMC04A006 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

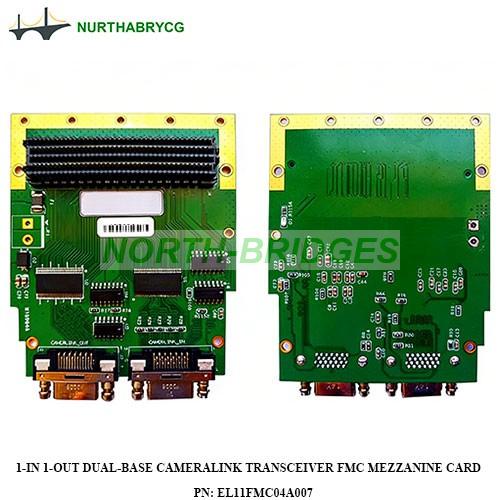

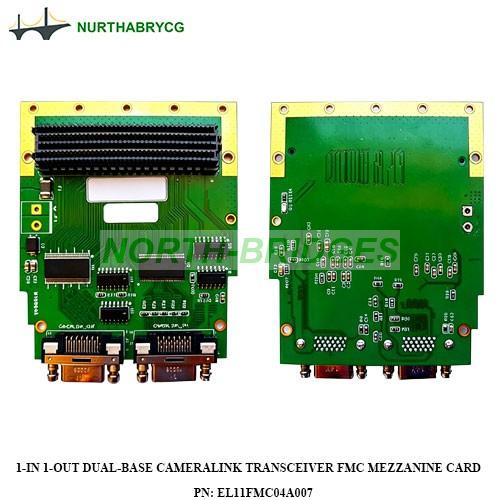

Product No.: EL11FMC04A007
1-In 1-Out Dual-Base CameraLink Transceiver FMC Mezzanine Card
Key Features
This FMC mezzanine card has CameraLink Base-mode 1-ch input and 1-ch output, LPC-FMC connector, standard form factor, engineered for Xilinx development platforms compatibility.
Specifications
| CameraLink | |||||||||
| IC: | DS90CR288A, DS90CR287 | ||||||||
| 1-ch Base-mode input + 1-ch Base-mode output | |||||||||
| 2× SDR26 | |||||||||
| FMC Interface | |||||||||
| VITA 57.1, LPC connectors | |||||||||
| General | |||||||||
| Dimensions: | 84 × 69mm | ||||||||
| Storage temp: | -20°C ~ +70°C | ||||||||
| Operating temp: | Commercial: -0°C ~ +55°C, Industrial: -20°C ~ +55°C | ||||||||
| Operating humidity: | 10% ~ 80% | ||||||||
| Supported Boards | |||||||||
| Development Board (Optional): | FMC-enabled Kintex-7 XC7K325T PCIe ×8 interface card | ||||||||
| SoM (Optional): | TI DSP TMS320C6678 & Xilinx Kintex-7 XC7K325T FPGA | ||||||||

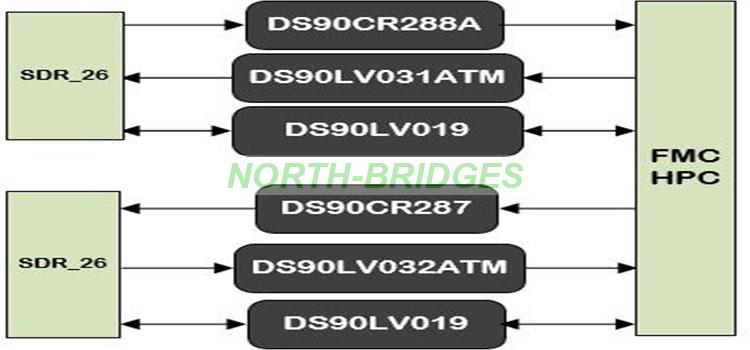

Block Diagram
Applications
Video Signal Inspection & Analysis, Digital Imaging Systems, Image Analysis & Verification Test
Ordering
| PN: | EL11FMC04A007 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
