Note:
Product specifications on the website are for reference only, subject to the latest manufacturer-confirmed datasheet. Please contact us for official technical documents before project evaluation and quotation.
Operating system, BSP, drivers and SDK vary by hardware batch. Please contact us for official software compatibility documents before project development.
FMC General Digital I/O Cards
VITA standard compliant FMC digital I/O expansion modules. Robust anti-interference, configurable multi-level voltage. Compatible with LPC/HPC FPGA connectors. Suitable for aerospace, industrial signal switching & interconnection. Military-grade compact structure, wide temperature adaptability.
Below is a summary of key specifications to help you select the right model quickly. (Custom FMC cards available. Inquiries welcome.)
Product Selection Table
Part Number | Function Type | FMC Standard | Channel Count | Key Chip | I/O Direction | I/O Power | Port | FMC Connector | Temp. Range |
| EL11FMC04A008 | High-Speed Digital I/O | FMC1.0 (VITA 57.1) | 32-ch | DS90LV032A | Differential Input | 2.5V / 3.3V | J30JA-100ZKW-J | LPC / HPC | -10℃～+60℃ |
| EL11FMC04A009 | High-Speed Digital I/O | FMC1.0 (VITA 57.1) | 4-TLK2711 | BLK2711 (compatible TLK2711AIRCRR) | Full-duplex Differential | 2.5V | SSMC*8 | HPC | -10℃～+60℃ |
| EL11FMC04A010 | TemperatureAcquisition | FMC1.0 (VITA 57.1) | 32-ch | LTC2494 / LTC2449 | Analog Input | 2.5V / 3.3V | J30JA-51ZKW-J | LPC/ HPC | -10℃～+60℃ |
| EL11FMC04A011 | General Digital I/O | FMC1.0 (VITA 57.1) | 32-ch | SN74LVC164245 | Digital Output | 2.5V / 3.3V | J30JA-51ZKW-J | LPC/ HPC | -10℃～+60℃ |
| EL11FMC04A012 | SpaceWire Communication | FMC1.0 (VITA 57.1) | 8-ch SPACEWIRE | BM4803 (compatible AT7910EKB-MQ) | Full-duplex Differential | 3.3V | J30JA-74ZKW-J | HPC | -10℃～+60℃ |
| EL11FMC04A013 | Mixed Multi-Function I/O | FMC1.0 (VITA 57.1) | 12-ch RS422 17-ch OC 11-ch AD | AM26C31/32 MAX3490ESA TLC2543IN | Duplex | N/A | J30JA-74ZKW-J | LPC/ HPC | -10℃～+60℃ |
| EL11FMC04A014 | IP Soft-Core Based Communication | FMC1.0 (VITA 57.1) | 2-ch 1553B | HI1573 DB2725 | Half-duplex Differential | 3.3V | BNC*2 | LPC/ HPC | -10℃～+60℃ |

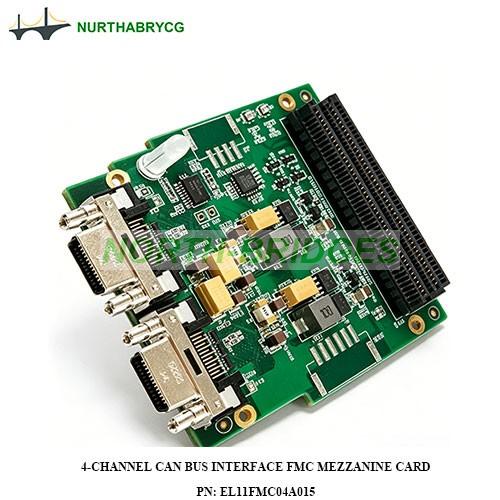

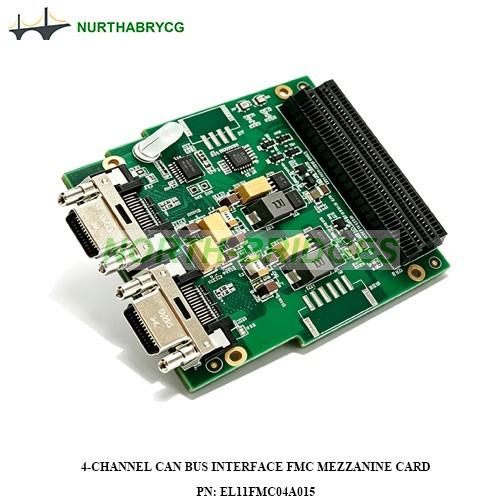

| EL11FMC04A015 | Bus& Communication | FMC1.0 (VITA 57.1) | 4-ch CAN | SJA1000T TXB0108 | Half-duplex Differential | 2.5V / 3.3V | J30JA-21ZKW-J | LPC/ HPC | -10℃～+60℃ |

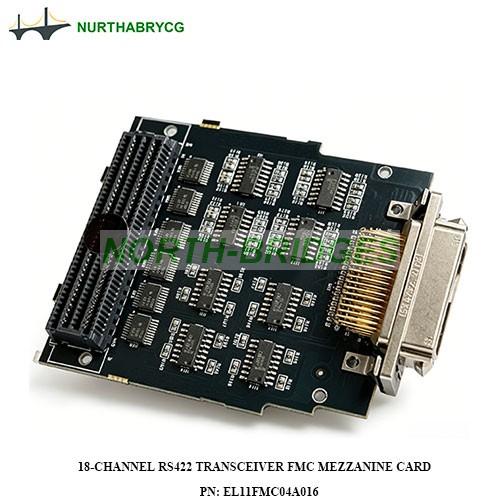

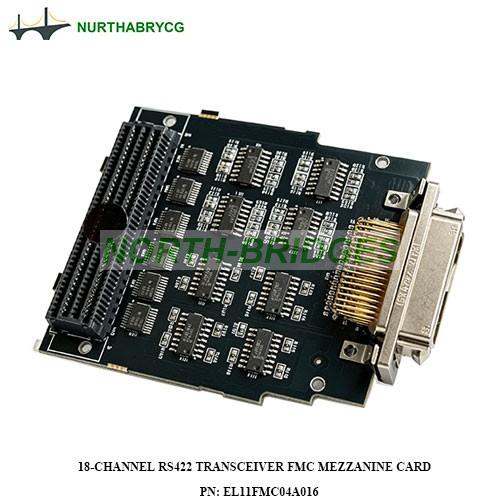

| EL11FMC04A016 | Bus& Communication | FMC1.0 (VITA 57.1) | 18-ch RS422 | DS26LV31/32 MAX3490ESA TXB0108 | Full-duplex Differential | N/A | J30JA-74ZKW-J | LPC/ HPC | -10℃～+60℃ |

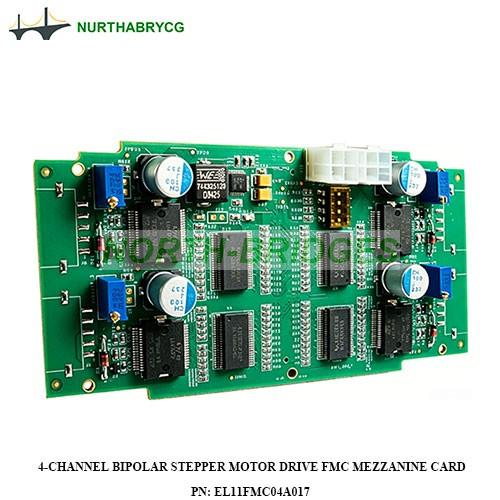

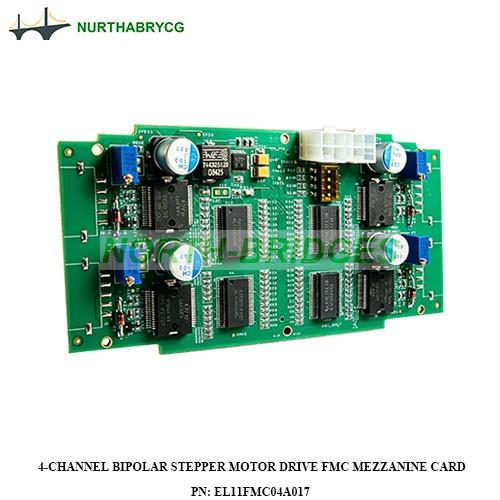

| EL11FMC04A017 | Bipolar Motor Drive | FMC1.0 (VITA 57.1) | 4-ch | L6470 | Half-duplex Differential | 0-28V Adjustable | J14A-38ZKB | LPC/ HPC | -10℃～+60℃ |

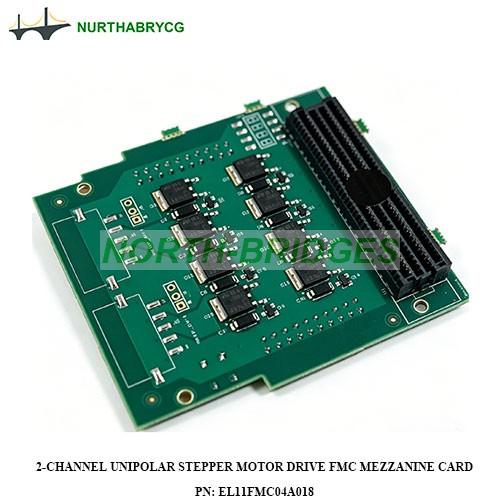

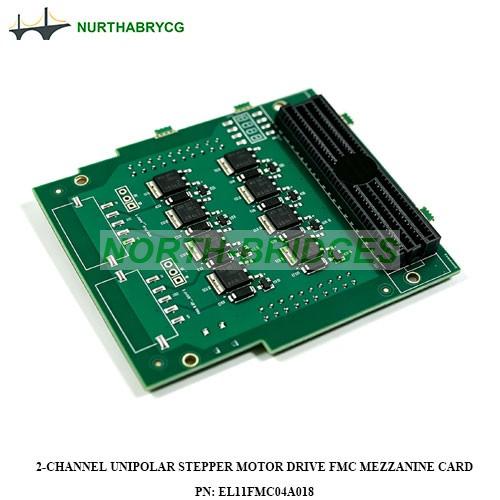

| EL11FMC04A018 | Unipolar Motor Drive | FMC1.0 (VITA 57.1) | 2-ch | Motor Driver | Half-duplex Differential | 0-28V Adjustable | J14A-38ZKB | LPC/ HPC | -10℃～+60℃ |

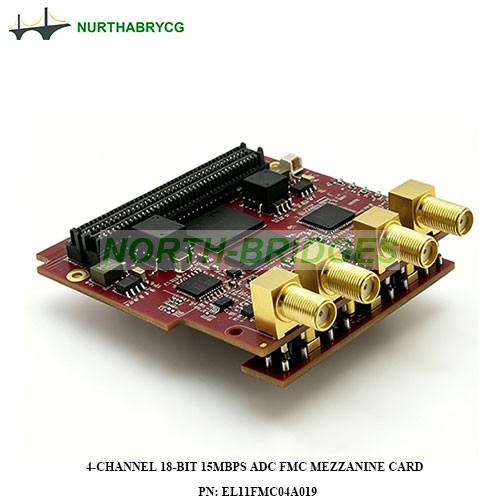

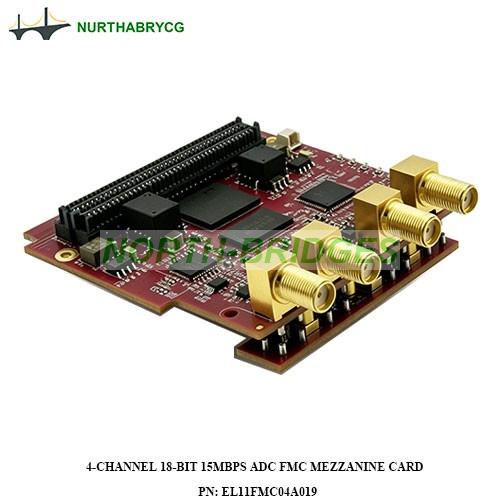

| EL11FMC04A019 | Analog Acquisition | FMC1.0 (VITA 57.1) | 4-ch 18-bit ADC 15 MSPS | LTC2387 | Analog Input | 2V-5V | SMA*4 | LPC | -10℃～+60℃ |

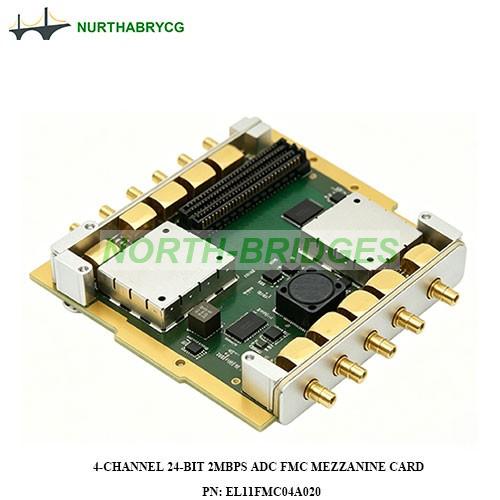

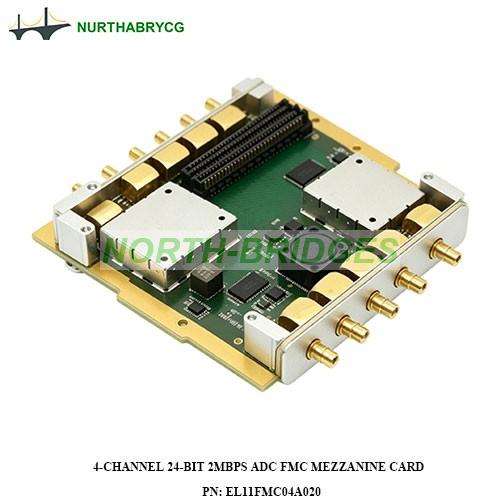

| EL11FMC04A020 | Analog Acquisition | FMC1.0 (VITA 57.1) | 4-ch 24-bit ADC 2 MSPS | LTC2380 | Analog Input | 2V-5V | SMA*4 | LPC | -10℃～+60℃ |

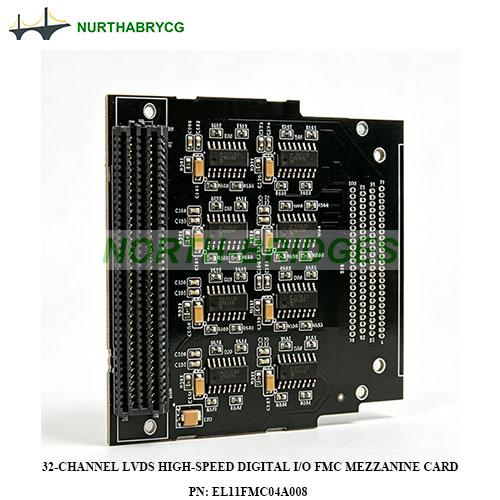

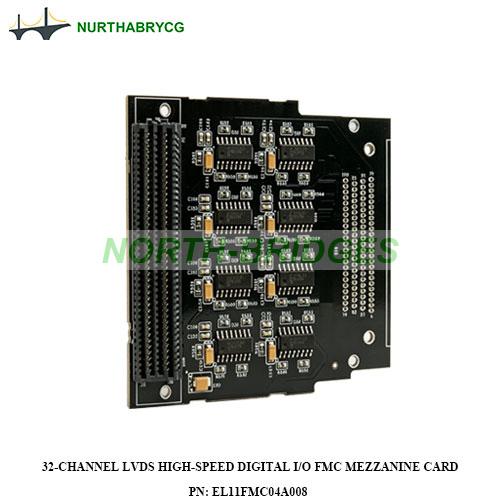

Product No.: EL11FMC04A008
32-channel LVDS High-Speed Digital I/O FMC Mezzanine Card
Key Features
32-channel LVDS differential receiver with programmable direction. Supports high-speed parallel data transmission for camera links and payload acquisition.
Specifications
| LVDS Interface | |||||||||
| Receiving Channels: | 32-ch | ||||||||
| Protocol Chip: | 8*DS90LV032A | ||||||||
| Level Conversion Chip: | 2*SN74LVC164245 | ||||||||
| Transmission Rate: | ≤200MHz | ||||||||
| Standard: | ANSI/TIA/EIA-644 | ||||||||
| 100Ω built-in matching resistor | |||||||||
| Power Supply | |||||||||
| Input: | 2.5V/3.3V, DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interface | |||||||||
| FPGA: | Standard LPC (HPC compatible, ASP134604-01) | ||||||||
| External: | J30JA-100ZW-J | ||||||||
| I/O: | 2.5V/3.3V, DC | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~60℃ | ||||||||
| Storage Temp: | -20℃~85℃ | ||||||||
| Operating Humidity: | 10%~95% (Non-condensing) | ||||||||
| Dimensions: | 83×68×12mm | ||||||||

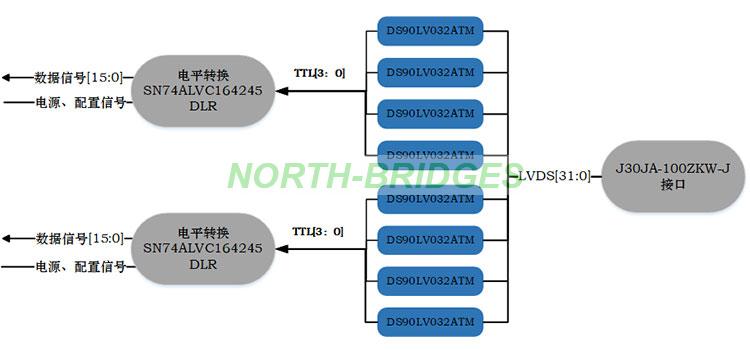

Block Diagram
Applications
Camera link, detector data, payload downlink
Ordering
| PN: | EL11FMC04A008 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

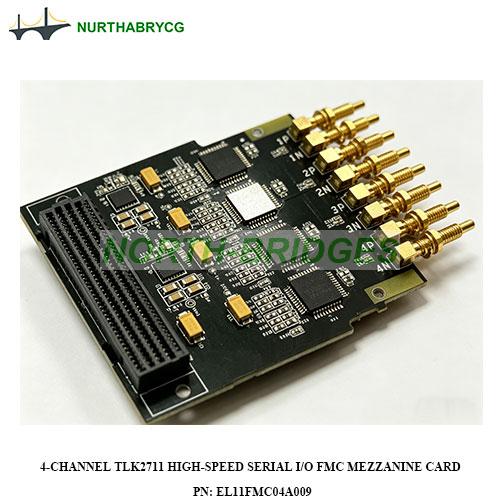

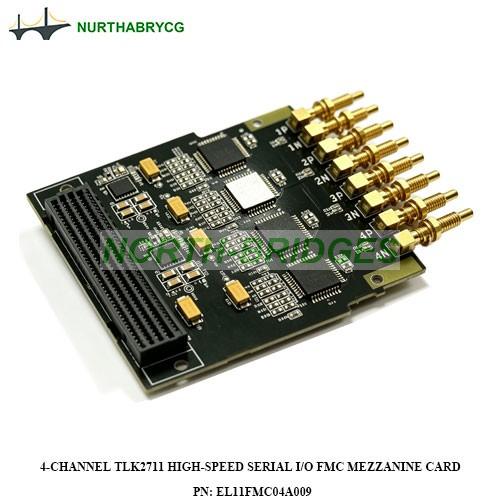

Product No.: EL11FMC04A009
4-channel TLK2711 High-Speed Serial I/O FMC Mezzanine Card
Key Features
4-channel high-speed serial transceiver based on TLK2711. Operates at 1.6–2.5Gbps with 8b/10b encoding and clock recovery for long-distance links.
Specifications
| TLK2711 High-Speed Serial Interface | |||||||||
| Receiving Channels: | 4-ch | ||||||||
| Data Width: | 16-Bit | ||||||||
| IC: | 4*BLK2711 (TLK2711AIRCRR pin-compatible, Three-Temp Test qualified) | ||||||||
| Transmission Rate: | 1.6~2.5Gbps (80~125MHz clock) | ||||||||
| Power Supply | |||||||||
| Input: | 3.3V DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interfaces | |||||||||
| FPGA: | HPC: (PN ASP-134488-01) | ||||||||
| LPC: Ch1~3 valid, Ch4 unavailable | |||||||||
| External: | 8*SSMC | ||||||||
| I/O: | 2.5V DC | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~+60℃ | ||||||||
| Storage Temp: | -20℃~+85℃ | ||||||||
| Operating Humidity: | 10%~95% (Non-condensing) | ||||||||
| Dimensions: | 83×68×12mm | ||||||||

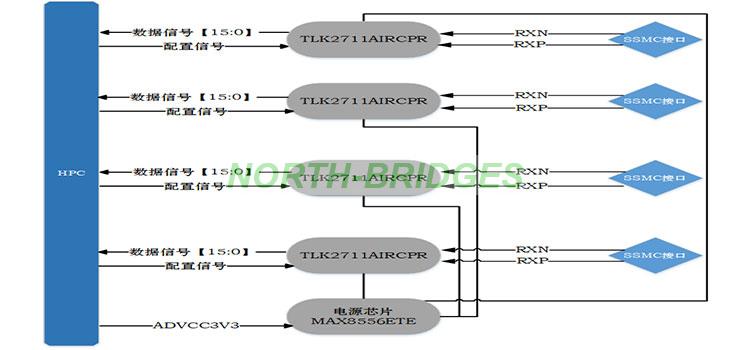

Block Diagram
Applications
High-speed serial link, radar, backplane
Ordering
| PN: | EL11FMC04A009 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

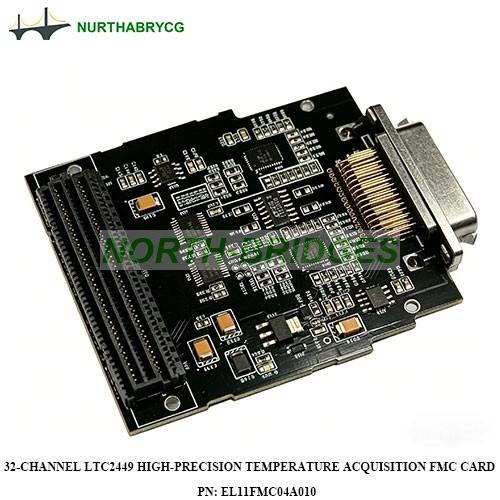

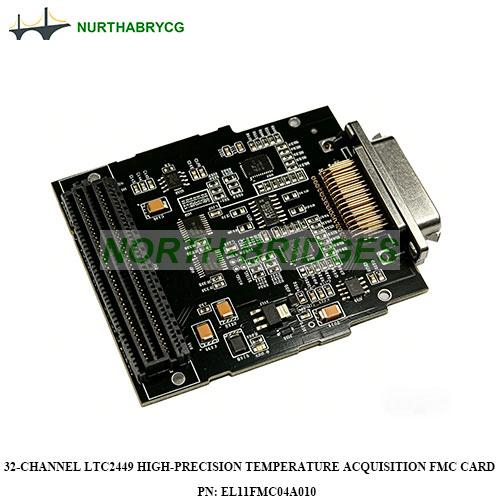

Product No.: EL11FMC04A010
32-channel LTC2449 High-Precision Temperature Acquisition FMC Mezzanine Card
Key Features
32-channel high-precision temperature acquisition module using LTC2449 ADC. Designed for detector verification and aerospace telemetry.
External trigger for multi-board synchronous triggering.
3-wire PT1000 differential measurement (bridge method), -50℃~+240℃.
16/32-channel thermistor measurement (resistance voltage division sampling).
Specifications
| AD Interface | |||||||||
| IC: | LTC2449 / LTC2494 | ||||||||
| Channels: | 16/32 (field configurable) | ||||||||
| Resolution: | 24-bit | ||||||||
| Input: | Single-ended/differential, 0~5V | ||||||||
| Power Supply | |||||||||
| Input: | 12V DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interfaces | |||||||||
| FPGA: | Standard LPC connector (Part No. ASP-134604-01) | ||||||||
| External: | J30JA-51ZKW-J | ||||||||
| I/O: | 2.5V/3.3V DC | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~+60℃ | ||||||||
| Storage Temp: | -20℃~+85℃ | ||||||||
| Operating Humidity: | 10%~95% (non-condensing) | ||||||||
| Dimensions: | 83×68×12mm (L×W×H) | ||||||||

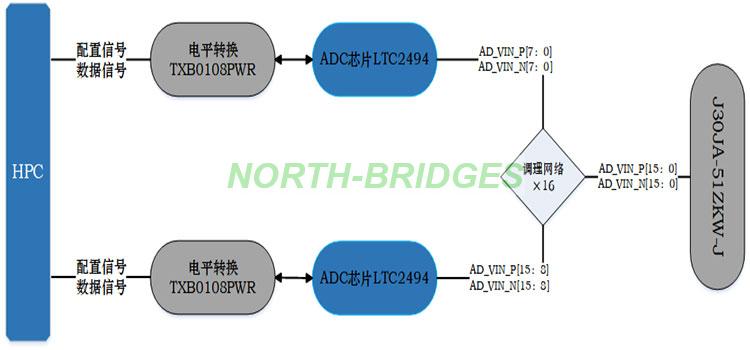

Block Diagram
Applications
Detector test, sensor acquisition
Ordering
| PN: | EL11FMC04A010 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

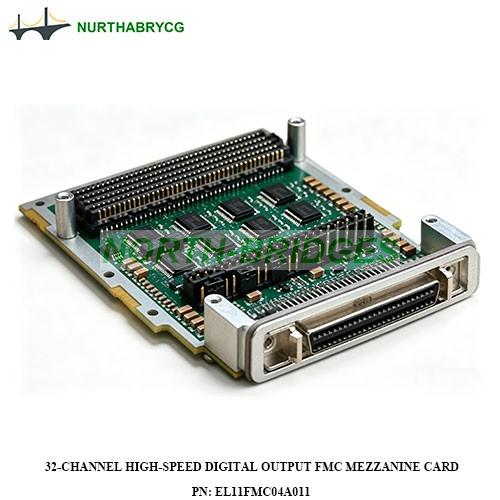

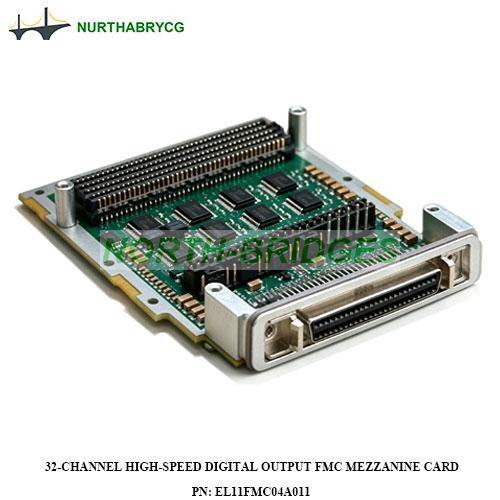

Product No.: EL11FMC04A011
32-channel High-Speed Digital Output FMC Mezzanine Card
Key Features
32-channel general-purpose digital output with SN74LVC164245 level translation. Delivers reliable control signals for industrial and aerospace actuation.
Specifications
| Digital Output Interface | |||||||||
| Driver IC: | ULN2003A | ||||||||
| On-board Logic Level Translators: | 2*SN74LVC164245 | ||||||||
| Channels: | 32-ch | ||||||||
| Level Standard: | TTL | ||||||||
| Telemetry Interface | |||||||||
| 8-ch | |||||||||
| Discrete On/Off Logic (0/1 state) | |||||||||
| Power Supply | |||||||||
| Input: | 3.3V DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interfaces | |||||||||
| FPGA: | Standard LPC (PN ASP134604-01, HPC compatible) | ||||||||
| External: | J30JA-51ZKW-J | ||||||||
| I/O: | 2.5V/3.3V DC | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~+60℃ | ||||||||
| Storage Temp: | -20℃~+85℃ | ||||||||
| Operating Humidity: | 10%~95% (Non-condensing) | ||||||||
| Dimensions: | 83×68×12mm (L×W×H) | ||||||||

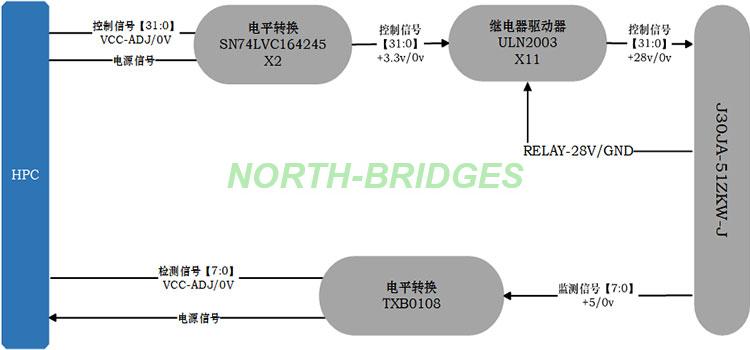

Block Diagram
Applications
Control signal, actuator drive
Ordering
| PN: | EL11FMC04A011 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

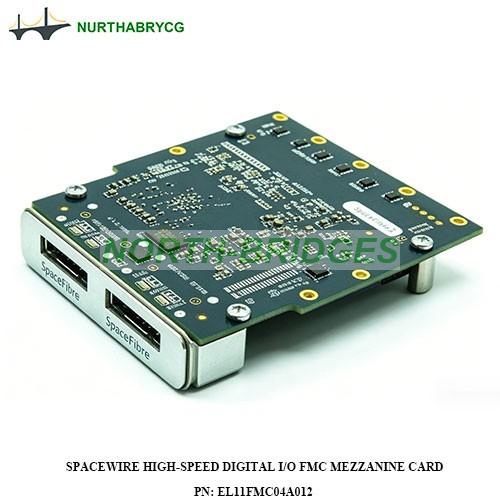

Product No.: EL11FMC04A012
SpaceWire High-Speed Digital I/O FMC Mezzanine Card
Key Features
SpaceWire interface FMC card based on BM4803 controller. Compliant with space-bus standards for satellite payload interconnection, on-orbit testing and aerospace data communication.
Full-duplex SpaceWire interface card based on BM4803. Compliant with spacebus standards for satellite payload and aerospace communication.
Specifications
| SpaceWire Interface | |||||||||
| IC: | BM4803AMQRH (AT7910EKB-MQ compatible) | ||||||||
| Channels: | 8-ch full-duplex | ||||||||
| Transmission Rate: | 2~200Mbps | ||||||||
| SpaceWire Standard: | ECSS-E-50-12A/ECSS-E-ST-50-12C compliant | ||||||||
| supports RMAP | |||||||||
| Interfaces | |||||||||
| FPGA: | HPC (PN ASP-134488-01-MKT) | ||||||||
| External: | J30JA-74ZKW-J (optional) | ||||||||
| I/O: | 3.3V ±10% | ||||||||
| Power Supply | |||||||||
| Input: | 3.3V DC | ||||||||
| Power: | ≤1.5W | ||||||||
| Environment | |||||||||
| Radiation: | TID 100krad | ||||||||
| SEL Threshold: | 75 MeV·cm²/mg | ||||||||
| Package: | CQFP196 | ||||||||
| Operating Temp: | -10℃~+60℃ | ||||||||
| Storage Temp: | -20℃~+85℃ | ||||||||
| Operating Humidity: | 10%~95% (Non-condensing) | ||||||||
| Dimensions: | 83×69×12mm (L×W×H) | ||||||||

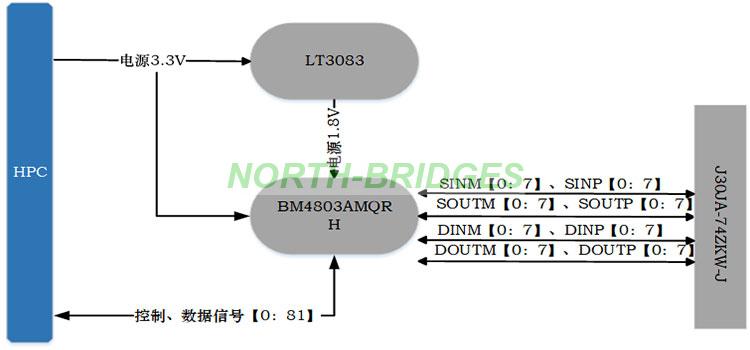

Block Diagram
Applications
Space payload, satellite test
Ordering
| PN: | EL11FMC04A012 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

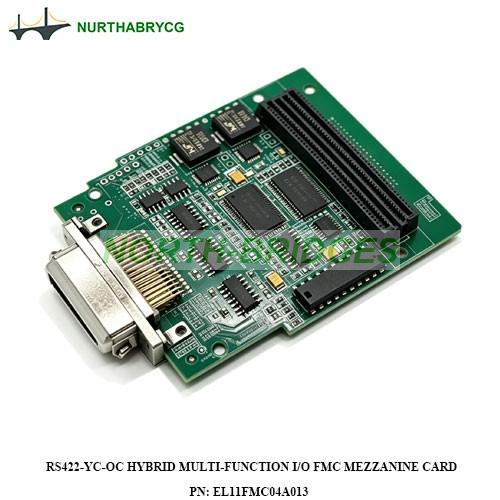

Product No.: EL11FMC04A013
RS422-YC-OC Hybrid Multi-Function I/O FMC Mezzanine Card
Key Features
Integrated hybrid module with 17-ch OC drive, 11-ch telemetry and 12-ch duplex RS422 transceivers. For comprehensive ground test and payload control.
Specifications
| RS422 Serial Interface | |||||||||
| Channels: | 12-ch, full-duplex differential | ||||||||
| IC: | 8-ch Transceiver: DS26LV31, DS16LV32 (DS26C32 compatible) | ||||||||
| 4-ch Transceiver: MAX3490ESA | |||||||||
| RS422 bus standard | |||||||||
| Open-Collector Output Interface | |||||||||
| Channels: | 17-ch | ||||||||
| IC: | ULN2003A (optional) | ||||||||
| TTL ( adjustable voltage) | |||||||||
| Analog Acquisition & Telemetry Interface | |||||||||
| Channels: | 11-ch | ||||||||
| IC: | TLC2543IN | ||||||||
| Input: | 0~5V | ||||||||
| Power Supply | |||||||||
| Input: | 3.3V DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interfaces | |||||||||
| FPGA: | Standard LPC (PN ASP134604-01, HPC compatible) | ||||||||
| External: | J30JA-74ZKW-J | ||||||||
| I/O Voltage: | N/A | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~+60℃ | ||||||||
| Storage Temp: | -20℃~+85℃ | ||||||||
| Operating Humidity: | 10%~95% (Non-condensing) | ||||||||
| Dimensions: | 83×68×12mm (L×W×H) | ||||||||

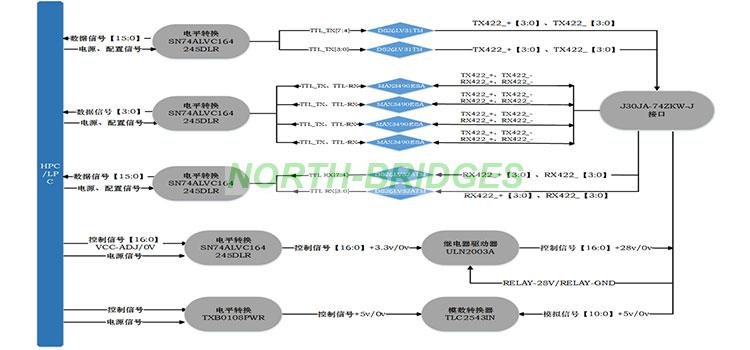

Block Diagram
Applications
Integrated payload test & control
Ordering
| PN: | EL11FMC04A013 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||

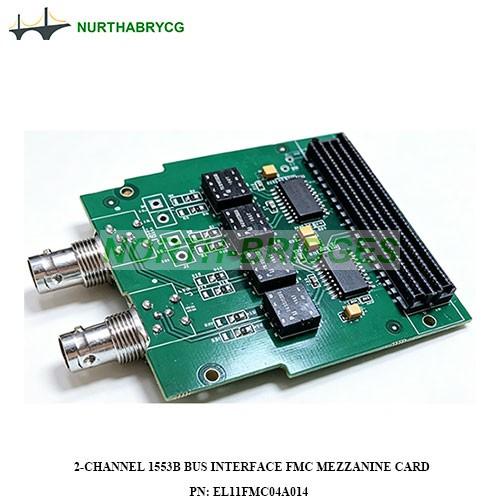

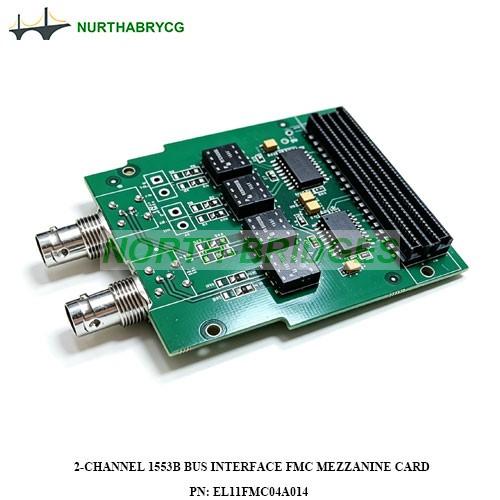

Product No.: EL11FMC04A014
2-channel 1553B Bus Interface FMC Mezzanine Card
Key Features
Dual-channel MIL-STD-1553B module with half-duplex transceivers. Supports all BC/RT/MT modes for military and avionics bus applications.
FMC sub-card, dual-redundancy design, 2-channel 1553B communication. Each channel has built-in A/B dual-bus redundancy; protocol conversion via software logic.
Specifications
| 1553B Interface | |||||||||
| Channels: | 2-ch | ||||||||
| Protocol: | 1553B Soft IP Core | ||||||||
| Transformer coupling | |||||||||
| Supports total RT/BC/MT modes | |||||||||
| Power Supply | |||||||||
| Input: | 3.3V DC | ||||||||
| Power: | ≤0.3W | ||||||||
| Interfaces | |||||||||
| FPGA: | LPC/HPC compatible (PN: ASP134604-01) | ||||||||
| External: | BNC coaxial | ||||||||
| I/O Voltage: | 3.3 V | ||||||||
| Environment | |||||||||
| Operating Temp: | -10℃~60℃ | ||||||||
| Storage Temp: | -20℃~85℃ | ||||||||
| Operating Humidity: | 10%~95% (non-condensing) | ||||||||
| Dimensions: | 83×68×12mm (L×W×H) | ||||||||

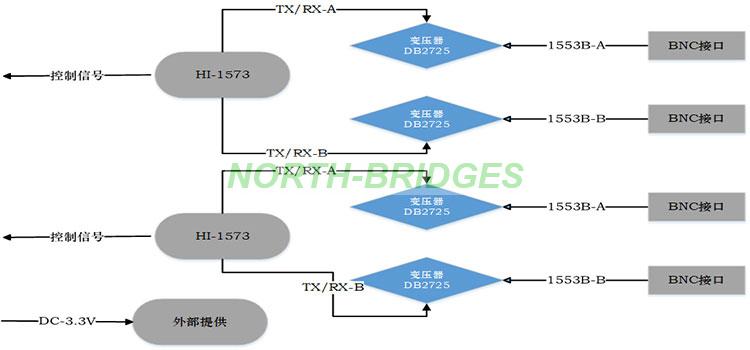

Block Diagram
Applications
Aerospace, military bus
Ordering
| PN: | EL11FMC04A014 | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
