100% Chinese original SDR platform Customization

Overview

100% Chinese original SDR customization is aimed at protecting customers' supply chains from the threat of export controls on critical chip origins. What's more, 100% Chinese original SDR customization aims to protect the data security against hacking.

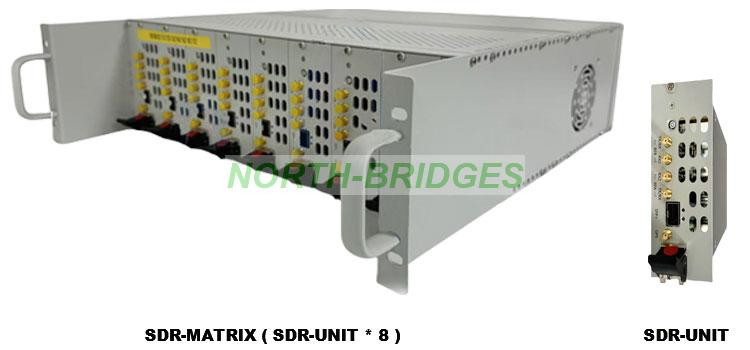

The system innovatively integrates 8 sets of 100% Chinese original SDR units into a 4U standard chassis, achieving multi-device synchronization through an 8-Way peripheral OctoClock source.

This system significantly reduces the complexity of building radio frequency systems while ensuring performance, making it suitable for complex scenarios such as 5G/6G massive MIMO testing, phased array radar verification, and electromagnetic environment monitoring.

Features

- 100% China Original Hardware Architecture: Built on 100% Chinese original universal SDR units, core components (including baseband processor and RF chip) of SDR Matrix are domestically produced;

- Precision synchronization capability: Provides a unified reference clock for 8 SDR units through an 8-way peripheral Octopus Clock source, achieving strict phase and time synchronization between multiple SDR units, meeting the timing consistency requirements of MIMO systems or multi-nodes collaborative acquisition.

- High integration and easy deployment: Leveraging the compact design of the 100% Chinese original universal SDR (195×106×38mm), eight SDR units and an octopus clock source are integrated into a single 4U chassis for high level integration. At the same time, it retains multiple interfaces such as SFP and RJ45, supporting quick connection with external systems and adaptable to both laboratory and field deployment needs.

Composition

The SDR Matrix consists of 8 domestically produced universal SDRs, 1 octopus clock source, and a custom 4U chassis.

Controller

FPGA and Baseband
