SDR - AI (Artificial Intelligence)
SDR Specifications
AI (Artificial Intelligence) Series

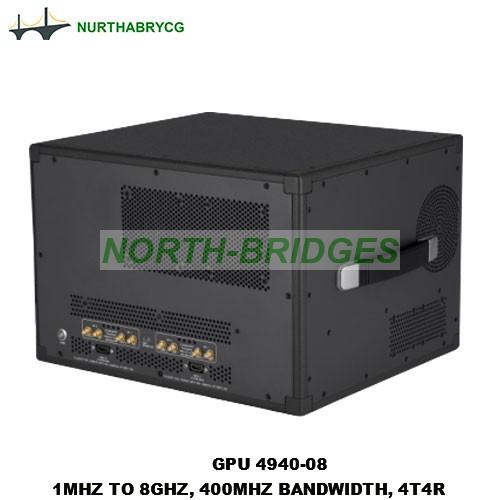

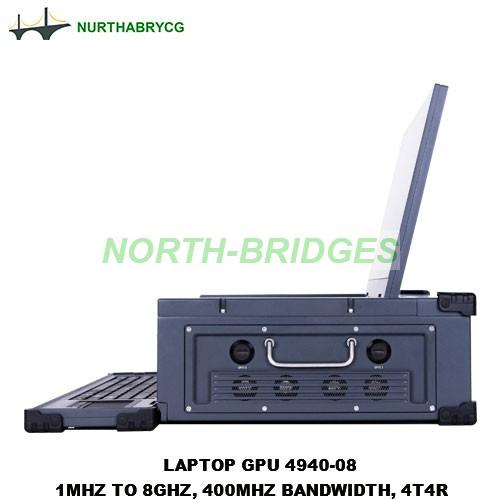

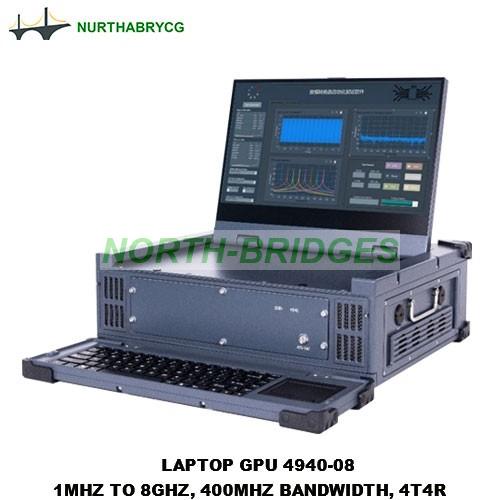

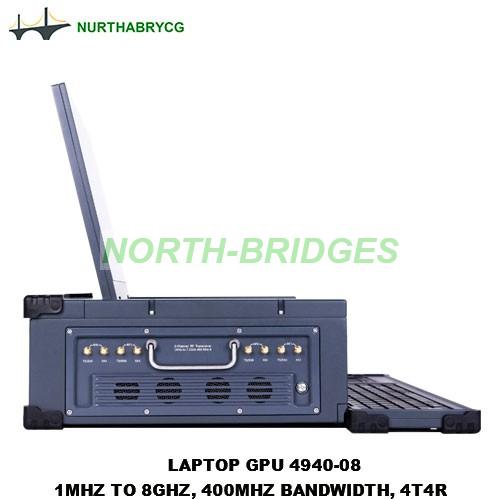

GPU DEEPSDR / GPU 4940 / Laptop GPU4940
Pinout

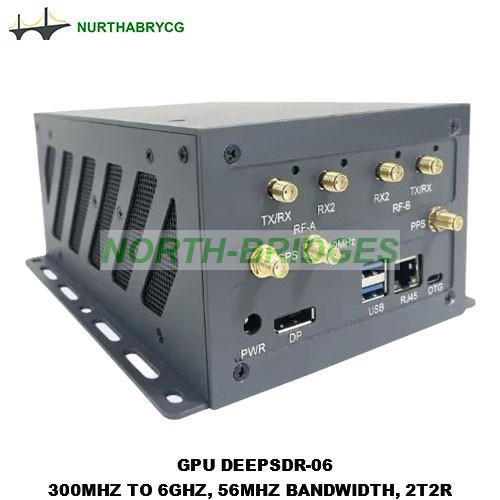

Use the pinout to connect to terminals on the GPU DEEPSDR-06.

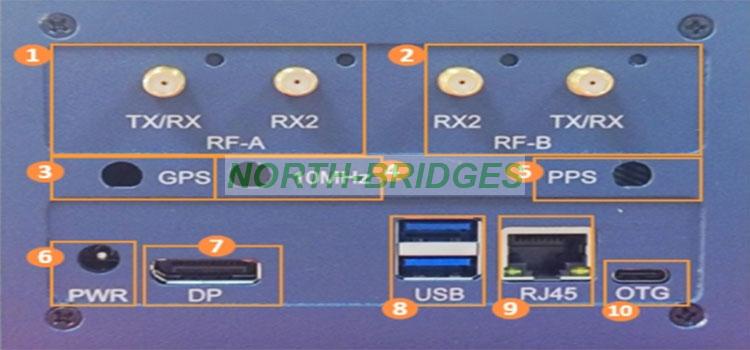

Figure 1. Front Pane
| Table 1. Connector Descriptions | |||||||||
| Connector | Use | ||||||||
| 01) RF A | TX / RX | Input and output terminal for the RF signal. TX1 RX1 is an SMA (f) connector with an impedance of 50 Ω and is a single-ended input or output channel. | |||||||
| RX2 | Input terminal for the RF signal. RX2 is an SMA (f) connector with an impedance of 50 Ω and is a single-ended input channel. | ||||||||
| 02) RF B | TX / RX | Input and output terminal for the RF signal. TX1 RX1 is an SMA (f) connector with an impedance of 50 Ω and is a single-ended input or output channel. | |||||||
| RX2 | Input terminal for the RF signal. RX2 is an SMA (f) connector with an impedance of 50 Ω and is a single-ended input channel. | ||||||||
| 03) GPS | Input terminal for the GPS antenna signal. GPS ANT is an SMA (f) connector with a maximum input power of -15 dBm and an output of 5 V DC to power an active antenna. Notice: Do not terminate the GPS ANT port if you do not use it. | ||||||||
| 04) 10MHz | Synchronous port used for Peripheral clock. | ||||||||
| 05) PPS TRIG IN | Input terminal for PPS timing reference. PPS TRIG IN is an SMA (f) connector with an impedance of 50 Ω and is a single-ended input channel. PPS TRIG IN accepts 0 V to 3.3 V TTL and 0 V to 5 V TTL signals. You can also use this port as a triggered input (TRIG IN) that you control using software. | ||||||||
| 06) PWR | DC power connector (M) and indicator light. | ||||||||
| 07) DP | DisplayPort connector to connect one monitor for your controller. | ||||||||
| 08) USB | USB3.0 Type-A ports that support common USB peripheral devices such as flash drives, hard drives, keyboards, and mice. | ||||||||
| 09) RJ45 | RJ45 port used for 1G ETH connectivity to other ethernet devices. | ||||||||
| 10) OTG | Type-C port that supports USB3.0 peripheral devices and reaches to 5Gbps Data Transfer Rate. The port is compatible with data protocol OTG 2.0/3.0. | ||||||||
Controller
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| OS | Ubuntu | Ubuntu | Ubuntu | ||||||
| CPU | ARM 8-core Cortex | I9 14900 | I9 14900 | ||||||
| GPU | NVIDIA Jetson Orin NX | NVIDIA GeForce RTX 4090 | NVIDIA GeForce RTX 4090 | ||||||
| Memory | 16G DDR5 | 64G DDR5 | 64G DDR5 | ||||||
| NVMe SSD | 1TB | 4TB | 4TB | ||||||
| RJ45 | 1Gbps | 1Gbps x 2 | 1Gbps x 2 | ||||||
| SFP | |||||||||
| SFP+ | |||||||||
| QSFP28 | 100Gbps x 2 | 100Gbps x 2 | |||||||
| Cabled PCIe | PCIe Gen 3 x 2 | PCIe Gen 3 x8 | PCIe Gen 3 x8 | ||||||
| Micro USB | USB3.0 x 2 | USB3.0 x 4 | USB3.0 x 4 | ||||||
FPGA and Baseband
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| FPGA | Spartan 6 XC6SLX150 | RFSoC XCZU28DR | RFSoC XCZU28DR | ||||||
| DRAM | PS: 4GB DDR4, PL: 8GB DDR4 | PS: 4GB DDR4, PL: 8GB DDR4 | |||||||
| ADC resolution | 12 bits | 12 bits | 12 bits | ||||||
| DAC resolution | 12bits | 14 bits | 14 bits | ||||||
| Maximum I/Q sample rate | 61.44 MSps | 800 MSps | 800 MSps | ||||||
RF
Transmitter
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Number of channels | 2 | 4 | 4 | ||||||
| Frequency rang | 300MHz~6GHz | 1MHz~7.2GHz (overclocking to 8G) | 1MHz~7.2GHz (overclocking to 8G) | ||||||
| Frequency step | <0kHz | <1kHz | <1kHz | ||||||
| Maximum output power (Pout) | 16dBm | 21dBm | 21dBm | ||||||
| Gain range | 0~60dB | 0~60dB | |||||||
| Gain step | 1dB | 1dB | |||||||
| Max. instantaneous real-time bandwidth | 56MHz | 400MHz | 400MHz | ||||||
Receiver
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Number of channels | 2 | 4 | 4 | ||||||
| Frequency range | 300MHz~6GHz | 1MHz~7.2GHz (overclocking to 8G) | 1MHz~7.2GHz (overclocking to 8G) | ||||||
| Frequency step | <1kHz | <1kHz | |||||||
| Maximum input power (Pin) | <0dBm | <0dBm | |||||||
| Gain range | 38dB (<500GHz), 60dB (>500GHz) | 38dB (<500GHz), 60dB (>500GHz) | |||||||
| Gain step | 1dB | 1dB | |||||||
| Max. instantaneous real-time bandwidth | 56MHz | 400MHz | 400MHz | ||||||
| Noise figure | <8.5dB | 6.5dB to 9dB | 6.5dB to 9dB | ||||||
GPS Disciplined Oscillator (GPSDO)
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Local Oscillator Accuracy | ±2.0ppm | ||||||||
| TCXO (not locked to GPS) | ±75.0ppb | ||||||||
| TCXO (locked to GPS) | ＜1.0ppb | ||||||||
| Peripheral Oscillator | Supported | Supported | Supported | ||||||
| Peripheral PPS | Supported | Supported | Supported | ||||||
Note: Frequency accuracy is based on temperature compensated crystal oscillator (TCXO) vendor specifications and is not measured. Alternatively, you can incorporate an external reference source to provide a more precise frequency Reference Clock and to achieve better frequency accuracy.
Active Antenna
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Embedded | None | None | None | ||||||
| Peripheral | Supported | Supported | Supported | ||||||
Note: NORTHBRIDGES recommends periodically locking the GPS for at least 1 hour to recalibrate the GPSDO module accuracy.
Power Requirements
Notice: The protection provided by this product may be impaired if it is used in a manner not described in this document.
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Input Voltage | 12V | 220V | 220V | ||||||
| Maximum Current | Maximum 16A | Maximum 16A | Maximum 16A | ||||||
Notice: The power supply must also meet any safety and compliance requirements for the country of use.
Physical Characteristics
If you need to clean the module, wipe it with a dry towel.
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Dimensions, enclosure | 17.5×10.0×1.7 cm | 43×37.8×14.5 cm | 43×37.8×14.5 cm | ||||||
| Weight | 0.70Kg | 15.0Kg | 14.6Kg | ||||||
Environmental Characteristics
| GPU DEEPSDR-06 | GPU 4940-08 | Laptop GPU4940 | |||||||
| Operating temperature | 0 °C to 50 °C | ||||||||
| Operating humidity | 10% to 90% relative humidity, noncondensing | ||||||||
| Pollution Degree | 2 | ||||||||
| Maximum altitude | 2,000 m | ||||||||
