VPX I/O & Interface Boards
Our 3U/6U VPX I/O & Interface Boards provide rugged, high-reliability signal interconnection, data acquisition and peripheral expansion for modular embedded systems. The family includes FPGA I/O, high-speed acquisition, timing modules, XMC carriers, RTM rear I/O and dedicated front-end driver & sensing boards. VITA-compliant, with air/conduction cooling, wide-temperature operation and optional health monitoring for aerospace, transport, industrial and test & measurement systems.
VPX I/O & Interface Boards | Selection Table
| Part Number | Form Factor | Core Chip | I/O Front Panel | I/O Backplane | Bandwidth / Max Throughput | Cooling Support | Power Consumption | Operating Temp | Compatibility Notes |
| EL12PRCA7A001 | 6U OpenVPX | 2× XC7V690T FPGA | 2× FMC HPC | RapidIO | 710MB/s@2.5G, 920MB/s@3.125G, 1400MB/s@5G | Conduction / Air Cooling | ≤50W | -40℃ ~ +70℃ | OpenVPX compliant, dual FPGA architecture for high-speed real-time signal processing |
| EL12PRCA7A002 | 6U OpenVPX | XC6VSX315T FPGA, 2× EV10AQ190A ADC | 4× SMP, 1× FMC HPC | RapidIO 4×5G | Up to 20Gbps | Conduction / Air Cooling | ≤60W | N/A | VITA65 compliant, high-speed RF data acquisition architecture, optional TMS320C6678 DSP onboard |
| EL12PRCA7A003 | 6U OpenVPX | XC7K325T FPGA | 1×GbE RJ45, 1×RS232 debug, 8×J30J RS422, JTAG | 4×SRIO@P1, 4×PCIe@P2, 16×RS422@P3 ,64×LVDS@P4/P5, 1×GbE@P4 | SRIO 3.125G | Conduction / Air Cooling | N/A | 0℃~+50℃ / -40℃~+85℃ | OpenVPX compliant, system integration assessment required |
| EL12PRCA7A004 | 6U VPX | 2× Cyclone IV FPGA | 1× RS232 (IPMI debug); 8 status LEDs | 2×PCIe x1 Gen2;1×adjustable RS232/422;8×RS485;4×RS422;4×isolated GPO;4×isolated GPI;4×trigger isolated GPI;1×CAN2.0B;1×PPS | Up to 2×5Gbps | Conduction / Air Cooling | 10~15W | -25℃ ~ +70℃ / -40℃ ~ +85℃ | VITA46 compliant, on-board health monitoring & fault reporting, multi-OS support |
| EL12PRCA7A005 | 6U VPX | XC7S6 FPGA | 5×SMA PPS/GPIO; 10×LVDS; 5×RS422 B-code; J30J 11×3.3V GPIO; Type-C JTAG | VPX P1, P2 | JESD204B clock out, channel skew <120ps | Air cooling | N/A | N/A | OpenVPX compliant, system integration assessment required |
| EL12PRCA7A006 | 6U VPX | XC7S50 FPGA | 4×J30J | VPX P0, P6 | N/A | Air cooling | ≤0.4W | -10℃ ~ +60℃ | OpenVPX compliant, system integration assessment required |
| EL12PRCA7A007 | 6U VPX | Actel A3PE3000L FPGA | 3×J30J, 2×RS422, 2×RS232 | VPX P0, P6 | N/A | Air cooling | 12V DC, 3A | -30℃~+55℃ / -40℃~+85℃ | OpenVPX compliant, system integration assessment required |
| EL12PRCA7A008 | 6U VPX | PCIe Switch | N/A | PCIe3.0 ×8 uplink@P1; XMC1→P2; XMC2→P6 | 16GB/s bidirectional | Conduction / Air Cooling | N/A | -40℃ ~ +70℃ | VITA46/VITA65/VITA46.9 compliant, dual XMC slots with DMA peer-to-peer transfer |
| EL12PRCA7A009 | 6U VPX RTM (4HP/5HP) | N/A | 4×GbE RJ45, 2×DP, 1×VGA, 2×USB3.0, 1×RS232 | VPX connector, 1×miniPCIe, on-board eDP, 3×USB2.0, 3×RS232/422/485, M.2 | 1Gbps per GbE port | Passive, Wide Temp | N/A | -40℃ ~ +85℃ | Dedicated RTM board, only compatible with Weikong VPX mainboard, cannot operate standalone |
| EL12PRCA7A010 | 3U VPX | Embedded DSP | 1×3G-HD-SDI in,1×SDI out,1×CVBS out,Analog audio I/O,1×GbE | N/A | GbE | Fanless all-aluminum cooling | N/A | N/A | OpenVPX compliant, system integration assessment required |
| EL12PRCA7A011 | 3U VPX VITA46 /VITA65 /VITA42.3 /VITA46.9 | N/A | N/A | PCIe3.0 ×8@P1; configurable P2 for XMC | PCIe3.0 ×8 | Conduction / Air Cooling | N/A | -40℃ ~ +70℃ | VITA46/VITA65/VITA42.3/VITA46.9 compliant, optional IPMC management |

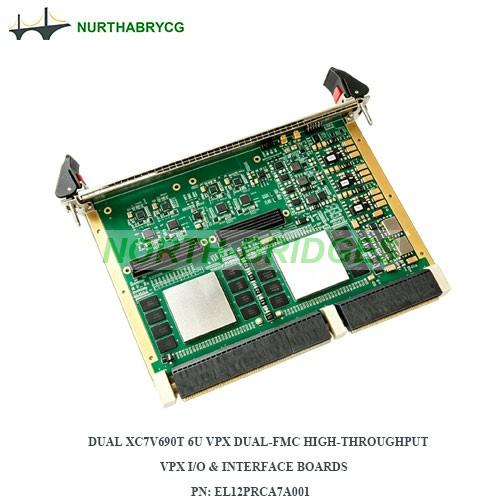

PN.: EL12PRCA7A001
6U OpenVPX Dual Virtex‑7 FPGA Board, Dual HPC FMC Expansion for Real-Time High-Speed Signal Processing
Specifications
| Form Factor | 6U OpenVPX | ||||||||
| Core Chip | FPGA: 2×XC7V690T | ||||||||
| Onboard Memory | Per FPGA: 2×64bit DDR3 | ||||||||
| Total 8GB /16GB | |||||||||
| RapidIO Throughput | 710MB/s @2.5Gbps | ||||||||
| 920MB/s @3.125Gbps | |||||||||
| 1400MB/s @5Gbps | |||||||||
| Expansion I/O | 2×HPC FMC | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Power Consumption | ≤50W | ||||||||
| Cooling | Conduction / Air Cooling | ||||||||

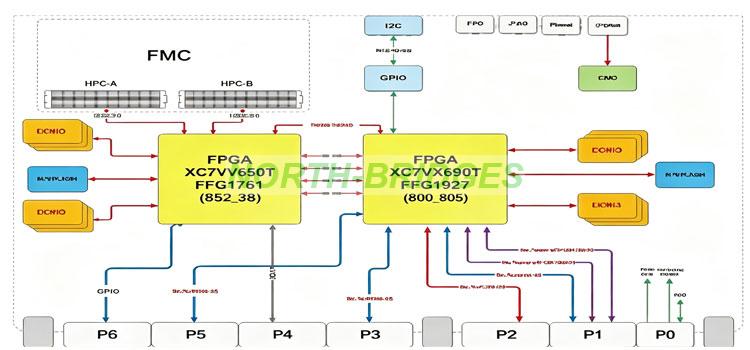

Block Diagram

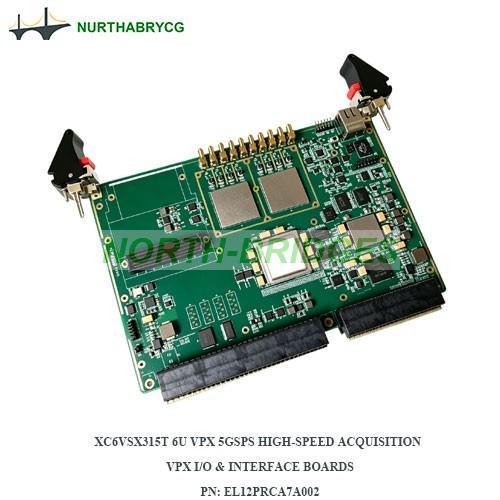

PN.: EL12PRCA7A002
6U OpenVPX VITA65 5Gsps High-Speed RF Digitization Board with RapidIO Interlink & FMC-HPC Expansion
Specifications
| Form Factor | 6U OpenVPX, VITA65 | ||||||||
| Core Chip | FPGA: XC6VSX315T | ||||||||
| ADC: 2×EV10AQ190A | |||||||||
| Onboard Memory | 2GB DDR3 | ||||||||
| Inter-board Link | RapidIO 4×5Gbps | ||||||||
| Front Interface | SMP: 4×ADC, 1×trigger,1×clock input; | ||||||||
| 1×FMC HPC | |||||||||
| Power Consumption | ≤60W | ||||||||
| Cooling | Conduction / Air Cooling | ||||||||

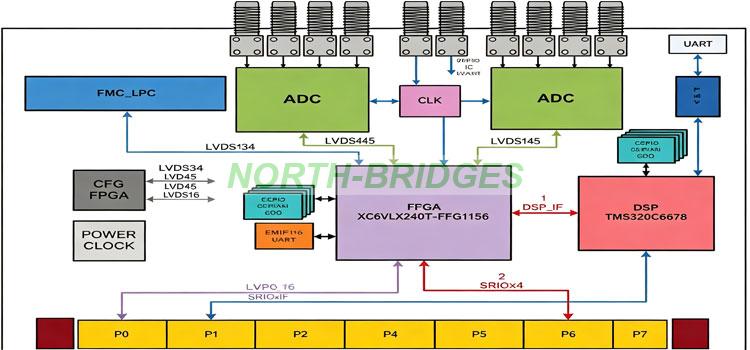

Block Diagram

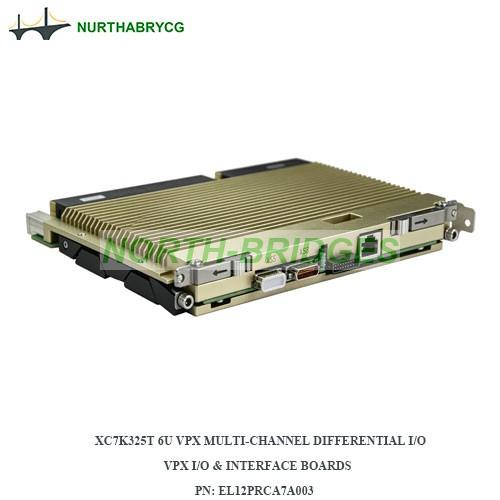

PN.: EL12PRCA7A003
6U OpenVPX Kintex‑7 FPGA Board with IPMB Health Monitoring, Multi-Channel Differential I/O and SRIO/PCIe High-Speed Interconnect
Specifications
| Form Factor | 6U OpenVPX | ||||||||
| Core Chip | FPGA: XC7K325T | ||||||||
| Front Panel | 1×1000Base-T RJ45 | ||||||||
| 1×RJ45 RS232 debug | |||||||||
| 8CH J30J RS422 | |||||||||
| JTAG | |||||||||
| VPX Backplane Interfaces | ×4 SRIO @P1, 3.125Gbps | ||||||||
| ×4 PCIe @P2 | |||||||||
| 16CH RS422 @P3 | |||||||||
| 64CH LVDS @P4/P5 | |||||||||
| 1000Base-T shared on P4 | |||||||||
| Health Management | IPMB bus, voltage / temperature / self-test monitoring | ||||||||
| Operating Temp | 0℃~+50℃ / -40℃~+85℃ | ||||||||
| Cooling | Conduction / Air Cooling | ||||||||

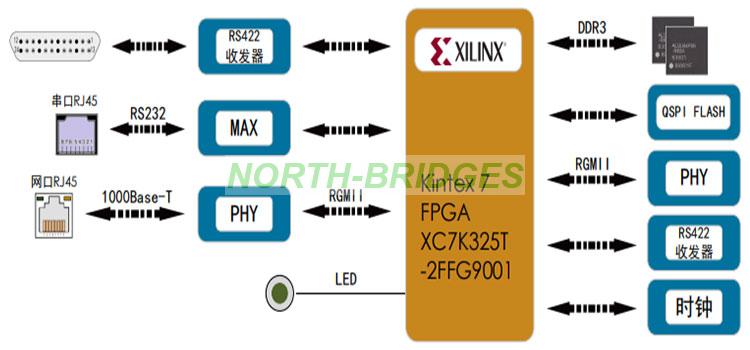

Block Diagram

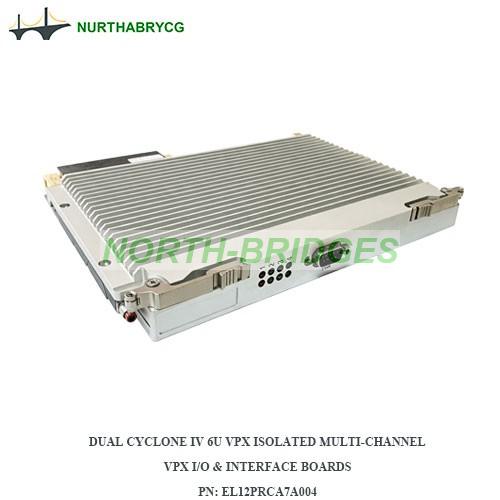

PN.: EL12PRCA7A004
6U VPX Dual Intel Cyclone IV FPGA Module, Isolated Multi-Channel Signal Access with PCIe Bus, Multi-OS Support and Health Monitoring
Specifications
| Form Factor | 6U VPX | ||||||||
| Core Chip | FPGA: 2× Cyclone IV | ||||||||
| Bus | 2×PCIe ×1 Gen2 | ||||||||
| Front Panel | 1×RS232 (IPMI debug only), 8 status LEDs | ||||||||
| Rear I/O | 1×RS232/RS422 adaptive | ||||||||
| 8×RS485 | |||||||||
| 4×RS422 | |||||||||
| 4×isolated GPO | |||||||||
| 4×isolated GPI | |||||||||
| 4×trigger‑capable GPI | |||||||||
| 1×CAN2.0B (CAN2.0A compatible) | |||||||||
| 1×PPS input | |||||||||
| UART | 16C550 compatible | ||||||||
| Supported OS | DOS, Windows, Linux, VxWorks, QNX | ||||||||
| Power | +3.3V_AUX, +12V | ||||||||
| Power Consumption | 10‑15W (FPGA‑load dependent) | ||||||||
| Cooling | Conduction / Air Cooling | ||||||||
| Operating Temp | -25℃ ~ +70℃ / -40℃ ~ +85℃ | ||||||||
| FunctionBoard health monitoring & fault reporting | |||||||||
Block Diagram

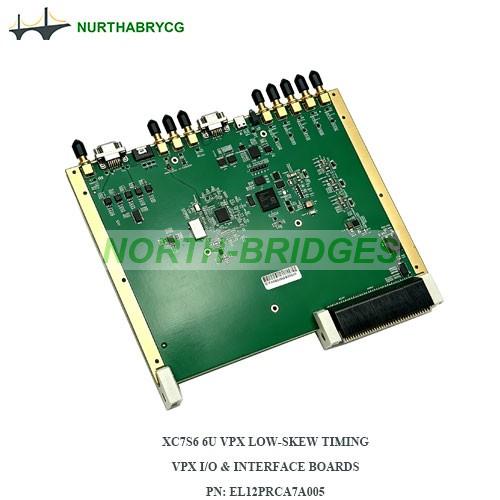

PN.: EL12PRCA7A005
6U VPX XC7S6 Timing Controller, JESD204B Clock Output, Ultra Low Skew Trigger for Synchronous Multi-Channel Acquisition
Specifications
| Form Factor | 6U VPX | ||||||||
| Core Chip | FPGA: XC7S6 | ||||||||
| Onboard Memory | 256Mb QSPI Flash, 4bit | ||||||||
| Trigger Input | SMA, LVCMOS/LVTTL | ||||||||
| 6 differential trigger out to VPX P2 | |||||||||
| Skew <30ps | |||||||||
| Clock Input | External reference / sampling / sync clock ≤200MHz | ||||||||
| Clock Output | 7 groups JESD204B clock (SYSREF+DCLK) to VPX P1 | ||||||||
| Skew <120ps | |||||||||
| Front Panel I/O | 5× SMA PPS/GPIO | ||||||||
| 10CH LVDS | |||||||||
| 5CH RS422 B-code | |||||||||
| J30J 11CH 3.3V GPIO | |||||||||
| Debug Interface | 6-pin JTAG header, Type‑C JTAG | ||||||||
| VPX Connector | P1,P2 | ||||||||
Block Diagram

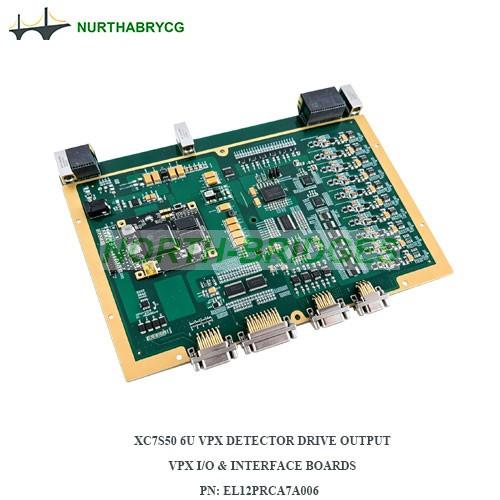

PN.: EL12PRCA7A006
6U VPX Multi-Channel Programmable Bias & Pulse Driver, Dedicated Detector Front-End, Integrated Power Telemetry for Imaging Acquisition Systems
Specifications
| Form Factor | 6U VPX | ||||||||
| Core Chip | FPGA: XC7S50 | ||||||||
| Onboard Memory | 4Gbit DDR3,128Mb QSPI FLASH | ||||||||
| Detector Power Channel | 10CH，0~5V，≤300mA per channel，Noise ≤0.2mVrms | ||||||||
| Bias Voltage Channel | 16CH，0~5V TTL，≤50mA per channel，Noise ≤0.1mVrms | ||||||||
| Working Pulse Channel | 32CH，0~5V programmable，Max 100MHz | ||||||||
| Sync Signal | 16CH，3.3V level | ||||||||
| Power Input | 12V DC | ||||||||
| Power Consumption | ≤0.4W | ||||||||
| External Connectors | VPX P0(1410189-1),P6(1410187-3); J30J-37ZKW,J30J-25ZKW,J30J-21ZKW,J30J-15ZKW | ||||||||
| Dimension | 233.35(L) ×160(W) mm | ||||||||
| Operating Temp | -10℃ ~ +60℃ | ||||||||
Block Diagram

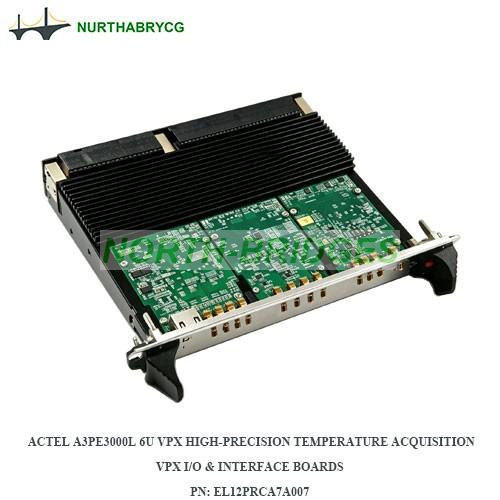

PN.: EL12PRCA7A007
6U VPX Multi-Channel High Precision Temperature Sensing Board, Companion for Detector & Imaging Front-End, 24CH Temperature Acquisition with Local & Remote Alarm
Specifications
| Form Factor | 6U VPX | ||||||||
| Core Chip | FPGA: Actel A3PE3000L | ||||||||
| Aux MCU: STM32F103 | |||||||||
| Total Temp. Channels | 24CH | ||||||||
| PT100 4-wire | 10CH | ||||||||
| MF51 2-wire | 10CH | ||||||||
| Measuring Range | ‑200℃ ~ +600℃ | ||||||||
| Sampling Cycle | <1s | ||||||||
| Power Input | 12V DC,3A, ripple ≤10% | ||||||||
| Communication | RS422 ×2; | ||||||||
| RS232 ×2; | |||||||||
| GSM/GPRS remote module | |||||||||
| External Connectors | VPX P0 (1410189-1) | ||||||||
| VPX P6 (1410187-3) | |||||||||
| J30JA-51ZKW-J | |||||||||
| J30JA-21ZKW-J | |||||||||
| J30JA-9ZKW-J | |||||||||
| Dimension | 233.35(L) ×160(W) mm | ||||||||
| Operating Temp | -30℃~+55℃ / -40℃~+85℃ | ||||||||
Block Diagram

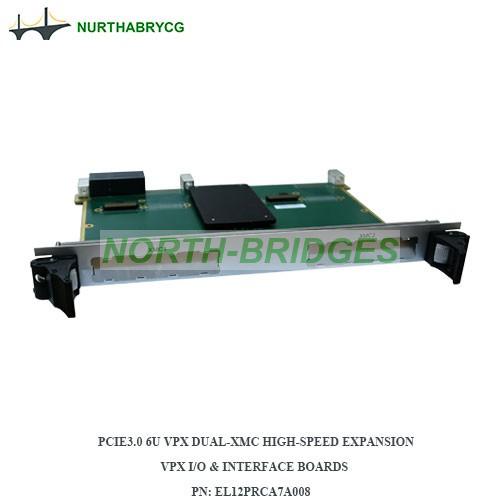

PN.: EL12PRCA7A008
6U VPX Dual-XMC Carrier Board, PCIe3.0 High-Speed Switch Architecture with DMA Peer-to-Peer Transfer, High-Reliability Rugged Expansion Platform
Specifications
| Form Factor | 6U VPX, 4HP/5HP | ||||||||
| Core Chip | N/A | ||||||||
| Standards | VITA46 | ||||||||
| VITA65 | |||||||||
| MOD3-PAY-2F2U-16.2.3-6 | |||||||||
| XMC Spec | VITA46.9 compatible | ||||||||
| PCIe Interface | PCIe3.0 ×8 uplink @VPX P1 | ||||||||
| 2×PCIe3.0 ×8 to XMC1/XMC2 | |||||||||
| Backplane Routing | XMC1 routed to P2 | ||||||||
| XMC2 routed to P6 | |||||||||
| P2w1‑X24s+X8d+X12d | |||||||||
| Bandwidth | Max bidirectional 16GB/s, PCIe switch supports DMA | ||||||||
| Cooling | Conduction / Air Cooling | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Weight | ≤200g | ||||||||
| MTBF | ≥200,000h | ||||||||
Block Diagram

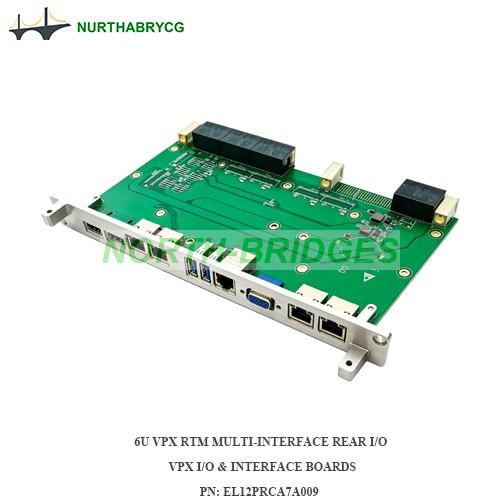

PN.: EL12PRCA7A009
6U VPX Wide-Temperature RTM Rear I/O Board, Dedicated Matching Mainboard, Integrated Ethernet, Multi-Display, USB, Serial and M.2 Storage Interfaces
Specifications
| Form Factor | 6U VPX RTM, 4HP/5HP | ||||||||
| Core Chip | N/A | ||||||||
| Connector | VPX connector | ||||||||
| Ethernet | 4×GbE RJ45 | ||||||||
| Display | Panel: 2×DP, 1×VGA | ||||||||
| 1×on-board EDP | |||||||||
| miniPCIE | 1×miniPCIE | ||||||||
| USB | Panel: 2×USB3.0 | ||||||||
| On-board:3×USB2.0 | |||||||||
| Serial Port | Panel: 1×RS232 | ||||||||
| On-board: 3×RS232/422/485 | |||||||||
| Onboard Memory | 2×M.2 | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
| Weight | 0.2kg | ||||||||
Block Diagram

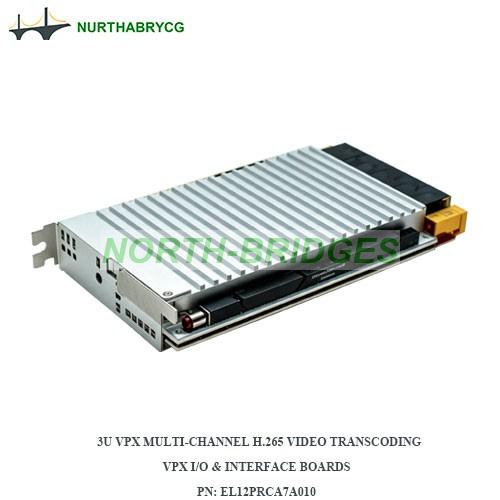

PN.: EL12PRCA7A010
3U VPX Embedded DSP Video Processing Board, Supporting 16-CH H.265 Decoding & Multi-Channel Encoding, Multi-Protocol Streaming Transcoding for Embedded Systems
Specifications
| Form Factor | 3U VPX | ||||||||
| Core Chip | Embedded DSP hardware | ||||||||
| Media Processing | 16×H.265 decode | ||||||||
| Multi-channel encode | |||||||||
| Video/Audio Format/Bitrate/Resolution/Framerate Conversion | |||||||||
| Interfaces | 1×3G/HD-SDI Input | ||||||||
| 1×SDI Output | |||||||||
| 1×CVBS Output | |||||||||
| Analog Audio I/O | |||||||||
| 1×GbE | |||||||||
| Network Protocols | RTSP,RTMP,ONVIF,SIP,TS | ||||||||
| Bypass / Transcoding Dual Mode | |||||||||
| Extra Functions | OSD Overlay | ||||||||
| Video Cropping Encoding | |||||||||
| Local Capture Stream Output | |||||||||
| System | Linux OS | ||||||||
| 7×24h Continuous Operation | |||||||||
| Custom Support | |||||||||
| Cooling | Fanless all-aluminum cooling | ||||||||
Block Diagram
PN.: EL12PRCA7A011
3U VPX Compact XMC Carrier Board, PCIe3.0 High-Speed Bus Adaptation, Flexible Channel Configuration and Optional IPMC Management for Rugged Embedded Systems
Specifications
| Form Factor | 3U VPX, 4HP/5HP | ||||||||
| Core Chip | N/A | ||||||||
| Standards | VITA46 | ||||||||
| VITA65 | |||||||||
| VITA42.3 | |||||||||
| MOD3-PAY-2F2U-16.2.3-2/3 and multiple profile | |||||||||
| XMC Spec | Jn5: VITA42.3 | ||||||||
| Jn6: VITA46.9 profile P2w1-X24s+X8d+X12d | |||||||||
| Jn4: VITA46.9 profile P2w1-P64s | |||||||||
| PCIe Link | PCIe3.0 ×8 (×1/×2/×4/×8 configurable) | ||||||||
| VPX P1 ↔ XMC Jn5 | |||||||||
| VPX Backplane Profile | Optional1: P2w1‑X24s+X8d+X12d | ||||||||
| Optional2: P2w1‑P64s | |||||||||
| System Management | Integrated IPMC | ||||||||
| Voltage/Temp Monitor | |||||||||
| Power & Reset Control | |||||||||
| Cooling | Conduction / Air Cooling | ||||||||
| Operating Temp | ‑40℃ ~ +70℃ | ||||||||
| Weight | ≤200 g | ||||||||
| MTBF | ≥200 000 hours | ||||||||
Block Diagram
