VPX Single‑Board Computers (SBCs)

Disclaimer:
All product specifications published on this website are for reference only and shall be subject to the latest datasheet confirmed by the manufacturer. Please contact us to obtain official technical documents prior to project evaluation and quotation.
Operating systems, BSP, drivers and SDK versions differ by hardware production batches. Please consult us for official software compatibility documents before initiating project development.

VPX Single‑Board Computers

Rugged 3U & 6U VPX single-board computers, built upon VITA 46 baseline specification.

VITA 48 / VITA 65 compliance optional for selected models.

Platform coverage: Intel x86, domestic ARM, SPARC V8 and PowerPC architectures.

Optimized for signal processing, real-time control, embedded computing under harsh environments.

Supports air cooling or conduction cooling, wide temperature variants available.

VPX Single‑Board Computers | Selection Table

Part Number	Product Series	Form Factor	Core Chip	Main interconnect Bus	Port & Channel Resources	Cooling Support	Power Consumption	Operating Temp	Typical Application
EL12PRCA0A001	Intel SBC	6U VPX	Intel i7-6820EQ/6822EQ/E3-1505M v5 + XC7K325T	PCIe Gen3	GbE,Serial,UART,USB,DISP,SATA,LVDS	Conduction / Air Cooling	＜ 60 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing, communication

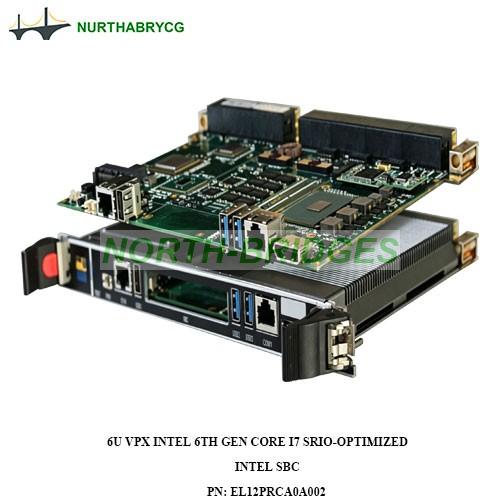

EL12PRCA0A002	Intel SBC	6U VPX	Intel i7-6820EQ/6822EQ/E3-1505M	PCIe Gen3 + SRIO Gen2	GbE,Serial,USB,DISP,SATA,LVDS,Audio	Conduction / Air Cooling	＜ 70 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing, communication

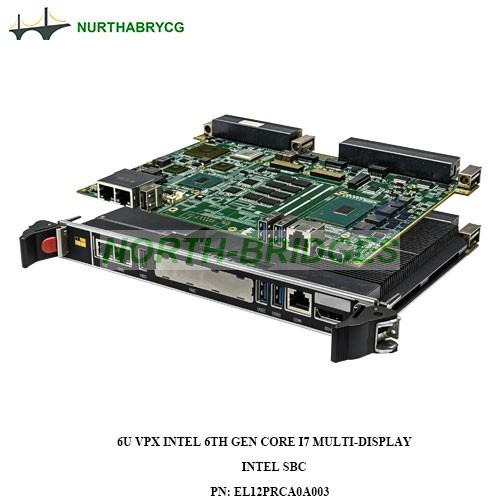

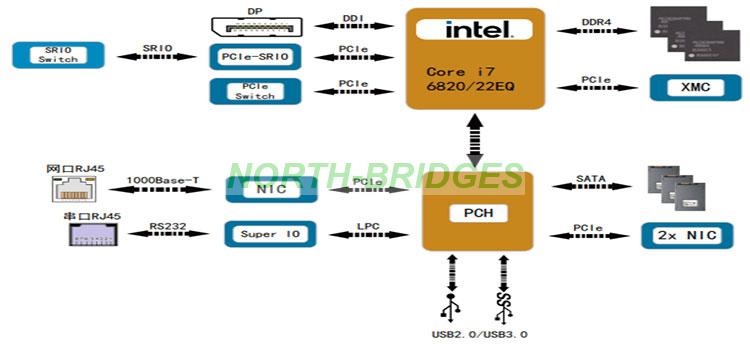

EL12PRCA0A003	Intel SBC	6U VPX	Intel i7-6820EQ/6822EQ/E3-1505M v5	PCIe Gen3 + SRIO Gen2	GbE,Serial,USB,DISP,SATA,GPIO	Conduction / Air Cooling	＜ 60 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing, communication

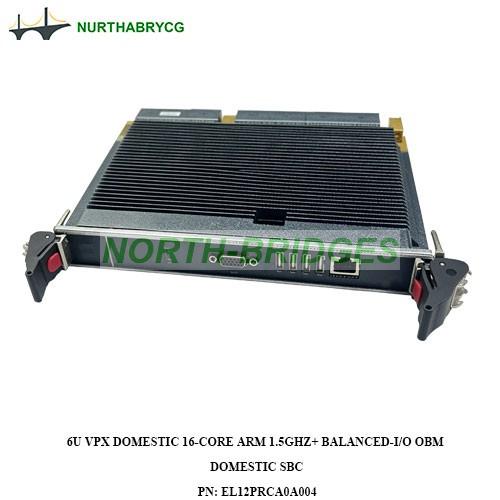

EL12PRCA0A004	Domestic SBC	6U OpenVPX (VITA46/65/48)	Domestic 16-core ARM Proc.	PCIe Gen2	GbE,10GbE,Serial,USB,DISP,SATA	Conduction / Air Cooling	＜ 70 W	0℃ ~ +55℃ / -20℃ ~ +60℃	Signal processing, embedded computing
EL12PRCA0A005	Domestic SBC	6U OpenVPX (VITA46/65)	Domestic 64-core ARM Proc. + FPGA	PCIe Gen3 + SRIO Gen2	GbE,10GbE,Serial,USB,DISP,SATA	Conduction / Air Cooling	＜ 150 W	0℃ ~ +55℃ / -40℃ ~ +80℃	High-performance embedded server, Signal processing
EL12PRCA0A006	Domestic SBC	6U VPX	Domestic 4-core ARM Proc.	PCIe Gen3 + SRIO Gen2	GbE,Serial,USB,DISP,SATA,GPIO	Conduction / Air Cooling	＜ 60 W	0℃ ~ +55℃ / -40℃ ~ +80℃	Graphics computing, embedded computing
EL12PRCA0A007	Domestic SBC	6U OpenVPX (VITA46/65)	Domestic 8-core ARM Proc.	PCIe Gen3	GbE,Serial,USB,DISP,SATA,GPIO,CAN	Conduction / Air Cooling	＜ 90 W	0℃ ~ +55℃ / -40℃ ~ +80℃	Embedded computing, data acquisition
EL12PRCA0A008	Domestic SBC	6U OpenVPX (VITA46/65/48)	Domestic 8-core ARM Proc. + Domestic FPGA	PCIe Gen3 + SRIO Gen2	GbE,10GbE,USB,DISP,LVDS,Audio	Conduction / Air Cooling	＜ 90 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing
EL12PRCA0A009	Intel SBC	3U VPX	Intel i7-6820EQ/i7-6822EQ/E3-1505M	PCIe Gen3 + SRIO Gen2	GbE,Serial,USB,DISP,SATA	Conduction / Air Cooling	＜ 50 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing
EL12PRCA0A010	Intel SBC	3U VPX	Intel i7-6822EQ/i7-6820EQ	PCIe Gen3	GbE,Serial,USB,DISP,SATA	Air Cooling	＜ 35 W	-20℃ ~ +65℃ / -40℃ ~ +70℃	Graphics computing, data processing

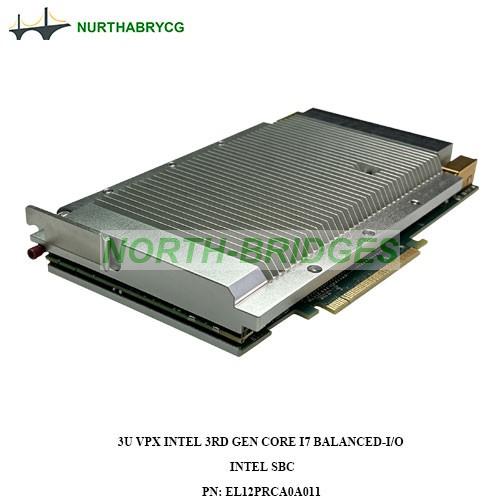

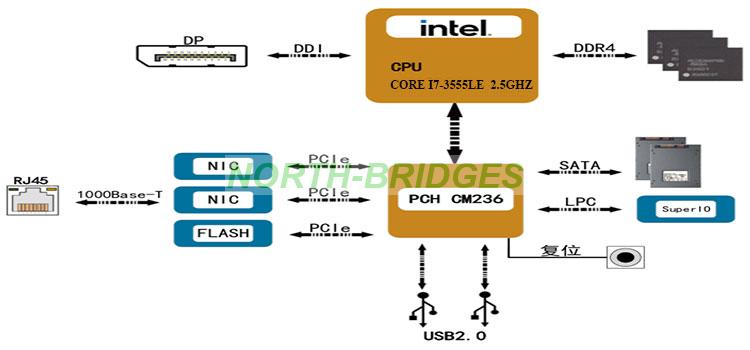

EL12PRCA0A011	Intel Legacy SBC	3U VPX	Intel i7-3555LE/i7-3517UE/i7-3612QE	PCIe Gen3 + PCIe Gen2	GbE,Serial,USB,DISP,SATA	Air Cooling	＜ 30 W	-20℃ ~ +70℃ / -40℃ ~ +80℃	Legacy VPX system upgrade, data processing

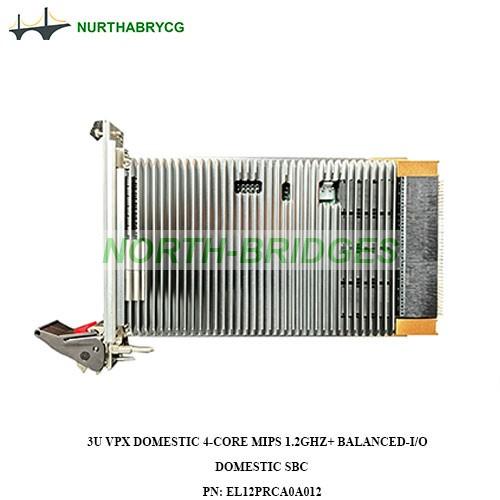

EL12PRCA0A012	Domestic SBC	3U OpenVPX (VITA46/65/48)	Domestic 4-core RISC Proc.	PCIe Gen2 + SRIO Gen2	GbE,Serial,USB,DISP,SATA	Conduction / Air Cooling	＜ 50 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing

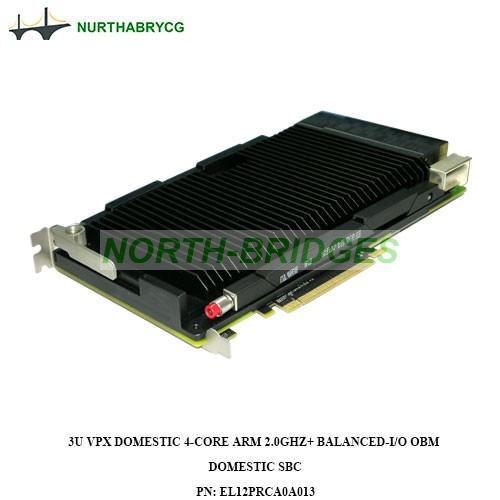

EL12PRCA0A013	Domestic SBC	3U OpenVPX (VITA46/65)	Domestic 4-core ARM Proc.	PCIe Gen2 + SRIO Gen2	GbE,Serial,USB,DISP,SATA	Conduction / Air Cooling	＜ 40 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Embedded computing, data acquisition

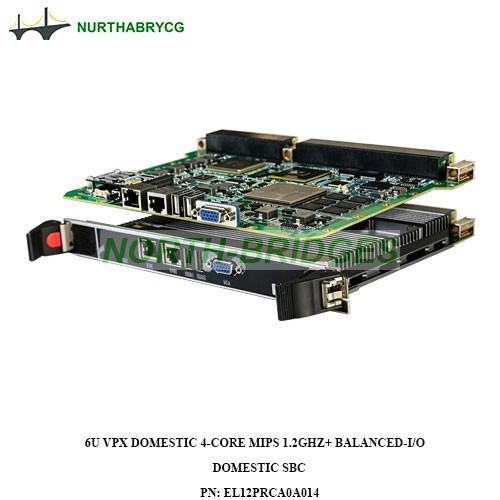

EL12PRCA0A014	Domestic SBC	6U VPX	Domestic 4-core RISC Proc.	PCIe Gen2 + SRIO Gen2	GbE,Serial,USB,DISP,SATA,GPIO	Conduction / Air Cooling	＜ 60 W	0℃ ~ +55℃ / -40℃ ~ +85℃	Signal processing, embedded computing

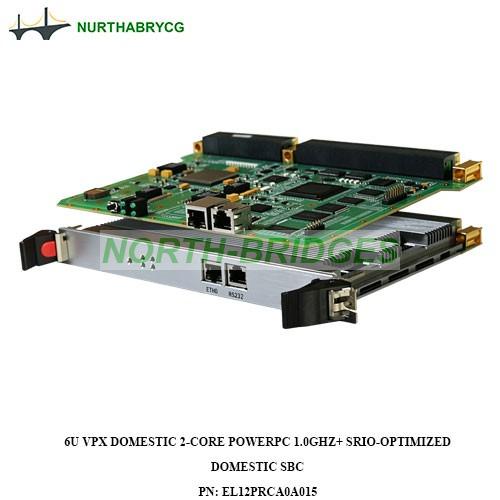

EL12PRCA0A015	PowerPC Real-Time SBC	6U OpenVPX (VITA46/65)	Domestic PowerPC Proc.	SRIO Gen2	GbE,Serial	Conduction / Air Cooling	＜ 30 W	0℃ ~ +50℃ / -40℃ ~ +85℃	Real-time computing, signal processing
EL12PRCA0A016	SPARC Real-Time SBC	3U VPX	Domestic SPARC V8 Proc. + Xilinx K7	PCIe Gen3	100M ETH, Serial, CAN, 1553B, FC-AE-1553, GPIO, LVDS	Conduction / Air Cooling	＜ 15W	0℃ ~ +50℃ / -40℃ ~ +85℃	Real-time control, data processing

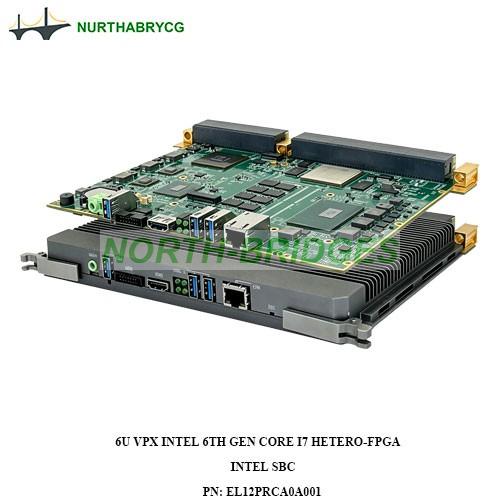

PN.: EL12PRCA0A001

6U VPX Intel Heterogeneous Edge Computing SBC with Onboard K7 FPGA & Integrated GPU

Specifications

Form Factor			6U VPX, VITA compliant
Processor			6th Gen Intel Core i7-6820EQ
			Opt. i7-6822EQ, Xeon E3-1505M v5
Chipset			Intel CM236
Memory			16GB DDR4 SDRAM
FPGA			XC7K325T
Graphics			Integrated Intel HD Graphics, DP++/HDMI support
Front Panel I/O			1×Gigabit RJ45, 1×RS232 (RJ45), 1×USB3.0, 1×USB2.0, 1×DP++, reset
Backplane I/O			2××8/4××4 PCIe Gen3, 5×GbE, multi-serial/USB/DVI/VGA/SATA/GPIO/GPI
Expansion			2.5" SATAIII, 1×XMC (x8 PCIe 3.0)
Power			12V main input, board mgmt supported
Power Consumption			＜60W
Cooling			Conduction / Air cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +85℃
Compatible OS			Win 7/8/10 64bit, Ubuntu, NeoKylin, VxWorks 6.x

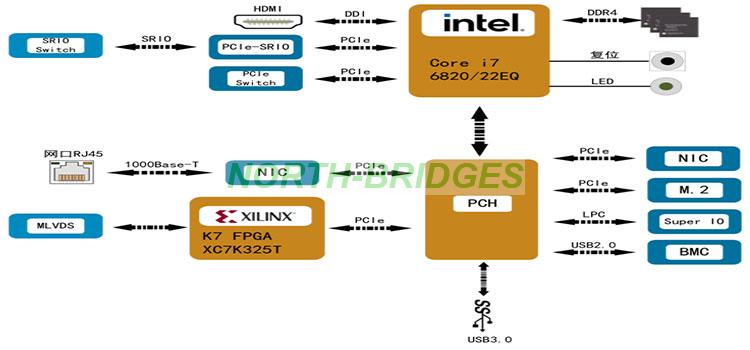

Block Diagram

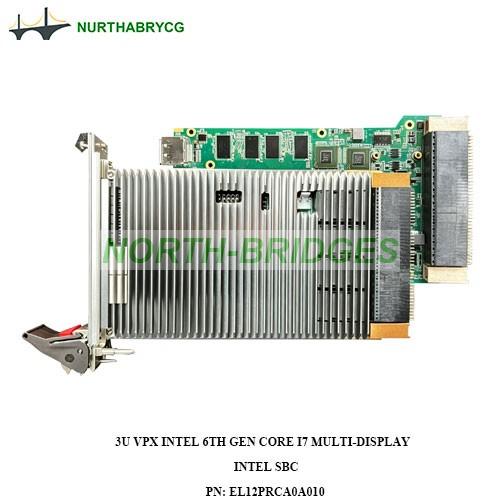

PN.: EL12PRCA0A010

3U VPX Compact Multi-Display Embedded SBC with Integrated GPU | VITA46 Compliant


Specifications

Form Factor			3U VPX, VITA46 compliant
Processor			6th Gen Intel Core i7-6822EQ
			Opt. i7-6820EQ,
Chipset			Intel QM170 / CM236
Memory			16GB Dual-channel DDR4
Graphics			Intel HD 530; DP/HDMI/DVI/VGA multi-display
Front Panel I/O			1×GbE RJ45, 1×USB3.0, 1×DP, reset switch, status LEDs
Backplane I/O			4××4 PCIe 3.0, 2×1000Base-T, 1×RS232/422/485, 3×USB3.0, 1×DVI/HDMI, 2×SATA
Expansion			1×mSATA
Power Consumption			＜35W
Cooling			Air cooling
Operating Temp			-20℃~+65℃ / -40℃~+70℃
Compatible OS			Windows, Linux, VxWorks 6.x

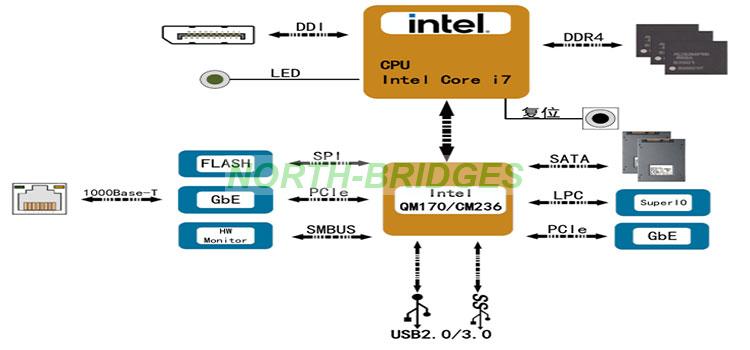

Block Diagram

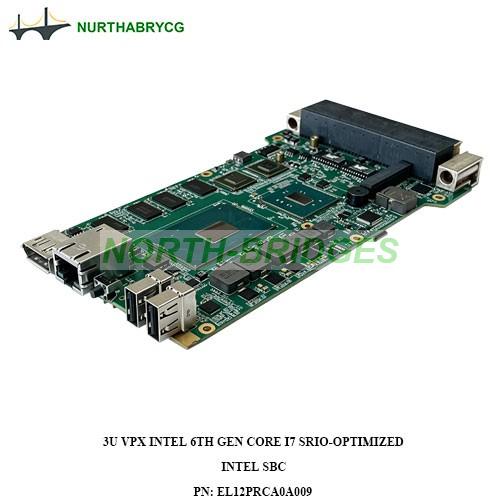

PN.: EL12PRCA0A009

3U VPX Compact Intel SRIO Optimized SBC with Integrated GPU


Specifications

Form Factor			3U VPX, VITA compliant
Processor			6th Gen i7-6822EQ
			Opt. i7-6820EQ, Xeon E3-1505M
Chipset			Intel CM236
Memory			8GB DDR4
Graphics			Integrated Intel HD Graphics, DVI/DP++ display support
Front Panel I/O			1×GbE RJ45, 2×USB2.0, 1×DP, reset switch
Backplane I/O			2××4 SRIO Gen2, multi-spec PCIe 3.0, 2×GbE, dual serial ports, USB, DVI-D/VGA, 2×SATA
Expansion			1×mSATA, 2×SATA
Power			5V main input
Power Consumption			＜50W
Cooling			Conduction / Air cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +85℃
Compatible OS			Win 7/8/10 64bit, Ubuntu, NeoKylin, VxWorks 6.x

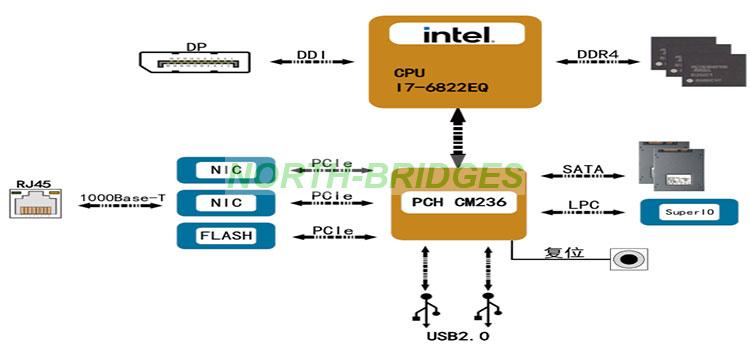

Block Diagram

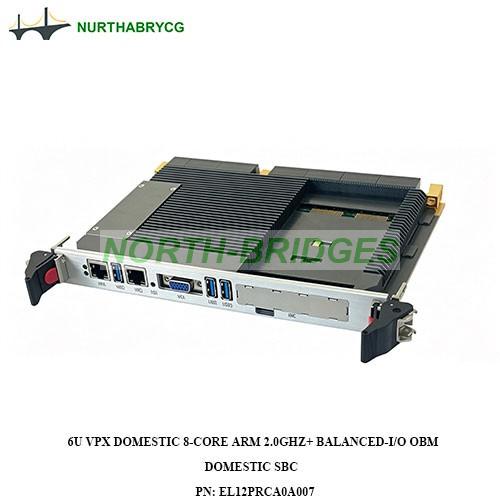

PN.: EL12PRCA0A007

6U VPX General-Purpose Computing SBC with OBM | OpenVPX Compliant (VITA46/65)


Specifications

Form Factor			6U OpenVPX compliant
Processor			Domestic 8-core ARM 2.0GHz+
Memory			32GB DDR4, ECC supported
Front Panel I/O			1×GbE RJ45, 1×RJ45-form RS232, 3×USB3.0, 1×VGA, reset switch
Backplane I/O			Multi-lane PCIe Gen3; 6×GbE; serial, USB, display, SATA, GPIO, CAN interfaces
Expansion			XMC ×8 PCIe Gen3 slot
			M.2 / mSATA storage
Power			12V main input, 3.3V_AUX for board management
Power Consumption			＜90W
Cooling			Conduction / Air Cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +80℃
Compatible OS			Domestic Linux OS

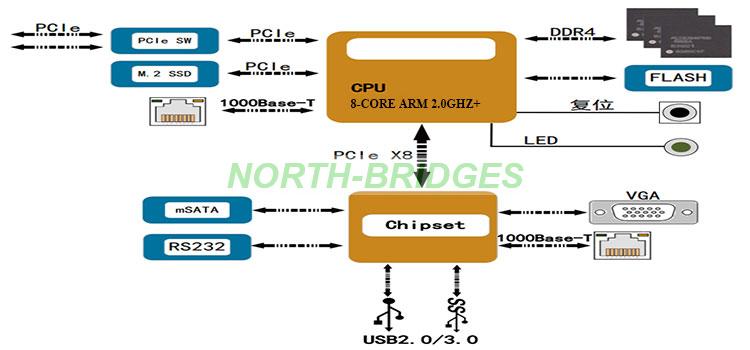

Block Diagram

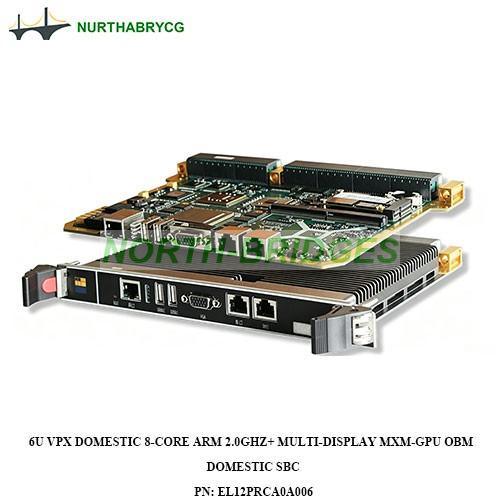

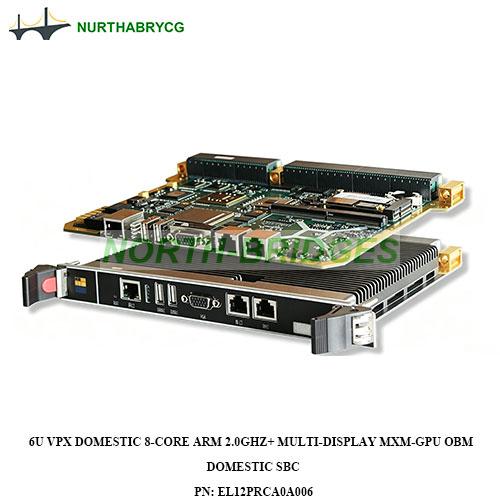

PN.: EL12PRCA0A006

6U VPX Embedded Graphics SBC MXM GPU & Multi-Display with OBM


Specifications

Form Factor			6U OpenVPX compliant
Processor			Domestic 4-core ARM 2.0GHz+
Memory			8GB Domestic DDR3 SDRAM, ECC supported
Front Panel I/O			1×GbE RJ45, 1×RJ45-form RS232, 2×USB2.0, 1×VGA, reset switch, status LEDs
Backplane I/O			2××4 SRIO Gen2, 10G/40G XAUI, 1×x8 PCIe Gen3; 4×GbE; multi-serial/USB/display/SATA/GPIO
Expansion			MXM graphics slot, mSATA storage interface
Power			12V main input, 3.3V_AUX for board management
Power Consumption			＜60W
Cooling			Conduction / Air Cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +80℃
Compatible OS			Domestic Linux OS & Domestic RTOS

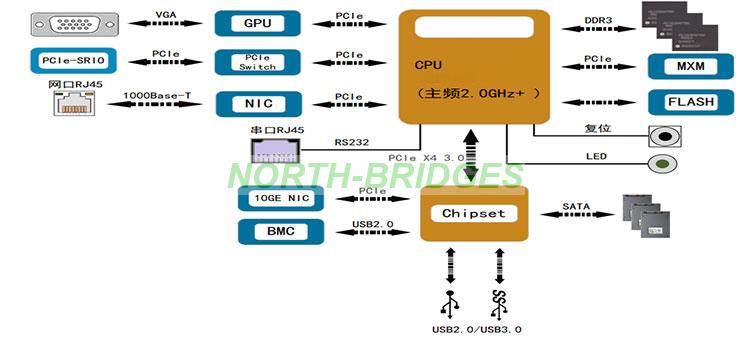

Block Diagram

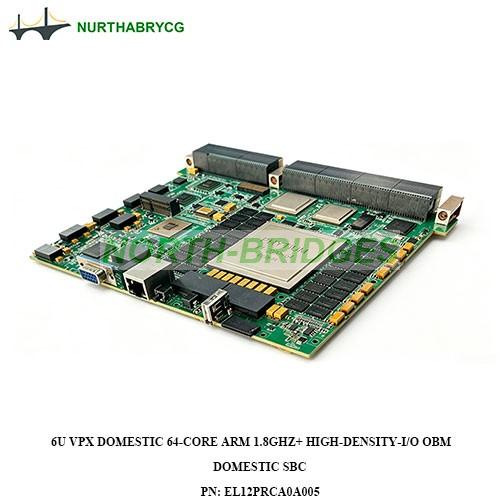

PN.: EL12PRCA0A005

6U VPX 64-Core High-Density I/O Embedded SBC with OBM | OpenVPX Compliant (VITA46/65)


Specifications

Form Factor			6U OpenVPX, 5/10HP optional
Processor			Domestic 64-core ARM 1.8GHz+
Memory			32GB/64GB domestic DDR4 , ECC supported
Front Panel I/O			1×GbE RJ45, 1×10G SFP+, 2×USB3.0, 1×DP, JTAG debug port, reset switch, status LEDs
Backplane I/O			2××4 SRIO Gen2, 2×10GBASE-KR (A602); multi-lane PCIe Gen3; 2/3×GbE
			Dual serial ports, 4×USB2.0, 1×VGA, 2×SATA3.0
Expansion			2TB M.2 SSD, SATA3.0 interface supported
Power			12V main input, 3.3V_AUX for board management
Power Consumption			150W
Cooling			Conduction / Air Cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +80℃
Compatible OS			Domestic Linux Server OS

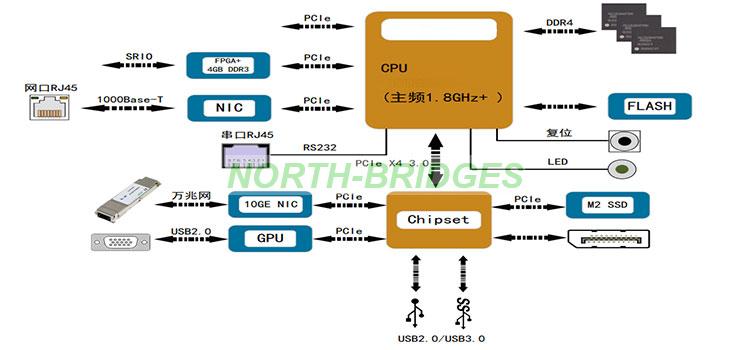

Block Diagram

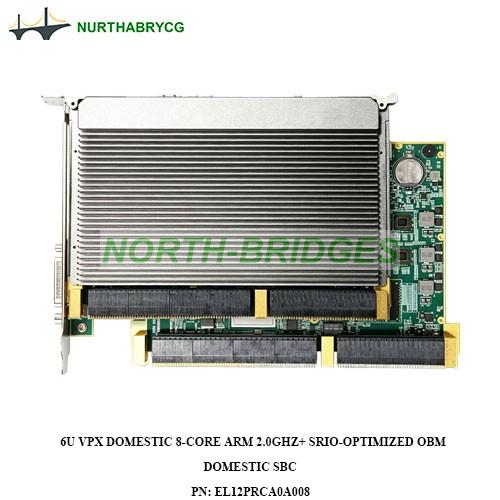

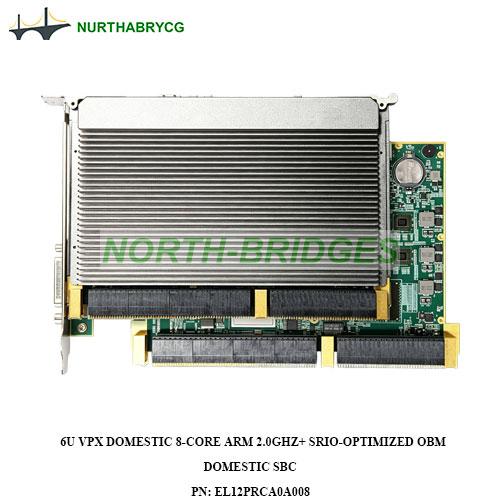

PN.: EL12PRCA0A008

6U VPX SRIO Optimized SBC for High-Speed Interconnect with OBM | OpenVPX Compliant (VITA46/65/48)


Specifications

Form Factor			6U OpenVPX, VITA46.0/48/65 compliant
Processor			Domestic 8-core ARM 2.0GHz+
Memory			16/32GB DDR4 SDRAM
FPGA			Domestic FPGA with 4GB DDR3
Front Panel I/O			1×GbE RJ45, 3×USB3.0, 1×display port, reset switch, 4×status LEDs, JTAG debug port
Backplane I/O			8××4 SRIO, 1××4 PCIe 2.0, 1×GbE, 1×10GBase-KR, LVDS channels
Expansion			M.2 SSD slot supported
Power			12V main input, 3.3V_AUX for board management
Power Consumption			＜ 90 W
Cooling			Conduction / Air Cooling
Operating Temp			0℃ ~ +55℃ / -40℃ ~ +85℃
Compatible OS			Domestic Linux OS

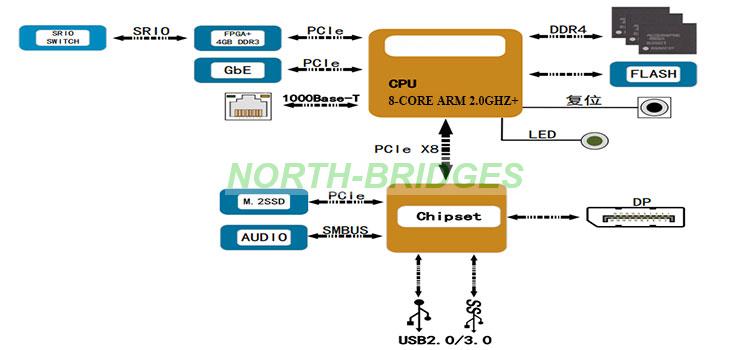

Block Diagram

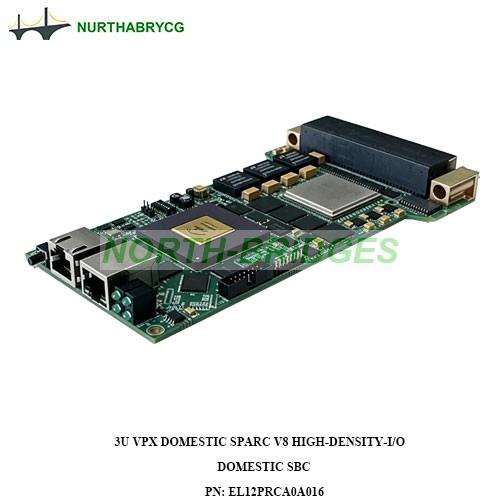

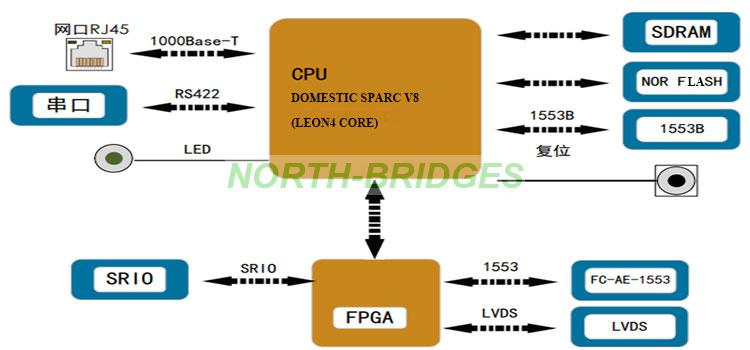

PN.: EL12PRCA0A016

3U VPX Real-Time High-Density I/O SBC with Onboard FPGA | VITA46 Compliant


Specifications

Form Factor			3U VPX, VITA46 compliant
Processor			Domestic SPARC V8 (LEON4 core) processor, SMP architecture
Memory			512MB SDRAM
FPGA			Xilinx K7 FPGA
Front Panel I/O			1×100M RJ45 Ethernet, 1×RJ45-form RS232
Backplane I/O			Reserved x4 SRIO (2.5Gbps); 1×100Base-T
			4×RS422; 2×CAN2.0; 2×1553B, 2×FC-AE-1553; 16×GPIO, 16×LVDS
Expansion			16MB NOR FLASH
Power Consumption			＜15W
Cooling			Conduction / Air Cooling
Operating Temp			0℃ ~ +50℃ / -40℃ ~ +85℃
Compatible OS			VxWorks 6.7, RTEMS, Snapgear Linux
