Disclaimer:
Product specifications on the website are for reference only, subject to the latest manufacturer-confirmed datasheet. Please contact us for official technical documents before project evaluation and quotation.
Operating system, BSP, drivers and SDK vary by hardware batch. Please contact us for official software compatibility documents before project development.
Port notation:
T=1000BASE-T copper port,
BX=1000BASE-BX single-fiber optical port,
X=universal 1000BASE-X SFP optical slot
VPX Switch Fabric Boards
Compliant with VITA 46, VITA 48 and VITA 65 OpenVPX standards, our switch portfolio includes Non-blocking RapidIO Fabric Switches, PCIe Gen2 interconnect switches, and L2/L3 Ethernet switches in 3U/6U form factors.
Selected models support 0.8"(4HP) / 1.0"(5HP) width options and Two-Level Maintenance (TLM); certain 3U variants strictly comply with SLT3‑SWH‑6F6U‑14.4.1 and SLT3-SWH-8F-14.2.2 slot profiles. Certain 6U variants strictly comply with MOD6-SWH-20U19F-12.4.1-n profiles.
Featuring low forwarding latency, dual cooling modes, wide-temperature range and redundant network capability. All units support console management and IPMI monitoring; web management is offered on compact tactical boards.
Optimized for rugged military airborne, naval and vehicular embedded computing applications.
VPX Switch Fabric Boards | Selection Table
| Part Number | Product Series | Form Factor | Core Chip | Main Interconnect Bus | Port & Channe Resources | Cooling Support | Power Consumption | Operating Temp | Primary Application |
| EL12PRCADA001 | SRIO & Ethernet Converged Switch Series | 6U VPX | 6x Domestic SRIO switch ASIC, legacy SRIO pin-compatible | SRIO | Non-blocking Mesh 20 × 4-Lane SRIO Switch Channels | Conduction / Forced Air Cooling | < 80 W | -40℃ ~ +85℃ | Airborne & shipborne large chassis full-mesh backbone networking |
| EL12PRCADA002 | SRIO & Ethernet Converged Switch Series | 6U VPX, Optional 0.8"(4HP) / 1.0"(5HP), VITA65 Compliant | 3x Domestic SRIO Fabric + 2x GE Switch Controllers | SRIO + Gigabit Ethernet | 19 × 4-Lane SRIO + 20 × 1000Base-X | Conduction / Forced Air Cooling | < 35 W | -40℃ ~ +85℃ | Rugged multi-service embedded computing cluster interconnection |
| EL12PRCADA003 | SRIO & Ethernet Converged Switch Series | 6U VPX, Optional 0.8"(4HP) / 1.0"(5HP), VITA65 Compliant | 3x Domestic SRIO Fabric + 2x GE Switch Controllers | SRIO + Gigabit Ethernet | 20 × 4-Lane SRIO + 16 × 1000Base-X | Conduction / Forced Air Cooling | < 35 W | -40℃ ~ +85℃ | High-density heterogeneous computing interconnection |
| EL12PRCADA004 | SRIO & Ethernet Converged Switch Series | 3U VPX OpenVPX SLT3‑SWH‑6F6U‑14.4.1 (VITA 65 Compliant) | Domestic SRIO Fabric + Dual-domain GE Switch | SRIO + Gigabit Ethernet | 6 × 4-Lane SRIO + 6 × 1000Base-BX | Conduction / Forced Air Cooling | 5V DC, 3.3V_AUX | 0℃~ +55℃ / -40℃~ +60℃ | 3U vehicle & portable tactical embedded interconnection |
| EL12PRCADA005 | PCIe Gen2 Interconnect Switch Series | 6U VPX, 0.8" (4HP), VITA48 Compliant, TLM Enabled | 3x Domestic PCIe Switch Fabric | PCIe Gen2, Gen1 backward compatible | 24×4-Lane PCIe: 1Up/23Down, x1/x2/x4 auto | Conduction / Forced Air Cooling | < 25.5 W | -40℃ ~ +85℃ | 6U VPX high-speed PCIe Gen2 computing node interconnection |
| EL12PRCADA006 | PCIe Gen2 Interconnect Switch Series | 3U VPX OpenVPX SLT3-SWH-8F-14.2.2 (VITA 65 Compliant) | 1x Domestic PCIe Switch Fabric | PCIe Gen2, Gen1 backward compatible | 8×4-Lane PCIe | Config: 8x4-Lane / 4x8-Lane, Up/Down programmable | Conduction / Forced Air Cooling | < 13 W | -40℃ ~ +85℃ | 3U Vehicle-borne & portable signal processing systems |
| EL12PRCADA007 | Managed Gigabit Ethernet Switch Series | 6U VPX VITA46/ VITA48/ VITA65 Compliant | Domestic Dual-domain GE Switch | GE, L2/L3 switching supported | 24T + 8BX Cap: ≥176Gbps, Lat: ≤50μs Supports mirroring, LACP, multicast | Conduction / Forced Air Cooling | < 50 W | 0℃~ +55℃ / -40℃~ +85℃ | Shipborne/airborne/vehicle rugged embedded network |
| EL12PRCADA008 | Managed Gigabit Ethernet Switch Series | 6U VPX | Domestic Dual-domain GE Switch | GE, L2/L3 switching supported | 24T+24BX, 1 Mgmt GE + 1 RS232 Console Supports mirroring, LACP, multicast, circuit protection | Conduction / Forced Air Cooling | < 40 W | -40℃ ~ +85℃ | Shipborne & airborne rugged embedded network backbone |
| EL12PRCADA009 | Managed Gigabit Ethernet Switch Series | 3U VPX | Domestic Dual-domain GE Switch | GE, L2 switching supported | 14T+4SGMII=18GE 2 Front GE + WEB Mgmt | Conduction / Forced Air Cooling | ＜40 W | -40℃ ~ +60℃ | portable tactical & vehicle onboard networking |
| EL12PRCADA010 | Managed 10G/25G Ethernet Switch Series | 6U VPX 5HP | Domestic Switch IC | Ethernet (1G/10G/25G KR) | 14×1G BaseT,4×10G SFP,13×10G KR,1×25G KR; 388Gbps backplane bandwidth | Conduction / Forced Air Cooling | <40 W | -20℃~ +60℃ | multi-node high-speed redundant network & ring interconnection |
| EL12PRCADA011 | SRIO & Ethernet Converged Switch Series | 6U VPX OpenVPX MOD6-SWH-20U19F-12.4.1-n Compliant | 4×RXS2448 SRIO, VSC7460 Eth Switch, NXP T2080 | Gen3 SRIO + Gigabit Ethernet | 18×4-Lane Gen3 SRIO, 20×1G Ethernet Serdes; 2×12x SRIO optical,3×1G BaseT RJ45 front I/O | Conduction / Forced Air Cooling | ≤70 W | -40℃ ~ +70℃ | High-volume data exchange |

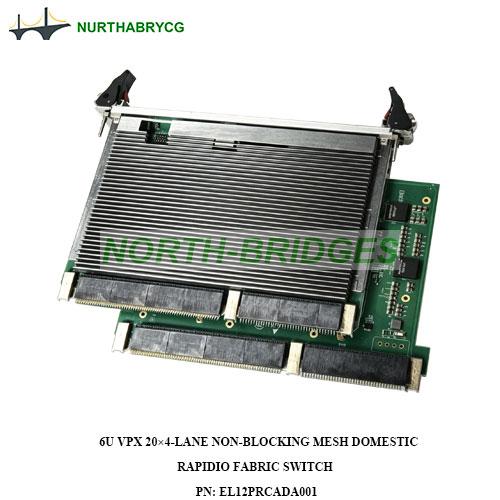

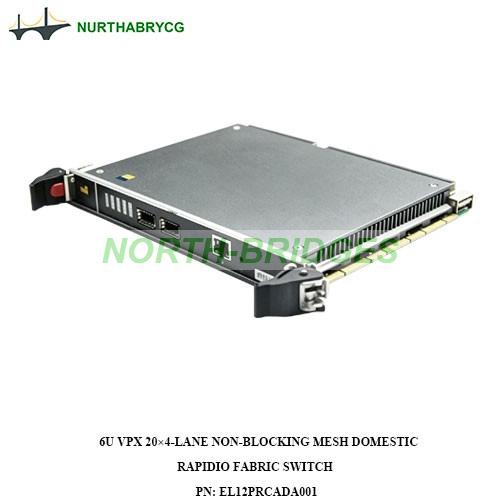

PN.: EL12PRCADA001
Specifications
| Form Factor | 6U VPX, VITA 65 OpenVPX Compliant | ||||||||
| Core Chip | 6x Domestic SRIO switch ASIC, legacy SRIO pin-compatible | ||||||||
| Main Interconnect Bus | RapidIO, Baud Rate: 1.25 / 2.5 / 3.125 / 5 / 6.25 GBaud configurable | ||||||||
| Port & Channel | 20×4-Lane non-blocking RapidIO channels (P2-P6 backplane) | ||||||||
| Front Panel | 1×GE RJ45, 1×Serial Console | ||||||||
| Reset Key, 23 Status LEDs | |||||||||
| 2×QSFP+ optional | |||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | ＜80W | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
PN.: EL12PRCADA002
Specifications
| Form Factor | 6U VPX, Optional 0.8"(4HP) / 1.0"(5HP), VITA65 Compliant | ||||||||
| Core Chip | 3x Domestic SRIO Fabric + 2x GE Switch Controllers | ||||||||
| Main Interconnect Bus | RapidIO 2.1, Baud Rate: 1.25 / 2.5 / 3.125 / 5 / 6.25 GBaud configurable | ||||||||
| Port & Channel | 19 × 4-Lane SRIO + 20 × 1000Base-X universal optical ports (backplane) | ||||||||
| Front Panel | 1×1000Base-T RJ45 port, 1 reset key, 3×QSFP+ SRIO optical ports | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | < 35 W | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||

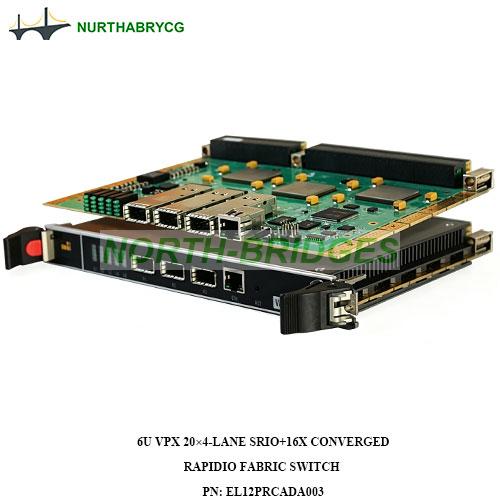

PN.: EL12PRCADA003
Specifications
| Form Factor | 6U VPX, Optional 0.8"(4HP) / 1.0"(5HP), VITA65 Compliant | ||||||||
| Core Chip | 3x Domestic SRIO Fabric + 2x GE Switch Controllers | ||||||||
| Main Interconnect Bus | RapidIO 2.1, Baud Rate: 1.25 / 2.5 / 3.125 / 5 / 6.25 GBaud configurable | ||||||||
| Port & Channel | 20 × 4-Lane SRIO + 16 × 1000Base-X universal optical ports (backplane) | ||||||||
| Front Panel | 1×1000Base-T RJ45 port, 1 reset key, 3×QSFP+ SRIO optical ports | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | < 35 W | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||

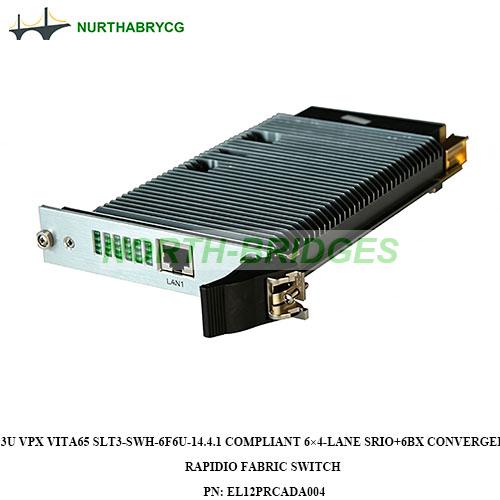

PN.: EL12PRCADA004
Specifications
| Form Factor | 3U VPX, VITA65 SLT3‑SWH‑6F6U‑14.4.1 Compliant | ||||||||
| Core Chip | Domestic SRIO Fabric + Dual-domain GE Switch | ||||||||
| Main Interconnect Bus | RapidIO, Baud Rate: 1.25 / 2.5 / 3.125 / 5 / 6.25 GBaud configurable | ||||||||
| Port & Channel | 6 × 4-Lane SRIO routed to P1-P2 backplan | ||||||||
| 6 × 1000Base-BX fixed single-fiber optical ports on backplane P2 | |||||||||
| Front Panel | 1×GE RJ45 port, reset button, status indicator LEDs | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | 5V DC, 3.3V_AUX | ||||||||
| Operating Temp | 0℃~+55℃ / -40℃~+60℃ | ||||||||

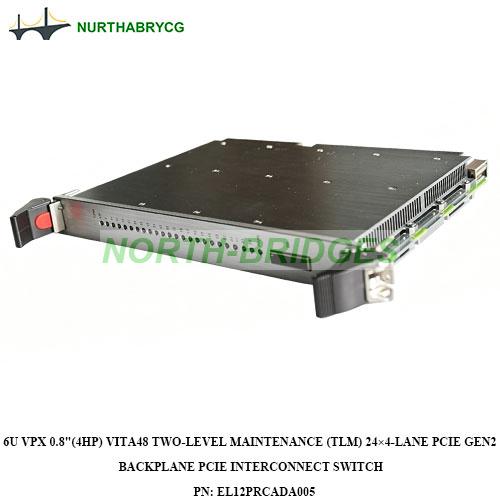

PN.: EL12PRCADA005
Specifications
| Form Factor | 6U VPX, 0.8" (4HP), VITA48 Compliant, Two-Level Maintenance (TLM) Enabled | ||||||||
| Core Chip | 3x Domestic PCIe Switch Fabric | ||||||||
| Main Interconnect Bus | PCIe Gen2, Gen1 backward compatible | ||||||||
| Rate: 2.5Gbps / 5.0Gbps per lane configurable | |||||||||
| Port & Channel | Total 24×4-Lane PCIe channels: 1 uplink port + 23 downlink ports | ||||||||
| Each port auto-negotiates among x4/x2/x1 link width | |||||||||
| Front panel | LEDs for individual port status & link speed indication | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | < 25.5 W | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||

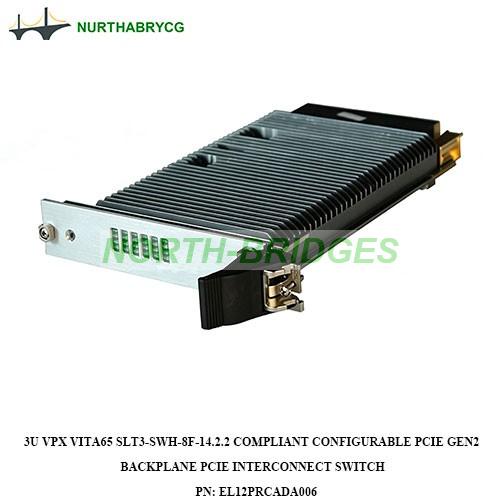

PN.: EL12PRCADA006
Specifications
| Form Factor | 3U VPX, VITA65 OpenVPX SLT3-SWH-8F-14.2.2 compliant | ||||||||
| Core Chip | 1x Domestic PCIe Switch Fabric | ||||||||
| Main Interconnect Bus | PCIe Gen2, Gen1 backward compatible | ||||||||
| Configurable rate of 2.5Gbps / 5.0Gbps per lane | |||||||||
| Port & Channel | Dual configurable port modes via P1/P2 backplane connectors: | ||||||||
| 8×4-Lane or 4×8-Lane PCIe channels | |||||||||
| All ports support upstream/downstream flexible configuration | |||||||||
| Front-panel | LEDs indicate real-time link status | ||||||||
| Optional XMC subcard expansion interface | |||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | < 13 W | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||

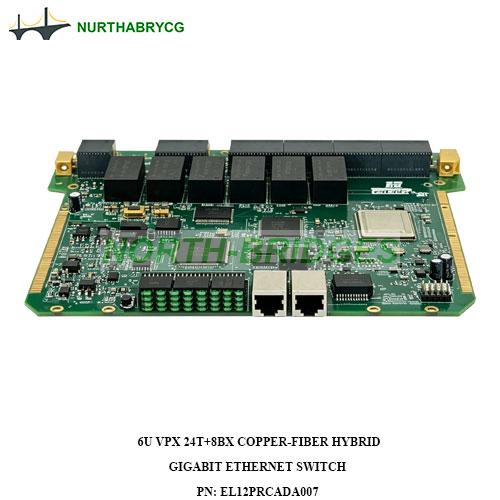

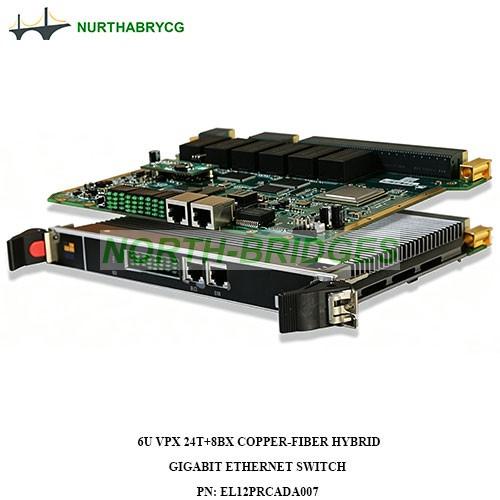

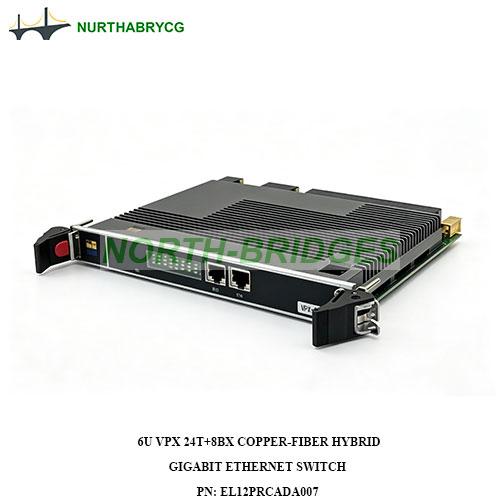

PN.: EL12PRCADA007
Specifications
| Form Factor | 6U VPX, VITA46.0 / VITA65 / VITA48 Compliant | ||||||||
| Core Chip | Domestic Dual-domain GE Switch | ||||||||
| Main Interconnect Bus | Gigabit Ethernet, L2/L3 switching supported | ||||||||
| Port & Channel | 24T + 8BX, Cap ≥176Gbps, Lat ≤50μs, | ||||||||
| Supports mirroring, LACP, multicast, IPMI management | |||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | ＜50W | ||||||||
| Operating Temp | 0℃~+55℃ | ||||||||
| -40℃~+85℃ | |||||||||

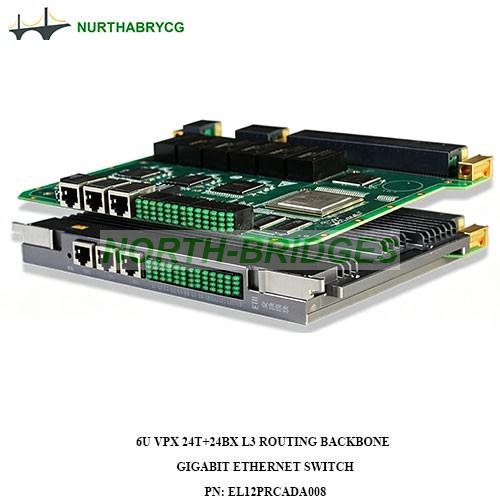

PN.: EL12PRCADA008
Specifications
| Form Factor | 6U VPX | ||||||||
| Core Chip | Domestic Dual-domain Gigabit Ethernet Switch | ||||||||
| Main Interconnect Bus | Gigabit Ethernet, L2/L3 switching supported | ||||||||
| Port & Channel | 24 × 1000BASE-T+24 × 1000BASE-BX full-gigabit hybrid ports | ||||||||
| Multicast, Port mirroring and Link aggregation supported | |||||||||
| Equipped with independent management network port and RS232 serial port | |||||||||
| Reverse Polarity / Short-circuit / Overvoltage / Overcurrent Protection included | |||||||||
| Front-panel | Reset Button, BMC RJ45 Port, RS232 RJ45 Port, Gigabit LAN Port | ||||||||
| 13 Groups × 4 Green Status LEDs | |||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | < 40 W @12V power supply | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||

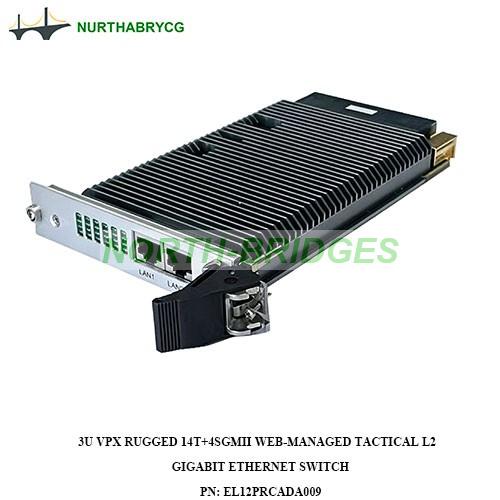

PN.: EL12PRCADA009
Specifications
| Form Factor | 3U VPX | ||||||||
| Core Chip | Domestic Dual-domain GE Switch | ||||||||
| Main Interconnect Bus | Gigabit Ethernet, L2 non-blocking switching with web management support | ||||||||
| Port & Channel | 14×1000BASE-T + 4×SGMII Gigabit interfaces | ||||||||
| Features fast startup within 45s | |||||||||
| Reverse Polarity / Short-circuit / Overvoltage / Overcurrent Protection included | |||||||||
| Front Panel | Reset Button, 2 RJ45 LAN Ports, 6 Groups × 4 Green Status LEDs | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
| Power | ＜40 W @5V power supply | ||||||||
| Operating Temp | -40℃ ~ +60℃ | ||||||||
PN.: EL12PRCADA010
Specifications
| Form Factor | 6U OpenVPX 5HP | ||||||||
| Core Chip | Domestic Switch IC | ||||||||
| Power | 12V, P0 with IPMB | ||||||||
| Backplane bandwidth | 388Gbps | ||||||||
| Forwarding rate | 288.7Mpps | ||||||||
| Buffer | 72Mbit | ||||||||
| MAC entries | 196K | ||||||||
| Front Panel | 4×10G SFP,2×1G BaseT RJ45 (Data + Management) | ||||||||
| Backplane | P4: 13×10G KR +1×25G KR | ||||||||
| P5: 8×1G BaseT | |||||||||
| P6: 8×1G BaseT +1×RS232 debug port | |||||||||
| Supported Protocol | STP/RSTP/MSTP/ERPS/MRP/MRPP, VLAN, QoS, ACL, IGMP Snooping, LACP | ||||||||
| Operating Temp | -20℃~+60℃ | ||||||||
| Power | 40W TDP | ||||||||
PN.: EL12PRCADA011
Specifications
| Form Factor | 6U VPX, OpenVPX MOD6-SWH-20U19F-12.4.1-n Compliant | ||||||||
| Core Chip | 4×RXS2448 SRIO Switch, VSC7460 Ethernet Switch, T2080 CPU | ||||||||
| SRIO Resources | 18×4-Lane Gen3 SRIO (VPX backplane), 2×12x front optical SRIO | ||||||||
| Ethernet Resources | 20×1G Serdes Ethernet (VPX backplane); 3×1G BaseT RJ45 front I/O | ||||||||
| Power | 22V VPX power input, TDP ≤70W | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Cooling | Conduction / Forced Air Cooling | ||||||||
