Rugged VPX Chassis
This lineup includes military rugged & industrial VPX chassis per OpenVPX/VITA international COTS specs.
Cooling options: air, hybrid conduction-air, passive conduction & closed liquid cooling.
Covers 3U–10U rack units, manpack portable, VITA73/VITA74 ultra-miniature airborne terminals.
Suitable for airborne, shipborne, vehicular, dismounted field missions & lab testing globally.
Military Rugged VPX Chassis | Selection Table
| Part Number | Chassis Designation | Form Factor | Cooling System | VPX Backplane | Slot Allocation | Power Support | Material | Operating Temp | Primary Application |
| EL12PRCACA001 | 7U Sealed Hybrid Cooled | 7U 19" Sealed Rack | Hybrid Cooled | 16-slt 6U VPX, Dual-Switch, RTM supp. | 14PLD+ 2SW+ 1PWR | 6U VPX Power, 750W, 90-264VAC | Al-Mg Welded Alloy | -40℃ ~ +70℃ | Vehicle, Shipborne Signal Processing |
| EL12PRCACA002 | 8U Open RF Hybrid Cooled | 8U 19" Open Frame Rack | Hybrid Cooled | 14-slt 6U VPX, VITA67 RF Hybrid, RTM supp. | 14PLD+ 1PWR | 6U VPX Power, 1100W, 90-264VAC | Coated Aluminum Alloy | -40℃ ~ +70℃ | RF Field Signal Recon |

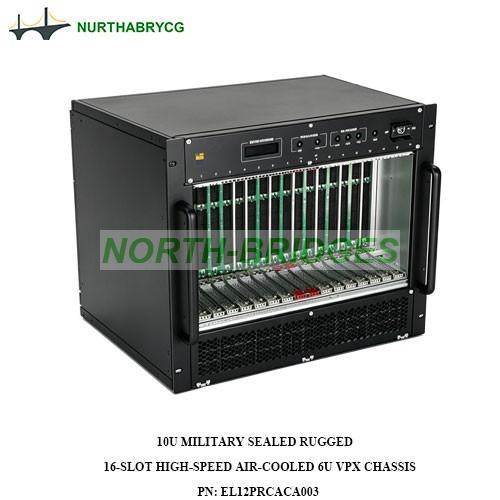

| EL12PRCACA003 | 10U High-Speed Air-Cooled | 10U 19" Rack&Desktop Dual Use | Air Cooled | 16-slt 6U VPX, 16Gbps Dual-Switch, RTM supp. | 14PLD+ 2SW+ 1PWR | 6U VPX Power, 1100W, 90-264VAC | Painted Metal Alloy | -40℃ ~ +70℃ | Ground Station High-Speed Computing |

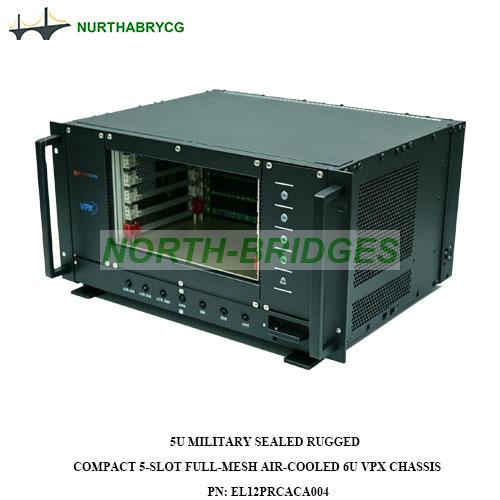

| EL12PRCACA004 | 5U Compact Full-Mesh Air-Cooled | 5U 19" Compact Rack | Air Cooled | 5-slt 6U VPX, Full-Mesh, RTM supp. | 5PLD+ 1PWR | 6U VPX Power, 1100W, 90-264VAC | Anodized Aluminum Alloy | -40℃ ~ +70℃ | Portable Lab Test Computing |
| EL12PRCACA005 | 8U High-Thermal Sealed Air-Cooled | 8U 19" Fully Sealed Ducted Rack | Air Cooled | 9-slt 6U VPX, High-Power Custom, RTM supp. | 9PLD+ 1PWR | 6U VPX Power, 90-264VAC | Thick Welded Al-Mg Alloy | -40℃ ~ +70℃ | Offshore High-Power Radar Processing |

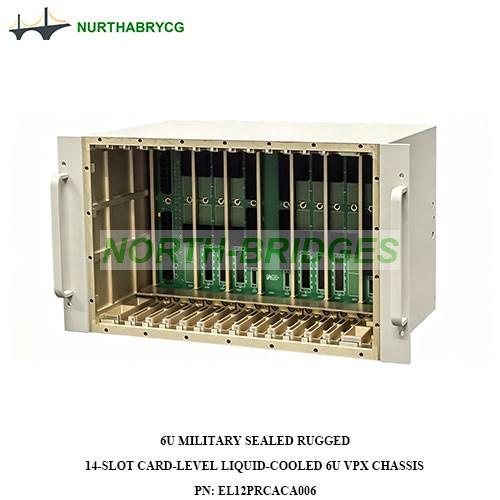

| EL12PRCACA006 | 6U Card-Level Liquid-Cooled | 6U 19" Sealed Rack | Closed-Loop Liquid Cooled | 14-slt 6U VPX, High-Density Custom, RTM supp. | 14PLD+ PWR | 6U VPX Power, 28VDC/220VAC Opt. | Integral Welded Al-Mg Alloy | -40℃ ~ +70℃ | Airborne Shipborne High-Density Compute |
| EL12PRCACA007 | 6U Side Circulation Low-Leakage Liquid-Cooled | 6U 19" AviationGrade Rack | Closed-Loop Liquid Cooled | 8-slt 6U VPX, VPX & ASAAC Dual Comp., RTM supp. | 8PLD+ 1PWR | 6U VPX Power, 28VDC/220VAC Opt. | Anodized Welded Al-Mg Alloy | -40℃ ~ +70℃ | Airborne Avionics Platform |
| EL12PRCACA008 | All-Weather Manpack Portable | Non-Rack Manpack Portable Type | Hybrid Cooled | 3-slt 6U VPX, Horizontal Plug-in Custom Backplane | 3PLD | 28V DC/220V AC + Ext. Battery | Ultra-Light Welded Alloy | -40℃ ~ +70℃ | Dismounted Field Embedded Computing |
| EL12PRCACA009 | VITA73 Carbon Fiber Miniature Passive Cooled | Ultra-Compact Non-Rack | Passive Cooled | Configurable 1~16 slt VITA73 Mini VPX | Configurable Slots | Built-in Power Module | Carbon Fiber Composite | -40℃ ~ +70℃ | UAV & Wearable Mini Embedded System |
| EL12PRCACA010 | VITA74 VNX Ultra-Mini Passive Cooled | Ultra-Mini Non-Rack VNX Form | Passive Cooled | Custom VNX Backplane, FMC Interface | Configurable Slots | Built-in 100W Reg. Module, 14–36V DC Wide Input, Multi-circuit Prot. | Lightweight Rugged Alloy | -40℃ ~ +65℃ | Robot & Tiny Wearable Terminal |
Industrial Rugged VPX Chassis | Selection Table
| Part Number | Chassis Designation | Form Factor | Cooling System | VPX Backplane | Slot Allocation | Power Support | Material | Operating Temp | Primary Application |
| EL12PRCACA011 | 3U Std. Air-Cooled | 3U 19" Std. Rack | Air Cooled | 4-slt 6U VPX, RTM supp. | 4PLD | 24V DC, 420W ATX | SECC Steel + Al-Mg Alloy Frame | -15℃ ~ +50℃ | Lab Test, Ground Station |
| EL12PRCACA012 | 4U Std. Air-Cooled | 4U 19" Std. Rack | Air Cooled | 12-slt 3U VPX, RTM supp. | 10PLD+ 1SYS+1SW+ 1PWR | 3U VPX Power, AC/DC Opt. | SECC Steel + Al-Mg Alloy Frame | -15℃ ~ +50℃ | Radar Baseband, Aerospace Test |

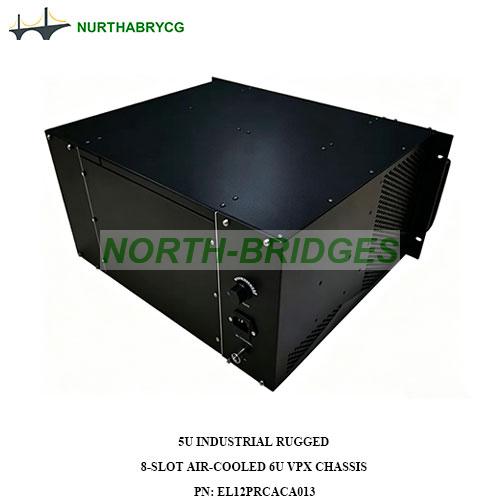

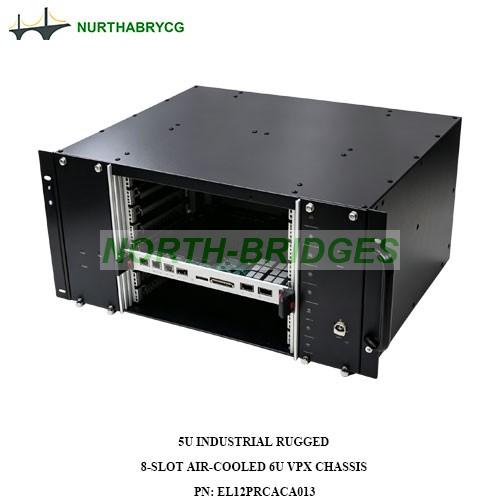

| EL12PRCACA013 | 5U High-Power Air-Cooled | 5U 19" Std. Rack | Air Cooled | 8-slt 6U VPX, RTM supp. | 8PLD | 220V AC, 1400W ATX | SECC Steel + Al-Mg Alloy Frame | -15℃ ~ +50℃ | High-Power Signal Processing |

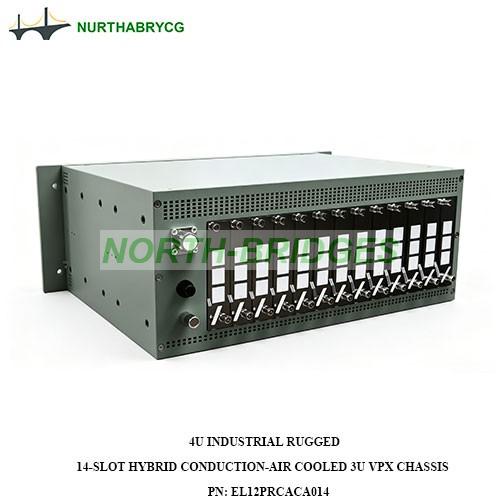

| EL12PRCACA014 | 4U Rugged Hybrid Cooled | 4U 19" Rugged Rack | Hybrid Cooled | 14-slt 3U VPX, RTM supp. | 11PLD+ 1SYS+2SW+ 2PWR | 3U VPX Power, AC/DC Red. | Solid Aluminum | -40℃ ~ +65℃ | Vehicle, Ship Embedded |
| EL12PRCACA015 | 6U Rugged Passive Cooled | 6U 19" Rugged Rack | Passive Cooled | 8-slt 6U VPX, RTM supp. | 8PLD+ 1PWR | 6U VPX Power, AC/DC Opt. | Solid Aluminum | -40℃ ~ +70℃ | Sealed Cabin Computing |
| EL12PRCACA016 | 6U High-Density Liquid-Cooled | 6U 19" Rugged Rack | Closed-Loop Liquid Cooled | 10-slot 6U VPX, RTM supp. | 10PLD+ 2PWR | 1+1 Red. 6U VPX Power, AC/DC | Solid Aluminum | -40℃ ~ +65℃ | High-Power Onboard Compute |
| EL12PRCACA017 | 6U Large-Slot Liquid-Cooled | 6U 19" Rugged Rack | Closed-Loop Liquid Cooled | 16-slt 6U VPX, RTM supp. | 14PLD+ 2SW+ 2PWR | 1+1 Red. 6U VPX Power, AC/DC | Solid Aluminum | -40℃ ~ +65℃ | RF Spectrum Monitoring Systems |
| EL12PRCACA018 | 9U Heavy-Duty Hybrid Cooled | 9U 19" Rugged Rack | Hybrid Cooled | 12-slt 6U VPX, RTM supp. | 11PLD+ 1SW+ 2PWR | 1+1 Red. 6U VPX Power, AC/DC | Solid Aluminum | -40℃ ~ +65℃ | Ground Infrastructure Computing |

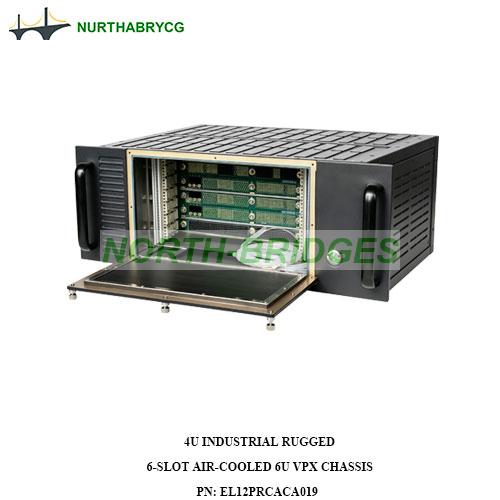

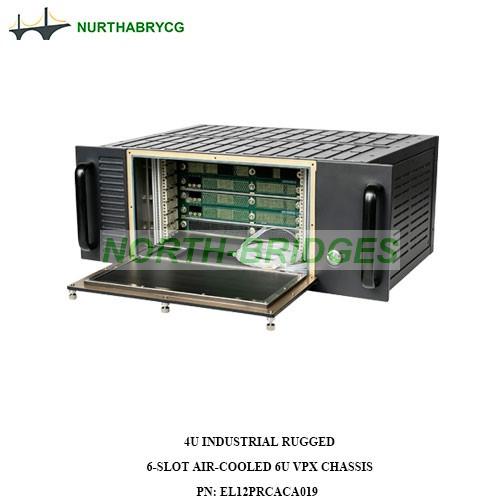

| EL12PRCACA019 | 4U Rugged Baseband Transmission | 4U 19" Rugged Rack | Air Cooled | 6-slt 6U VPX, 10Gbps | 6PLD | 220V AC, 1100W Regulated | Solid Aluminum | -15℃ ~ +55℃ | Wireless Baseband Processing |

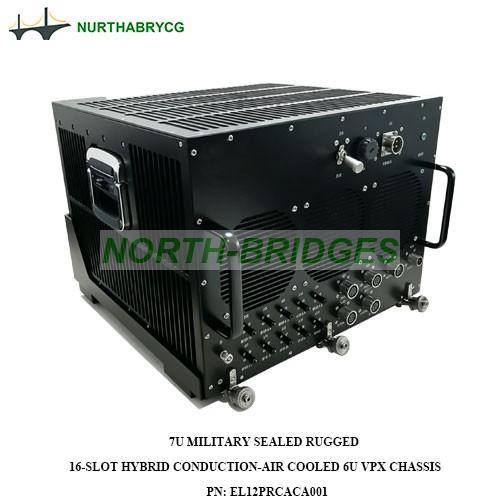

PN: EL12PRCACA001
Sealed Rugged VPX, Hybrid Cooled for Vehicular & Shipborne Harsh Environments
Specifications
| Form Factor | 7U 19" Sealed Rack | ||||||||
| Cooling System | Hybrid Cooled | ||||||||
| Cooling Capacity | 80W/Slot | ||||||||
| Backplane | 16-slt 6U VPX, Dual-Switch, RTM supp. | ||||||||
| Slot Allocation | 14PLD+2SW+1PWR | ||||||||
| Power | 6U VPX Power, 750W, 90-264VAC | ||||||||
| Material | Al-Mg Welded Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 482.6 × 447 × 310.35mm | ||||||||

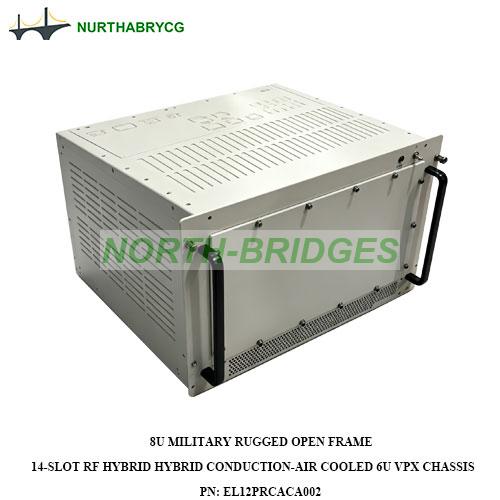

PN: EL12PRCACA002
RF Hybrid Backplane + Hybrid Cooled; Scalable RF Expansion for Rugged Field Deployment
Specifications
| Form Factor | 8U 19" Open Frame Rack | ||||||||
| Cooling System | Hybrid Cooled | ||||||||
| Cooling Capacity | 3 rear-top 12V DC fans, 200CFM max, stepless speed adj. | ||||||||
| Backplane | 14-slt 6U VPX, VITA67 RF Hybrid, RTM supp. | ||||||||
| Slot Allocation | 14PLD+1PWR | ||||||||
| Power | 6U VPX Power, 1100W, 90-264VAC | ||||||||
| Material | Coated Aluminum Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 482.6 × 363.95 × 66.7mm | ||||||||
PN: EL12PRCACA003
16Gbps Backplane, High-Power Air Cooling, Onboard Health Mgmt for Field Edge Computing
Specifications
| Form Factor | 10U 19" Rack & Desktop Dual Use | ||||||||
| Cooling System | Air Cooled | ||||||||
| Cooling Capacity | 120W/Slot | ||||||||
| Backplane | 16-slt 6U VPX, 16Gbps Dual-Switch, RTM supp. | ||||||||
| Slot Allocation | 14PLD+2SW+1PWR | ||||||||
| Power | 6U VPX Power, 1100W, 90-264VAC | ||||||||
| Material | Painted Metal Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 482.6 × 294.65 × 443.7mm | ||||||||
PN: EL12PRCACA004
Full-Mesh Backplane, Bidirectional Cooled, Onboard Health Mgmt for Mini Rugged Signal Processing
Specifications
| Form Factor | 5U 19" Compact Rack | ||||||||
| Cooling System | Air Cooled | ||||||||
| Cooling Capacity | Single left 12V DC fan, 200CFM max, stepless speed adj. | ||||||||
| Backplane | 5-slt 6U VPX, Full-Mesh, RTM supp. | ||||||||
| Slot Allocation | 5PLD+1PWR | ||||||||
| Power | 6U VPX Power, 1100W, 90-264VAC | ||||||||
| Material | Anodized Aluminum Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 482.6 × 363.95 × 221.45mm | ||||||||

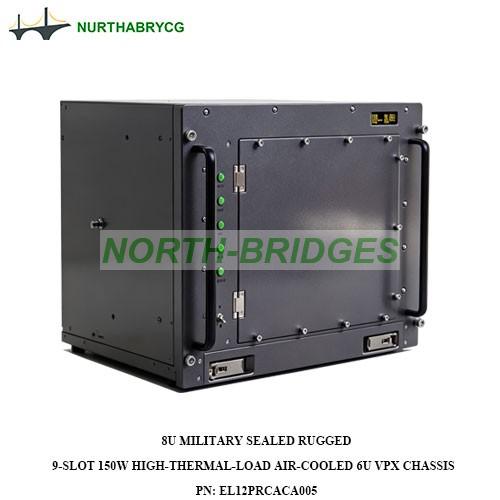

PN: EL12PRCACA005
Ducted Air Cooled, 150W/Slot Thermal Load for Radar & Offshore Harsh Environments
Specifications
| Form Factor | 8U 19" Fully Sealed Ducted Rack | ||||||||
| Cooling System | Air Cooled | ||||||||
| Cooling Capacity | 150W/Slot | ||||||||
| Backplane | 9-slt 6U VPX, High-Power Custom, RTM supp. | ||||||||
| Slot Allocation | 9PLD+1PWR | ||||||||
| Power | 6U VPX Power, 90-264VAC | ||||||||
| Material | Thick Welded Al-Mg Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 482.6 × 468.9 × 354.8mm | ||||||||

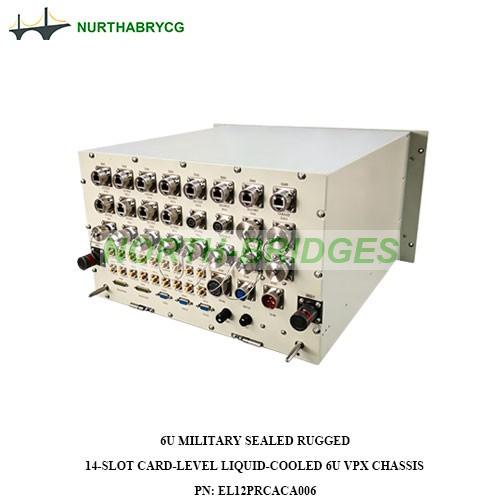

PN: EL12PRCACA006
Card-Level Liquid Cooled, ≥150W/Slot Thermal Load, Dual Leak-Proof Structure for Airborne & Shipborne High-Density Processing
Specifications
| Form Factor | 6U 19" Sealed Rack | ||||||||
| Cooling System | Closed-Loop Liquid Cooled | ||||||||
| Cooling Capacity | ≥150W/Slot | ||||||||
| Backplane | 14-slt 6U VPX, 16Gbps, High-Density Custom, RTM supp. | ||||||||
| Slot Allocation | 14PLD+PWR | ||||||||
| Power | 6U VPX Power, 28VDC/220VAC Opt. | ||||||||
| Material | Integral Welded Al-Mg Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||

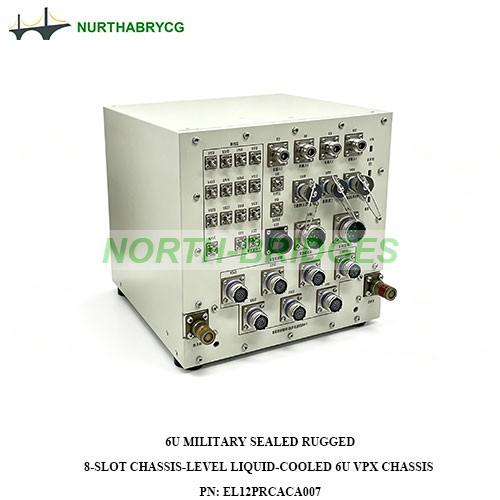

PN: EL12PRCACA007
Cabinet Liquid Circulation Cooled, 180W/Slot Max Thermal Load for Modular Airborne Avionics
Specifications
| Form Factor | 6U 19" Aviation Grade Rack | ||||||||
| Cooling System | Closed-Loop Liquid Cooled | ||||||||
| Cooling Capacity | Up to 180W/Slot | ||||||||
| Backplane | 8-slt 6U VPX, VPX & ASAAC Dual Comp., RTM supp. | ||||||||
| Slot Allocation | 8PLD+1PWR | ||||||||
| Power | 6U VPX Power, 28VDC/220VAC Opt. | ||||||||
| Material | Anodized Welded Al-Mg Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||

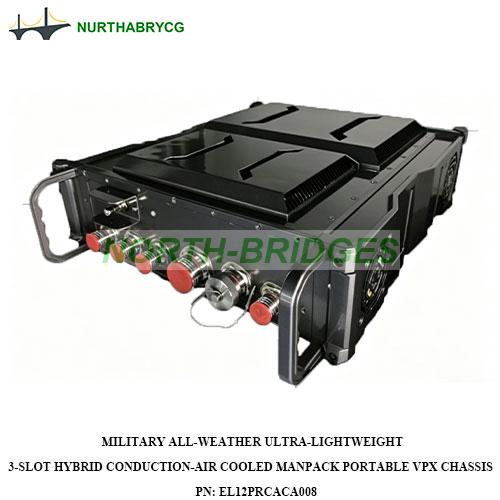

PN: EL12PRCACA008
Hybrid Cooled, Waterproof & Anti-Corrosion, Portable Field Edge Computing Platform
Specifications
| Form Factor | Non-Rack Manpack Portable Type | ||||||||
| Cooling System | Hybrid Cooled | ||||||||
| Cooling Capacity | 80W/Slot | ||||||||
| Backplane | 3-slt 6U VPX, Horizontal Plug-in Custom Backplane | ||||||||
| Slot Allocation | 3PLD | ||||||||
| Power | 28V DC/220V AC + Ext. Battery | ||||||||
| Material | Ultra-Light Welded Alloy | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 424.11 × 340.00 × 113.50mm | ||||||||

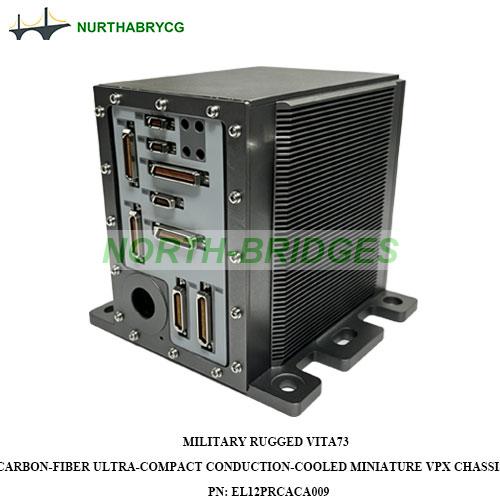

PN: EL12PRCACA009
VITA73 Standard, Edge Passive Cooled, Flexible High-Speed Expansion for UAV & Wearable Mini Embedded Devices
Specifications
| Form Factor | Ultra-Compact Non-Rack | ||||||||
| Cooling System | Passive Cooled | ||||||||
| Backplane | Configurable 1~16 slt VITA73 Mini VPX | ||||||||
| Slot Allocation | Configurable | ||||||||
| Power | Built-in Power Module | ||||||||
| Material | Carbon Fiber Composite | ||||||||
| Operating Temp | -40℃ ~ +70℃ | ||||||||
| Dimension (L×W×H) | 120 × 142 × 174mm | ||||||||

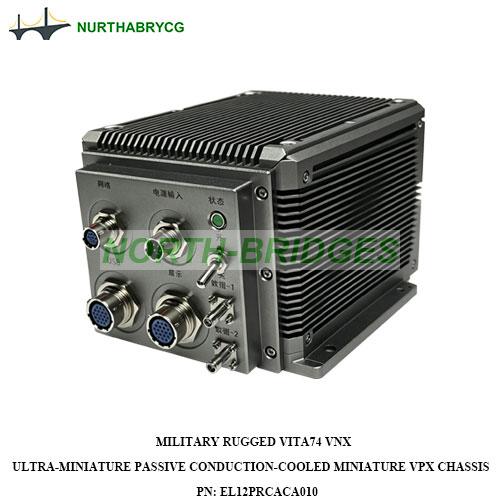

PN: EL12PRCACA010
VITA74 VNX Spec, Passive Cooled, FMC High-Speed Interconnect for UAV, Robotic & Wearable Embedded Systems
Specifications
| Form Factor | VNX | ||||||||
| Cooling System | Passive Cooled | ||||||||
| Backplane | Custom VNX, FMC Interface | ||||||||
| Slot Allocation | Configurable | ||||||||
| Power | Built-in 100W Reg. Module, 14–36V DC Wide Input, Multi-circuit Prot. | ||||||||
| Material | Lightweight Rugged Alloy | ||||||||
| Operating Temp | -40℃ ~ +65℃ | ||||||||
| Dimension (L×W×H) | 135 × 175 × 118mm | ||||||||

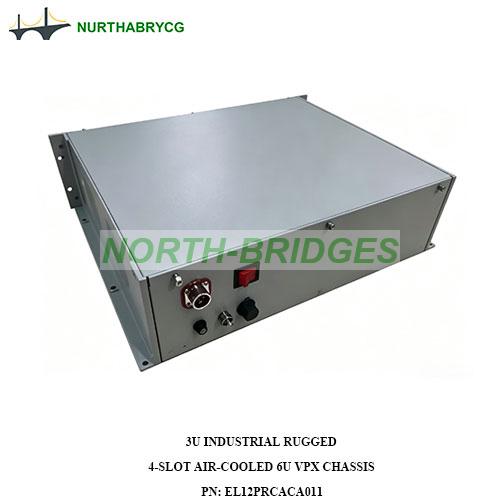

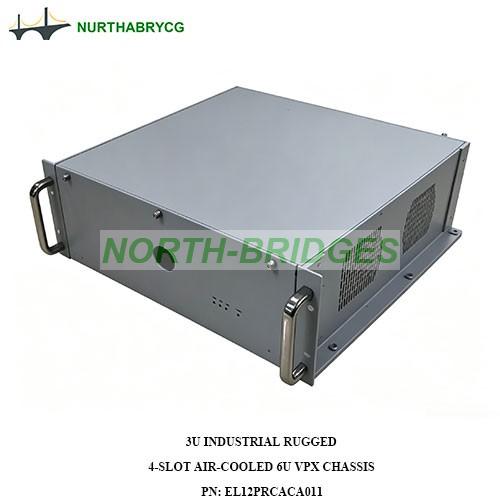

PN: EL12PRCACA011
420W DC ATX PSU, Dual-Side Convection Air Cooled for Industrial Measurement Embedded Use

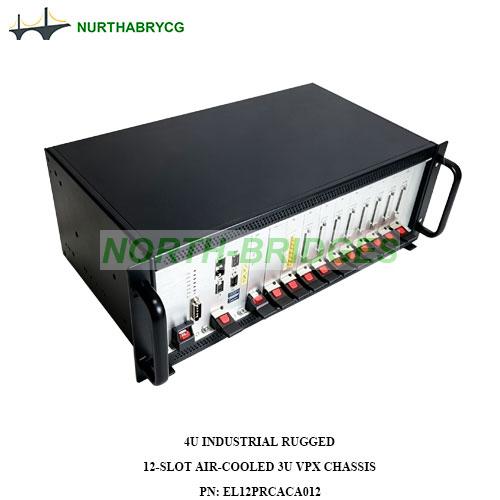

PN: EL12PRCACA012
Air Cooled, Dual Redundant Power Bays, Hot-Swap Front/Rear Pluggable Structure for Aerospace & Industrial Testing
PN: EL12PRCACA013
1400W AC ATX PSU, Bilateral Variable-Speed Air Cooled, Wide-Temp Stable Operation for Radar & Aerospace Testing

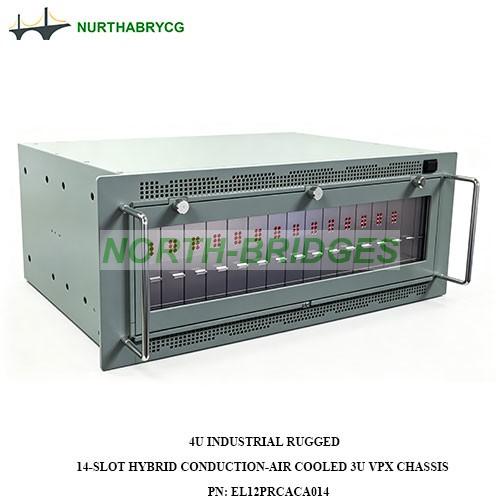

PN: EL12PRCACA014
Hybrid Cooled, Dual Power Bays, Full RTM Support for Vehicular, Maritime & Airborne Embedded Use

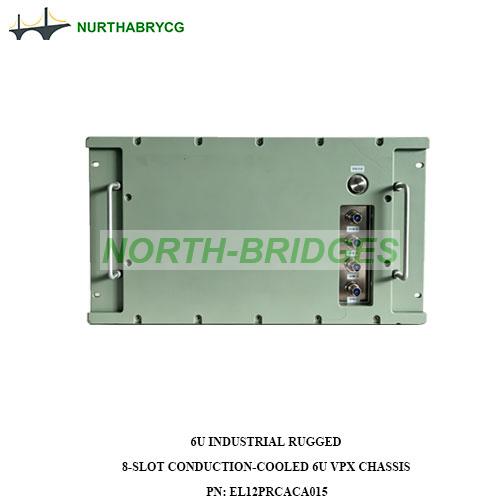

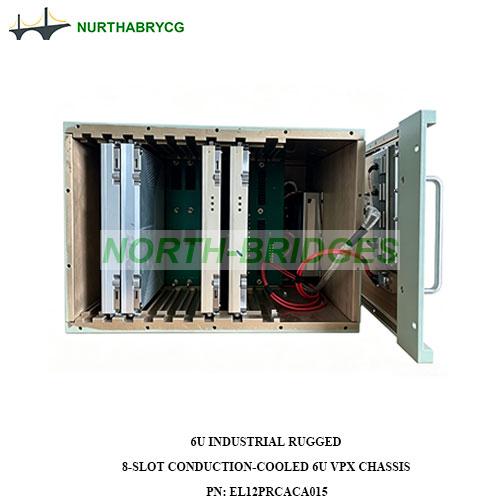

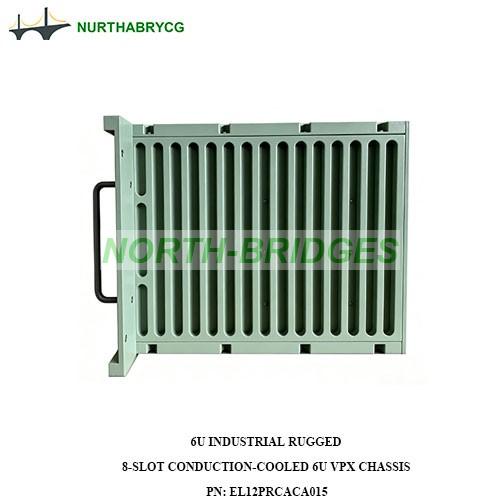

PN: EL12PRCACA015
Passive Cooled, Full RTM Support, Sealed Dustproof Design for Airborne & Shipborne Embedded Use

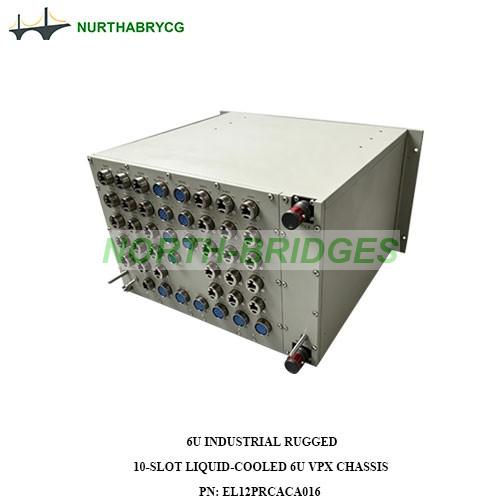

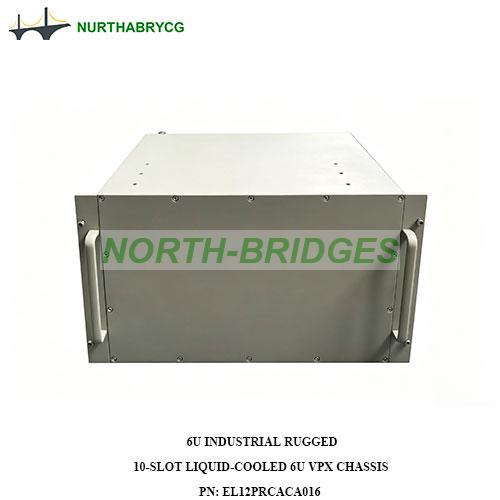

PN: EL12PRCACA016
Closed-Loop Liquid Cooled, 1+1 Redundant PSUs for Radar & Airborne Embedded Use

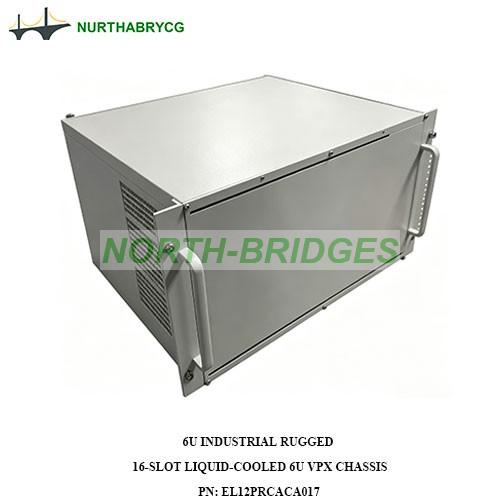

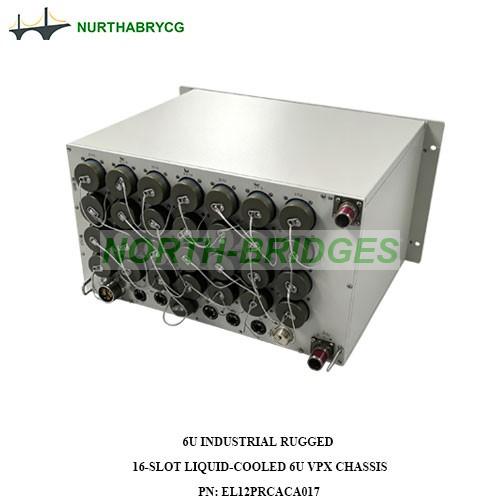

PN: EL12PRCACA017
Closed-Loop Liquid Cooled, 1+1 Redundant PSUs for Radar & Shipborne Embedded Use

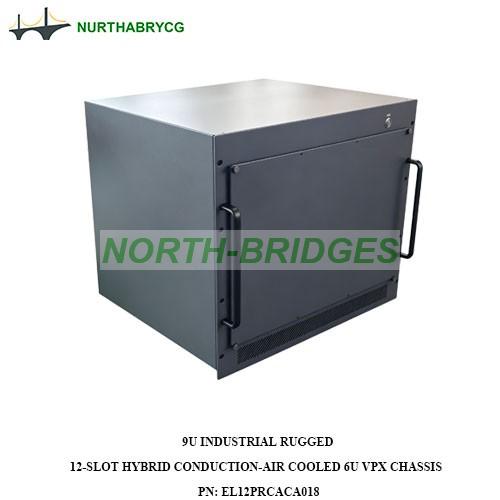

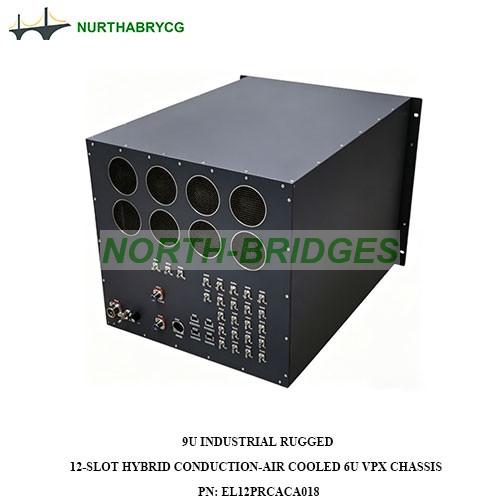

PN: EL12PRCACA018
Hybrid Cooled, Dual Redundant PSUs, Heavy-Duty Multi-Board Embedded Deployment

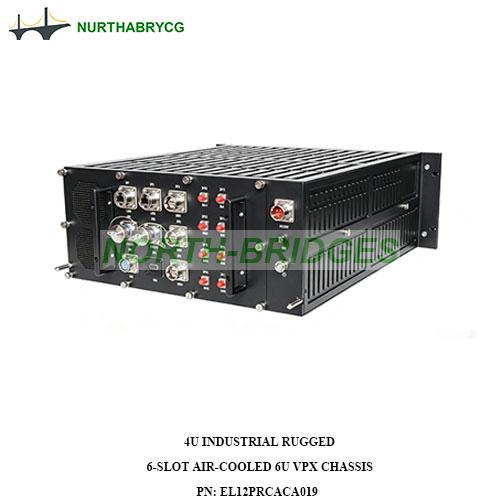

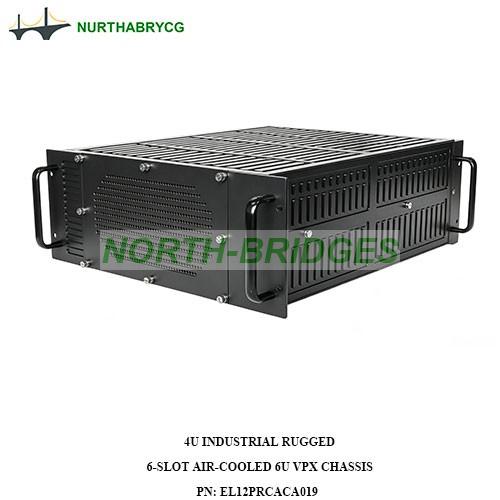

PN: EL12PRCACA019
Precision Impedance Backplane, Intelligent Variable-Speed Air Cooled, High-Speed Baseband & Communication Embedded Use
