OpenVPX Backplanes
Critical BKP Specification Alert
VITA 65 BKP code governs full backplane interoperability. Matching form factor, slot count and topology cannot ensure electrical compatibility; differing suffixes alter internal channel routing. Provide full target BKP number for quotation to eliminate specification errors.
We offer 3 tiers of 3U/6U OpenVPX backplanes (display sequence: RF Hybrid Custom → Modified Standard → Standard), conforming to VITA 46, VITA 62 and SOSA-aligned specs:
1. RF Hybrid Custom: Low-VSWR blind-mate VITA66 optical / VITA67/SBMA RF channels with reinforced PCB substrates, built for SOSA rear-interconnect RFSoC & ADC/DAC radar systems, interoperable with mainstream VITA67 RF modules and our complete VPX digital product line.
2. Modified Standard: Tuned standard OpenVPX topologies for custom minor project demands, featuring fast delivery and moderate customization expense.
3. Standard OpenVPX: Ready COTS VITA 65-compliant backplanes with Single/Dual Star & Full Mesh topologies, for conventional front-panel RF embedded computing platforms.
All standard VPX slots plug-and-play with our SBC, switch, storage carrier and VPX power supply modules. Full RF simulation data, 3D models and compliance test reports are provided to streamline multi-vendor system validation.
RF Hybrid Custom Backplanes |
Selection Table
Ultra-low VSWR VITA66 optical & VITA67/SBMA blind-mate RF hybrid backplanes, SOSA-aligned for rear-interconnect RFSoC/ADC-DAC radar systems. Compatible with mainstream VITA67 RF modules and all our VPX digital hardware.
| Part No. | Form Factor | Slot Count | Topology | BKP Standard | Power Input | Max Data Rate | Per Slot Power | Main Power Rail | PCB Thickness |
| EL12PRCABA001 | 3U / 6U, custom outline | Upon Project Spec. | VPX Digital + VITA67 Blind-Mate RF Hybrid Interconnect, VSWR ≤1.25, up to 8 RF per connector | VITA46 Base Spec., Extended RF Channel | Upon Project Spec. | Supports high-speed serial interfaces | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
| EL12PRCABA002 | 3U / 6U, custom outline | Upon Project Spec. | VITA67 RF Hybrid, metal substrate reinforced design, VSWR ≤1.25, up to 8 RF per connector | VITA46 Base Spec., Extended RF Channel | Upon Project Spec. | Supports high-speed serial interfaces | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
| EL12PRCABA003 | 3U / 6U, custom outline | Upon Project Spec. | VPX + Flexible RF Interconnect, VSWR ≤1.25, 1~16 RF channels per slot | VITA46 Base Spec., Extended RF Channel | Upon Project Spec. | Supports high-speed serial interfaces | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
| EL12PRCABA004 | 3U / 6U, custom outline | Upon Project Spec. | VPX Digital + RF & Optical Blind-Mate Hybrid Interconnect, VSWR ≤1.25, VITA66 derived architecture | VITA46 Base Spec., Extended RF & Optical Channel | Upon Project Spec. | Supports high-speed serial interfaces | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
Modified Standard OpenVPX Backplanes |
Selection Table
Tweaked from validated standard OpenVPX topologies for minor custom requirements, fast lead time and controlled modification cost. Full VITA standard compliance retained.
| Part No. | Form Factor | Slot Count | Topology | BKP Standard | Power Input | Max Data Rate | Per Slot Power | Main Power Rail | PCB Thickness |
| EL12PRCABA005 | 3U / 6U, custom outline | Upon Project Spec. | Standard VPX framework, blind & buried via PCB, configurable front/rear signal isolation | VITA46 / VITA65 Baseline, Modified Layer Stack | Upon Project Spec. | 16Gbps | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
| EL12PRCABA006 | 6U | 12 | Custom layout: 1 system, 2 switch, 9 payload slots | VITA46 / OpenVPX, Modified Slot Profile | Dual VITA 62 Power Slots | Supports PCIe, SRIO high-speed serial protocols | Upon Project Spec. | Upon Project Spec. | Upon Project Spec. |
Standard OpenVPX Backplanes |
Selection Table
Fully compliant with VITA 46 / VITA 62 / VITA 65 standards. All models are off‑the‑shelf standard configurations suitable for aerospace and industrial rugged computing deployments. Operating Temperature: -40℃ ~ +85℃ | Storage Temperature: -55℃ ~ +85℃. Impedance Control: 50Ω±10% (Single‑ended) / 100Ω±10% (Differential).
| Part No. | Form Factor | Slot Count | Topology | BKP Standard | Power Input | Max Data Rate | Per Slot Power | Main Power Rail | PCB Thickness |
| EL12PRCABA007 | 6U | 5 Payload Slots (5HP) | Full Mesh | BKP6-DIS05 -11.2.16 | Rear Power Studs | 5 Gbps | — | +12V, +12V, +5V, configurable +3.3V I/O | 10 Layers |
| EL12PRCABA008 | 6U | 5 Payload Slots (5HP) | Full Mesh | BKP6-DIS05 -11.2.16 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/80A, +5V/80A | 5.4 mm |
| EL12PRCABA009 | 6U | 5 Slots (5HP) | Single-Star | BKP6-CEN05 -11.2.5 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/80A, +5V/80A | 5.4 mm |
| EL12PRCABA010 | 6U | 6 Slots (5HP) | Single-Star | BKP6-CEN06 -11.2.8 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/100A, +5V/60A | 5.4 mm |
| EL12PRCABA011 | 6U | 6 Payload Slots (5HP) | Full Mesh | BKP6-DIS06 -11.2.10 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/100A, +5V/60A | 5.4 mm |
| EL12PRCABA012 | 6U | 10 Slots (5HP) | Dual-Star | BKP6-CEN10 -11.2.6 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/120A, +5V/80A | 5.4 mm |
| EL12PRCABA013 | 6U | 16 Slots (5HP) | Dual-Star | BKP6-CEN16 -11.2.2 | Rear Power Studs | 16 Gbps | Up to 200W | +12V/120A, +5V/100A | 5.4 mm |
| EL12PRCABA014 | 3U | 6 Payload Slots (5HP) | Full Mesh | BKP3-DIS06 -15.2.14 | 1 × VITA 62 Power Slot | 16 Gbps | Up to 100W | — | 5.4 mm |
| EL12PRCABA015 | 3U | 6 Slots (5HP) | Single-Star | BKP3-CEN06 -15.2.2 | 1 × VITA 62 Power Slot | 16 Gbps | Up to 100W | — | 5.4 mm |
| EL12PRCABA016 | 3U | 8 Slots (5HP) | Dual-Star | BKP3-CEN08 -15.2.15 | 2 × VITA 62 Power Slots | 16 Gbps | Up to 100W | — | 5.4 mm |

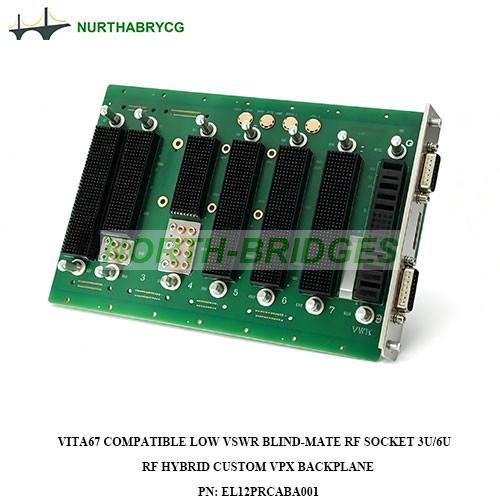

PN.: EL12PRCABA001
VITA67 Compatible Low VSWR Blind-Mate RF Socket 3U/6U RF Hybrid Custom VPX Backplane
Key Features
Equipped with VITA 67 blind-mate RF interfaces alongside standard VPX digital connectors
Digital and RF channels realize simultaneous blind mating to simplify module insertion/extraction
RF signals can be interconnected via rear-side coaxial cables or routed to chassis panel
High RF integration: up to 8 RF channels per full-size module, 4 channels for half-module
Optimized mechanical design improves system reliability under vibration conditions
Specifications
| RF Range | DC ~ 26.5GHz | ||||||||
| VSWR | ≤1.25 | ||||||||
| RF Module Config | Full: 8CH | ||||||||
| Half: 4CH | |||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

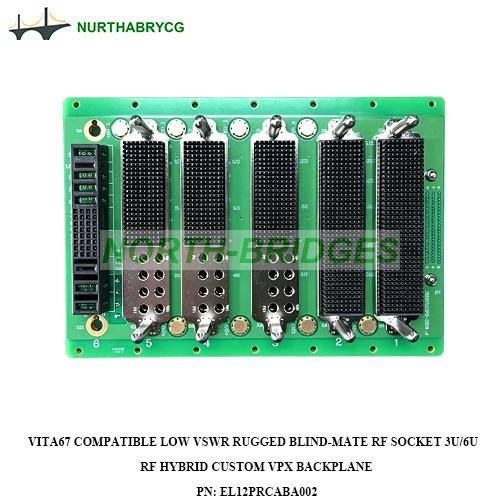

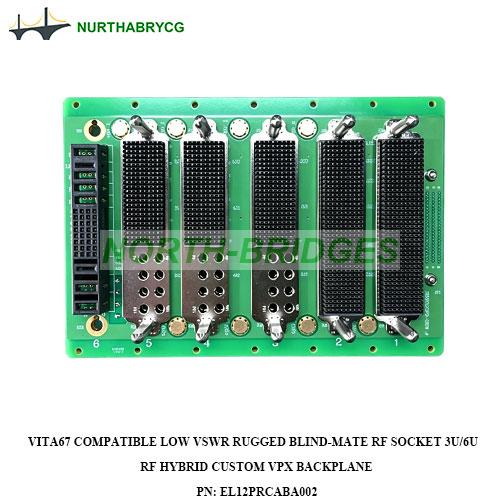

PN.: EL12PRCABA002
VITA67 Compatible Low VSWR Rugged Blind-Mate RF Socket 3U/6U RF Hybrid Custom VPX Backplane
Key Features
RF connectors mounted on integrated metal substrate for improved structural stability
Coexistence of digital VPX contacts and blind-mate RF interfaces
Rear coaxial cabling supports inter-slot RF cross-connection or front panel signal breakout
Optimized phase stability for wideband microwave transmission
High mechanical robustness suitable for severe shock & vibration environments
Specifications
| RF Range | DC ~ 40GHz | ||||||||
| VSWR | ≤1.15 | ||||||||
| Phase Stability | ≤±3° (DC~18GHz) | ||||||||
| ≤±6° (DC~40GHz) | |||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

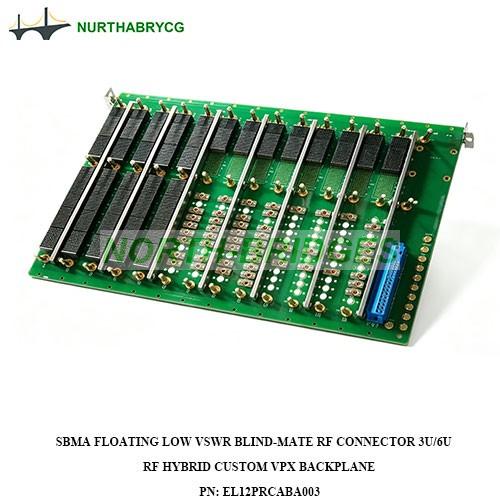

PN.: EL12PRCABA003
SBMA Floating Low VSWR Blind-Mate RF Connector 3U/6U RF Hybrid Custom VPX Backplane
Key Features
Floating SBMA coaxial connectors realize rear blind-mate RF interconnection
Transfer RF interfaces from module front panel onto backplane for simplified cabinet wiring
Flexible channel layout: 1 ~ 16 SBMA ports configurable per slot
Rear coaxial cable routing supports cross-slot RF interconnection or external signal lead-out
Low VSWR characteristic ensures excellent wideband transmission performance
Specifications
| RF Range | DC ~ 28GHz | ||||||||
| VSWR | ≤1.07 | ||||||||
| RF Channels Per Slot | 1 ~16 configurable | ||||||||
| Insulation Resistance | ≥5000MΩ | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

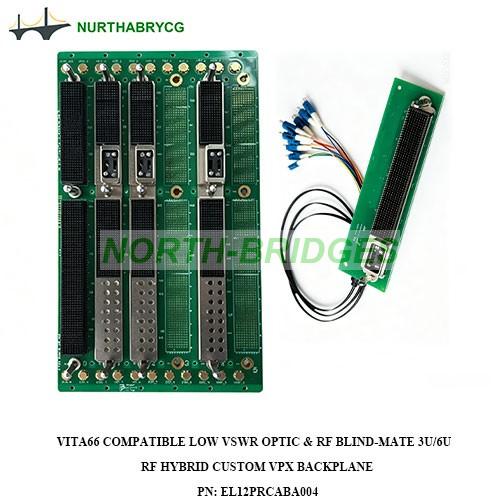

PN.: EL12PRCABA004
VITA66 Compatible Low VSWR Optic & RF Blind-Mate 3U/6U RF Hybrid Custom VPX Backplane
Key Features
Derived from VITA 66 optical interconnection specification; optical components fixed on rugged metal substrate
Simultaneous blind mating of optical fiber, RF and standard VPX digital contacts
Rear side supports both fiber cable and coaxial cable signal routing
Unified mechanical blind-mate interface reduces cabinet assembly complexity
Meet strict reliability requirements under harsh vibration conditions
Specifications
| RF Range | DC ~ 26.5GHz | ||||||||
| VSWR | ≤1.25 | ||||||||
| Optical Insertion Loss | ≤1.5dB | ||||||||
| BER | ≤1×10⁻¹² | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

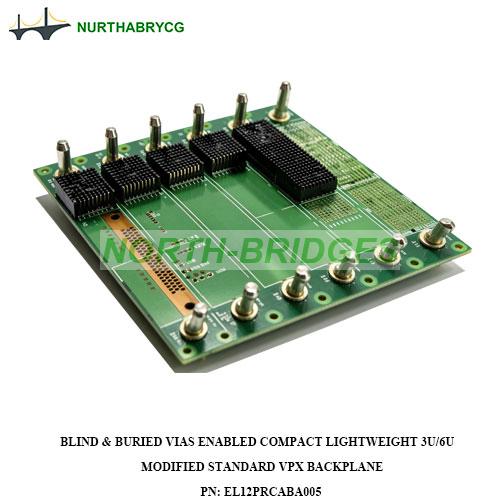

PN.: EL12PRCABA005
Blind & Buried Vias Enabled Compact Lightweight 3U/6U Modified Standard VPX Backplane
Key Features
Compliant with VITA 46 / VITA 65 specifications
Blind & buried via layer structure; pins configurable for through connection or isolated front/rear signal nodes
Form factor customizable: 3U, 6U or non-standard dimension
Thick gold plating for superior corrosion resistance and environmental adaptability
Shortened trace length to satisfy high-speed timing requirements, support up to 16Gbps
Compact layout reduces overall equipment weight and enclosure space occupation
Supports high-current heavy-duty operation
Specifications
| Form Factor | 3U / 6U, Custom outline | ||||||||
| Data Rate | ≤16Gbps | ||||||||
| Surface Finish | Thick immersion gold | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

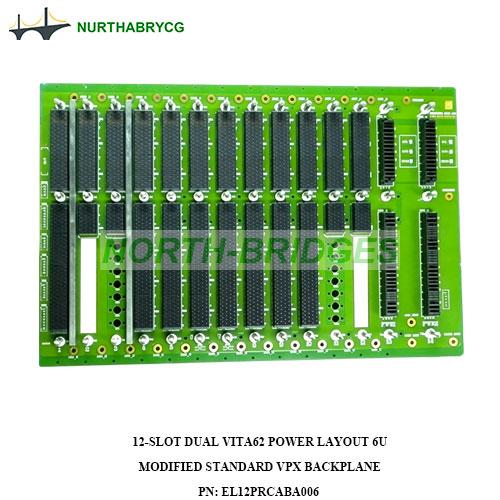

PN.: EL12PRCABA006
12-Slot Dual VITA62 Power Layout 6U Modified Standard VPX Backplane
Key Features
Conforms to VITA 46, VITA 62 and OpenVPX specifications
Vertical card insertion structure; 12 slots layout: 1 system slot, 2 switch slots, 9 payload slots
Equipped with dual standard VITA 62 power supply slots
Supports high-speed serial protocols: PCI Express, Serial RapidIO
Conformal coating available as optional upgrade
Stable long-term service life with high MTBF index
Specifications
| Form Factor | 6U | ||||||||
| Total Slots | 12 | ||||||||
| Power Standard | VITA 62 | ||||||||
| MTBF | 470,000h | ||||||||
| Operating Temp | -40℃ ~ +85℃ | ||||||||
Topology

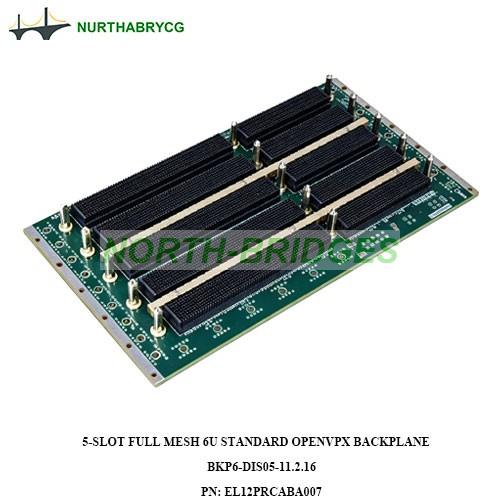

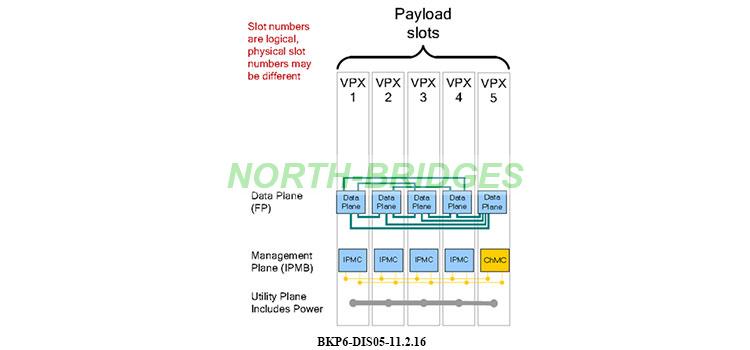

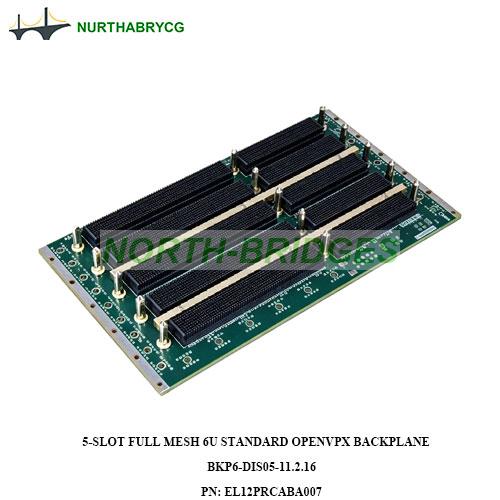

PN.: EL12PRCABA007
5-Slot Full Mesh 6U Standard OpenVPX Backplane
Topology

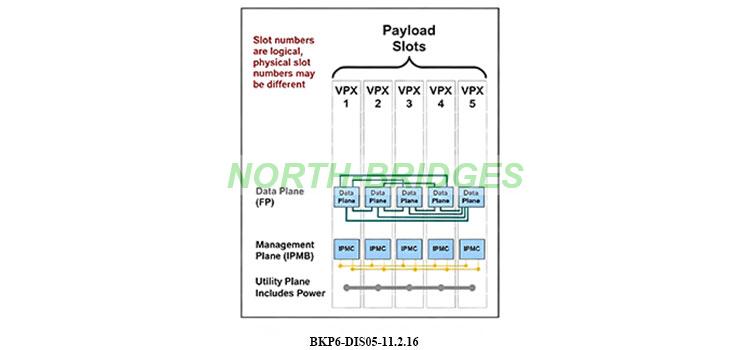

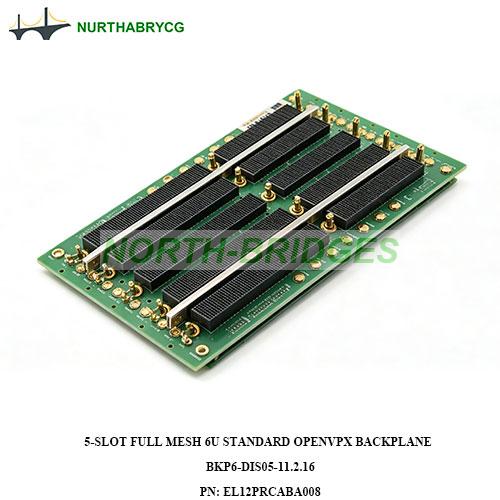

PN.: EL12PRCABA008
5-Slot Full Mesh 6U Standard OpenVPX Backplane
Topology

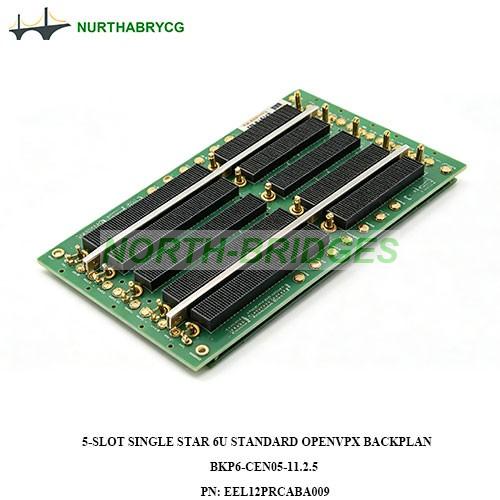

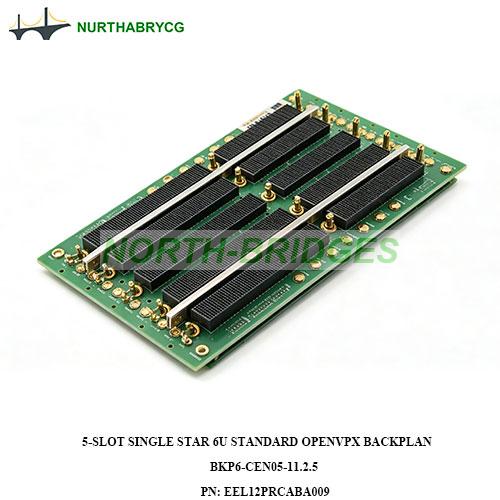

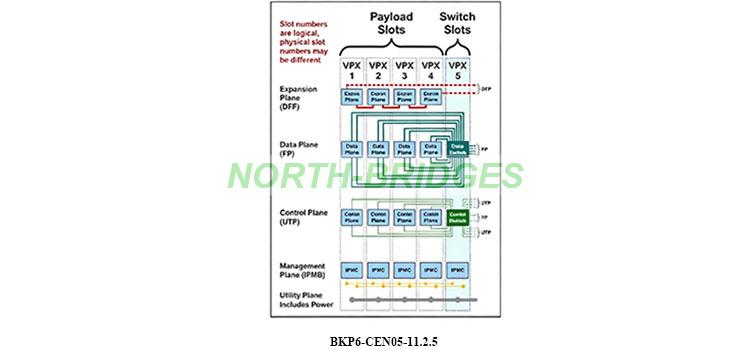

PN.: EL12PRCABA009
5-Slot Single Star 6U Standard OpenVPX Backplane
Topology

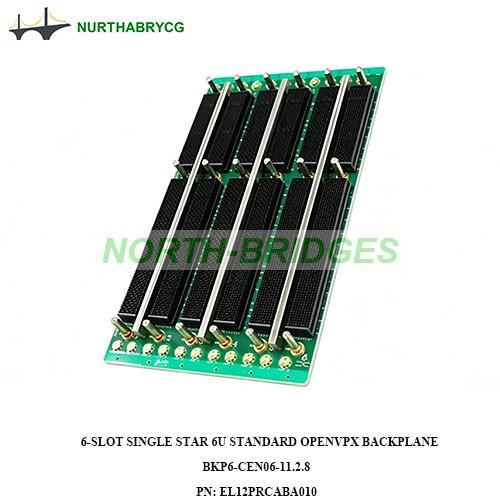

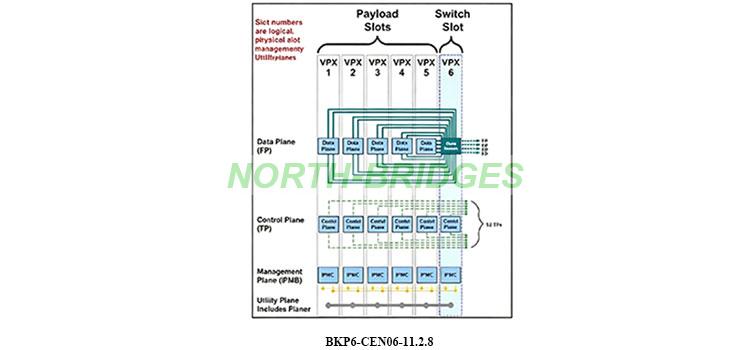

PN.: EL12PRCABA010
6-Slot Single Star 6U Standard OpenVPX Backplane
Topology

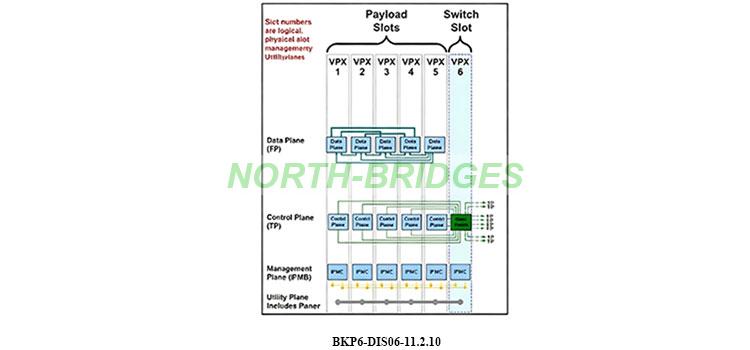

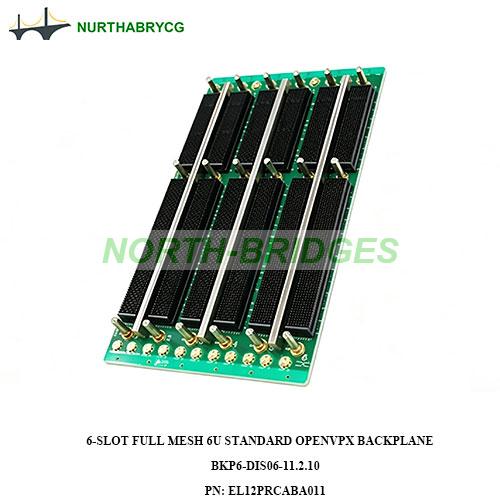

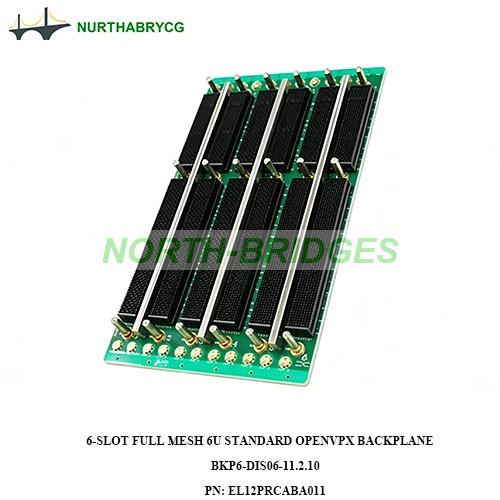

PN.: EL12PRCABA011
6-Slot Full Mesh 6U Standard OpenVPX Backplane
Topology

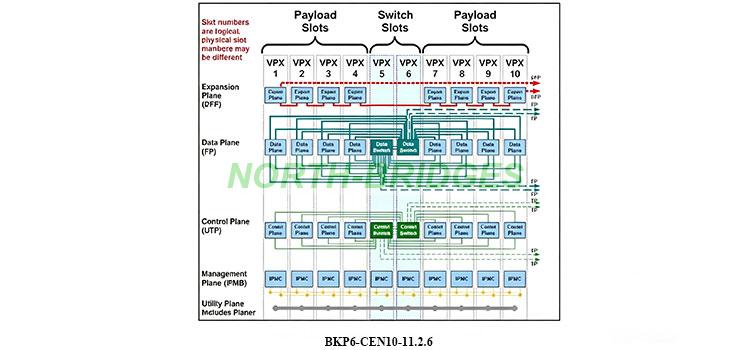

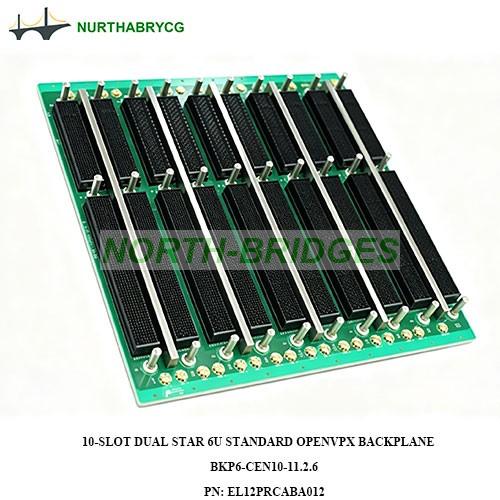

PN.: EL12PRCABA012
10-Slot Dual Star 6U Standard OpenVPX Backplane
Topology

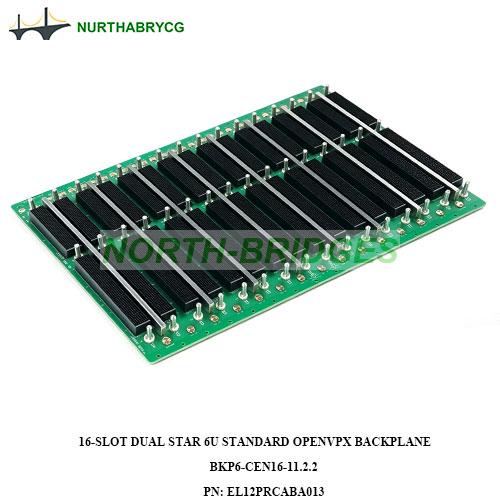

PN.: EL12PRCABA013

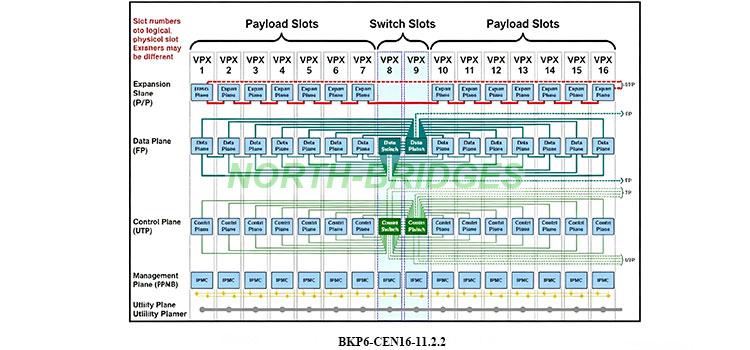

16-Slot Dual Star 6U Standard OpenVPX Backplane
Topology

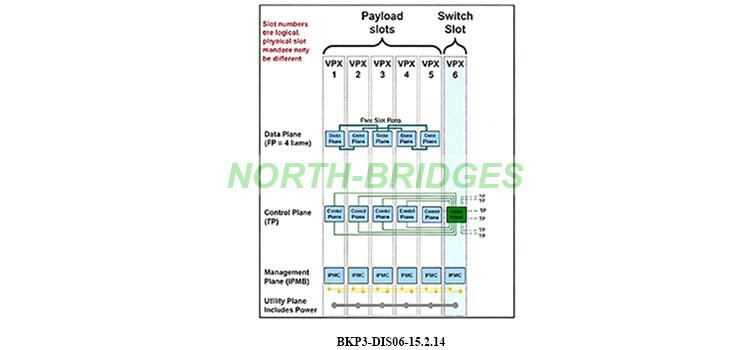

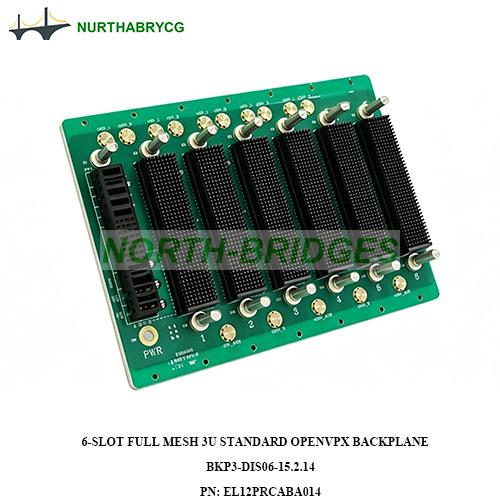

PN.: EL12PRCABA014
6-Slot Full Mesh 3U Standard OpenVPX Backplane
Topology

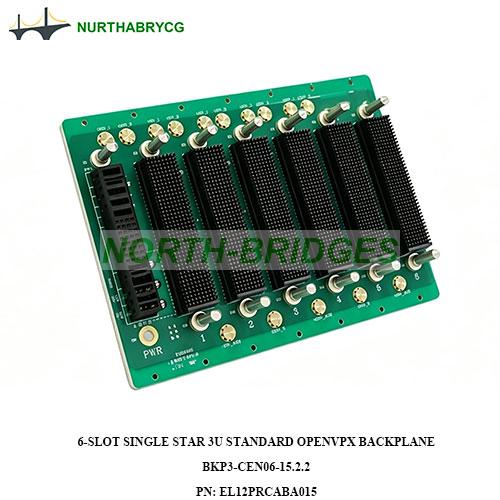

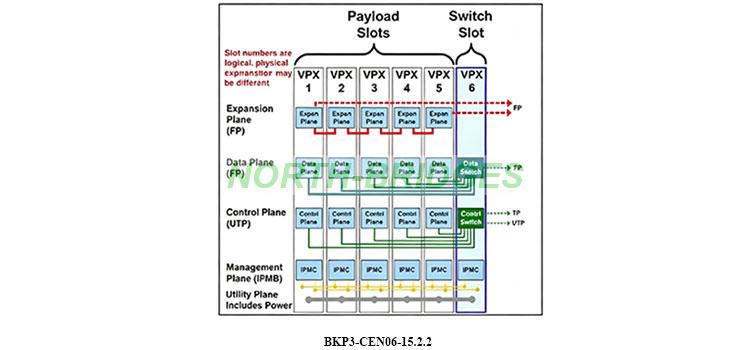

PN.: EL12PRCABA015
6-Slot Single Star 3U Standard OpenVPX Backplane
Topology

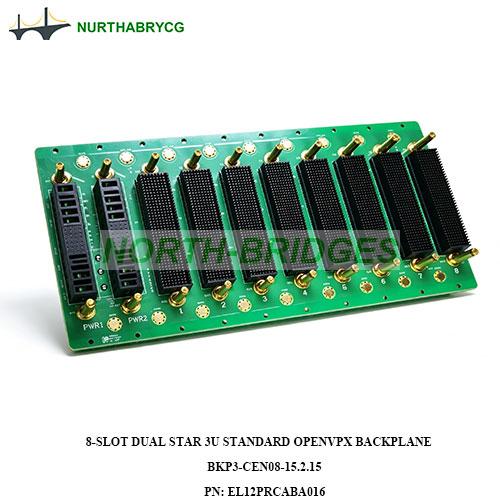

PN.: EL12PRCABA016

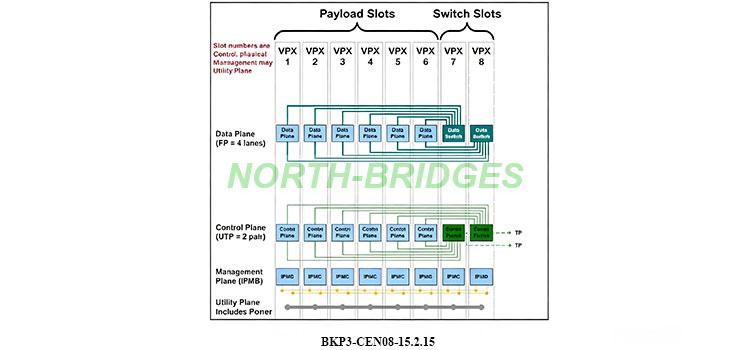

8-Slot Dual Star 3U Standard OpenVPX Backplane
Topology
