VPX Power Supplies
Product Overview
All VPX power supplies adopt ruggedized military-grade design, compliant with GJB150 environmental test series and GJB151B EMC standards. All models integrate OVP/OCP/OTP/SCP multi-protection, hot-swap, current sharing, N+1 redundancy and remote control. Optional IPMB intelligent communication and RPP reverse polarity protection are available on selected variants. AC units feature DF dual-frequency input, high PFC and low THD performance. All units VITA 62 compliant.
Product Selection Table
| Part Number | Form Factor | Operating Temperature | Cooling Method | Input Type | Rated Power | Output Configuration | Max Efficiency | Core Functions | Military & EMC Standard |
| EL12PRCAAA001 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP | 300W | +12V/20A +3.3V/10A +5V/25A 3.3V_AUX/2A +12V_AUX/2A -12V_AUX/2A | ≥90% | no IPMB | Military Rugged Specs |
| EL12PRCAAA002 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 100~264VAC DF 47~63Hz / 400~800Hz PF≥0.99 20A ICL THD ≤5% | 300W | +12V/20A +3.3V/10A +5V/20A 3.3V_AUX/2A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA003 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 100~264VAC DF 47~63Hz / 400~800Hz PF≥0.99 20A ICL THD ≤5% | 300W | +12V/25A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA004 | 3U 5HP | -40℃~+55℃ | Conduction Cooling | 18~75VDC typ. 28/48VDC (auto-range) | 360W | +12V/300W +5V/10A +3.3V/3A | ≥90% | Military Rugged Specs | |
| EL12PRCAAA005 | 3U 5HP | -55℃~+85℃ | Conduction Cooling | 200~400VDC typ. 300VDC with RPP | 400W | +12V/17A +24V/6A +5V/10A 3.3V_AUX/10A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA006 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP | 450W | +12V/25A +5V/25A 3.3V_AUX/10A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA007 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 24VDC with RPP | 500W | +12V/42A 3.3V_AUX/15A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA008 | 3U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP | 500W | +12V/42A +3.3V/20A +5V/20A 3.3V_AUX/6A +12V_AUX/2A -12V_AUX/2A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA009 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP 20A ICL | 500W | +12V/42A +3.3V/15A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA010 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 100~264VAC DF 47~63Hz / 400~800Hz PF≥0.99 30A ICL | 500W | +12V/50A +5V/25A 3.3V_AUX/10A +12V_AUX/1.5A -12V_AUX/1.5A | ≥85% | no IPMB | Military Rugged Specs |
| EL12PRCAAA011 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP 20A ICL | 600W | +12V/50A +5V/25A 3.3V_AUX/15A +12V_AUX/1A -12V_AUX/1.5A | ≥90% | IPMB
| Military Rugged Specs |
| EL12PRCAAA012 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typ. 28VDC with RPP 20A ICL | 600W | +12V/42A +5V/25A 3.3V_AUX/15A | ≥90% | IPMB RPP | Military Rugged Specs |
| EL12PRCAAA013 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 176~264VAC 47~63Hz PF≥0.99 30A ICL | 600W | +12V/60A +5V/50A 3.3V_AUX/8A +12V_AUX/1.5A -12V_AUX/1.5A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA014 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 100~264VAC DF 47~63Hz / 400~800Hz PF≥0.99 30A ICL | 600W | +12V/50A +5V/50A 3.3V_AUX/10A +12V_AUX/1.5A -12V_AUX/1.5A | ≥85% | no IPMB | Military Rugged Specs |
| EL12PRCAAA015 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 176~264VAC 47~63Hz 30A ICL | 600W | +12V/50A +5V/25A 3.3V_AUX/15A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA016 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC or 36~72VDC typ. 28/48VDC (range selectable) with RPP 20A ICL | 700W | +12V/50A +5V/25A 3.3V_AUX/15A +12V_AUX/1A -12V_AUX/1.5A | ≥90% | IPM | Military Rugged Specs |
| EL12PRCAAA017 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Air Cooling | 176~264VAC 47~63Hz PF≥0.99 40A ICL | 800W | +12V/70A 3.3V_AUX/15A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA018 | 6U 5HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 18~36VDC typical 28VDC with RPP 40A ICL | 1000W | +12V/100A 3.3V_AUX/15A | ≥90% | IPMB | Military Rugged Specs |
| EL12PRCAAA019 | 6U 10HP | -40℃~+85℃ (Optional -55℃~+85℃) | Air Cooling | 176~264VAC 47~63Hz PF≥0.99 40A ICL | 1000W | +12V/80A +48V/3A 3.3V_AUX/20A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA020 | 6U 10HP | -40℃~+85℃ (Optional -55℃~+85℃) | Air Cooling | 176~264VAC 47~63Hz PF≥0.99 30A ICL | 1000W | +12V/100A 3.3V_AUX/8A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA021 | 6U 10HP | -40℃~+85℃ (Optional -55℃~+85℃) | Liquid Cooling | 100~264VAC 47~63Hz PF≥0.99 30A ICL | 1000W | +12V/90A 3.3V_AUX/25A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA022 | 6U 10HP | -40℃~+85℃ (Optional -55℃~+85℃) | Conduction Cooling | 176~264VAC 47~63Hz PF≥0.99 30A ICL | 1000W | +12V/80A +5V/20A 3.3V_AUX 8A +12V_AUX 2A | ≥85% | IPMB | Military Rugged Specs |
| EL12PRCAAA023 | 6U 5HP | -55℃~+85℃ | Conduction Cooling | 200~400VDC typ. 300VDC with RPP 40A ICL | 1200W | +12V/100A +5V/30A | ≥90% | IPM | Military Rugged Specs |
| EL12PRCAAA024 | 6U 8HP | -40℃~+85℃ | Conduction Cooling | 85~264VAC 47~63Hz | 1400W | VS1//VS2: +12V/80A, VS3:+12V/36A 3.3V_AUX/30A） | ≥86% @220VAC； ≥83% @110VAC | PFC | MIL-STD-810G , EN60950, UL60950, 3C; MTBF≥ 100kh @25℃ |

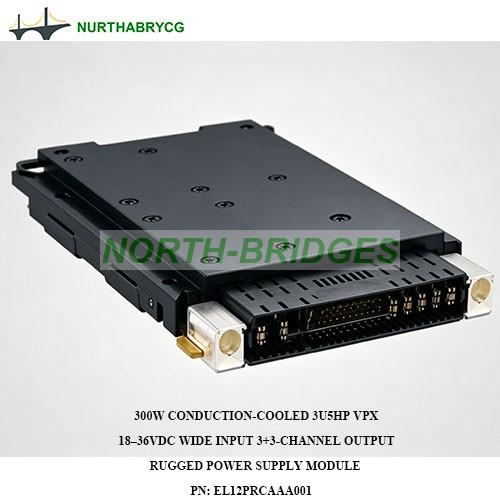

PN.: EL12PRCAAA001

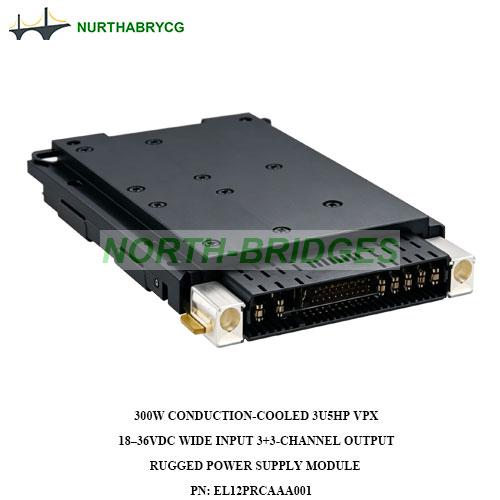

300W Conduction-Cooled 3U5HP VPX 18–36VDC Wide Input 3+3-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected Military Rugged power

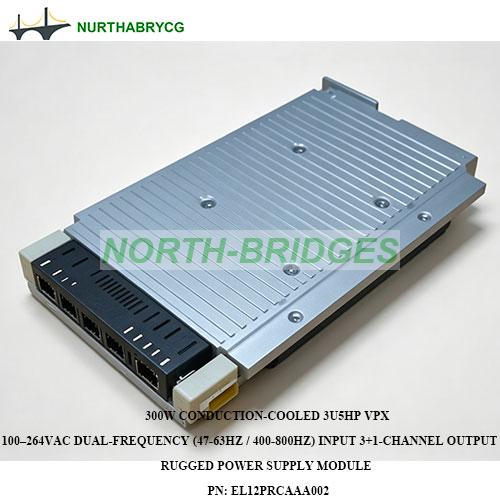

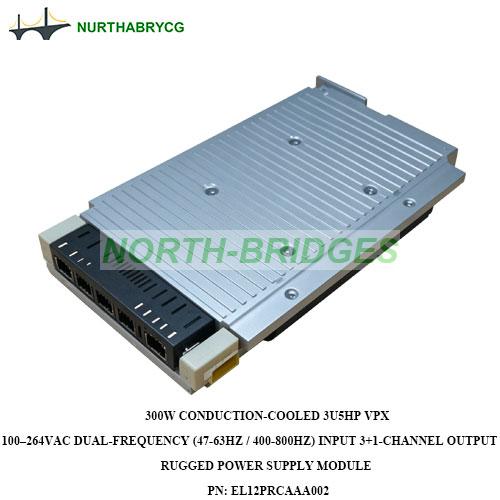

PN.: EL12PRCAAA002
300W Conduction-Cooled 3U5HP VPX 100–264VAC Dual-Frequency (47-63Hz / 400-800Hz) Wide Input 3+1-Channel Output
Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

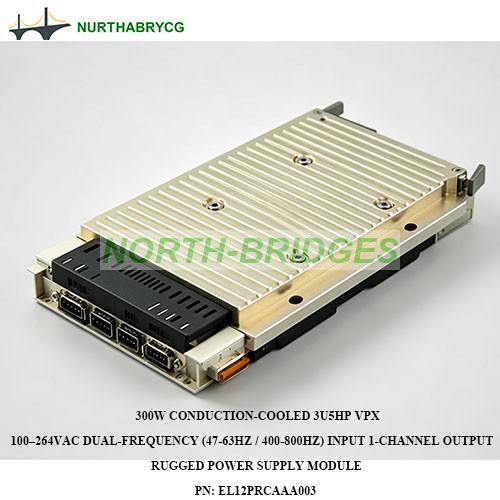

PN.: EL12PRCAAA003

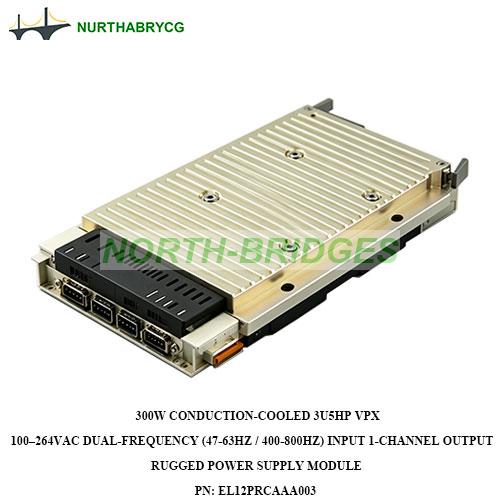

300W Conduction-Cooled 3U5HP VPX 100–264VAC Dual-Frequency (47-63Hz / 400-800Hz) Input 1-Channel Output
Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

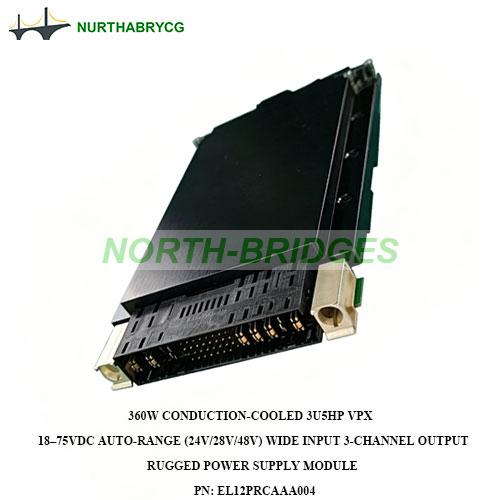

PN.: EL12PRCAAA004
360W Conduction-Cooled 3U5HP VPX 18–75VDC Auto-Range (24V/28V/48V) Wide Input 3-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Military Rugged power

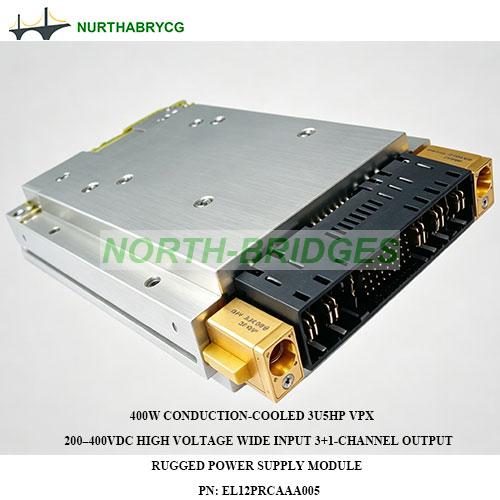

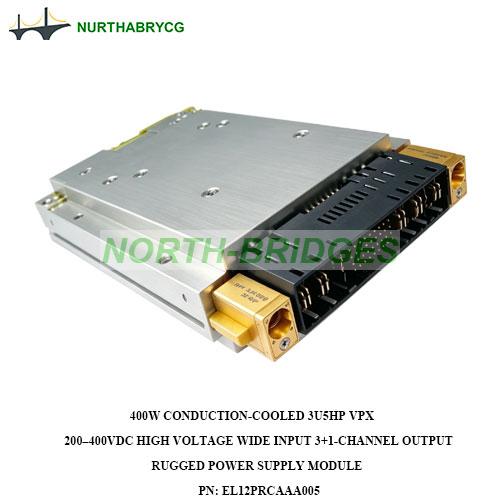

PN.: EL12PRCAAA005
400W Conduction-Cooled 3U5HP VPX 200–400VDC High Voltage Wide Input 3+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

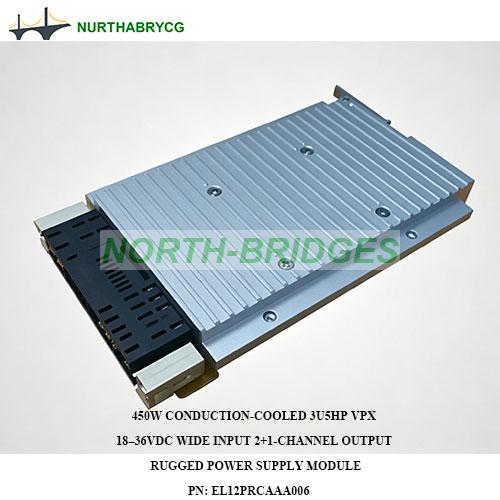

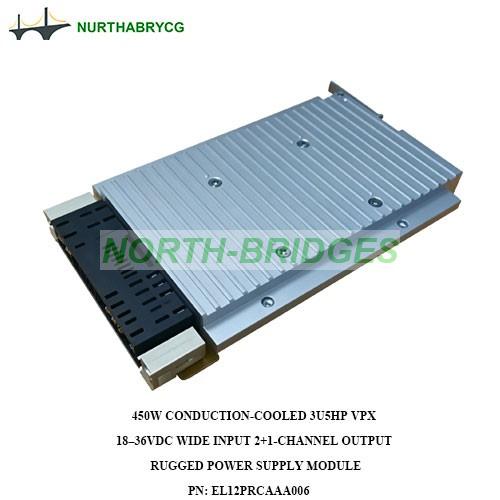

PN.: EL12PRCAAA006
450W Conduction-Cooled 3U5HP VPX 18–36VDC Wide Input 2+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

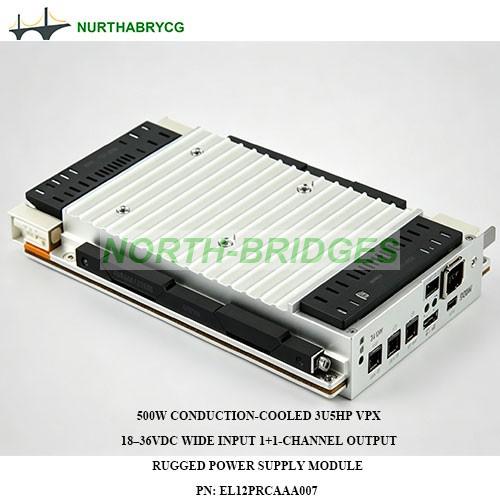

Product No.: EL12PRCAAA007

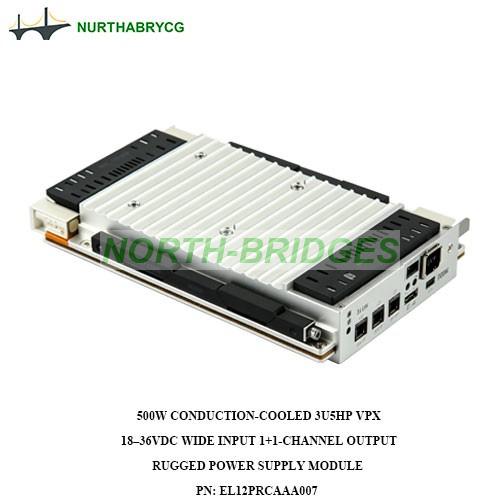

500W Conduction-Cooled 3U5HP VPX 18–36VDC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

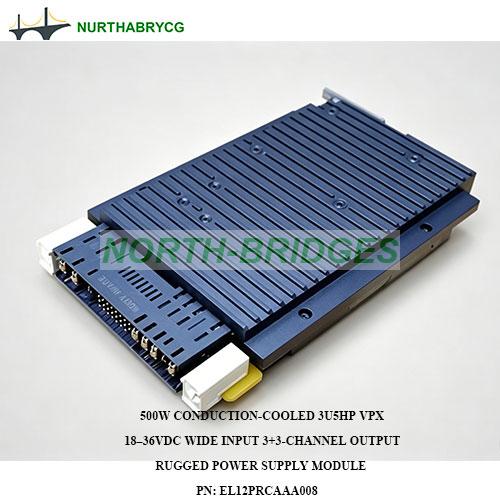

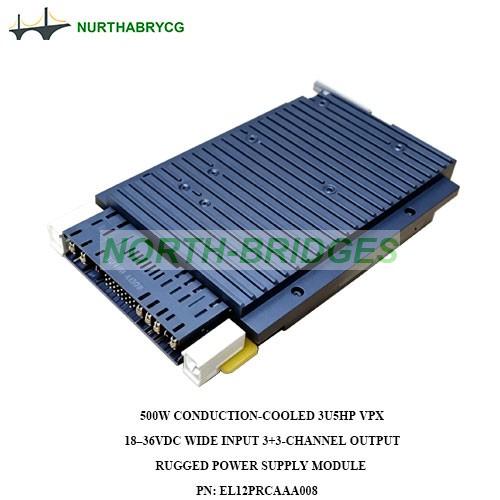

PN.: EL12PRCAAA008
500W Conduction-Cooled 3U5HP VPX 18–36VDC Wide Input 3+3-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

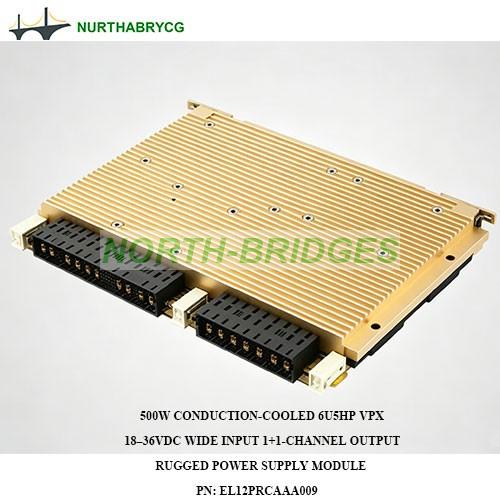

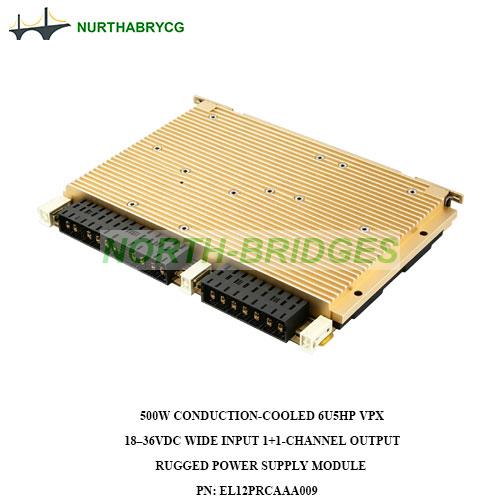

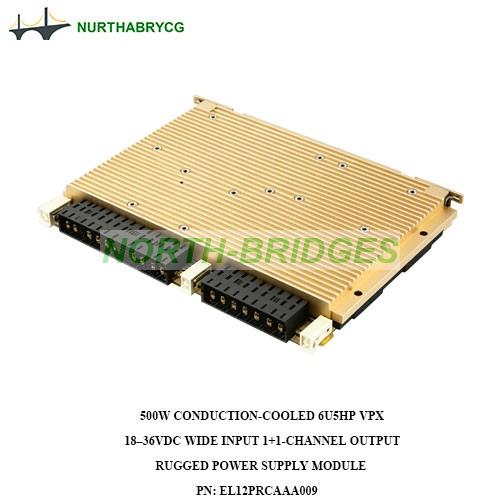

PN.: EL12PRCAAA009
500W Conduction-Cooled 6U5HP VPX 18–36VDC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

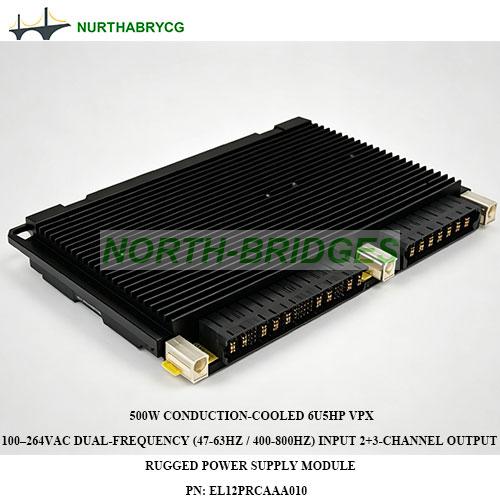

PN.: EL12PRCAAA010

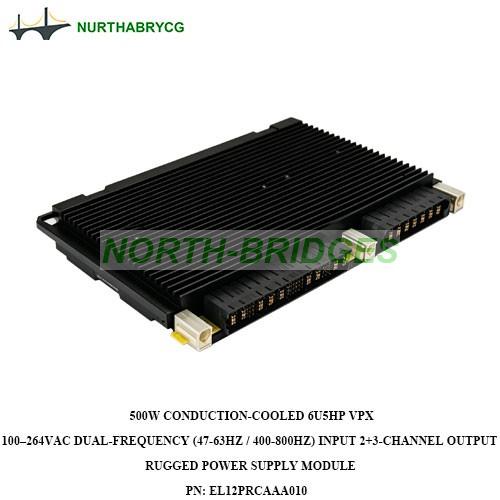

500W Conduction-Cooled 6U5HP VPX 100–264VAC Dual-Frequency (47-63Hz / 400-800Hz) Input 2+3-Channel Output
Rugged Power Supply Module
VITA 62 compliant AC Input Military Rugged power with High PFC

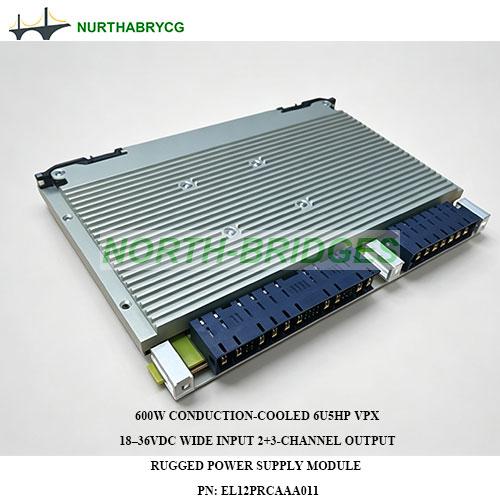

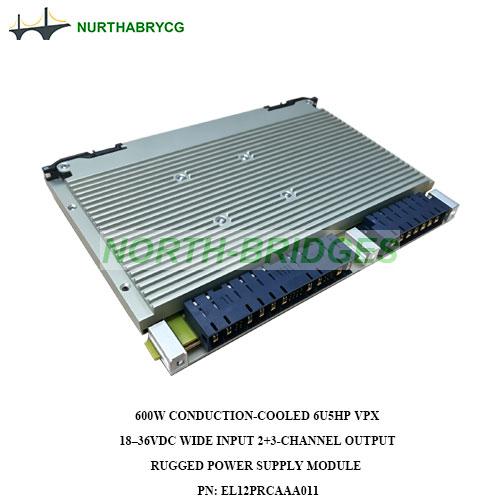

PN.: EL12PRCAAA011
600W Conduction-Cooled 6U5HP VPX 18–36VDC Wide Input 2+3-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

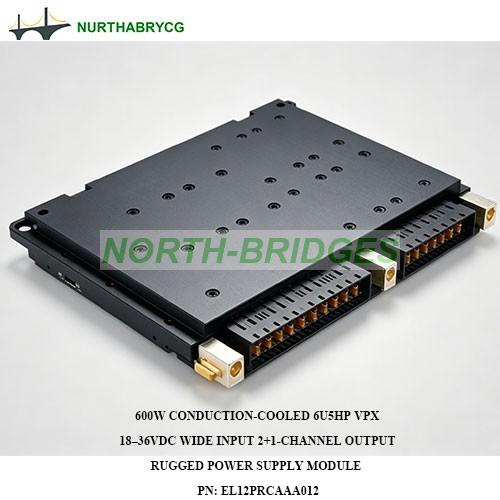

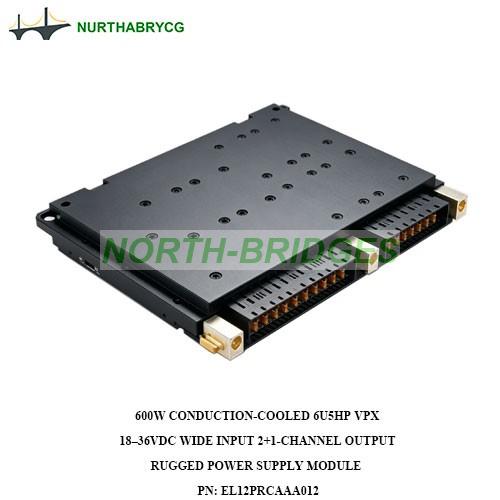

PN.: EL12PRCAAA012
600W Conduction-Cooled 6U5HP VPX 18–36VDC Wide Input 2+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

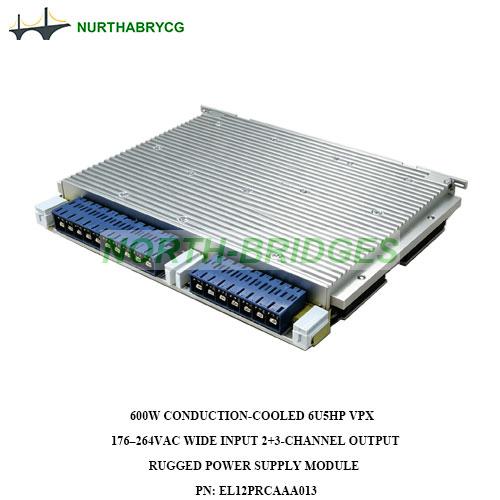

PN.: EL12PRCAAA013

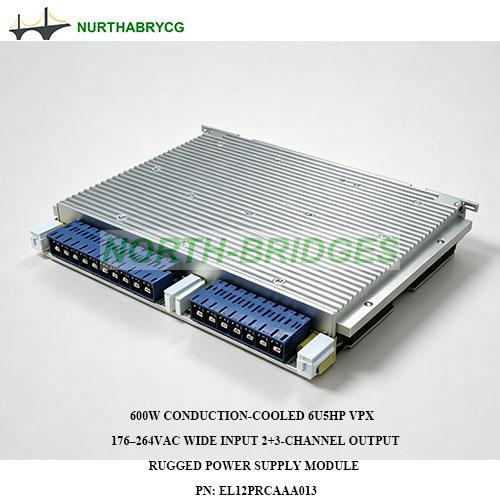

600W Conduction-Cooled 6U5HP VPX 176–264VAC Wide Input 2+3-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

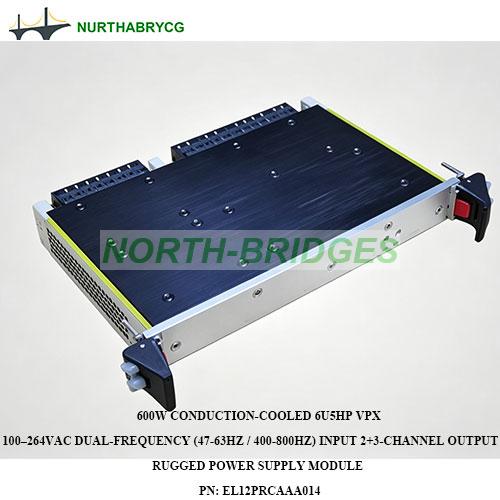

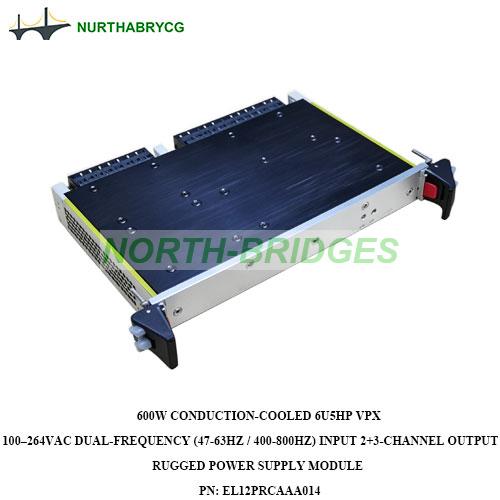

PN.: EL12PRCAAA014
600W Conduction-Cooled 6U5HP VPX 100–264VAC Dual-Frequency (47-63Hz / 400-800Hz) Input 2+3-Channel Output
Rugged Power Supply Module
VITA 62 compliant AC Input Military Rugged power with High PFC

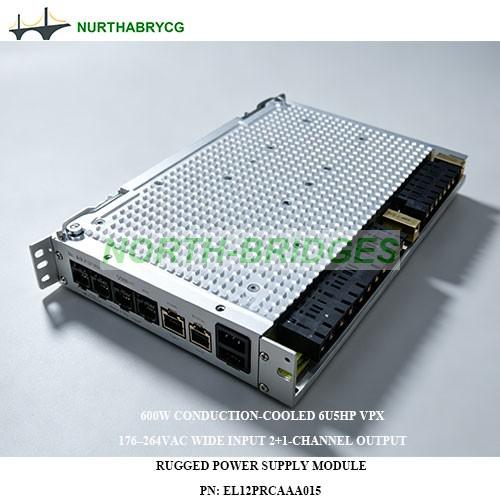

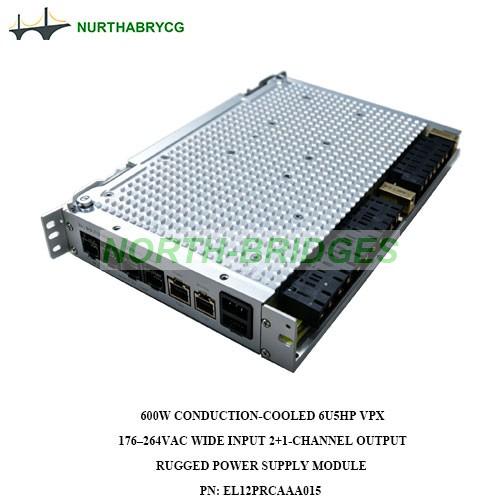

PN.: EL12PRCAAA015
600W Conduction-Cooled 6U5HP VPX 176–264VAC Wide Input 2+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power

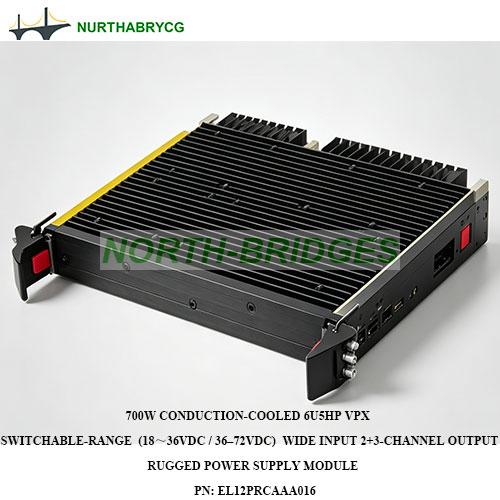

PN.: EL12PRCAAA016

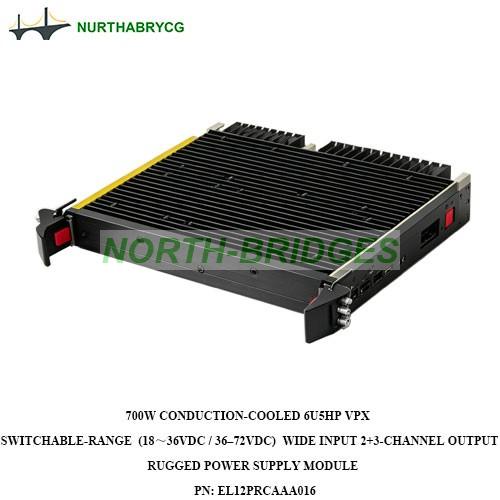

700W Conduction-Cooled 6U5HP VPX Switchable-Range (18～36VDC / 36–72VDC) Wide Input 2+3-Channel Output
Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

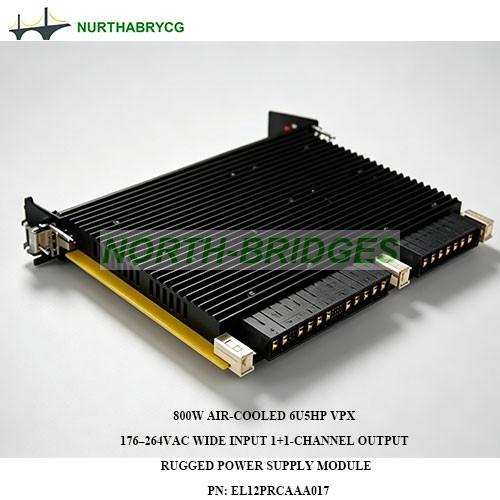

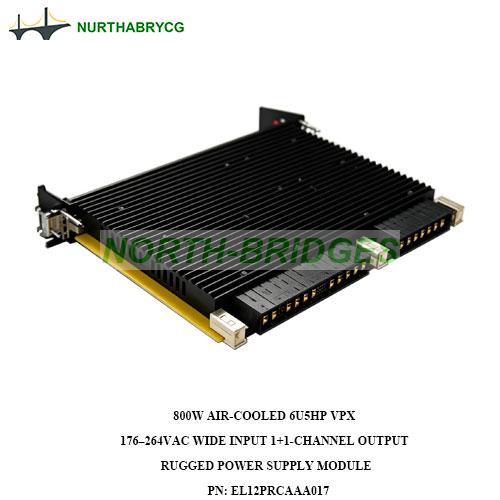

PN.: EL12PRCAAA017

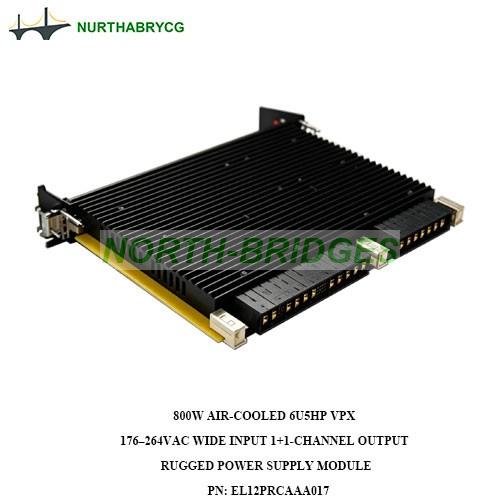

800W Air-Cooled 6U5HP VPX 176–264VAC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

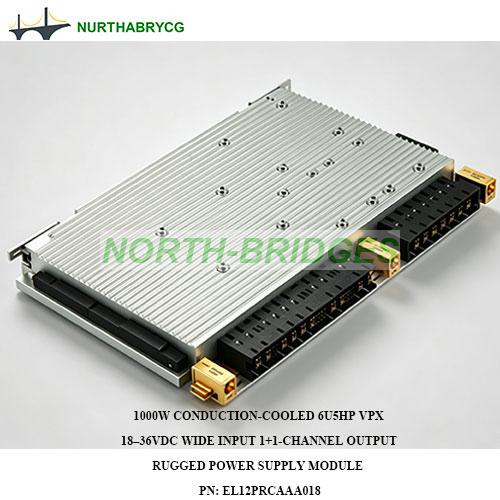

PN.: EL12PRCAAA018

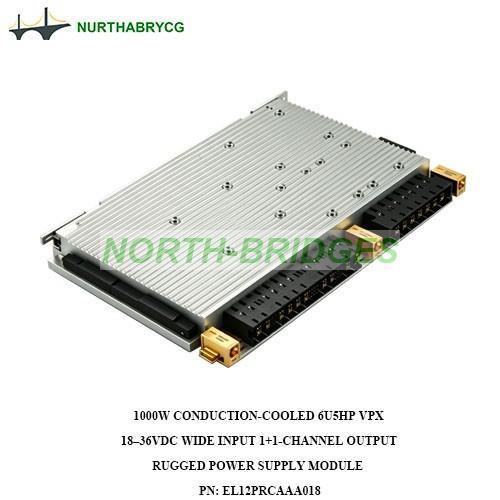

1000W Conduction-Cooled 6U5HP VPX 18–36VDC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

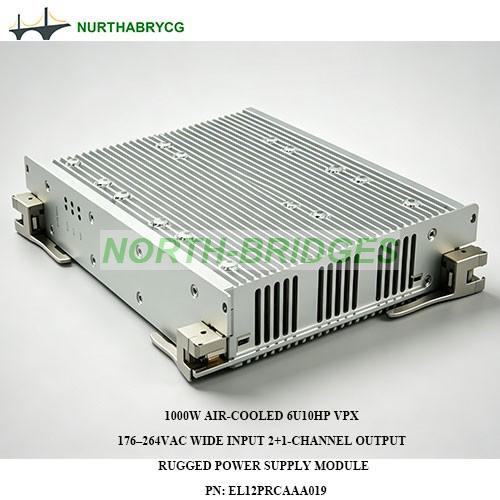

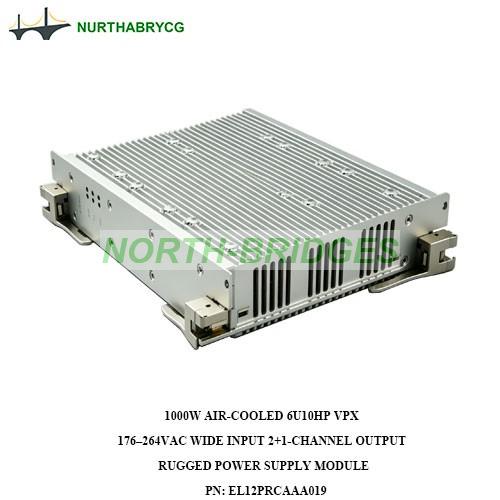

PN.: EL12PRCAAA019
1000W Air-Cooled 6U10HP VPX 176–264VAC Wide Input 2+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

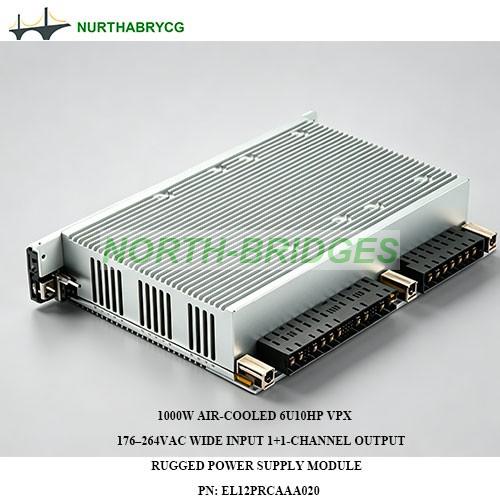

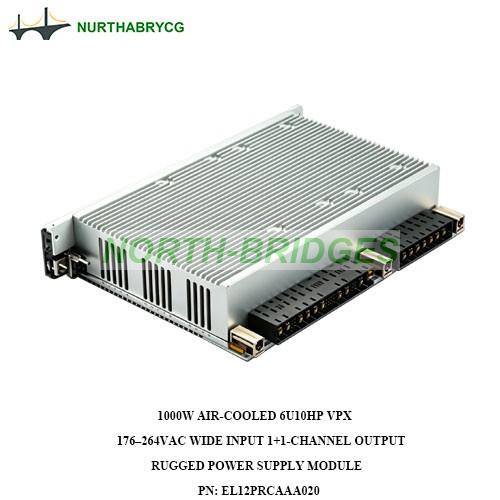

PN.: EL12PRCAAA020
1000W Air-Cooled 6U10HP VPX 176–264VAC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

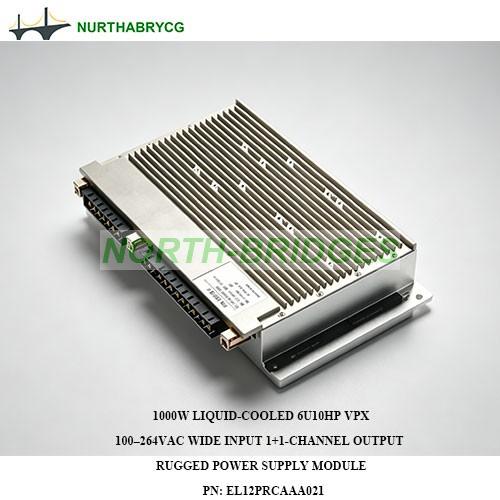

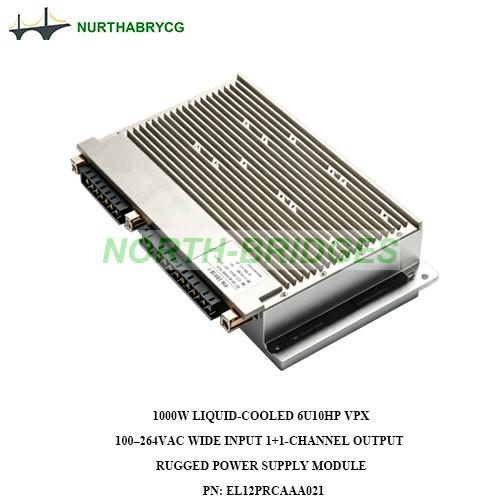

PN.: EL12PRCAAA021
1000W Liquid-Cooled 6U10HP VPX 100–264VAC Wide Input 1+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

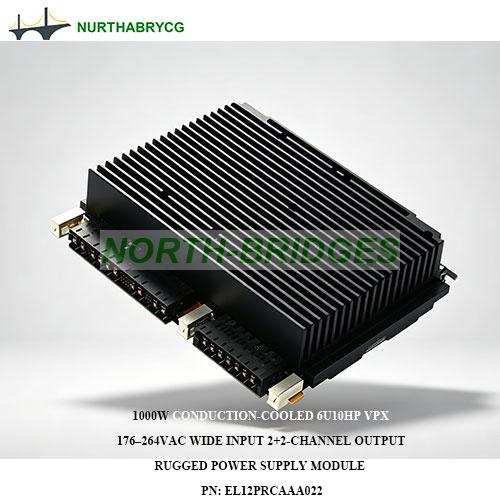

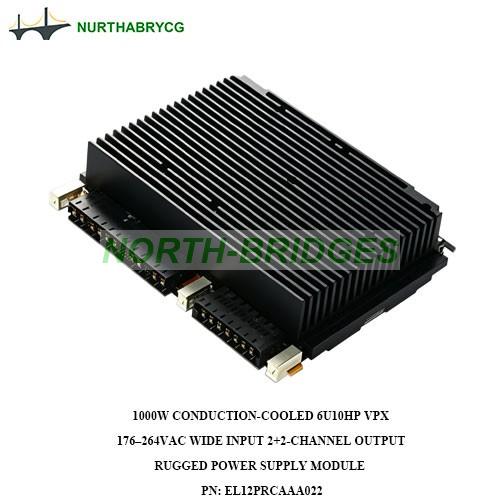

PN.: EL12PRCAAA022
1000W Conduction-Cooled 6U10HP VPX 176–264VAC Wide Input 2+2-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input IPMB Enabled Military Rugged power with High PFC

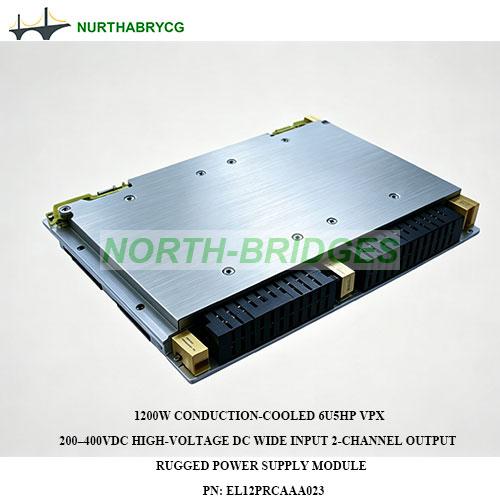

PN.: EL12PRCAAA023

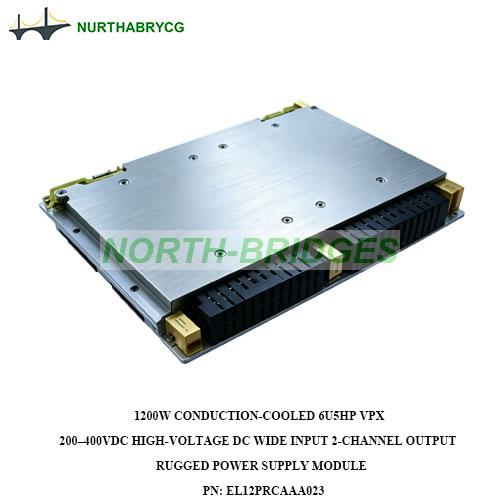

1200W Conduction-Cooled 6U5HP VPX 200–400VDC High-voltage DC Wide Input 2-Channel Output Rugged Power Supply Module
VITA 62 compliant DC input Reverse Polarity Protected IPMB Enabled Military Rugged power

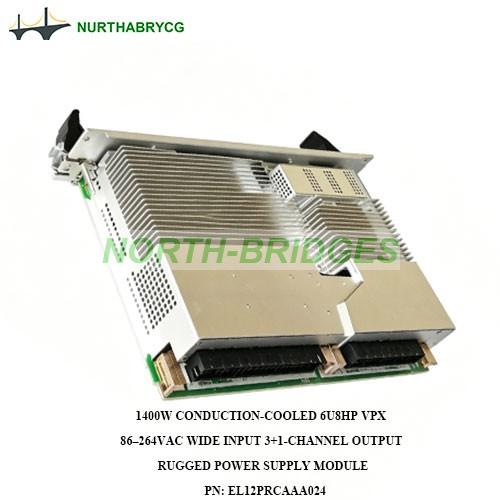

PN.: EL12PRCAAA024
1400W Conduction-Cooled 6U8HP VPX 86–264VAC Wide Input 3+1-Channel Output Rugged Power Supply Module
VITA 62 compliant AC Input Military Rugged power with High PFC
Ordering
| PN: | All Above | ||||||||
| Lead time: | Inquire for official quotation | ||||||||
| Custom designs: | Available upon request | ||||||||
| Support: | FPGA reference design, schematic review, driver development (quoted separately) | ||||||||
