VPX GPU Accelerator Edge AI Computing Boards

This series of rugged VPX AI/GPU accelerator boards features diversified high-performance computing architectures in standard 3U/6U VPX form factors.

Wide-temperature design guarantees stable operation under extreme ambient conditions, supporting real-time video analysis, multi-sensor fusion and large-scale parallel data processing for aviation, industrial and mobile embedded applications.

Product Selction Table

Part Number

Form

Factor

Operating

Temperature

Onboard

Memory

AI Peak

Computing

Performance

Main

Processing

Chip

High-speed

Backplane

Interface

External

Optical/IO

Interface

Expansion

Interface

Application

Scenario

EL12PRCA5A001

6U VPX

5HP

(Air Cooling)

0℃ ~

+55℃

FPGA:

8GB

DDR4;

GPU:

Max 12GB

LPDDR4

+ Max

64GB

eMMC

TOPS

@INT8

XCVU3P +

HUAWEI

ATLAS-

200I-A2

FPGA:

PCIe3.0 x8

Serdes to P1;

GPU:

PCIe3.0 x4

+ SPI to P1

1 x QSFP28,

GigE,

HDMI,

USB3.0,

MIPI DSI,

SD Card,

Type-C

JTAG,

SSMC

1 × FMC+

HSPC

(VITA57.4)

Edge AI inference

EL12PRCA5A002

6U VPX

7HP

(Air Cooling)

-43℃ ~

+65℃

4×24GB

LPDDR4

+ Max

64GB

Emmc

352

TOPS

@INT8

(176

TFLOPS

@FP16)

Dual

HUAWEI

ASCEND

310P

2×PCIe4.0 x16

(Compatible

with

PCIe3.0/2.0

x8/x4)

2 × Type-C

Debug

Ports,

1 Reset

Switch,

Indicators

8 x HCCS

Inter-chip

Real-time target recognition

EL12PRCA5A003

6U VPX

5HP

(Air Cooling)

0℃ ~ +55℃

2×16GB

GDDR6

(Dual RTX

A4500), or

2×16GB

GDDR5

(Dual Quadro

P5000)

Single

A4500:

19.35

TFLOPS

@FP32);

Single

P5000:

6.49

TFLOPS

@FP32

NVIDIA

dual

RTX-A4500

or dual

Quadro-P5000

2×PCIe3.0x8

(P1, P5),

1×PCIe3.0x16

(P2),

4×DP

(P6)

Front

Panel:

2×VGA,

2×DP

Dual

MXM3.1

Radar signal processing

EL12PRCA5B003

6U VPX

10HP

(Conduction

Cooling)

-40℃ ~ +55℃

EL12PRCA5A004

6U VPX

5HP

(Conduction

Cooling)

-20℃ ~

+60℃

16GB

HBM2E

(MR-V50),

or 32GB

HBM2E

(MR-V100)

MR-V100:

295

TOPS

@INT8;

MR-V50:

192

TOPS

@INT8

China

ILUVATAR

MR-V100

or MR-V50

PCIe4.0

x16/x8

(Backward

Compatible

with

PCIe

3.0/2.0/1.0)

2 × HDMI,

2 × DVI,

1×DP

Single

MXM3.1

Type-A

Multi-modal data analysis

EL12PRCA5A005

6U VPX

5HP

(Air Cooling)

0℃ ~

+55℃

8GB

GDDR6

(RTX3070),

or 16GB

GDDR5

(P5000M),

or 8GB

GDDR5

(GTX1070)

RTX3070:

20.3

TFLOPS

@FP32;

P5000M:

6.49

TFLOPS

@FP32;

GTX1070M:

7.42

TFLOPS

@FP32

NVIDIA

RTX3070, or

Quadro-

P5000M or

GTX1070M

PCIe 3.0 ×8

2 × HDMI,

2 × DVI,

1×DP

Single

MXM3.1

Machine vision,

EL12PRCA5A006

3U VPX

5HP

(Air Cooling)

-20℃ ~

+60℃

32GB

LPDDR5 +

64GB

eMMC

64GB

LPDDR5 +

64GB

eMMC

64GB/32GB

Version:

275/200

TOPS

@INT8

NVIDIA

Jetson

AGX

Orin

32GB/64GB

PCIe3.0 x8,

PCIe2.0 x1;

4×GigE,

2×SATA,

RS232,

RS422,

4×GPIO

Front

Panel:

1×HDMI,

1×USB2.0,

1×USB3.0,

1×GigE,

J30J

Debug

Port

M.2

NVMe

Multi-channel video analysis

EL12PRCA5B006

3U VPX

5HP

(Conduction

Cooling)

-40℃ ~

+80℃

EL12PRCA5A007

3U VPX

5HP

(Air Cooling)

0℃ ~

+55℃

12GB

GDDR6

10.94

TFLOPS

@FP32

NVIDIA

RTX3060

PCIe 3.0 x8

(P1);

4×DP

Reserved

(P6)

Front

Panel:

3 × DP

High-

definition

Display

Ports

Single

MXM3.1

Type-B

High-speed image rendering,

EL12PRCA5B007

3U VPX

10HP

(Conduction

Cooling)

0℃ ~

+55℃

EL12PRCA5A008

3U VPX

4HP

(Conduction

Cooling)

-25℃ ~

+80℃

8GB

LPDDR4

+16GB

eMMC

16GB

LPDDR4

+16GB

eMMC

TOPS

@INT8

NVIDIA

Jetson

Xavier

1×GigE,

1×RS422

Front

Panel:

1×HDMI,

2×Micro

USB2.0,

1×Type-C

Debug

Port

M.2

NVMe

Lightweight edge AI detection

EL12PRCA5A009

3U VPX

5HP

(Air Cooling)

0℃ ~

+55℃

32GB

LPDDR4 +

32GB

eMMC

TOPS

@INT8

NVIDIA

Jetson

AGX

Xavier

PCIe3.0x8;

4×GigE,

2×SATA,

RS232,

RS485,

4×GPIO,

SPI,

I2C

Front

Panel:

1×HDMI,

2×USB2.0/3.0,

1×RS232

M.2

NVMe

Real-time video analytics

EL12PRCA5A010

3U VPX

5HP

(Conduction

Cooling)

-40℃ ~

+70℃

4GB

LPDDR4 +

16GB

eMMC

TFLOPS

@FP32

NVIDIA

Jetson

TX2

PCIe3.0

Switch

with

PCIe2.0x4

+PCIe1.0,

2×GigE,

1×RS422

1×HDMI,

1×USB2.0

OTG,

2×USB3.0,

6×MIPI

CSI-2

Camera

Input

Compatible

with

RTG004

RTM

Rear

Transition

Module

Low-power embedded data acquisition

EL12PRCA5A011

6U OpenVPX

5HP

(Conduction /

Air Cooling,

Fanless)

0℃~+60℃

-40℃~+60℃

None on carrier; Ref: 32GB GDDR5 (2× NVIDIA P5000, GPU optional)

Ref: 12988

GFLOPS

FP32

(2× NVIDIA

P5000,

GPU

optional)

Carrier only;

Ref: 2× P5000

(default,

17 NVIDIA,

9 AMD,

7 domestic

MXM GPU

optional)

P1:

PCIe3.0 ×8;

P2:

PCIe3.0 ×16;

P5:

PCIe3.0 ×8

Front:2×DP,2×VGA; Rear:DP/HDMI/DVI (MXM VBIOS dependent)

Dual MXM3.1

Type A/Type B

Rugged HPEC,

Edge AI

EL12PRCA5A012

6U OpenVPX

5HP

(Conduction /

Air Cooling,

Fanless)

0℃~+60℃

-40℃~+60℃

None on carrier; Ref: 16GB GDDR5 (1× NVIDIA P5000, GPU optional)

Ref: 6494

GFLOPS

FP32

(1× NVIDIA

P5000,

GPU

optional)

Carrier only;

Ref: 1× P5000

(default,

17 NVIDIA,

9 AMD,

9 domestic

MXM GPU

optional)

P1:

PCIe3.0 ×8

Front:1×HDMI; Rear:5×DP/HDMI/DVI (MXM VBIOS dependent)

Single MXM3.1

Type A/Type B

Rugged HPEC,

Edge AI

EL12PRCA5A013

3U OpenVPX

5/6HP

(Conduction /

Air Cooling,

Fanless)

-20℃~+60℃

-40℃~+60℃

None on carrier; Ref: 16GB GDDR5 (1× NVIDIA P5000, GPU optional)

Ref: 6494

GFLOPS

FP32

(1× NVIDIA

P5000,

GPU

optional)

Carrier only;

Ref:1× P5000

(default,

12 NVIDIA,

9 AMD,

11 domestic

MXM GPU

optional)

P0:

+12V & IPMI;

P1:

PCIe4.0 ×8;

P2:

5×DP/

HDMI/DVI

Front:1×DP; Rear:5×DP/HDMI/DVI (MXM VBIOS dependent)

Single MXM3.1

Type A/Type B

Rugged HPEC,

Edge AI

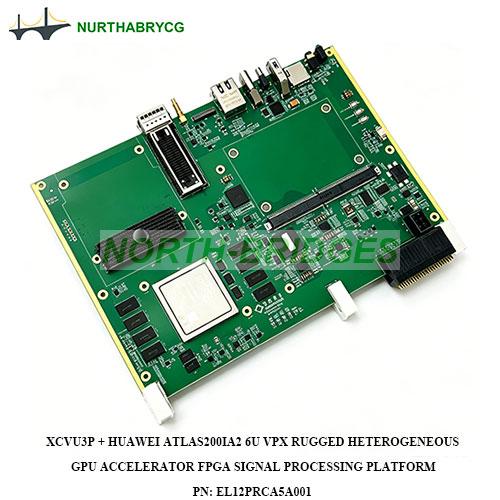

PN.: EL12PRCA5A001


Specifications

Form Factor			6U VPX, 5HP
Chip			XCVU3P + HUAWEI ATLAS-200I-A2
AI Peak Performance			20 TOPS@INT8
Memory			FPGA: 8GB DDR4
			GPU: Max 12GB LPDDR4 + Max 64GB eMMC
High-speed Interface			FPGA: PCIe3.0 x8 Serdes to P1
			GPU: PCIe3.0 x4 + SPI to P1
Optical/IO Interface			1 x QSFP28, GigE, HDMI, USB3.0, MIPI DSI, SD Card, Type-C JTAG, SSMC
Expansion Interface			1 × HSPC, VITA57.4 FMC+
Operating Temp			0℃ ~ +55℃

Block Diagram

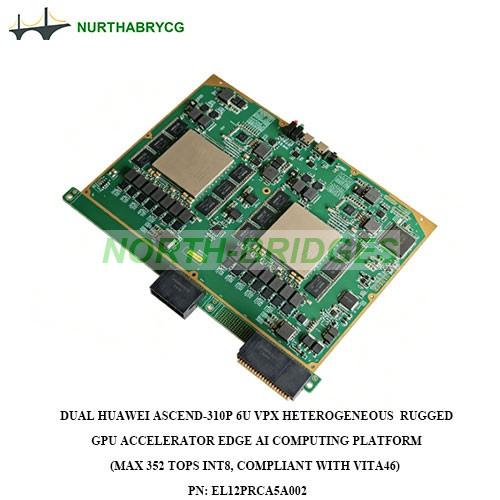

PN.: EL12PRCA5A002


Specifications

Form Factor			6U VPX, 7HP
Chip			Dual HUAWEI ASCEND 310P
AI Peak Performance			352 TOPS@INT8, 176 TOPS@FP16
Memory			96GB LPDDR4
High-speed Interface			2 × PCIe 4.0 x16 (Compatible with PCIe 3.0/2.0 x8/x4)
Optical/IO Interface			2 × Type-C Debug Ports, 1 Reset Switch, Indicators
Expansion Interface			Inter-NPU: 8 x HCCS
Operating Temp			-43℃ ~ +65℃

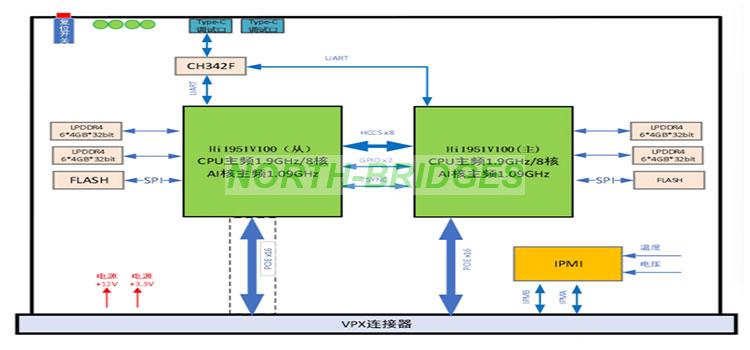

Block Diagram

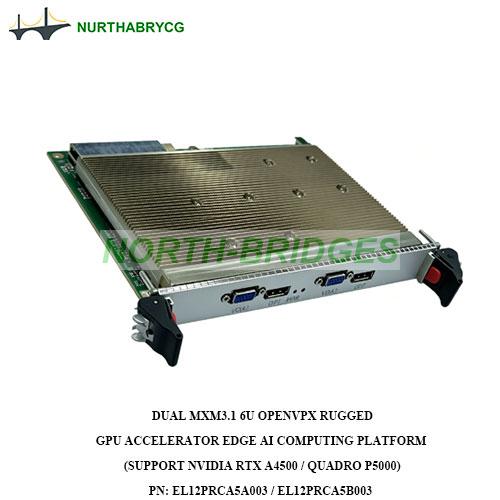

PN.: EL12PRCA5A003 / EL12PRCA5B003


Specifications

Form Factor			6U OpenVPX, 5HP (Air Cooling) / 10HP (Conduction Cooling)
Chip			Dual NVIDIA RTX-A4500 or Quadro-P5000
AI Peak Performance			Single A4500: 19.35 TFLOPS@FP32
			Single P5000: 6.49 TFLOPS@FP32
Memory			2× A4500: 2×16GB GDDR6
			2× P5000: 2×16GB GDDR5
High-speed Interface			2×PCIe3.0 x8 (P1, P5), 1×PCIe3.0 x16 (P2), 4×DP (P6)
Optical/IO Interface			Front Panel: 2×VGA, 2×DP
Expansion Interface			Dual MXM3.1
Operating Temp			5HP: 0℃ ~ +55℃
			10HP: -40℃ ~ +55℃

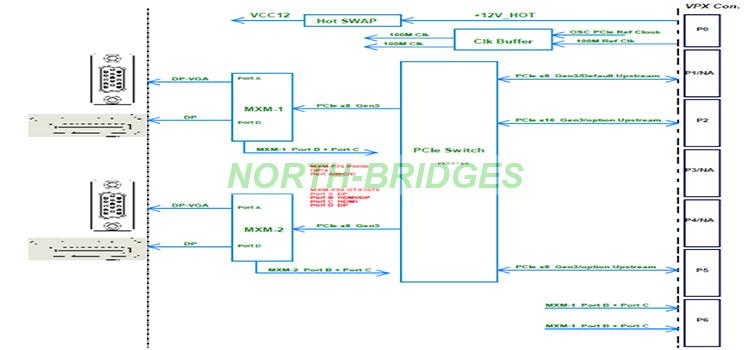

Block Diagram

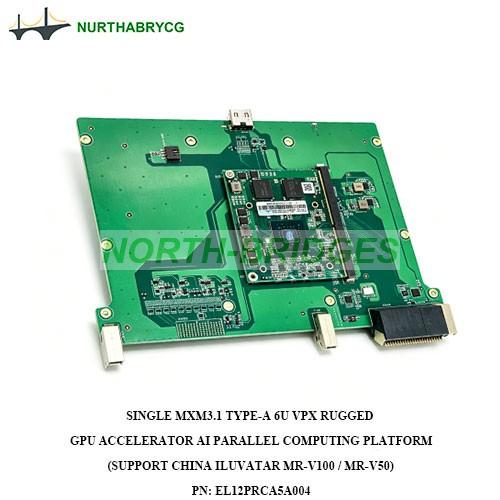

PN.: EL12PRCA5A004


Specifications

Form Factor			6U VPX, 5HP
Chip			China ILUVATAR MR-V100 or MR-V50
AI Peak Performance			MR-V100: 295 TOPS@INT8
			MR-V50: 192 TOPS@INT8
Memory			MR-V100: 32GB HBM2E
			MR-V50: 16GB HBM2E
High-speed Interface			PCIe 4.0 x16/x8 (Backward Compatible with PCIe3.0/2.0/1.0)
Optical/IO Interface			Front Panel: 1 × HDMI
Expansion Interface			Single MXM3.1 Type-A Slot
Operating Temp			-20℃ ~ +60℃

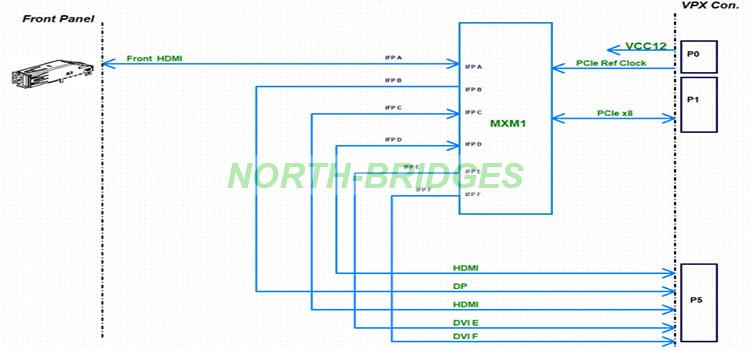

Block Diagram

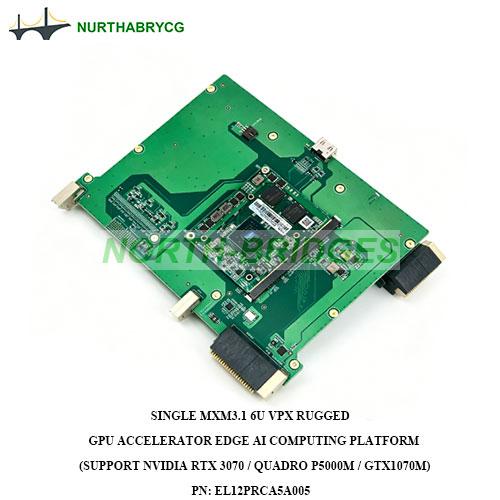

PN.: EL12PRCA5A005


Specifications

Form Factor			6U VPX, 5HP
Chip			NVIDIA RTX3070 or Quadro P5000M or GTX1070M
AI Peak Performance			RTX3070: 20.3 TFLOPS@FP32
			P5000M: 6.49 TFLOPS@FP32
			GTX1070M: 7.42 TFLOPS@FP32
Memory			RTX3070: 8GB GDDR6
			P5000M: 16GB GDDR5
			GTX1070M: 8GB GDDR5
High-speed Interface			PCIe 3.0 ×8
Optical/IO Interface			Front Panel: 1 × HDMI
Expansion Interface			Single MXM3.1 slot
Operating Temp			0℃ ~ +55℃

Block Diagram

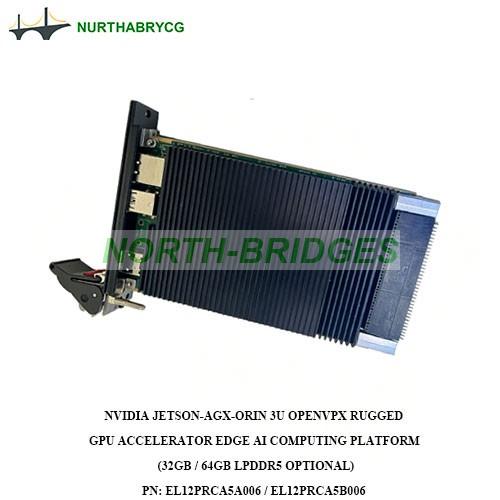

PN.: EL12PRCA5A006 / EL12PRCA5B006


Specifications

Form Factor			3U OpenVPX, 5HP (Conduction / Air Cooling)
Chip			NVIDIA Jetson AGX Orin (Optional 64/32 GB Version)
AI Peak Performance			64 / 32 GB Version: 275 / 200 TOPS@INT8
Memory			64 / 32 GB LPDDR5
High-speed Interface			PCIe3.0 x8, PCIe2.0 x1; 4×GigE, 2×SATA, RS232, RS422, 4×GPIO
Optical/IO Interface			Front Panel: 1×HDMI, 1×USB2.0,1×USB3.0,1×GigE, J30J
Expansion Interface			M.2 NVMe
Operating Temp			(Air Cooling): -20℃ ~ +60℃
			(Conduction Cooling): -40℃ ~ +80℃

Block Diagram

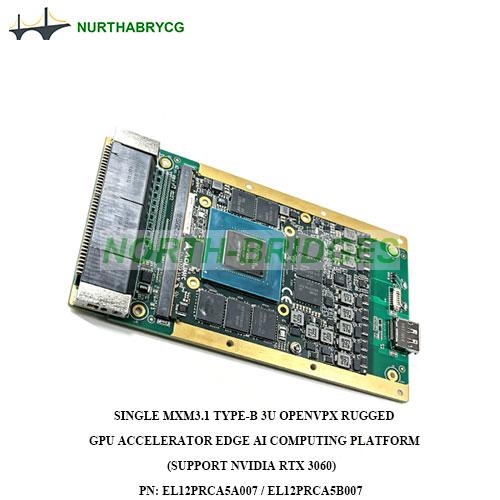

PN.: EL12PRCA5A007 / EL12PRCA5B007


Specifications

Form Factor			3U OpenVPX, 5HP (Air Cooling)/10HP (Conduction Cooling)
Chip			NVIDIA RTX 3060
AI Peak Performance			10.94 TFLOPS@FP32
Memory			12GB GDDR6
High-speed Interface			PCIe 3.0 x8 (P1); 4×DP Reserved (P6)
Optical/IO Interface			Front Panel: 3 × DP Display Ports
Expansion Interface			Single MXM3.1 Type B
Operating Temp			5HP: 0℃ ~ +55℃
			10HP: 0℃ ~ +55℃

Block Diagram

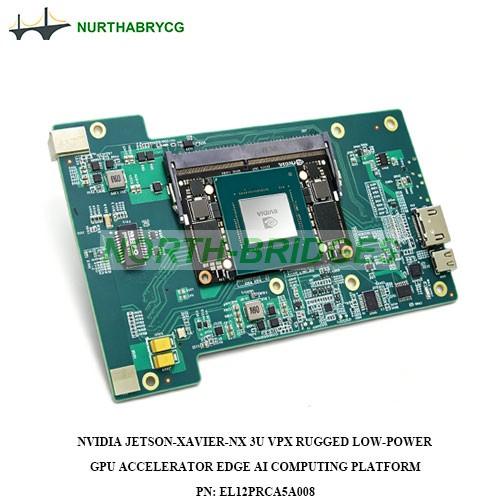

PN.: EL12PRCA5A008


Specifications

Form Factor			3U VPX, 4HP
Chip			NVIDIA Jetson Xavier NX
AI Peak Performance			21 TOPS@INT8
Memory			16GB or 8GB LPDDR4
High-speed Interface			1×GigE, 1×RS422
Optical/IO Interface			Front Panel: 1×HDMI, 2×Micro USB2.0, 1×Type-C Debug Port
Expansion Interface			M.2 NVMe
Operating Temp			-25℃ ~ +80℃

Block Diagram

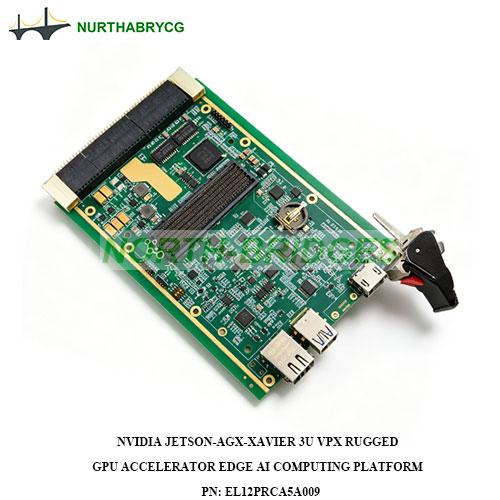

PN.: EL12PRCA5A009


Specifications

Form Factor			3U VPX, 5HP (Air Cooling)
Chip			NVIDIA Jetson AGX Xavier
AI Peak Performance			32 TOPS@INT8
Memory			32GB LPDDR4x

Block Diagram

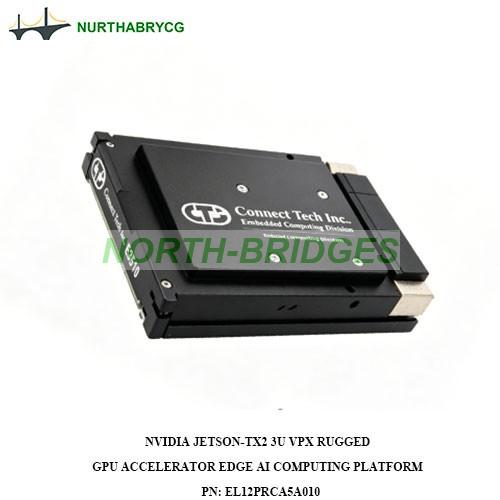

PN.: EL12PRCA5A010


Specifications

Form Factor			3U OpenVPX, 5HP (Conduction Cooling)
Chip			NVIDIA Jetson TX2
AI Peak Performance			1 TFLOPS
Memory			4GB LPDDR4

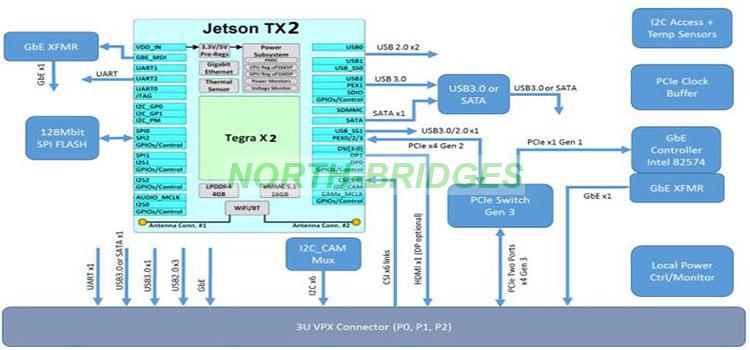

Block Diagram

PN.: EL12PRCA5A011

Compatible GPUs: NVIDIA: GTX1080ti/1070m/1060/1050ti, P1000/P2000/P3000/P5000/P6, RTX2060/3000/3070/3080/4090/5000/5050/5060;

AMD: E8860/E9171/E9172/E9174/RX480/RX550/R520/R5 230/R7 340


Specifications

VPX Profile			OpenVPX MOD6-PER-4F-12.3.1-3
MXM			Dual MXM3.1 Type A / B
BackPlane			PCIe Gen3: P1 ×8, P2 ×16, P5 ×8
Front Display I/O			2×DP, 2×VGA
Rear Display I/O			DP/HDMI/DVI, depends on MXM VBIOS
Supported OS			Windows7/10, Linux, VxWorks, Domestic OS
Dimension			160.00 × 233.35 mm (6U 5HP)

Block Diagram


PN: EL12PRCA5A012

Compatible GPUs: (the same than PN.: EL12PRCA5A011)


Specifications

VPX Profile			MOD6-PER-4F-12.3.1-3
MXM			Single MXM3.1 Type A / B
Backplane			P1: PCIe3.0 ×8 Gen3
Front I/O			1×HDMI
Rear I/O			5×DP/HDMI/DVI (MXM VBIOS dependent)
Supported OS			Windows7/10, Linux, VxWorks, Domestic OS
Dimension			160.00 × 233.35 mm (6U 5HP)

Block Diagram


PN.: EL12PRCA5A013

Compatible GPUs: NVIDIA：GTX1070/1060/1050ti/1080/2060, P1000/2000/3000/5000, A4500/RTX3080/4090;

AMD: E8860/E9171/E9172/E9174/RX480/RX550/R520/R5 230/R7 340


Specification

MXM			Single MXM3.1 Type A / B
Backplane			P0: +12V & IPMI
			P1: PCIe4.0 ×8 Gen4
			P2:5×DP/HDMI/DVI
Front I/O			1×DP
Rear I/O			5×DP/HDMI/DVI (MXM VBIOS dependent)
Supported OS			Windows7/10, Linux, VxWorks, Domestic OS
Dimension			160.00 × 100.00 mm (3U 5/6HP)

Block Diagram


PREVIOUS：VPX High‑Bandwidth Optical FPGA Boards NEXT：VPX Power Supplies

INQUIRY

WhatsApp:

Email:

Content:

VPX GPU Accelerator Edge AI Computing Boards

INQUIRY

RELATED PRODUCTS

CATEGORIES

LATEST NEWS

CONTACT US
