VPX High‑Bandwidth Optical FPGA Boards

VPX High‑Bandwidth Optical FPGA Boards

Our VPX optical FPGA boards adopt high-performance FPGA architecture with abundant high-speed optical transceivers and GTY interfaces. Designed for low-latency, large-bandwidth data transmission, these rugged platforms support long-distance data interconnection and distributed data processing, suitable for high-speed test measurement, optical communication and massive data recording applications.

Product Selction Table (6U VPX)

Product Selction Table (3U VPX)

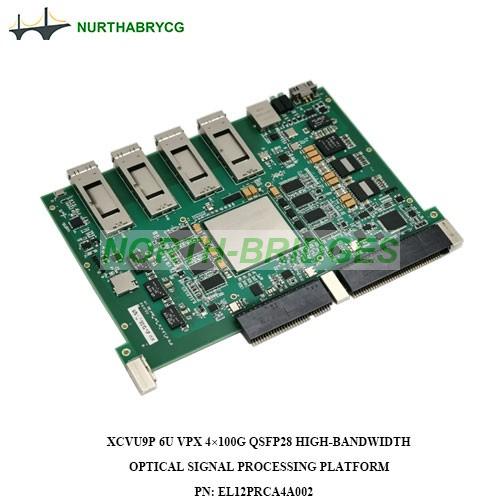

PN.: EL12PRCA4A002

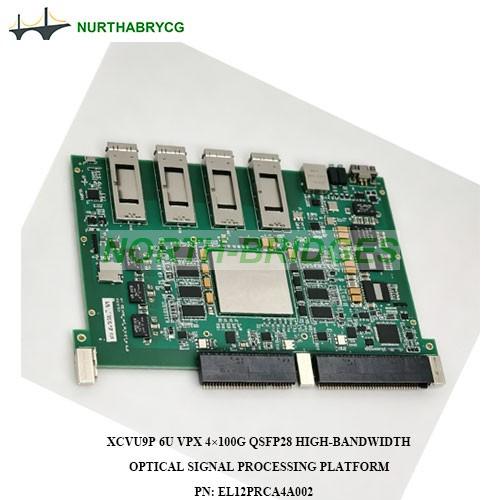

XCVU9P 6U VPX 4×100G QSFP28 High-Bandwidth Optical Signal Processing Platform

Key Features

XCVU9P Virtex UltraScale+ high-performance FPGA

4×QSFP28 100G bidirectional optical ports, backward compatible with 40G/10G, supporting RoCEv2, SRIO Gen2, Aurora

16GB total onboard DDR4-2600 high-speed memory

6U VPX conduction-cooled design with multi-lane PCIe 3.0 backplane interfaces

Integrated Gigabit Ethernet and RS422 control interfaces

Equipped with status indicators and Mini USB JTAG debug port

Wide temperature range for harsh embedded deployment

Specifications

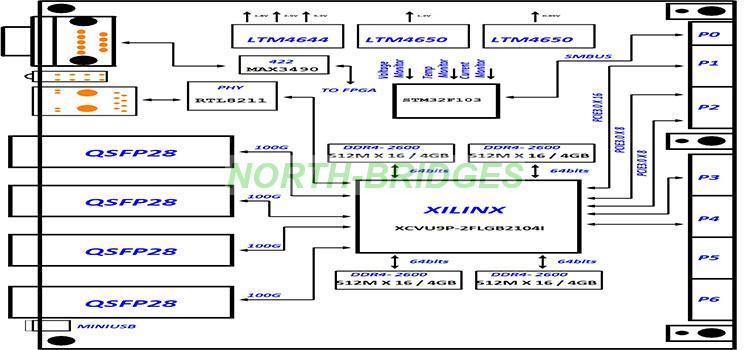

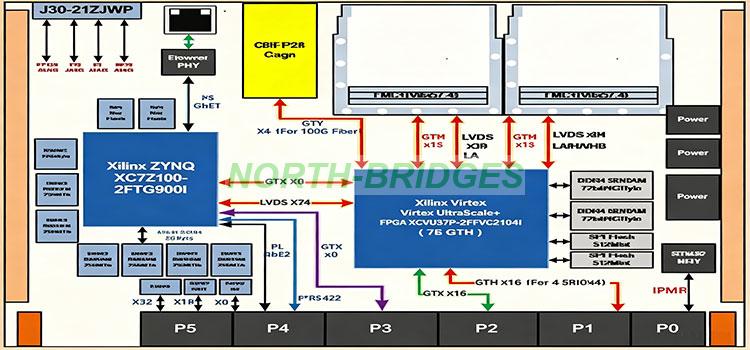

Block Diagram

Applications

High-speed embedded data gateway, Mass data acquisition, recording and playback, Broadband test & measurement systems, Rugged industrial high-bandwidth optical interconnection

PN.: EL12PRCA4A001

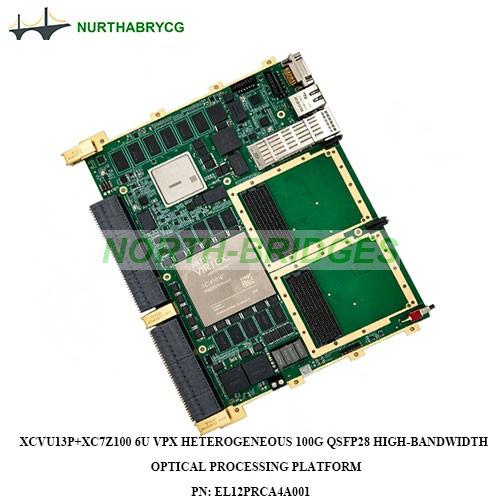

XCVU13P+XC7Z100 6U VPX Heterogeneous 100G QSFP28 High-Bandwidth Optical Processing Platform

Key Features

High-performance heterogeneous dual-core architecture: Xilinx XCVU13P main high-density FPGA paired with XC7Z100 Zynq SoC for powerful collaborative data processing and algorithm scheduling

2×72-bit DDR4 (total 8GB) for high-speed data buffering; 3GB total DDR3 + 32GB eMMC on Zynq side

1×QSFP28 100G optical port plus dual FMC+ HPC expansion slots for flexible large-bandwidth I/O extension

Abundant GTY/GTX high-speed backplane transceivers, dual Gigabit Ethernet and multi-channel RS422/LVDS differential interfaces

Onboard MCU with IPMB system health monitoring for real-time equipment status reporting

Standard 6U VPX air-cooled design, wide temperature range from -40℃ to +85℃, rugged anti-vibration construction

Compliant with VITA46 specification, equipped with standard debug connectors for rapid customized secondary development

Specifications

Block Diagram

Applications

Rugged embedded heterogeneous signal processing, High-speed data acquisition, caching and playback, Scalable industrial test & measurement platforms, Distributed high-bandwidth data transmission systems, Equipment health monitoring and control systems

PN.: EL12PRCA4A003

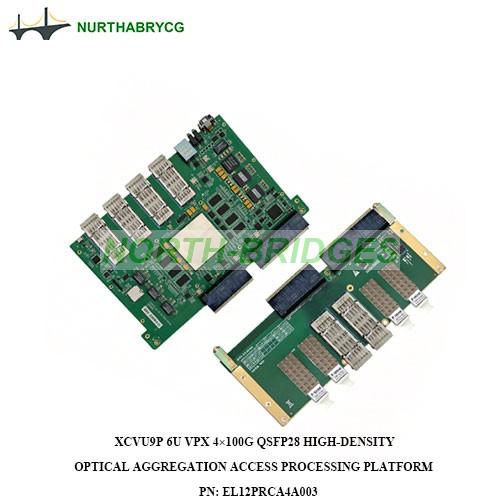

XCVU9P 6U VPX 4×100G QSFP28 High-Density Optical Aggregation Access Processing Platform

Key Features

Xilinx XCVU9P high-performance FPGA, customized for massive fiber signal aggregation and distributed high-bandwidth data computing

4×QSFP28 100G front-panel bidirectional optical ports, equipped with 28 dedicated backplane GTY high-speed transceivers for large-scale system interconnection

4-channel 64-bit DDR4-2600 high-speed memory, total 16GB capacity to support mass real-time data buffering

Standard PCIe 3.0 backplane topology: 1×PCIe3.0 x16 + 2×PCIe3.0 x8, providing abundant high-speed data transmission channels

Integrated Gigabit Ethernet, USB debug interface, RS232 serial port and GPIO for convenient system configuration and equipment maintenance

Rugged 6U VPX industrial architecture, stable and reliable for large-capacity optical data forwarding scenarios

Specifications

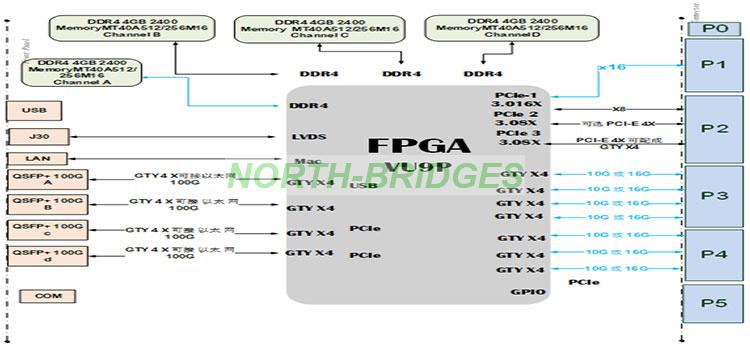

Block Diagram

Applications

Large-scale fiber signal access & aggregation, Distributed embedded high-throughput data computing, High-bandwidth optical transmission gateway, Multi-node system data forwarding & scheduling

PN.: EL12PRCA4A004

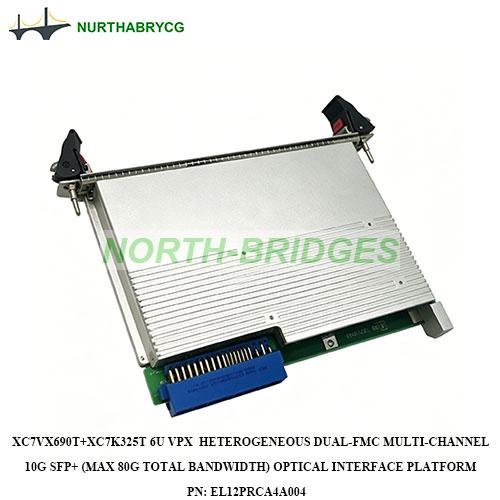

XC7VX690T+XC7K325T 6U VPX  Heterogeneous Dual-FMC Multi-channel 10G SFP+ (Max 80G Total Bandwidth) Optical Interface Platform

Key Features

Adopts heterogeneous dual-FPGA collaborative architecture: Xilinx XC7VX690T serves as main high-bandwidth data processing core, while XC7K325T acts as auxiliary controller for peripheral management and system scheduling

Dual FMC HPC expansion connectors compliant with VITA57.1 standard, realizing flexible external high-speed signal extension via MGT transceivers

Configurable 4/6/8-channel SFP+ optical ports, 10Gbps per lane, supporting a maximum total bandwidth of 80G

Equipped with 4GB onboard DDR3 cache and 2×PCIe3.0 x8 backplane high-speed transmission interfaces

Integrated 156.25MHz low-skew high-precision LVDS differential oscillator to guarantee stable high-speed signal transmission

Commercial & industrial wide temperature versions are available for diversified rugged embedded deployment scenarios

Specifications

Block Diagram

Applications

Multi-channel embedded fiber interconnection, Switch & router bus verification platform, Enterprise high-speed data storage systems, High-density high-speed IO expansion & communication, Optical network development and performance testing

PN.: EL12PRCA4A005

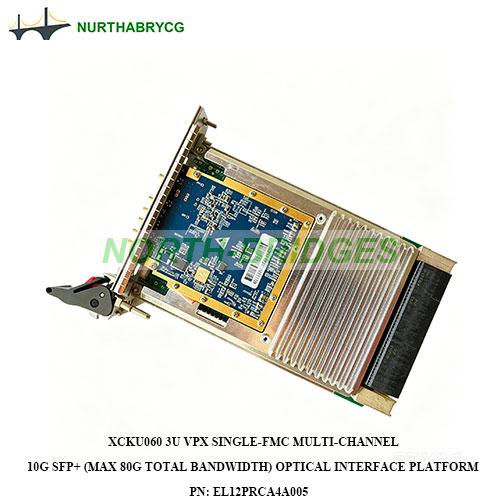

XCKU060 3U VPX Single-FMC Multi-channel 10G SFP+ (Max 80G Total Bandwidth) Optical Interface Platform

Key Features

Adopts Xilinx Kintex UltraScale FPGA XCKU060, pin compatible with XCKU025/035/040/095 series, equipped with single FMC HPC interface compliant with VITA57.1

Configurable 4/6/8-channel SFP+ optical ports with maximum 10Gbps per channel, total bandwidth up to 80G

Compliant with VITA57.1 standard, equipped with 156.25MHz low-skew LVDS precision oscillator

High-speed x4 GTX interconnection plus dedicated IIC/SPI control bus for stable data transmission

Onboard EEPROM for hardware information storage and equipment identification

Supports commercial & industrial wide temperature versions for diverse embedded deployment scenarios

Specifications

Block Diagram

Applications

Multi-channel embedded fiber interconnection, Network bus & switching equipment verification, Enterprise high-speed storage systems, High-density high-speed I/O communication, Optical network development and testing

Ordering
